Type A :

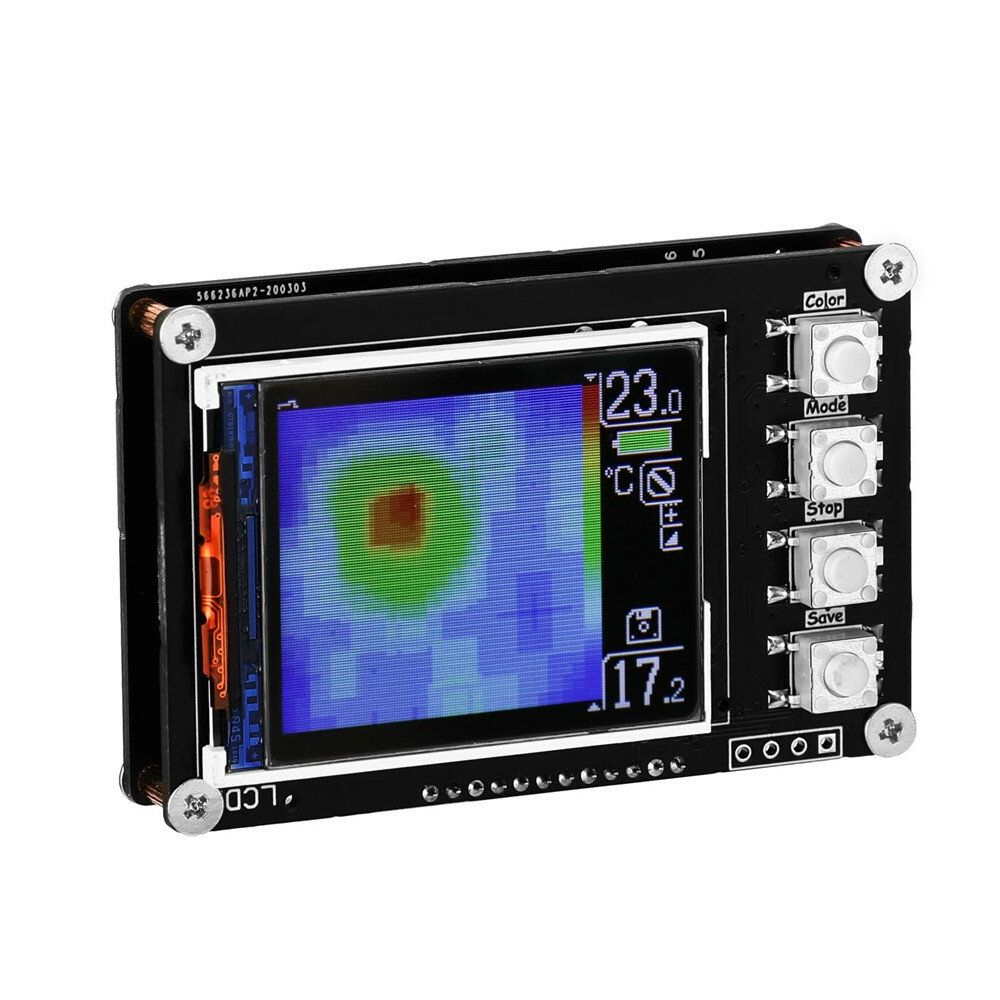

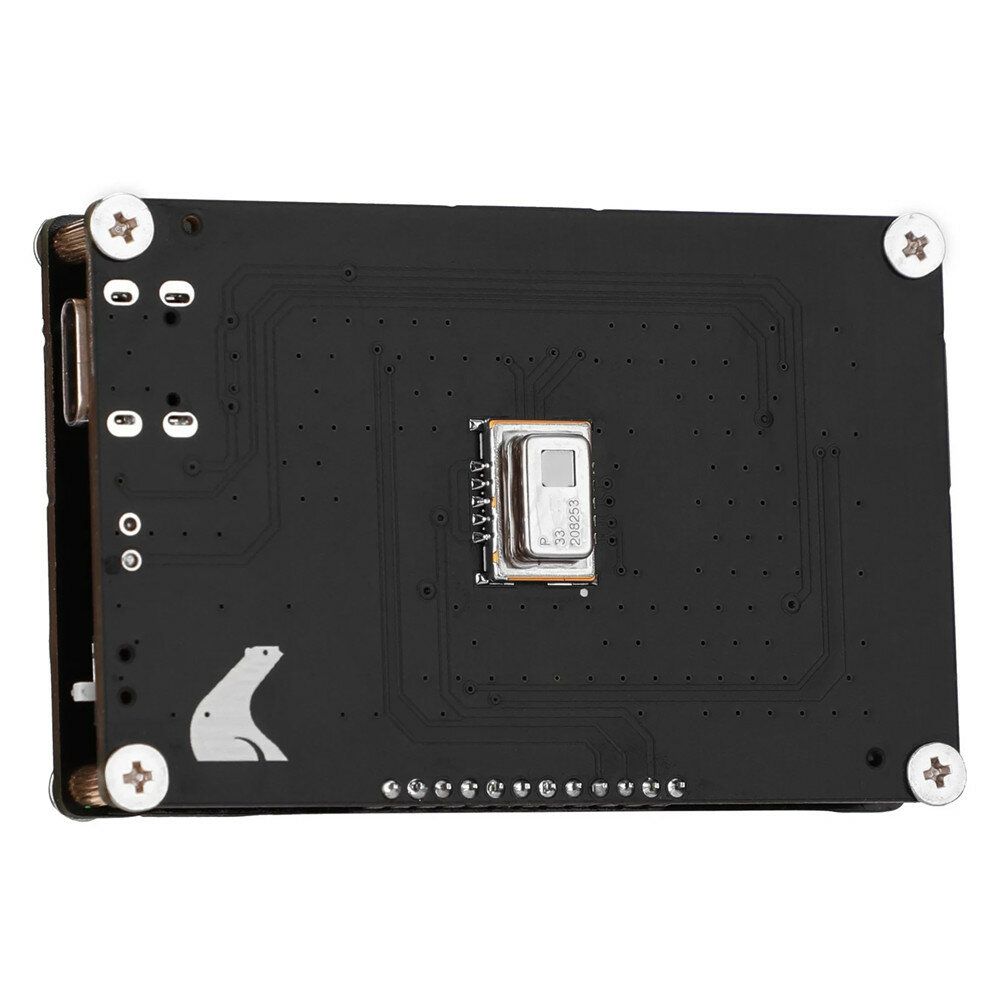

HY-8833pro New Infrared Thermal Imager Handheld Thermal Camera Support SD Card Insert
Descriptions:
According to the data sheet, the farthest detection distance of the sensor is 7 meters.
1. Sensor resolution 8*8 display resolution 160*128 1.6 inch TFT display
2. Support external power supply USB Micro interface power supply, charging.
4. Support TF card (FAT format) Storage It can be used to store screenshots, display screen capture file names, and can view screenshots on the system. Each screenshot is about 60kb.
5. Sensor temperature range 0-80 degrees, temperature error plusmn; 3 degrees Exceeding the temperature range, the maximum and minimum values are displayed 0 degrees, indicating that the range is exceeded.
6. Sensor data refresh rate 10hz
Application scenarios: circuit board maintenance, fault detection, food and food temperature measurement, industrial site troubleshooting, etc.
Specifications:

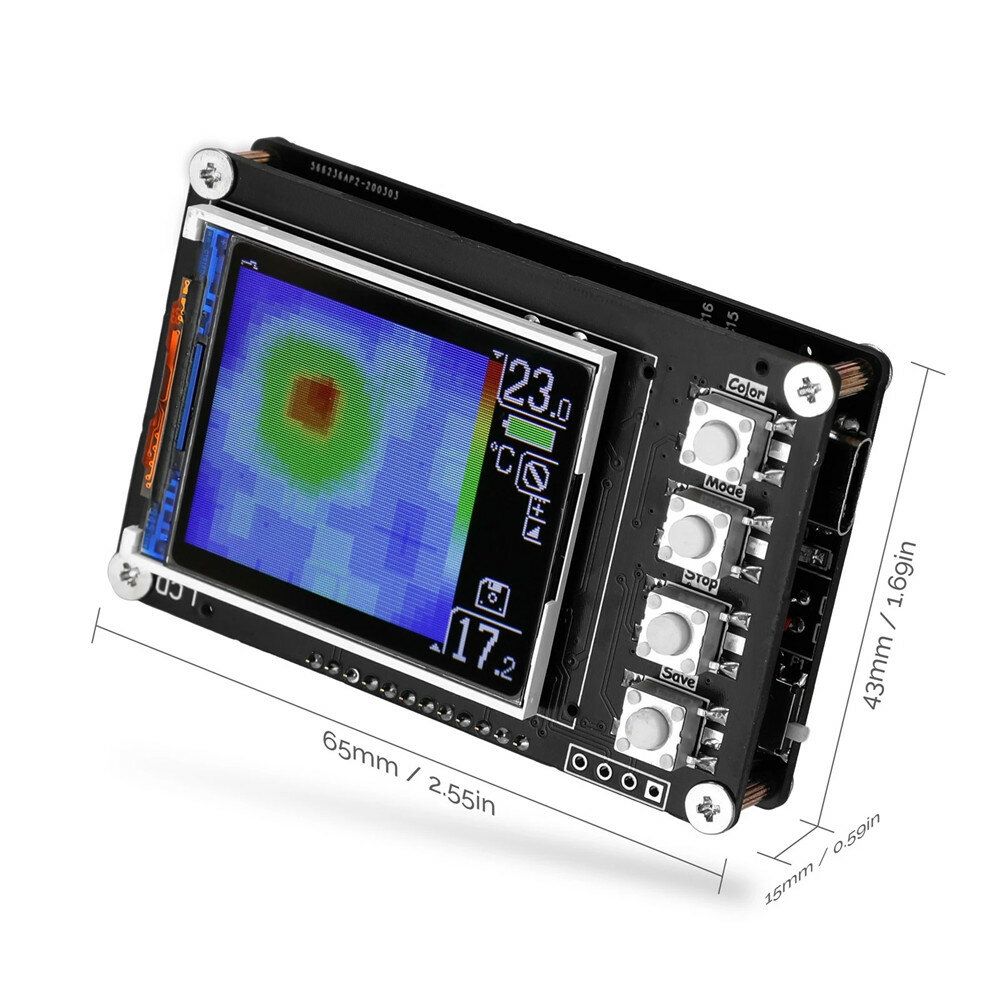

Material: PCBSensors data refresh rate: 10HzSensors temperature measuring ran-ge: 0~80℃ size: 66 * 43 * 11mm / 2.6 * 1.7 * 0.4in weight: 41g / 1.4ounce
Note: PCB board is Black
Package Include:
1 x Thermal Imager
Details Pcitures:
Type B:

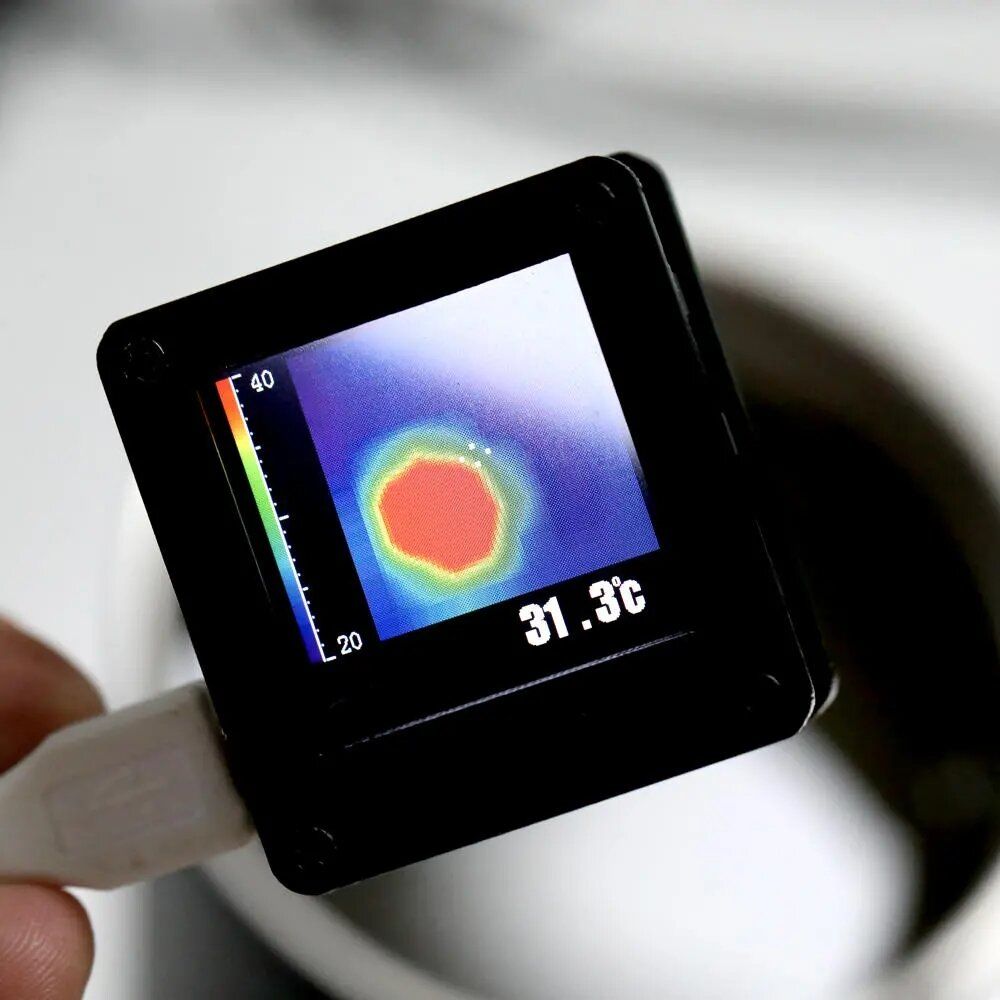

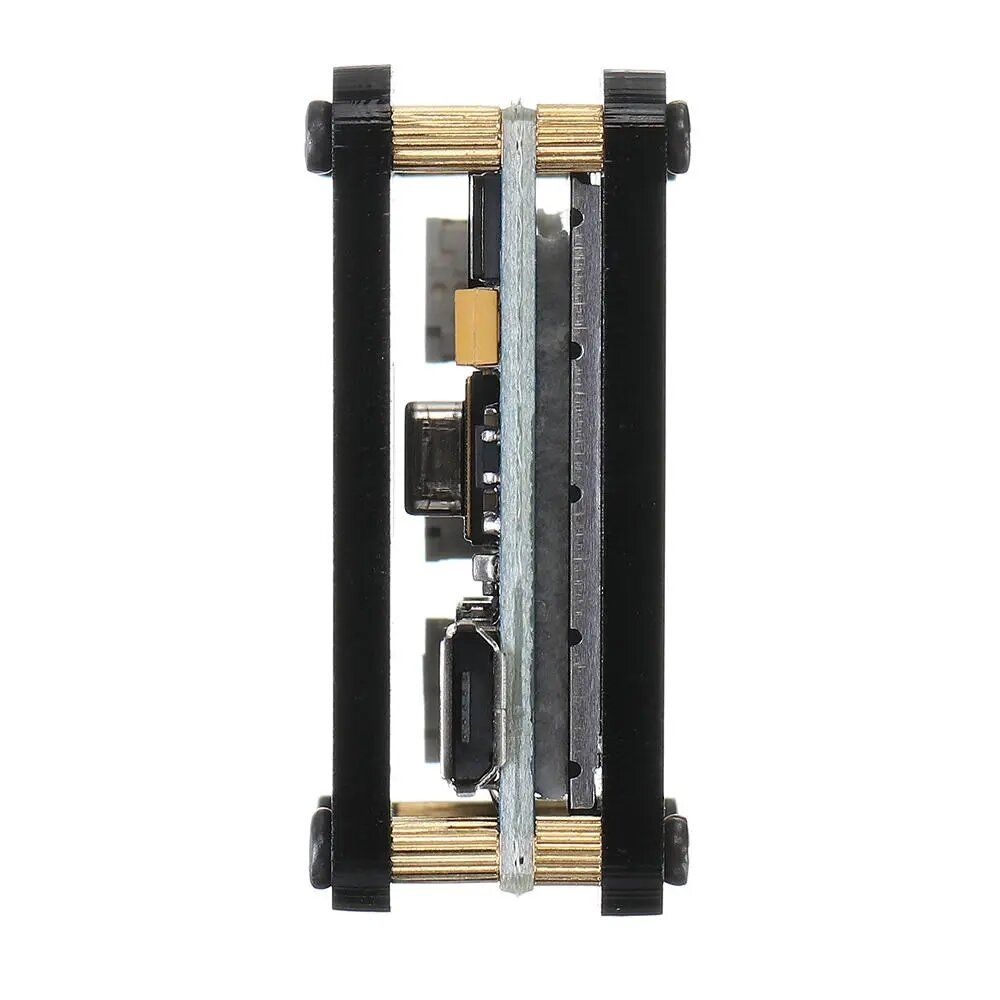

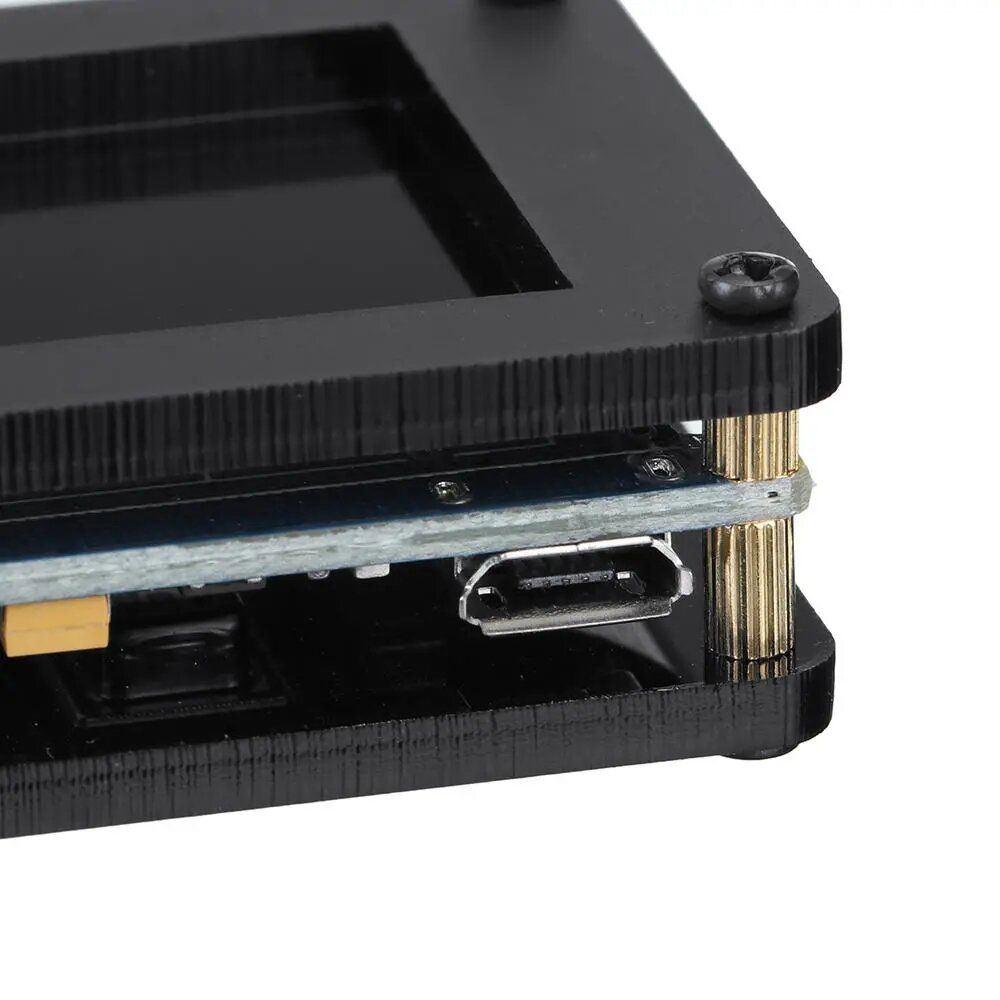

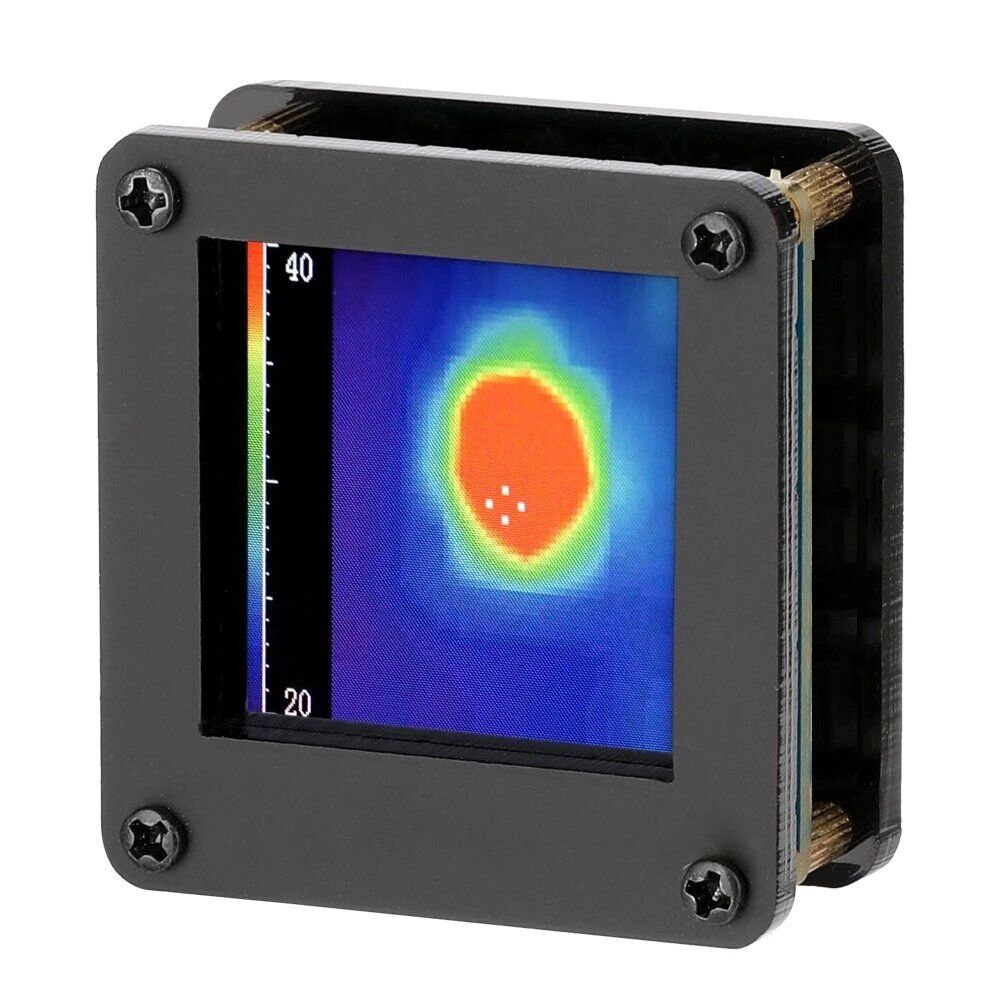

AMG8833 IR 8x8 Infrared Thermal Imager Array Temperature Sensor 7M Farthest Detection Distance
Features:
The module can be powered directly by USB 5V to produce infrared images.
Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.
It can be applied to check electronic products.
Portable and compact, high performance, easy to use.
Specifications:
Material: PCB
Temperature accuracy:
High performance type high gain: typical plusmn;2.5℃ plusmn;4.5℉
High performance type low gain: typical plusmn;3.0℃ plusmn;5.4℉
Human detection distance: 7m or less (reference value) 22.966 ft
NETD:
Typ. 0.05℃ 32.900℉ 1Hz
Typ. 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60 deg;
Optical axis gap: within typical plusmn;5.6 deg;
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand-by mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixel: 64 (vertical 8 * horizontal 8 matrix)
External interface: 12C (fast mode)
Frame rate: typical 10 frames/sec or 1 frame/sec
Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)
Output mode: temperature output
Calculate mode: no moving average or twice moving average
Temperature output resolution: 0.25℃ / 32.45℉
Number of sensor address: 2 (12C slave address)
Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)
Thermistor output resolution: 0.0625℃ / 32.1125℉
size: 42 * 37mm / 1.7 * 1.5in
weight: 10g / 0.4ounce
Package size: 90 * 60 * 8mm / 3.5 * 2.4 * 0.3in
Package weight: 11g / 0.4ounce
Package Includes:
1 x AMG8833 Thermal Imager
Detail Pictures:
