Features:

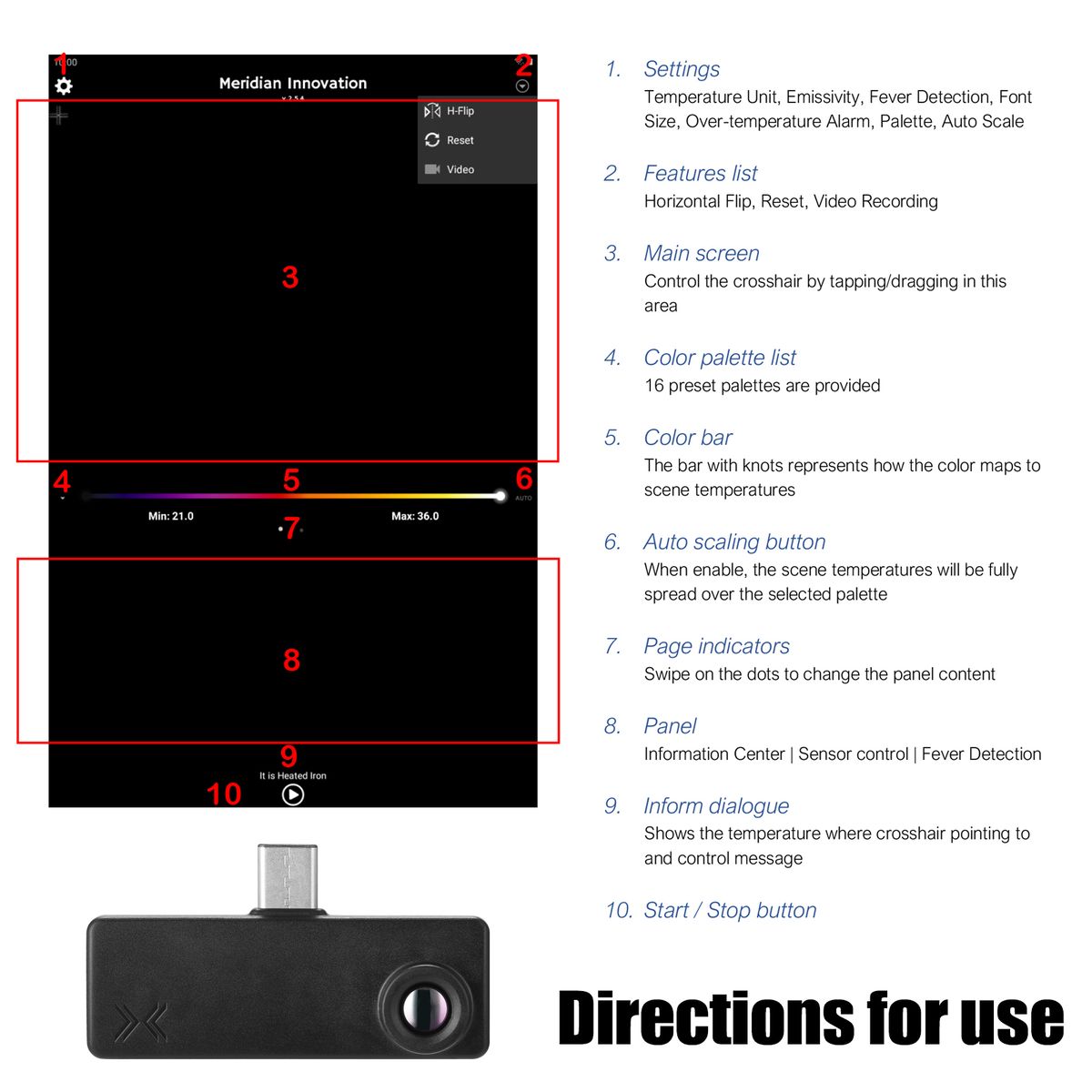

Settings: Temperature Unit, Emissivity, Fever Detection, Font Size, Over-temperature Alarm, Palette, Auto Scale.
Features List: Horizontal Flip, Reset, Video Recording.
Main screen: Control the cross-hair by tapping/dragging in this area.
Color Palette List: 16 preset palettes are provided for visualization purpose, temperature data is not affected.
Color Bar: The bar with knots represents how the color maps to scene temperatures.
Auto Scaling Button: When enable, the scene temperatures will be fully spread over the selected palette.
Page Indicators: Swipe-on the dots to change the panel content.
Panel: Information Center - Sensors control - Fever Detection.
Inform dialogue: Shows the temperature where cross-hair pointing to and control message.
Emissivity: It quantifies the ability of an objects surface to emit long-wave infrared radiation and strongly affects the temperature readout from the XPro. Most of the objects with matt surface is about 0.95 as well as human skin (0.95 ndash; 0.97). Metals tend to have dramatically lower emissivity, sometimes as low as 0.1 according to their surface processing.
Fever Detection (Beta): Assume that a person facing towards the camera, experimentally detect and measure the forehead surface and core temperature with proprietary human modeling. User can control part of the parameters to fine tune the readout in the third page of the panel. This feature can be turned on in the settings. Suggested distance: 0.7m ndash;2.0m.
Filtering: User can control several images filtering to reduce noise level of the temperature data. It gives better performance once these are turned on at run time. Swipes the page indicator to second page, adjust filters by dragging the corresponding bar.
Recording: User can record the video that takes the main screen streaming from the app by clicking Video button. Recorded video will be saved in default DCIM/MeridianInnovation folder that should be able to show in system albums after stop recording.
Specifications:

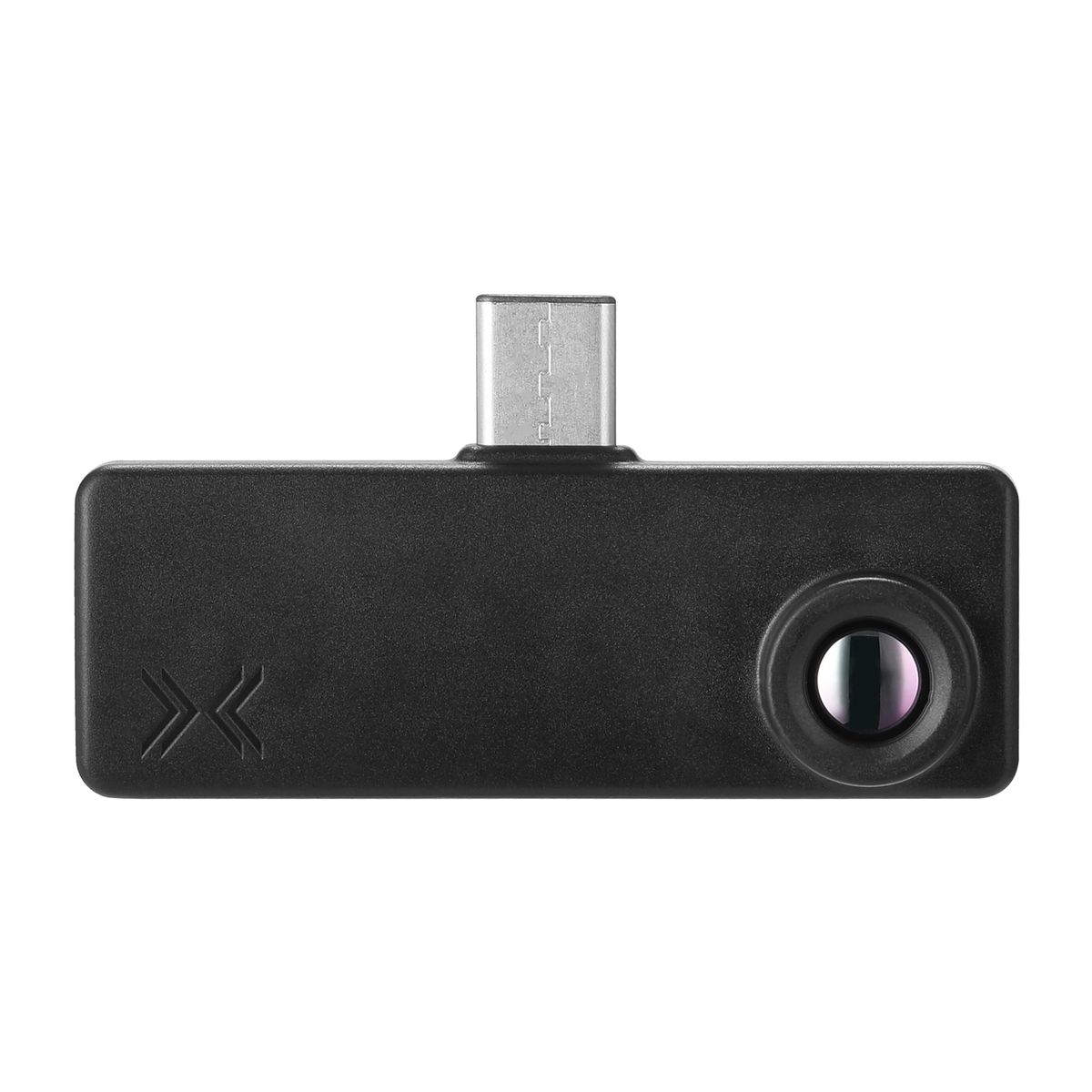

Name: Type-C Infrared Thermal Imager
Material: plastics
Color: black
Resolution: 80*62
FOV (angles in degrees): 44.2 deg;(H), 34.5 deg;(V)
Maximum frame rate: 15 FPS
Max scene temperature range: -40 deg;C to 1000 deg;C
NETD: 150mK
Accuracy up to: plusmn;1℃
Operating temperature: -20℃ to 85℃
Storage temperature: -40 deg;C to 85 deg;C
Power consumption: 300mW
Android-Dongle connector: USB Type-C

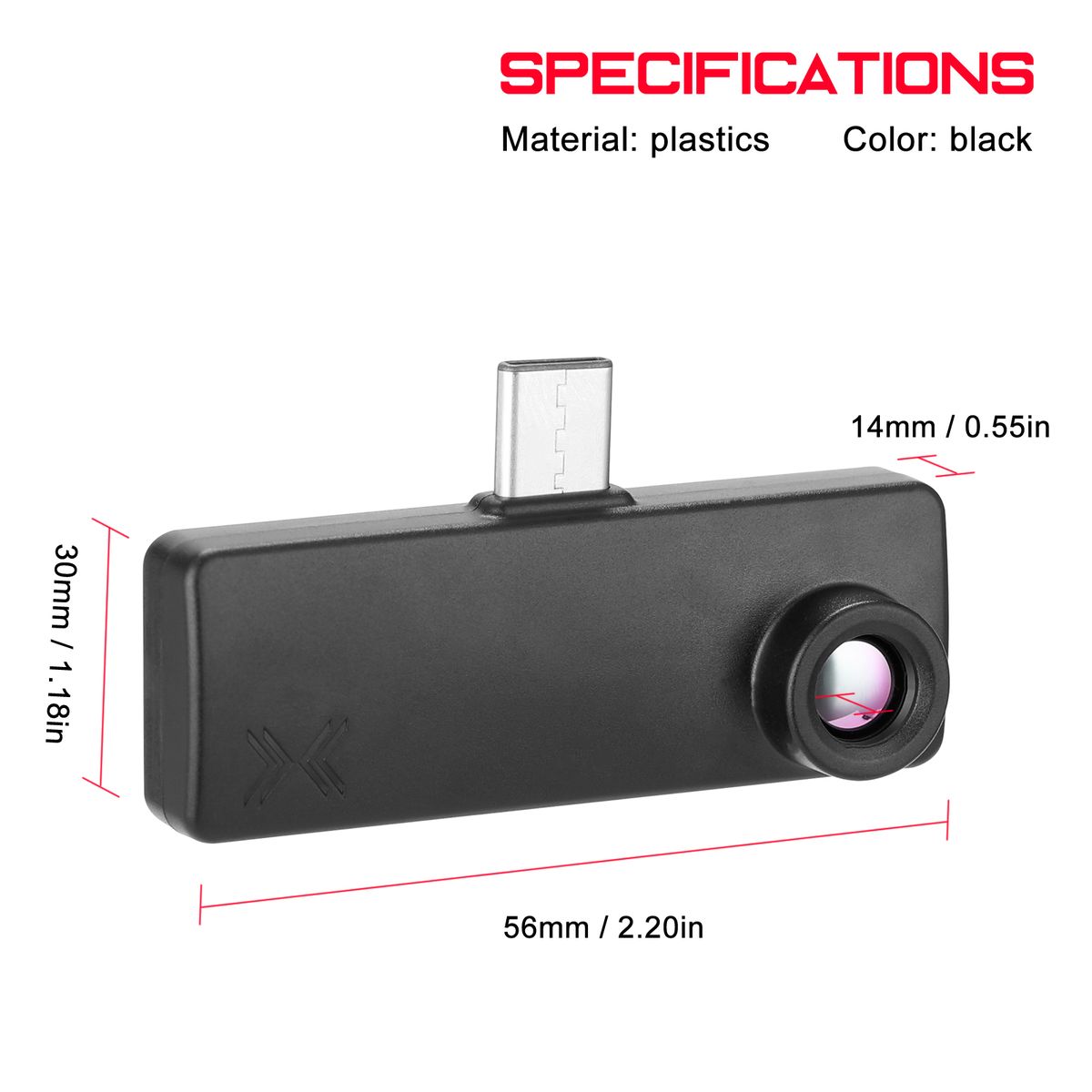

size: 56 * 30 * 14mm / 2.20 * 1.18 * 0.55in
weight: 9g / 0.32ounce
Package size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97in
Package weight: 25g / 0.88ounce
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Settings: Temperature Unit, Emissivity, Fever Detection, Font Size, Over-temperature Alarm, Palette, Auto Scale.
Features List: Horizontal Flip, Reset, Video Recording.
Main screen: Control the cross-hair by tapping/dragging in this area.
Color Palette List: 16 preset palettes are provided for visualization purpose, temperature data is not affected.
Color Bar: The bar with knots represents how the color maps to scene temperatures.
