Buy Noyafa Products online in Nigeria

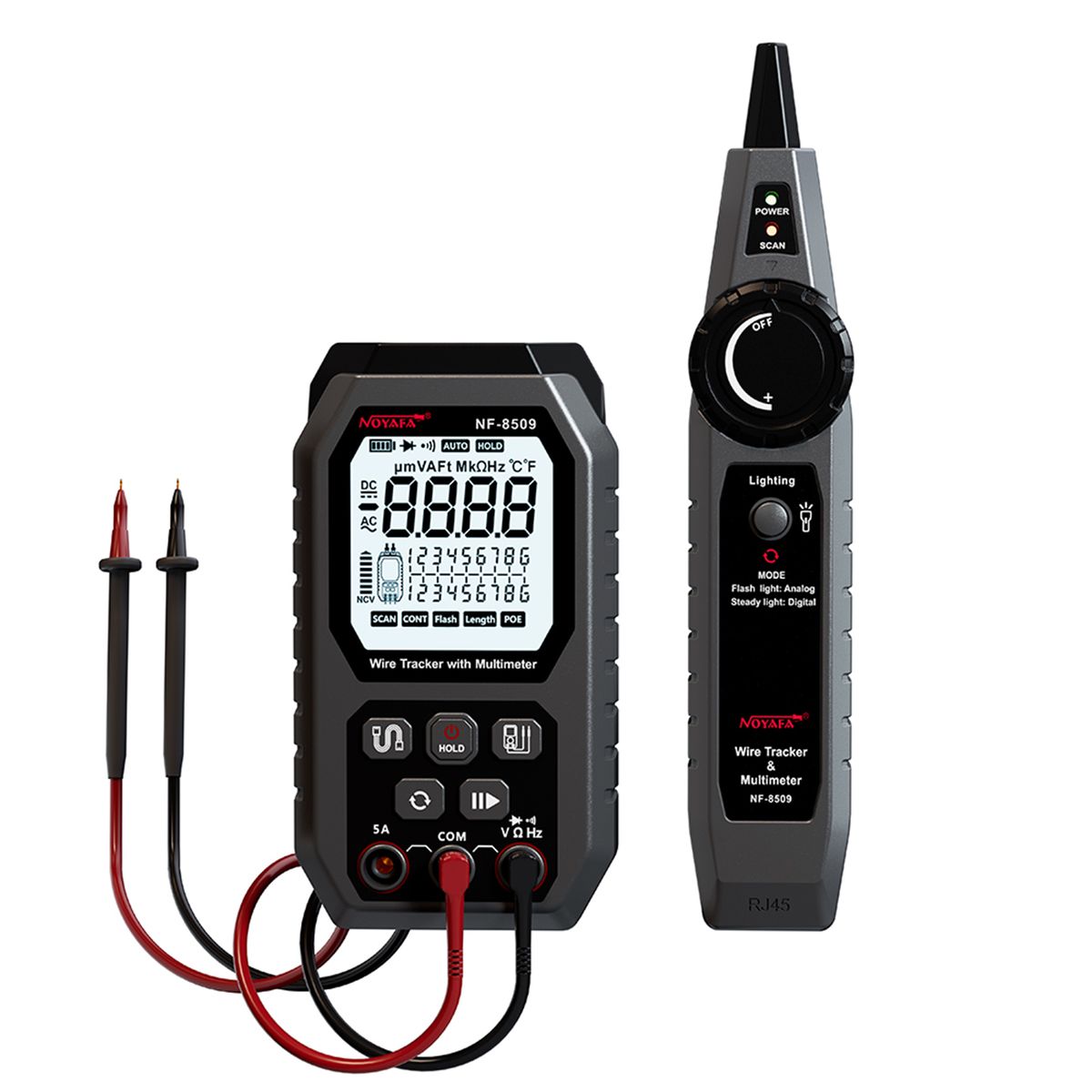

Network Cable Tester Wire Tracker With Multimeter

This meter combines with the cable tracing and cable length measuring functions. The advantage of this meter is the long-tracing distance clear sound signals rapid and precise cable length measurement. The meter is a practical tool for laboratories, factories, radio lover network installers and technicians. Features:Wire Mapping Function: When the crystal head is ready, use wire scanning to test the continuity of the network cable.Port Flashing Identify the Docking Port: The indicator light of the connecting network cable port will flash at the same frequency, which is safer.Length Test: Support cable length test in the range of 5M-200M.Precision Circuit Board: Using high-quality components, high-precision measurement guarantee.Resistance Test : Common resistance measuring pens can be measured with one end touching one side.NCV Induction Non-Contact: High and low AC voltage non-contact induction is safer.LED Lighting: Cables can be found clearly even in a dark computer room.HD Backlit Display: High-definition digital display large screen, clear data display, easy operation.Specifications:Material: ABSModel: NF-8509Line Finding Function: Anti-interference mode / Normal modeAuto off Function: YesTransmitter:Wire Mapping Test: Max. distance of 2,000mWire Scanning: RJ45 600mWire Length Test: 5-200m (±3m)Port Flashing Test: 10M/100M/1000MPOE: 4 core / 8 core supply detection, POE voltage detectionContinuity Test:1. Detect the connectivity performance of wires and various conductors, The will sound when resistance is below 500 & Omega;;2. Identify the polarity and forward voltage drop of diodes (0-3.3V)NCV Function: Inductive voltage detector (0-4 levels)Resistance Measurement: 600 & Omega;-60M & Omega; (accuracy: ±1.0%+5)AC/ Voltage Measurement: 600mV-610V ( accuracy:±0.5%+3; AC accuracy:±0.5%+3)AC/ Current Measurement: 1mA-3A current (accuracy: ±0.8%+3)Frequency: 0-10MHz (accuracy: ±1.0%+3) Supply: 3.7V, 1500mA lithium batteryReceiver: LED Lighting: YesTelephone Function: Yes Supply: 9V (exclusive) (Not included)Maximum Working Current: ≤150mATransmitter Size: 137.5 * 76 * 34mm / 5.41 * 2.99 * 1.34inReceiver Size: 205 * 38 * 29mm / 8.07 * 1.49 * 1.14inPackage Weight: 650g / 1.43lbPackage Size: 24 * 16.5 * 5.5cm / 9.45 * 6.49 * 2.16inPackage List:1 * Transmitter1 * Receiver2 * Test Meter Pen1 * Type-C Data Cable1 * Headset1 * Tool Bag1 * RJ45 Adaptor Cable1 * User Manual (English/German/Spanish/French)Key FeaturesWire Mapping Function: When the crystal head is ready, use wire scanning to test the continuity of the network cable.Port Flashing Identify the Docking Port: The indicator light of the connecting network cable port will flash at the same frequency, which is safer.Length Test: Support cable length test in the range of 5M-200M.Precision Circuit Board: Using high-quality components, high-precision measurement guarantee.Resistance Test : Common resistance measuring pens can be measured with one end touching one side.NCV Induction Non-Contact: High and low AC voltage non-contact induction is safer.What's In the Box1 x Transmitter,1 x Receiver,2 x Test Meter Pen,1 x Type-C Data Cable,1 x Headset,1 x Tool Bag,1 x RJ45 Adaptor Cable,1 x User Manual (English/German/Spanish/French),

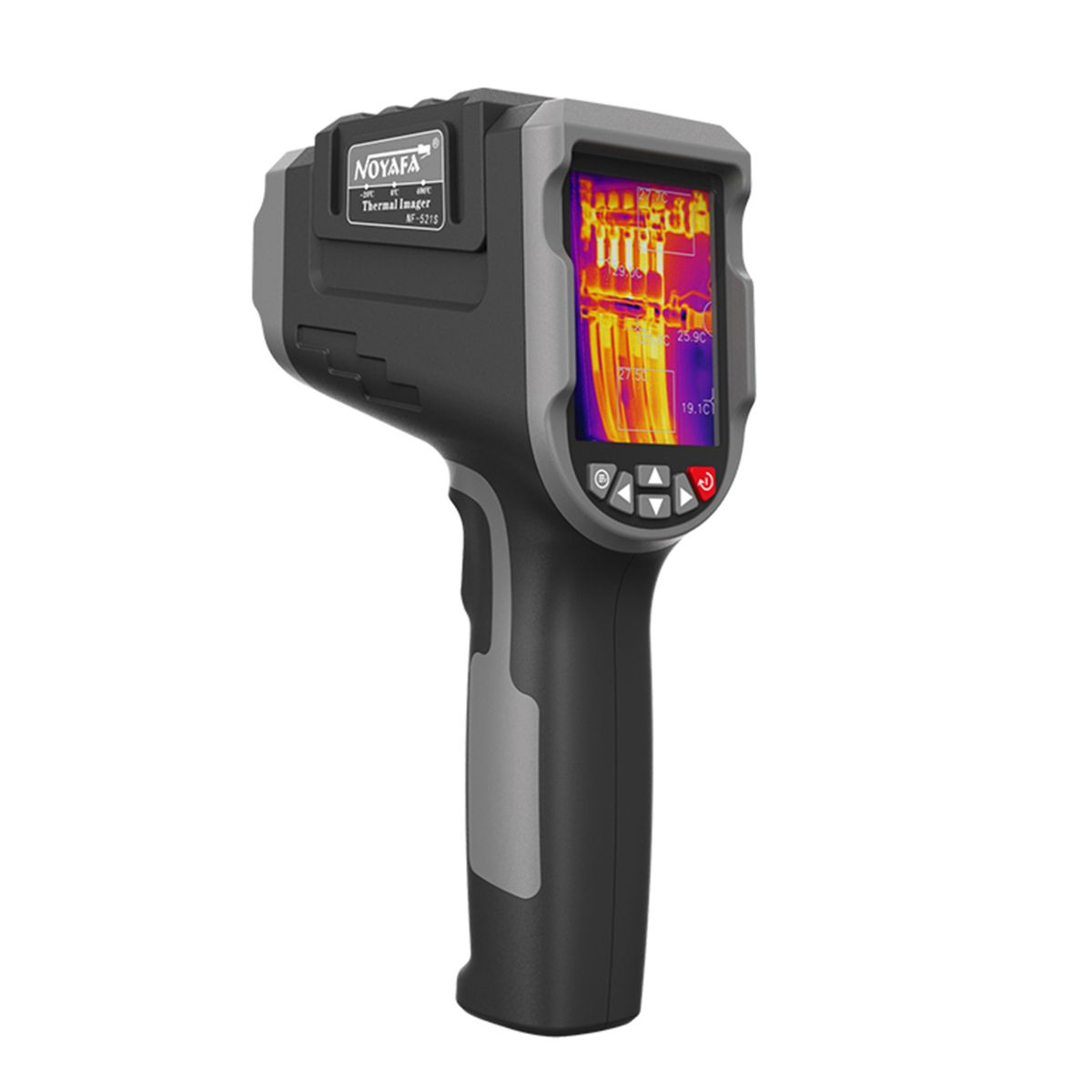

NF-521S Professional 256 X 192 IR Thermal Imaging

NF-521S infrared thermal imaging handheld device is a high-precision thermal imaging handheld device. The display method of infrared thermal imaging and visible light can be used to capture the image of each pixel of the target object temperature,and by combining visible light, the state of the object can be photographed more clearly.Features:Our thermal image resolution is 120*90 led display ,38°X50° Field of View, 25Hz refresh rate,2.8 TFT LCD Display, clear and smooth video recording.8 color palettes to choose : Iron Red, White heat, Black heat, , Red heat, High contrast, Green heat, Lava,choosing palettes according to your work needs.Automatic tracking of high and low temperature, multi-temperature display and temperature comparison can help you better detect hot spots of electrical devices. The temperature range: -20℃-400℃(-4℉-752℉).The thermal imager has a built-in 8G memory card, which can be viewed at any time. At the same time, the image can be transmitted to the computer for analysis through the USB cable.Widely use for wiring and HVAC maintenance, pet search, night vision, anti-candid photography, house water leakage maintenance, etc.Note:When in use, do not point the thermal imager at the sun or laser directly, otherwise it will directly damage the machine.If you want to test the surface of a smooth object, it is recommended to stick electrical tape on the surface of the object first, and the test result will be more accurate.Optimum test distance is 1 meter (3.2 ft), up to 5 meters (16.4 ft).Specifications:Infrared thermalimagerModel：NF-521SInfrared resolution：120*90Working band：8~14umFrame rate：25HzNETD：Key FeaturesOur thermal image resolution is 120x90 led display ,38°X50° Field of View, 25Hz refresh rate,2.8 TFT LCD Display, clear and smooth video recording.8 color palettes to choose : Iron Red, White heat, Black heat, , Red heat, High contrast, Green heat, Lava,choosing palettes according to your work needs.Automatic tracking of high and low temperature, multi-temperature display and temperature comparison can help you better detect hot spots of electrical devices. The temperature range: -20℃-400℃(-4℉-752℉).The thermal imager has a built-in 8G memory card, which can be viewed at any time. At the same time, the image can be transmitted to the computer for analysis through the USB cable.Widely use for wiring and HVAC maintenance, pet search, night vision, anti-candid photography, house water leakage maintenance, etc.Our thermal image resolution is 120x90 led display ,38°X50° Field of View, 25Hz refresh rate,2.8 TFT LCD Display, clear and smooth video recording.What's In the Box1 x Thermal Imager,1 x USB Cable,1 x Tool Kit,1 x User Manual,

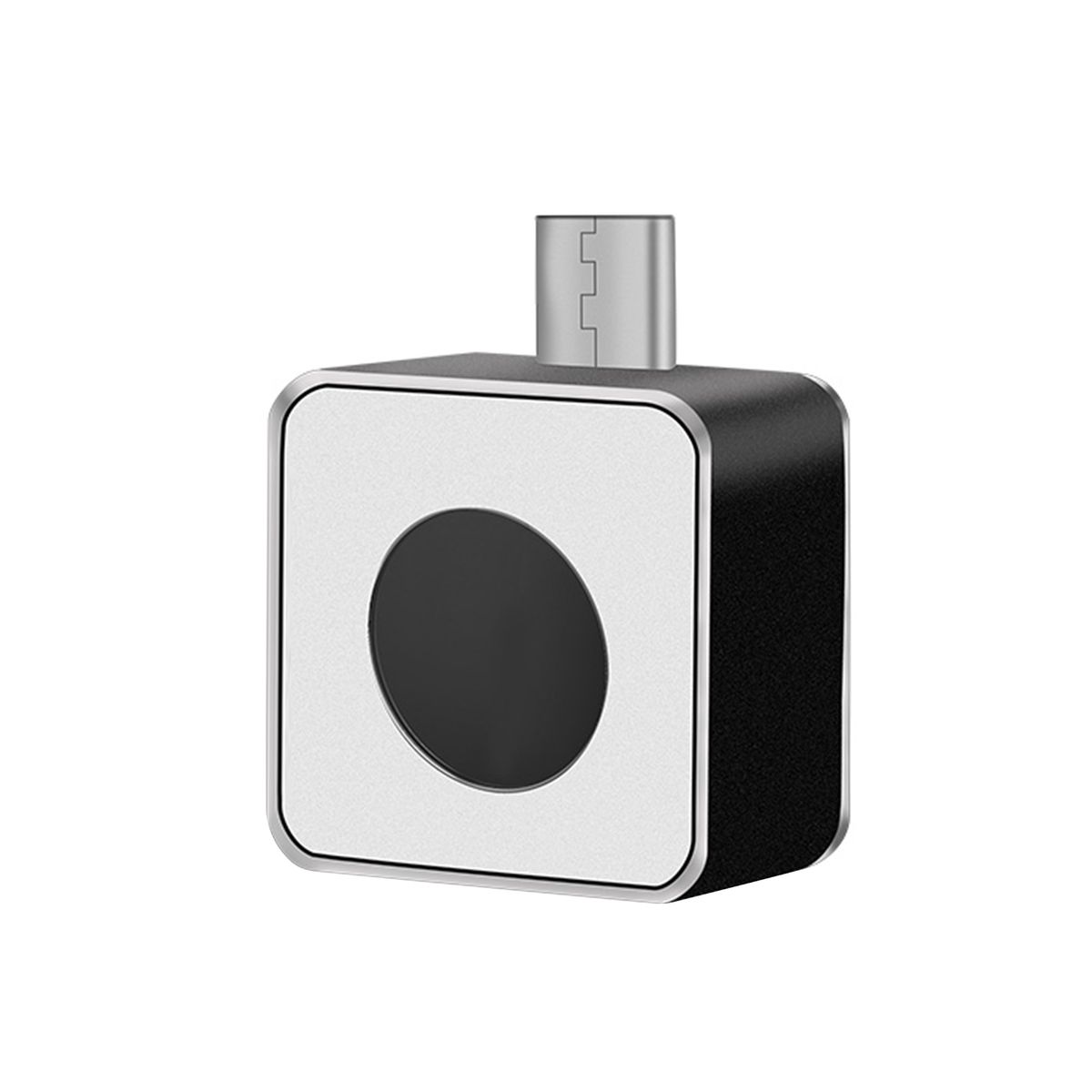

NF-583 USB C IR Infrared Thermal Imager Mini Thermal

Features:* Adopting an industrial-grade infrared detector, the product is a portable thermal imager with high precision and quick response. With APP, it can carry out IR imaging of the target object and perform multi-mode professional thermal image analysis anytime and anywhere.* 160*120 pixels resolution brings clear image quality with rich details. －15℃~600℃ wide measurement range easily copes with different targets.* 35° field of view for wide field observation, can quickly detect the target and locate the heat source, effectively improving working efficiency. * 25Hz high frame frequency, accurately captures beautiful moments and records the data of every frame with coherent and smooth pictures.* Automatically track the highest and lowest temperature, and support central point and area temperature measurement as well as high temperature alarm. * Six color palette modes optional: iron red, white hot, black hot, , red hot and cold blue, freely switch according to different scenarios.* Support taking picture and video, more advanced and convenient, farewell to traditional single temperature measurement mode. * Plug and play, no need to charge. Mini and lightweight body, easy to carry and store. * Can be widely used in circuit maintenance, pipeline detection, automobile troubleshooting, anti-peeping, night vision, animal searching, etc. Note:* Please read the user manual carefully before use.* There may be 1-3mm errors due to manual measurement.Specifications:Brand: NOYAFAModel: NF-583 / NF-586 (Optional)Material: Aluminum AlloyColor: Silver & Black Item Size: 34 * 26.5 * 15mm / 1.34 * 1.04 * 0.59inItem Weight: 19g / 0.67ozPackage Size: 9.3 * 9.3 * 5.2cm / 3.66 * 3.66 * 2.05inPackage Weight: 123g / 4.34ozIR Resolution: 160 * 120Spectral Range: 8-14umFrame Rate: 25HzThermal Sensitivity (NETD): ＜50mK@25℃Field of View (FOV): 35° * 27°Lens: 3.2mmTemperature Measurement Range: －15℃~600℃Temperature Measurement Accuracy: ±2℃ or 2% of readingColor Palette: 6 Language: EnglishWorking Temperature: －10℃~75℃Storage Temperature: －45℃~85℃IP Rating: IP54Unit Switch: ℃ / ℉ / KPackage List:1 * Thermal Imager1 * User Manual1 * Storage Bag1 * Lens CleanerKey Featuresx Adopting an industrial-grade infrared detector, the product is a portable thermal imager with high precision and quick response. With APP, it can carry out IR imaging of the target object and perform multi-mode professional thermal image analysis anytime and anywhere.x 160x120 pixels resolution brings clear image quality with rich details. －15℃~600℃ wide measurement range easily copes with different targets.x 35° field of view for wide field observation, can quickly detect the target and locate the heat source, effectively improving working efficiency.x 25Hz high frame frequency, accurately captures beautiful moments and records the data of every frame with coherent and smooth pictures.x Automatically track the highest and lowest temperature, and support central point and area temperature measurement as well as high temperature alarm.x Six color palette modes optional: iron red, white hot, black hot, , red hot and cold blue, freely switch according to different scenarios.What's In the Box1 x Thermal Imager,1 x User Manual,1 x Storage Bag,1 x Lens Cleaner,

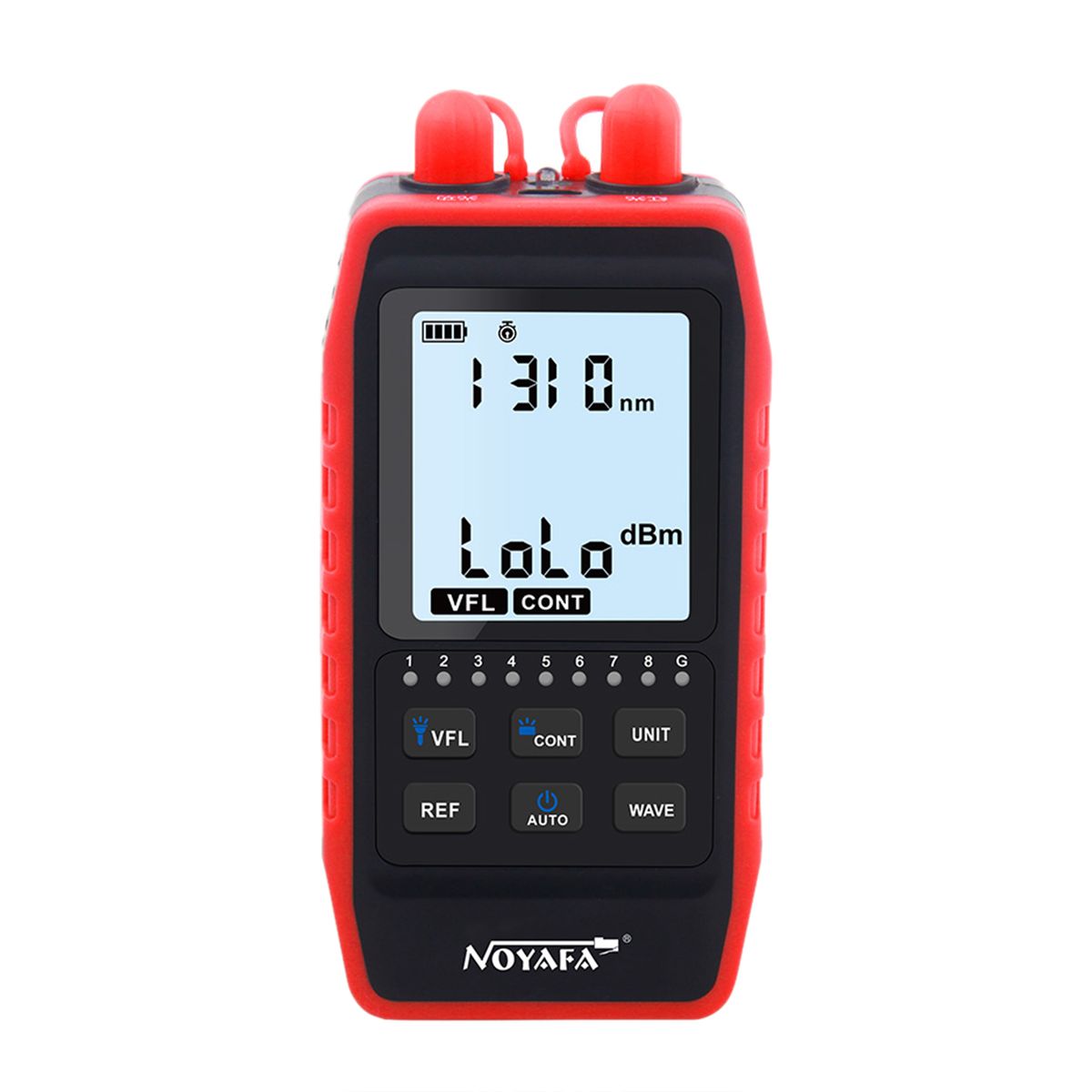

NF-908L Multifunction Optical Meter OPM Visual

Mainly used for optical measurement. Support 850/980/1310/1490/1550/1625nm wavelength, with measurement range -60~8dBm.Features:Support 6 wavelengths: 850/980/1310/1490/1550/1625nm wavelength, and show on the LCD screen at the same time.Compact size with simple interface and operation button, easy to use.With a built-in RJ45 cable tester, which is detachable, making it convenient to use.The RJ45 cable tester can automatically scan and test whether the network cable order is correct.Can be used for various types of optical interface, such as FC, SC, ST.Equipped with 700mAh battery for long working time and LED light for illumination in the dark.With cable tracing function(NF-908S), cable continuity testing function, check fiber breakage, winding,etcSpecifications:Model: NF-908L / NF-908S (Optional) NF-908L: Without Wire Tracker & SCAN Function NF-908S: With Wire Tracker & SCAN FunctionMaterial: ABSWavelength: 850/980/1310/1490/1550/1625nmMeasuring Range: -60~8dBmAccuracy: 850/980nm±0.5dBOptical Meter Supply: Built-in 3.7V, 700mAh lithium batteryWire Tracker Supply: 9V 6F22 battery (NOT included)Auto-off: 30 minutesWiremap: YesREF: YesLED Lamp: YesItem Size: Optical Meter: 115 * 45 * 25mm / 4.52 * 1.77 * 0.98in Wire Tracker: 185 * 45mm / 7.28 * 1.77inPackage Weight: 165g / 5.82oz, 320g / 11.29ozPackage Size: 12.8 * 7 * 3.5cm / 5.03 * 2.75 * 1.37in, 25 * 15 * 5cm / 9.84 * 5.91 * 1.97inPackage List:NF-908L:1 * Optical Meter1 * RJ45 Remote Adapter1 * Cable1 * Manual (English)NF-908S:1 * Optical Meter1 * Wire Tracker (Receiver)1 * RJ45 Remote Adapter1 * Cable1 * Manual (English)Key FeaturesSupport 6 wavelengths: 850/980/1310/1490/1550/1625nm wavelength, and show on the LCD screen at the same time.Compact size with simple interface and operation button, easy to use.With a built-in RJ45 cable tester, which is detachable, making it convenient to use.The RJ45 cable tester can automatically scan and test whether the network cable order is correct.Can be used for various types of optical interface, such as FC, SC, ST.Equipped with 700mAh battery for long working time and LED light for illumination in the dark.What's In the BoxNF-908L:,1 x Optical Meter,1 x RJ45 Remote Adapter,1 x Cable,1 x Manual (English),NF-908S:,1 x Optical Meter,1 x Wire Tracker (Receiver),1 x RJ45 Remote Adapter,1 x Cable,1 x Manual (English)

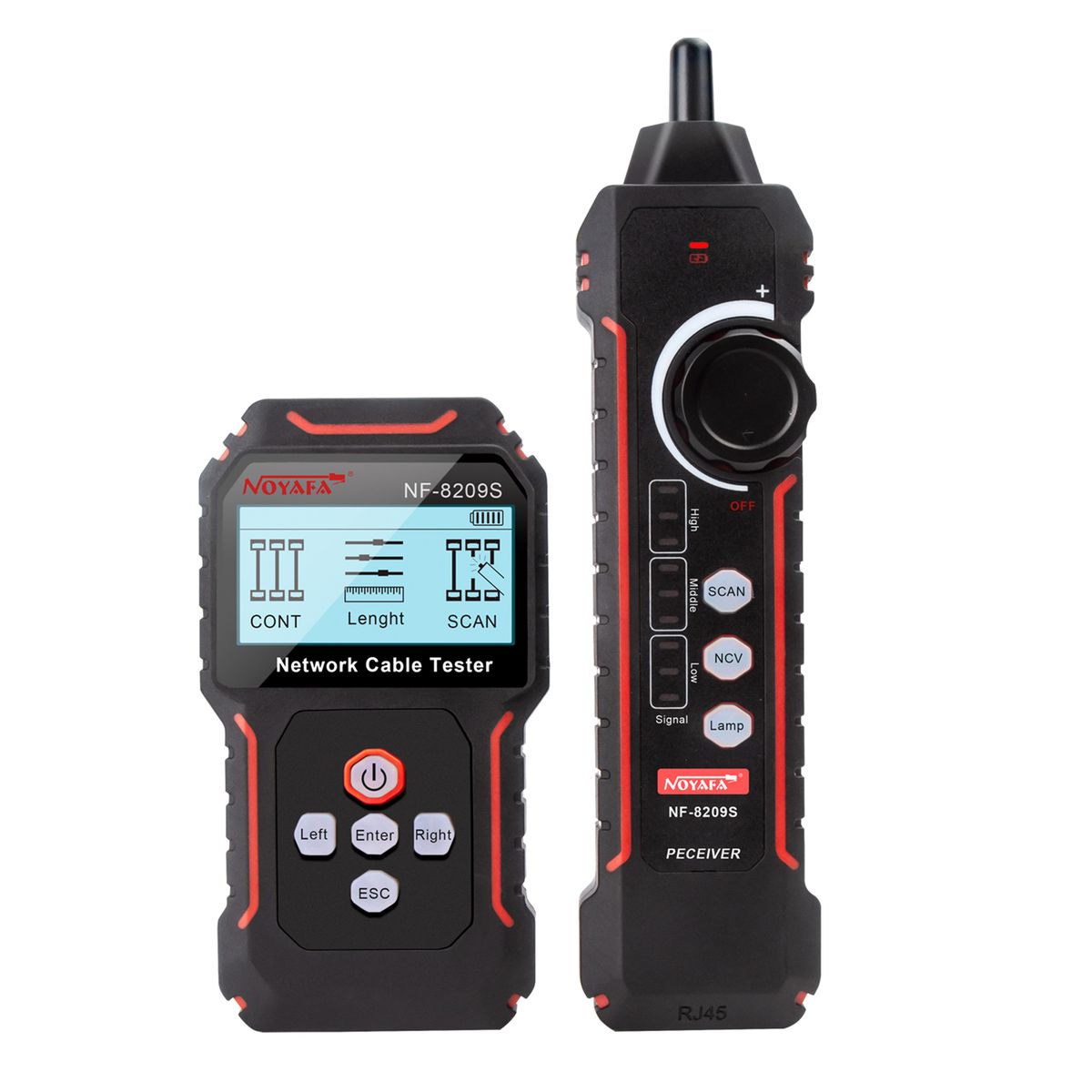

NF-8209S POE Wire Checker LCD Display Measure Length

NF-8209S is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it's equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub and NCV function, all these makes it a must-tool for cabling engineers.Features:Dual scan modes selectable: AC filter & Non AC filter.Detect AC voltage presence (70V-1000V).Test physical status for STP, UTP lan cable.Measure cable length accurately , the range is 500m.Hub for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.PoE testing : identify which pins are providing and detect how much voltage, identify which the type of PSE (at/af standard).Quallity verify the crimping crystal.Specifications:Material: ABSPackage Weight: 460g / 16.23ozPackage Size: 23 * 16.5 * 4.5cm / 9.06 * 6.50 * 1.77inEmitter Parameters & Functions:LCD Display: 128*64 dot-matrix with backlight Supply: 3.7v 1400mAh lithium batteryAuto-off Time: 15min/30min/60min/OFFVoltage Protection: DC48V, 5mAMax. Working Current:Key FeaturesDual scan modes selectable: AC filter & Non AC filter.Detect AC voltage presence (70V-1000V).Test physical status for STP, UTP lan cable.Measure cable length accurately , the range is 500m.Hub for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.PoE testing : identify which pins are providing and detect how much voltage, identify which the type of PSE (at/af standard).What's In the Box1 x Emitter,1 x Receiver,1 x Earphone,1 x line,3 x Cable adaptors,1 x Toolkit,1 x Manual(English)

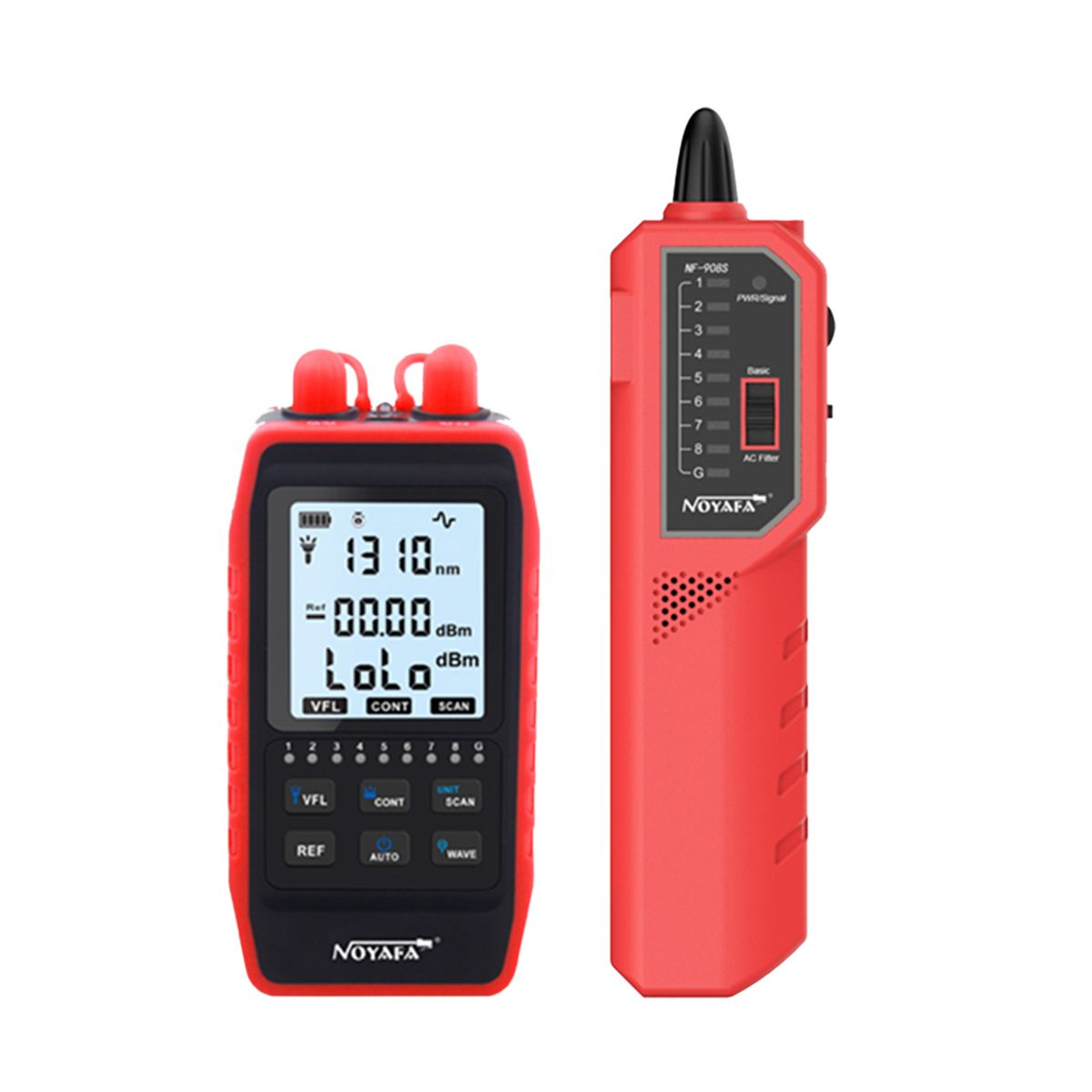

NF-908S Multifunction Optical Meter & Network Line

Mainly used for optical measurement. Support 850/980/1310/1490/1550/1625nm wavelength, with measurement range -60~8dBm.Features:Support 6 wavelengths: 850/980/1310/1490/1550/1625nm wavelength, and show on the LCD screen at the same time.Compact size with simple interface and operation button, easy to use.With a built-in RJ45 cable tester, which is detachable, making it convenient to use.The RJ45 cable tester can automatically scan and test whether the network cable order is correct.Can be used for various types of optical interface, such as FC, SC, ST.Equipped with 700mAh battery for long working time and LED light for illumination in the dark.With cable tracing function(NF-908S), cable continuity testing function, check fiber breakage, winding,etcSpecifications:Model: NF-908L / NF-908S (Optional) NF-908L: Without Wire Tracker & SCAN Function NF-908S: With Wire Tracker & SCAN FunctionMaterial: ABSWavelength: 850/980/1310/1490/1550/1625nmMeasuring Range: -60~8dBmAccuracy: 850/980nm±0.5dBOptical Meter Supply: Built-in 3.7V, 700mAh lithium batteryWire Tracker Supply: 9V 6F22 battery (NOT included)Auto-off: 30 minutesWiremap: YesREF: YesLED Lamp: YesItem Size: Optical Meter: 115 * 45 * 25mm / 4.52 * 1.77 * 0.98in Wire Tracker: 185 * 45mm / 7.28 * 1.77inPackage Weight: 165g / 5.82oz, 320g / 11.29ozPackage Size: 12.8 * 7 * 3.5cm / 5.03 * 2.75 * 1.37in, 25 * 15 * 5cm / 9.84 * 5.91 * 1.97inPackage List:NF-908L:1 * Optical Meter1 * RJ45 Remote Adapter1 * Cable1 * Manual (English)NF-908S:1 * Optical Meter1 * Wire Tracker (Receiver)1 * RJ45 Remote Adapter1 * Cable1 * Manual (English)Key FeaturesSupport 6 wavelengths: 850/980/1310/1490/1550/1625nm wavelength, and show on the LCD screen at the same time.Compact size with simple interface and operation button, easy to use.With a built-in RJ45 cable tester, which is detachable, making it convenient to use.The RJ45 cable tester can automatically scan and test whether the network cable order is correct.Can be used for various types of optical interface, such as FC, SC, ST.Equipped with 700mAh battery for long working time and LED light for illumination in the dark.What's In the BoxNF-908L:,1 x Optical Meter,1 x RJ45 Remote Adapter,1 x Cable,1 x Manual (English),NF-908S:,1 x Optical Meter,1 x Wire Tracker (Receiver),1 x RJ45 Remote Adapter,1 x Cable,1 x Manual (English)

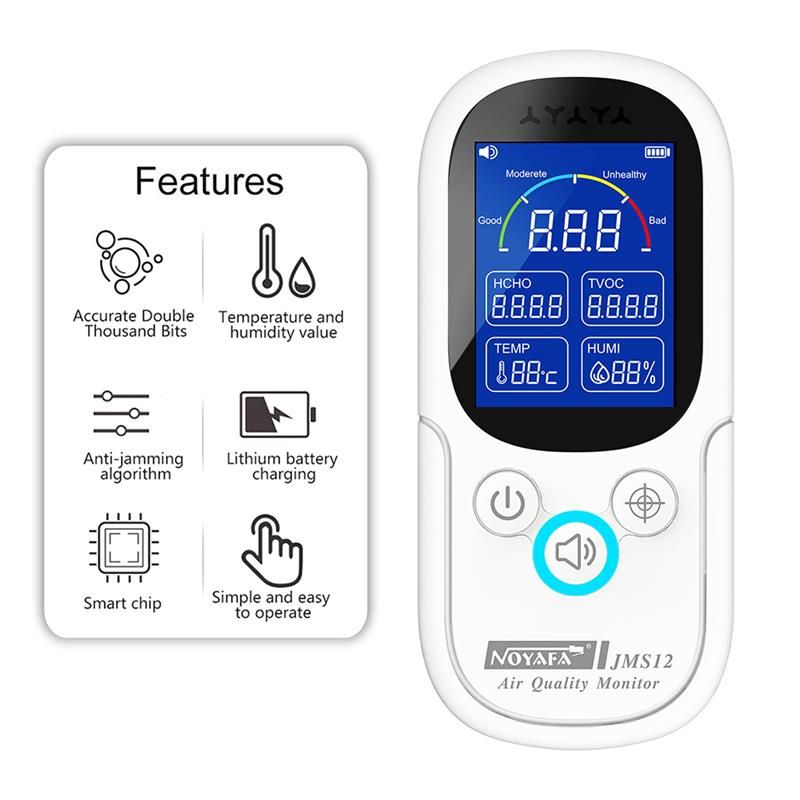

Air Quality Monitor & Temperature Humidity Meter Multifunction

Formaldehyde detector can effectively detecting formaldehyde and TVOC concentration in the environment you are living, such as a newly decorated house, the rented house, office, car and more. It's also a temperature and humidity monitor, which brings more convenience for your family. Paying attention to the harmful gas in the air, living a healthy life right now!Features:It adopts semiconductor gas sensor and air convection detection principle, can detect harmful gas in your home quickly and accurately.Multifunction air quality tester and temperature/ humidity tester: it displays formaldehyde (HCHO) and TVOC concentration, air quality index, air quality class, temperature and humidity.2.8" large LCD screen with backlight makes it clear to read even in dark environments. Foldable bracket can be placed on the desktop and is space-saving when not in use.Built in 700mAh rechargeable-battery, quick to charge it via Type-C USB cable. Portable and lightweight, easy to carry.Alarm buzzer: when the formaldehyde concentration is above 0.3mg/m3, the buzzer will beep to remind you that the air quality is bad.It detects formaldehyde and TVOC concentration in the air, can be widely used in home, car, hotel, apartment, office and more places.Note: Please ventilate the new product for 2 hours and calibrate it in the open air before detecting.Specifications:Color: WhiteMaterial: ABSDisplay: 2.8" LCD ScreenPrincipe of Gas Detection: Semiconductor Gas SensorGas Detection Range: 0.000~2.888mg/m3 (Formaldehyde), 0.000~9.999mg/m3 (TVOC)Temperature Detection Range: -30~60℃, 1℃ AccuracyHumidity Detection Range: 0~100%, 1% AccuracyBuilt-in Battery: 3.7V 700mAh Lithium BatteryItem Size: 155 * 75 * 25mm / 6.10 * 2.95 * 0.98inPackage Size: 17.5 * 12.5 * 3.5cm / 6.89 * 4.92 * 1.38inPackage Weight: 150g / 5.29ozPackage List:1 * Air Quality Monitor1 * USB Cable (Type-C)1 * User Manual Key FeaturesIt adopts semiconductor gas sensor and air convection detection principle, can detect harmful gas in your home quickly and accurately.Multifunction air quality tester and temperature/ humidity tester: it displays formaldehyde (HCHO) and TVOC concentration, air quality index, air quality class, temperature and humidity.2.8" large LCD screen with backlight makes it clear to read even in dark environments. Foldable bracket can be placed on the desktop and is space-saving when not in use.Built in 700mAh rechargeable-battery, quick to charge it via Type-C USB cable. Portable and lightweight, easy to carry.Alarm buzzer: when the formaldehyde concentration is above 0.3mg/m3, the buzzer will beep to remind you that the air quality is bad.It detects formaldehyde and TVOC concentration in the air, can be widely used in home, car, hotel, apartment, office and more places.Small size, portable and practical, it is very suitable for home, office, school, warehouse, agricultural planting, etc. Support 2 installation methods, you can put it on the desktop or mount it on the wall.What's In the Box1 * Air Quality Monitor1 * USB Cable (Type-C)1 * User Manual

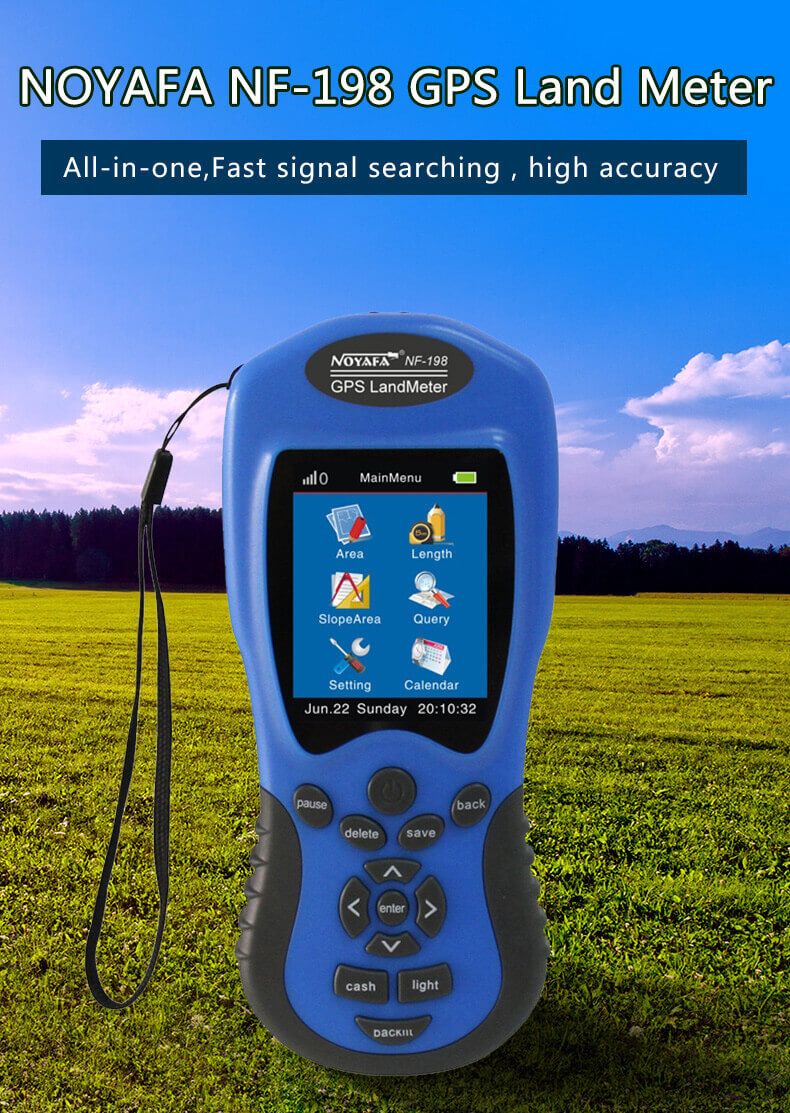

GPS Land Measuring Meter

NF198 GPS Test Devices GPS Land MeterMeasure area and Length of any Land shape (containing mountainous land, slope and flat field).Can display measuring value, figure track and automatically calculate price after measurement.Vehicle-carrier measurement, distance can be adjusted according to needs.Test data , graphics trajectory can be exported for printing.Applicable Google map shows real graphics trajectory.2.8 inch large color screen that makes more clear and visually.Efficient start up 30 seconds for cold boot, 3 seconds for warm boot.Measure area and length of any shape (containing mountainous land, slope and flat field).Vehicle-carrier measurement, distance can be adjusted according to needs.Equal-width area measurement.Applicable google map shows real graphics trajectory 2.8 inch large color screen that makes more clear and visually. Efficient startup:30sec for cold boot, 3sec for warm boot.1 piece of 3.7V/ 2000mAh batteries includedHas detection light and LED lightTest data , Graphics trajectory can be exported for printing. Key FeaturesDisplay Measuring ValueMeasure area and Length of any shapeTest data , graphics trajectory can be exported for printingLED lightDetection light2.8 inch large color screen3.7V/ 2000mAh battery includedWhat's In the Box1 x GPS Land Meter1 x Battery1 x ChargerManual
