Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

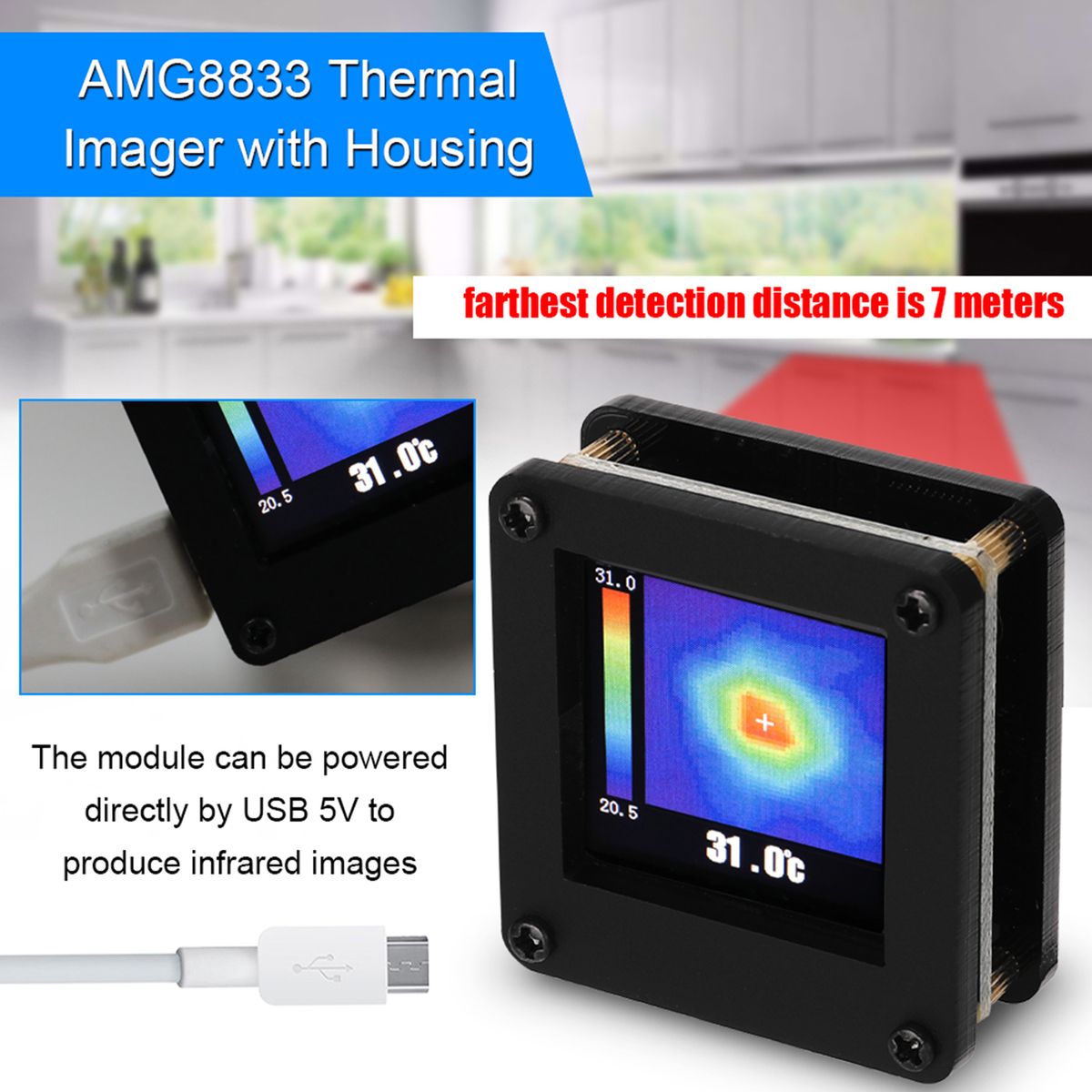

Features:The module can be powered directly by USB 5V to produce infrared pictures.

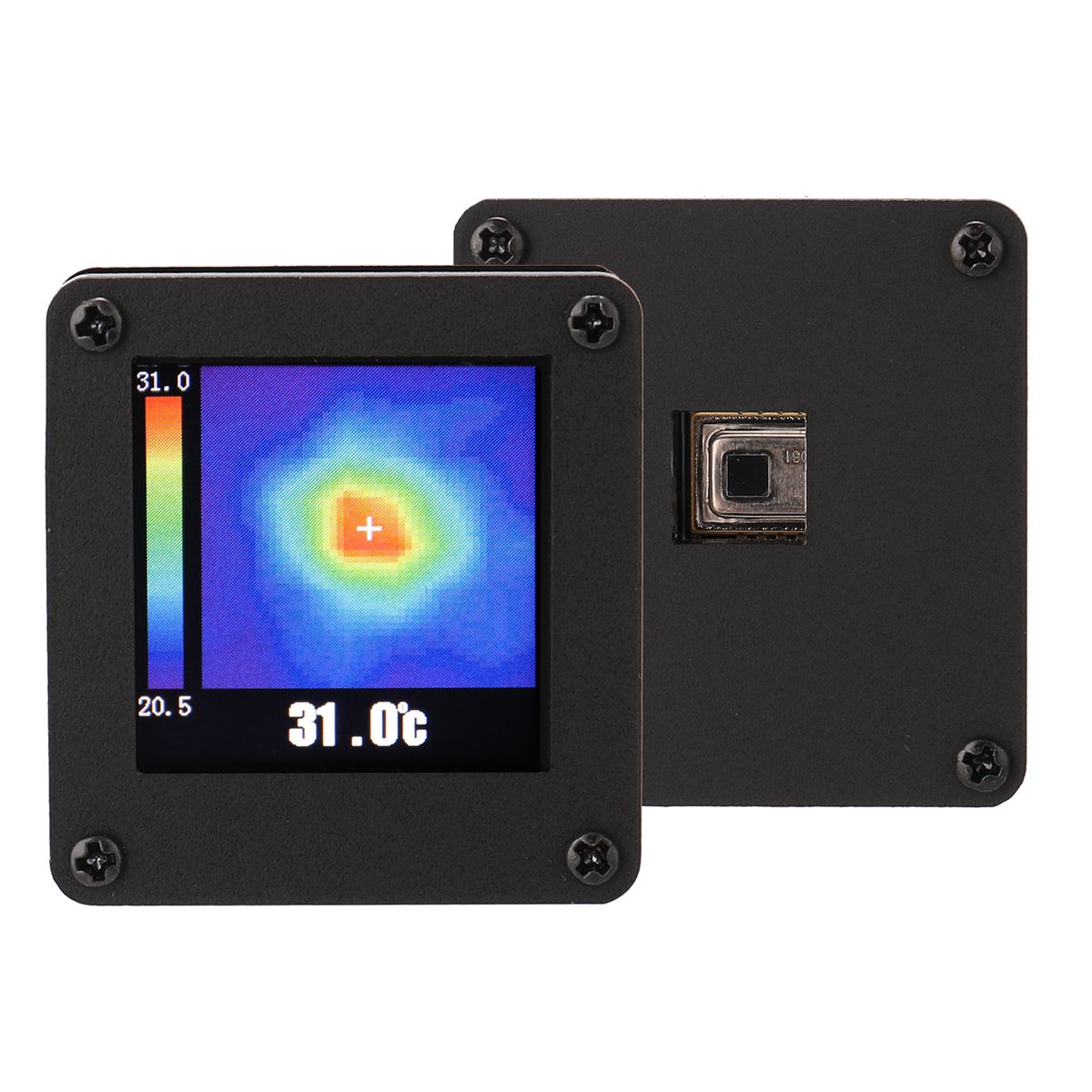

Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.
It can be applied to check electronic products.
Portable and compact, high performance, easy to use.
Specifications:Material:
Temperature accuracy:

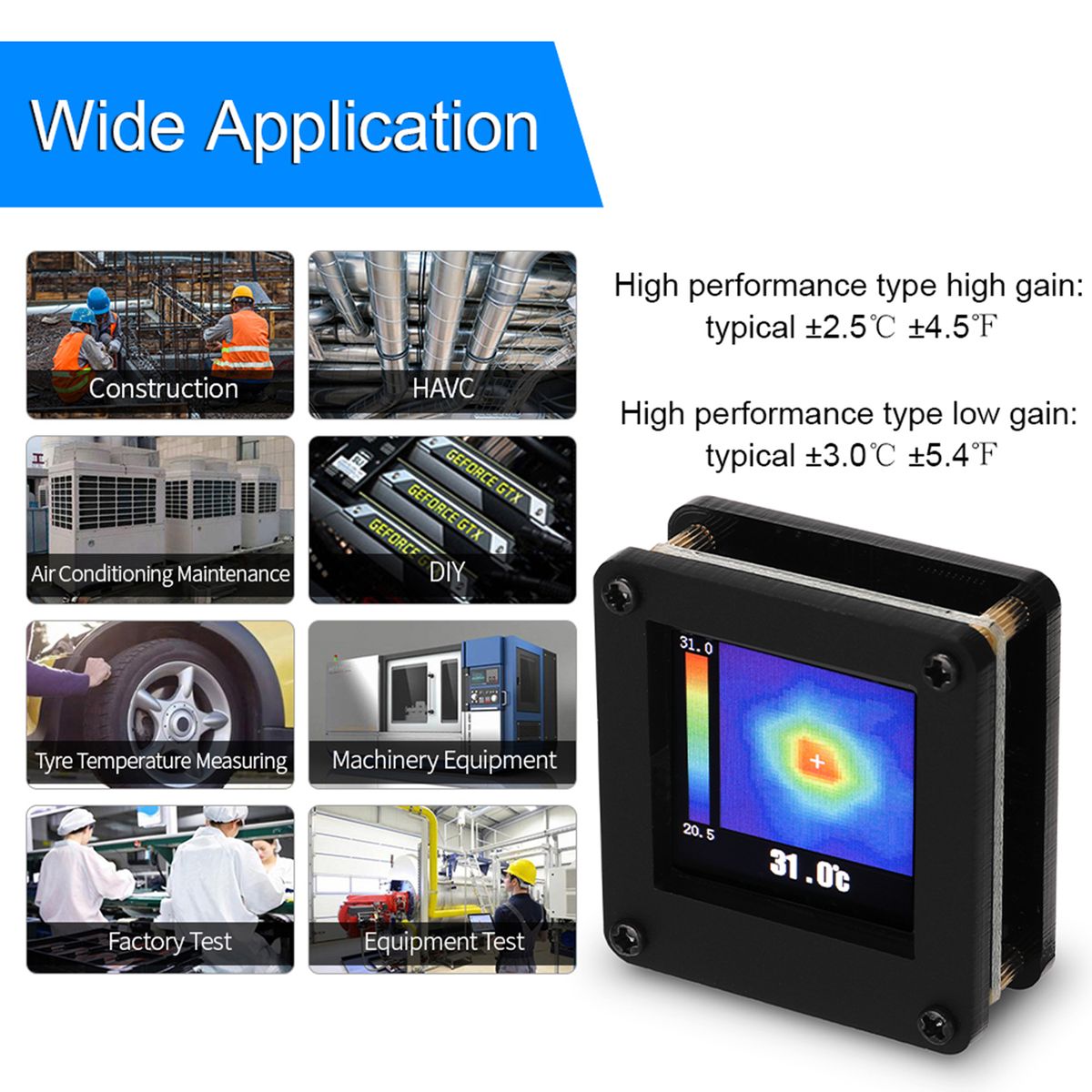

High performance type high gain: typical ±2.5℃ ±4.5℉
High performance type low gain: typical ±3.0℃ ±5.4℉
Human detection distance: 7m or less (reference value) 22.966 ft
NETD:
Typ. 0.05℃ 32.900℉ 1Hz
Typ. 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60°
Optical axis gap: within typical ±5.6°
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand-by mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixel: 64 (vertical 8 * horizontal 8 matrix)
External interface: 1²C ( mode)
Frame rate: typical 10 frames/sec or 1 frame/sec
Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)
Output mode: temperature output
Calculate mode: no moving average or twice moving average
Temperature output resolution: 0.25℃ / 32.45℉
Number of sensor address: 2 (1²C slave address)
Thermistor output temperature range: 0℃~80℃ (32℉~176℉)
Thermistor output resolution: 0.0625℃ / 32.1125℉

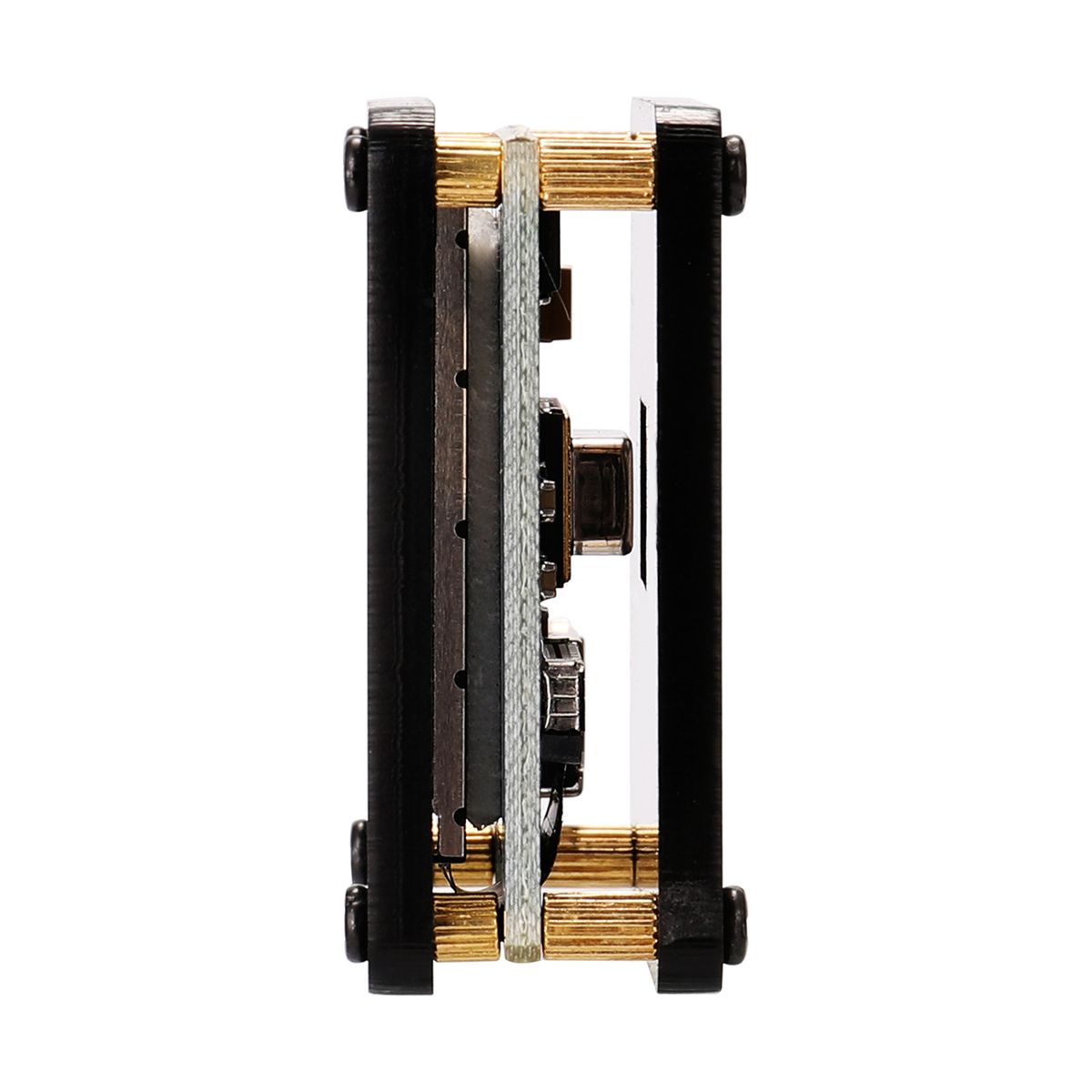

Item size: 38 * 36 * 17mm / 1.5 * 1.4 * 0.7in
Item weight: 17g / 0.6ounce
Package size: 90 * 80 * 20mm / 3.5 * 3.1 * 0.8in
Package weight: 19g / 0.7ounce
Note:USB cable are NOT included, thank you for your understanding.

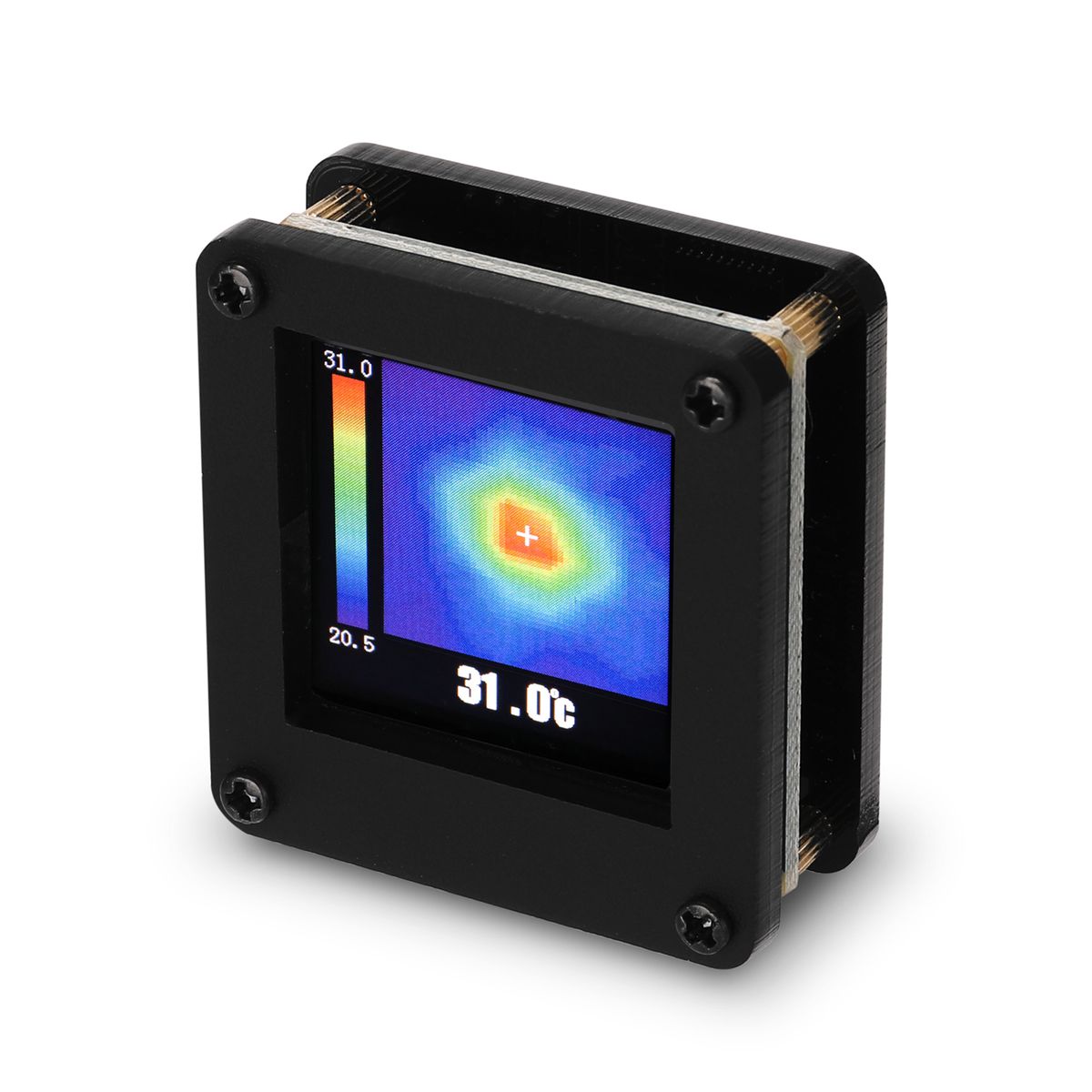

Packing List:1 * AMG8833 Thermal Imager with Housing
Key Features
The module can be powered directly by USB 5V to produce infrared pictures.
Use AMG8833 infrared thermal sensor. The resolution is 8x8, and the farthest detection distance is 7 meters.
It can be applied to check electronic products.
Portable and compact, high performance, easy to use.
The module can be powered directly by USB 5V to produce infrared pictures.
Use AMG8833 infrared thermal sensor. The resolution is 8x8, and the farthest detection distance is 7 meters.
What's In the Box
1 x AMG8833 Thermal Imager with Housing
