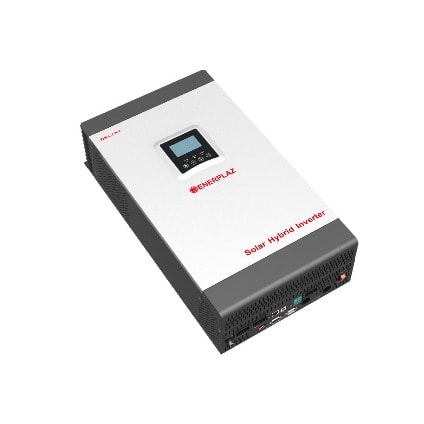

Enerplaz Pv1800 Hm Series 5kva 48v Is A Multi-Function Inverter/Charger, Combining Functions Of Inverter, Solar Charger And Battery Charger To Offer Uninterruptible Power Support With Portable Size. Its Comprehensive Lcd Display Offers User-Configurable And Easy-Accessible Button Operation Such As Battery Charging Current, Ac/Solar Charger Priority, And Acceptable Input Voltage Based On Different Applications. Pv1800 Series Inverters Are Equipped With 80a Mppt Solar Charge Controller To Maximize And Regulate Dc Power From The Solar Array For The Charging The Battery Bank. Transformerless Design Provides Reliable Power Conversion In Compact Size. Besides, It'S Worry-Free To Start Up Motor-Type Loads Such As Refrigerators, Motors, Pumps, Compressors And Laser Printers As Well As Electronic Loads Like Tv'S, Computers, Power Tool And Battery Chargers.
Key Features:
1.Touch Screen Display
2.Pv And Utility Power Take The Load At Same Time(Can Setting)
3.Output Power Factor Pf=1.0
4.On&Off Grid With Energy Storage
5.Energy Generated Record,Load Record,History Information And Fault Record
6.Language And Time Setting
7.Structure With Dust Filter
8.Ac Charging And Ac Output Time Setting
9.Charging Voltage And Charging Current Timing
10.External Wi-Fi Device Optional
11.Parallel Operation Up To 9 Units
12.Connected With Battery Optional
13.Wide Pv Input Range 120-450vdc
14.Independent Cpu
15.Max Pv Array Power 5000w
16.Solar And Utility Supply Power To The Load When Solar Power Is Not Sufficient To Load
17.The Ct Sensor Will Monitor The Power Consumption Of The System And Will Make Sure No Excess Pv Power Is
delivered To The Grid Company .
