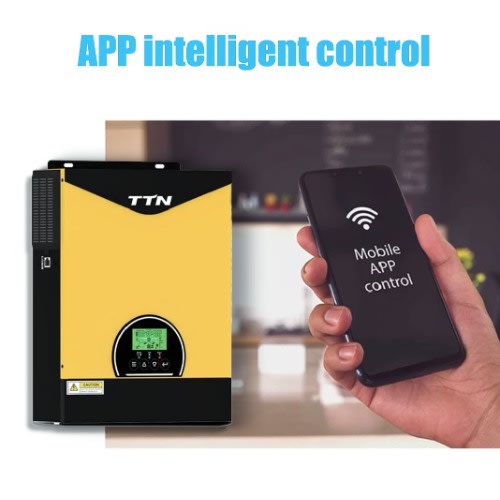

Advanced hybrid inverter 3.6kw 24v with 80A MPPT controller - Wifi
phase 1-Phase
maximum pv panel input power - 6200w
rated output power
maximum solar charging current 80A
Grid-tie operation
Pv Input (DC)
Nominal DC Voltage/Maximum DC Voltage 400VDC
Start-up Voltage / Initial Feeding Voltage 60VDCVDC
MPPT Voltage Range 60-450VDC
Maximum Input Current 1/18A
Nominal Output Voltage 220/230/240vac
Output Voltage Range 195.5-253vac
Nominal Output Current 15.7A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 3000W
Off-grid operation
Ac Input
Ac star-up voltage /ac restart voltage 120-140VAC/180VAC
Acceptable input vloltage range 90-280VAC or 170-280vac
Frequency range 49-51+-1HZ
Maximum ac input current 30A
Pv Input (DC)
Nominal DC Voltage/Maximum DC Voltage 400DC
MPPT Voltage Range 60-400VDC
Maximum Input
Current 1/18A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
BATTERY & CHARGER
Nominal DC Voltage 24VDC
Maximum Solar Charging Current 80A
Maximum AC Charging Current 100A
Maximum Charging Current 120A
