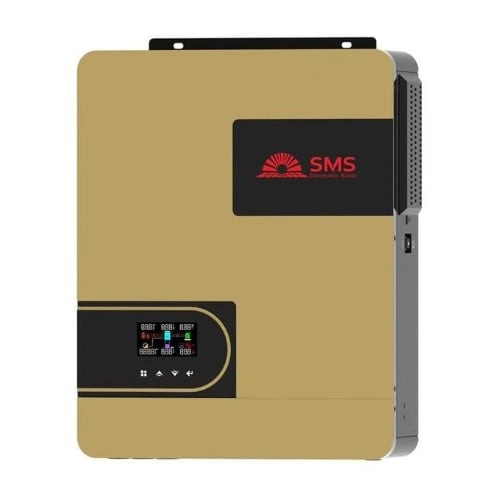

SMS-6.2KVA 48V Hybrid Inverter: Get the Best out of Solar Energy
Experience the ultimate combination of reliable backup power and clean energy generation with the SMS-6.2KVA 48V Hybrid Inverter! This powerhouse delivers a robust 6200W of continuous output, ensuring your essential appliances remain operational during outages. Plus, the built-in solar charger allows you to harness the sun’s energy to reduce your dependence on the grid and potentially slash your electricity bills.
Constant Power (6200W): Say goodbye to power cuts! The SMS-6.2KVA seamlessly switches on during outages, providing uninterrupted power for your critical devices.
48V Battery Compatibility: Integrates seamlessly with a 48V battery system (sold separately) to store excess solar energy and provide backup power when needed.
Embrace Solar Energy: Connect solar panels (sold separately) to the inverter and utilize the sun’s power to recharge your batteries and offset your electricity consumption.
MPPT Solar Charging Technology: Maximizes solar energy harvest from your panels by operating at their ideal voltage output for optimal efficiency.
Wide MPPT Voltage Range (60-450Vdc): Accommodates various solar panel configurations by accepting a broad MPPT voltage range.
High Conversion Efficiency (up to 97%) : Minimal energy loss during operation translates to cost savings.
Technical Specifications:
General Spec:
Model Name: SMS-6.2KW-48V
Model Number: SMS-6.2KW-48V
Color: Golden and Black
Operating Temperature Range: -10°C to +50°C
Certifications: RoHS Compliant, CE
Manufacturer: Made in China
Dimensions and Weight: Not specified
PV Input (Solar Input):
Nominal Operating Voltage: 240Vdc
Maximum PV Voltage (Vmax PV): 500Vdc
PV Input Voltage Range: 60Vdc to 450Vdc
Maximum Input Current (Imax PV): 27A
Full Load MPPT Range: 240Vdc to 450Vdc
Rated Power: 6500W
Maximum Solar Charging Current: 120A
Grid/AC Output (Utility Output):
Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
Feed-in Grid Voltage Range: 195Vac to 253Vac
Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
Nominal Output Current: 27.0A
Power Factor Range: Greater than 0.99
Maximum Conversion Efficiency (DC/AC): 97%
Nominal Operating Frequency: 50/60Hz (selectable)
Two Load Output Power:
Full Load: 6200W
Maximum Main Load: 6200W
Maximum Second Load: 2066W
Main Load Cut Off Voltage: 44Vdc
Main Load Return Voltage: 52Vdc
AC Input (Grid Charging):
Nominal Operating Voltage: 230Vac
Maximum Input Current: 40A
Nominal Operating Frequency: 50/60Hz (selectable)
Surge Power: 12400VA
Maximum AC Charging Current: 100A
Battery:
Battery Voltage Range: 40Vdc to 63Vdc
Maximum Battery Current: 125A
