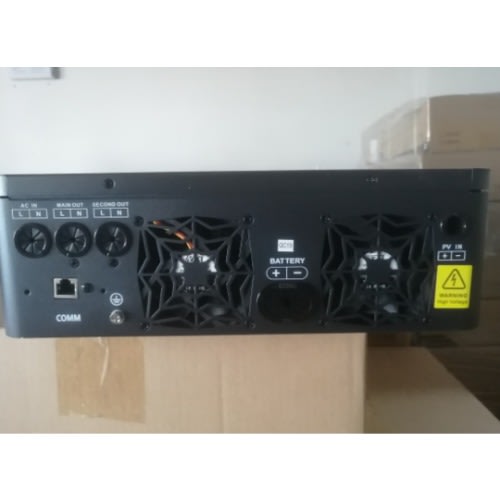

Hybrid Solar Inverter 4.2kw 24V 120A MPPT - WiFi Optional
phase 1-Phase
Nominal Battery voltage - 24v
maximum pv panel Input - 6200w
rated output power
maximum solar charging current 120A
Grid-tie operation
Pv Input (DC)
Nominal DC Voltage/Maximum DC Voltage 500VDC
Start-up Voltage / Initial Feeding Voltage 90VDC
MPPT Voltage Range 90-450VDC
Maximum Input Current 1/18.2A
Nominal Output Voltage 220/230/240vac
Output Voltage Range 195.5-253vac
Nominal Output Current 18.2A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 4200W
Maxium Main Load 6200 surge
Off-grid operation
Ac Input
Ac star-up voltage /ac restart voltage 120-140VAC/180VAC
Acceptable input vloltage range 90-280VAC or 170-280vac
Frequency range 49-51+-1HZ
Maximum ac input current 30A
Pv Input (DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT Voltage Range 90-450VDC
Maximum Input
Current 1/18.2A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
BATTERY & CHARGER
Nominal DC Voltage 24VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 100A
Maximum Charging Current 120A
