- Directly hunt CAT5e, CAT6, telephone wire, coaxial cable, USB cable and other cables.
- Blink Function: for locating network port by flashing the port light on Hub / Switch.
- Check wiring error in CAT5e, CAT6, or coaxial cable, such as open circuit, short circuit , jumper wire, reverse connection.
- Locate the wiring or connection error.
- Measure cable length up to 1000m and locate the breakage point.
- Polarity test function measures DC voltage (0.5-60 V)
- Memory and storage for calibration data.
- Automatically time-delay shut off, and Low battery alarm function.
Cable map indication: LCD
Shielded indication: LCD
Voltage protection: AC 60V/DC 42V
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD): 185x80x32mm
Frequency: 225kHz
The Max. working current: Less than 70mA
Earjack: 1
LED illumination: 2
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V) x1pcs)
Dimension(LxWxD): 218x46x29mm

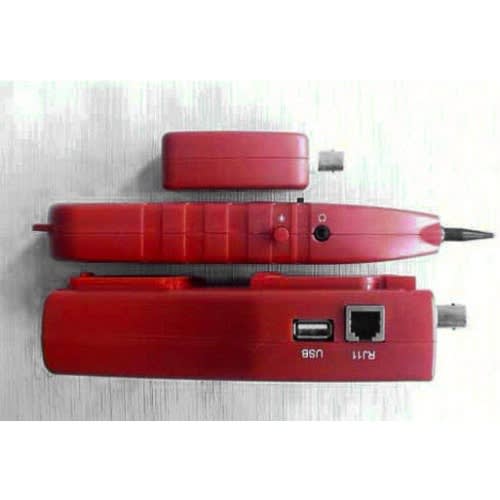

Remote unit specifications:
Compatible connectors: RJ11, RJ45, Coaxial, USB
Dimension(LxWxD): 107x30x24mm
