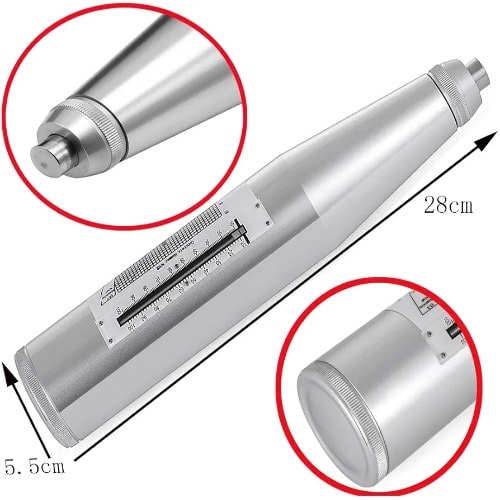

- Resiliometer Hammer is used for testing of concrete compressive strength within the scope of 10-60Mpa.
- This concrete resiliometer hammer is consistent with technical regulations.

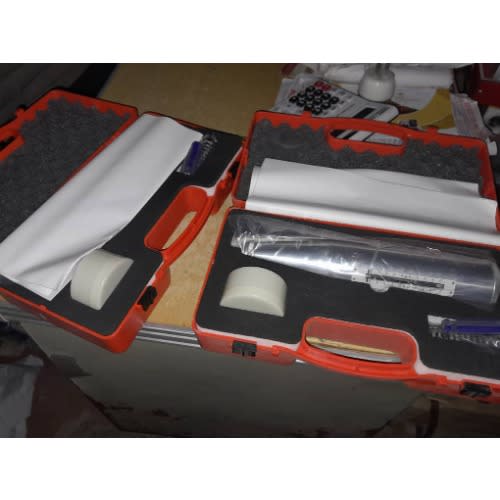

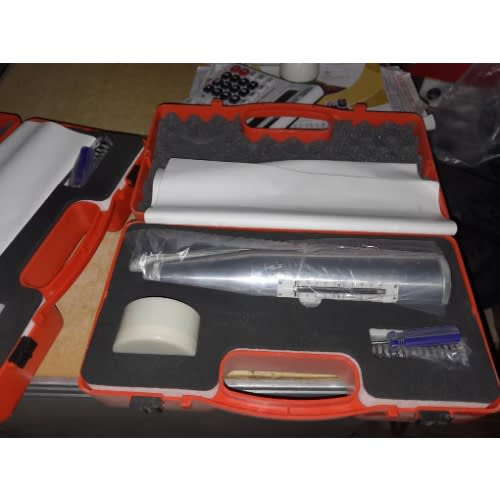

- The concrete test hammer features lightweight and power-free. It is flexible and easy to master. Come with portable carry case.

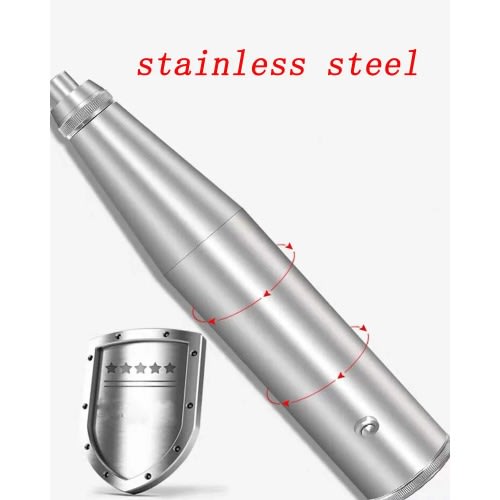

- Center guide rod is made of imported materials, high precision, wear-resistant. Use of quite-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life.

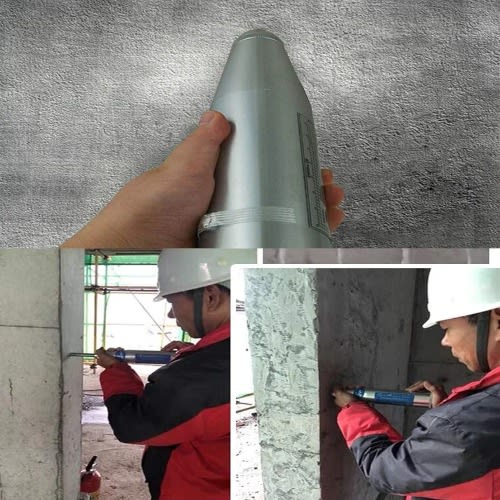

- Concrete Test Hammer is generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
Specifications:
Length of pointer: 20.0±0.2 (mm)
Friction of pointer: 0.65±0.15 (N)
Rigidity of flip tensioned spring: 785.0±40.0 (N/m)
Sphere semi diameter at the end of the flip rod: 25±1.0 (mm)
Location of flip hammer's hook release: "100" at the scale mark
Work length of flip tensioned spring: 61.5.0± 0.3(mm)
Strike length of flip hammer: 75±0.3(mm)
Hop location of the flip hammer: "0" at the graduated scale
Fixed value of steel anvil: 80±2 (our hammer tester is controlled between 80-81.)
Hammer weight: 2.2 lbs (1kg)
Porduct weight: 3.96 lbs (1.8kg)
Package Included:
1x Grindstone
1x Screwdriver
1x Buffer Spring
1x Flip Tension Spring
1x Concrete Hammer Tester
1x English Instruction Manual
