Directly hunt 5E, 6E, telephone wire, coaxial cable, usb cable and other cables Hub blink for locating network port by the flashing port light on hub/ switchCheck wiring error in 5E, 6E, coaxial cable, such as open, short, cross, ectMeasure cable length and determine the distance of broken pointTesting polarity and voltageBrand: Wire Map Manufacturer Number: NF-308 Networking Tools Type: Cable Testers Are batteries needed to power the product or is this product a battery: Yes Is this a Dangerous Good or a Hazardous Material, Substance or Waste that is regulated for transportation, storage, and/or disposal: No External Product ID Type: EAN-13 null: 6971278905011.
Features
Directly hunt CAT5e, CAT6, telephone wire, coaxial cable, USB cable and other cables.
Blink Function: for locating network port by flashing the port light on Hub / Switch.
Check wiring error in CAT5e, CAT6, or coaxial cable, such as open circuit, short circuit , jumper wire, reverse connection.
Locate the wiring or connection error.
Measure cable length up to 1000m and locate the breakage point.
Polarity test function measures DC voltage (0.5-60 V)
Memory and storage for calibration data.
Automatically time-delay shut off, and Low battery alarm function.
Cable map indication: LCD
Shielded indication: LCD
Voltage protection: AC 60V/DC 42V
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD): 185x80x32mm
Frequency: 225kHz
The Max. working current: Less than 70mA
Earjack: 1
LED illumination: 2
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V) x1pcs)
Dimension(LxWxD): 218x46x29mm
Remote unit specifications:

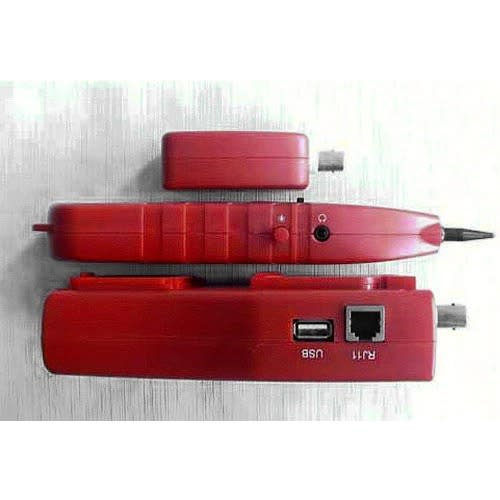

Compatible connectors: RJ11, RJ45, Coaxial, USB
Dimension(LxWxD): 107x30x24mm
