Product Description:
Made of high-quality materials, it is durable, very practical, wear-resistant, and performance stable.
It features hold result and max value buttons, which makes it faster and easier to use.
A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.

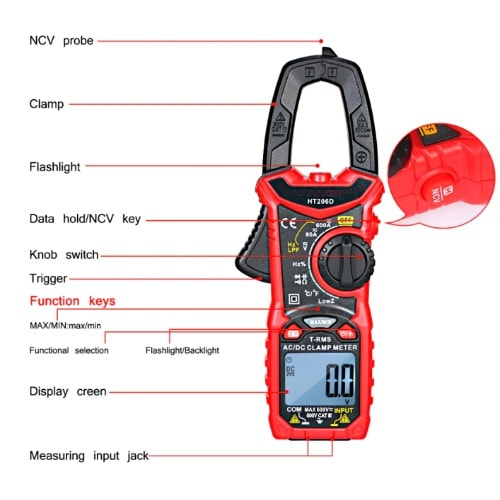

Hold and backlight button: The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
Avoid dangerous situations by using the convenient terminal to safely measure AC currents without having to strip a cable or break a circuit.
Auto power-off no operation in 15 minutes. The instrument will shut off automatically to save battery energy.

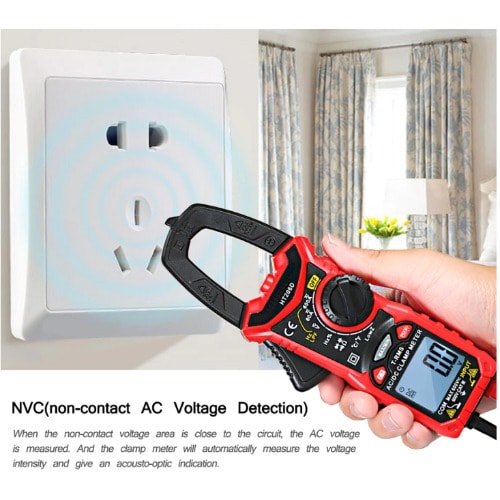

Multifunctional: Accurate AC / DC voltage, AC / DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc.
Wide range of uses, ideal for home and professional use, automotive, home, and industrial electrical troubleshooting.

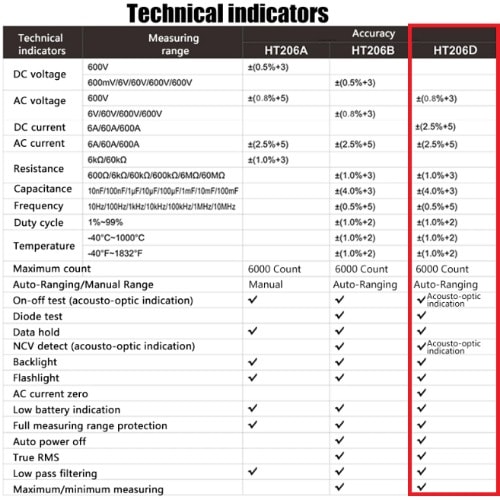

Specifications:
Brand Name: HABOTEST
Color: Red
Model: HT206D
Material: ABS
Display: LCD Display

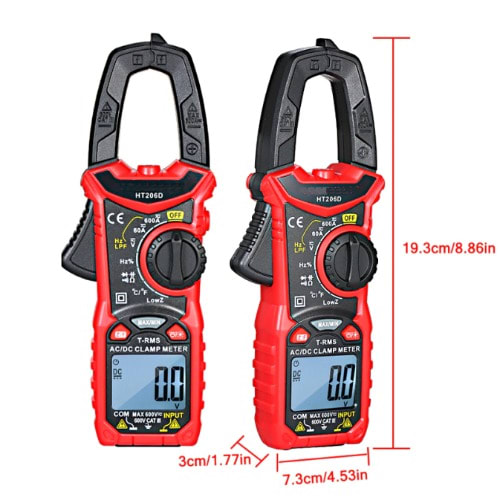

Jaw Opening: 25cm
DC voltage: 600mV/6V/60V/600V (± 0.5% read + 5)
DC current: 60A/600A (± 2.5% read + 8)
AC voltage : 6V/60V/600V (± 1.0% read + 5)
AC current: 6A/60A/600A (± 2.5% read + 8)
Resistance: 600/6K/60K/600K/6M/60M Ohms (± 1.0 % read + 5)
Duty cycle: 1-99%
Frequency (Hz): 10Hz ~ 10MHZ
Maximum count: 6000
Temperature: -40~1000°C/-40~1832°F
Power supply: 2*1.5V AAA batteries
Operating temperature and humidity: 0-40°C (<80% RH, <10° non-condensing)
Storage temperature & humidit: -10-60°C (<70% RH, remove the battery)
MAX. Voltage between terminals and earth: 600V
Above range indicator : it shows "OL"
Continuity: Orange
NOTE :
The voltage over 600V cannot be measured; otherwise,
the instrument could be damaged.
Be careful when measuring high voltage to avoid electric shock or injury.
Test the known voltage with the meter before use, confirm the instrument function is intact.
Please allow 1-3cm differences due to manual measurement.
