Digital Clamp Multimeter With Ac/dc Current And Voltage Measurement
Professional AC/DC Current Multimeter. The model is TS18D with added LIVE and NCV measurements. This an ideal clamp multimeter for engineers, technicians, and DIYs. Duty cycle test/low voltage prompt/backlight displayAutomatic shutdown/Flashlight lighting/Relative value measurementData retention/neutral and live wire judgment/NCV induction testContinuity test: When the resistance is less than 50 & Omega;, the buzzer will sound.6000 counts/true effective value Intelligent anti-burning/automatic shutdown
FeaturesTS18D is an AC and DC current measurement model DC current 0.1--600AIntelligent voice broadcast functionLIVE zero-fire judgment functionNCV induction test functionAC and DC voltage testAC current testResistance/Continuity TestDiode/capacitor testingFrequency testTemperature test
SpecificationsAC voltage: 0-600V Accuracy: & plusmn;(1.0%+5)DC voltage: 0-600V Accuracy: & plusmn;(0.8%+5)AC current: 0-600A Accuracy: & plusmn;(2.5%+10)DC current: 0-600A Accuracy: & plusmn;(2.5%+10)Resistance test: 0-60 & Mu; & Omega; Accuracy: & plusmn;(1.0%+10)Capacitance test: 0-60mF Accuracy: & plusmn;(5.0%+3)Frequency test: 20KHz Accuracy: & plusmn;(0.5%+5)Temperature test: -20 to 1000 & deg;C Accuracy: & plusmn;(1.0%+5)
Origin:Cn(origin)
Display Type:Digital
Say goodbye to manual measurement, technological progress,the birth of various electronic measurement tools,more accurate, more convenient, faster, greatly shortening the progress of various tasks, the advantages of measurement tools:
(1) Fast measurement speed;
(2) Wide measuring frequency range;
(3) The test dynamic range is wide;
(4) High accuracy of measurement;
(5) It is easy to realize remote measurement and long-term
Durable design, working well even in construction location.
Cable Tester for RJ11, RJ45, 10/100 Base-T and telephone cable, etc
Automatic efficient scan for the miss wiring, disorder cable, open and short circuit.
Test of the RJ45 RJ11 Cat-5 Cat-6 cable.
If all the cables work, the lights will become green from NO.1 & 2 to NO.7 & 8 sequently.
If any light is not on or turns on unsequently, the cables are broken.
Automatically scan mode, rapidly testing, the streamline shape is in accordance with the design of somatology

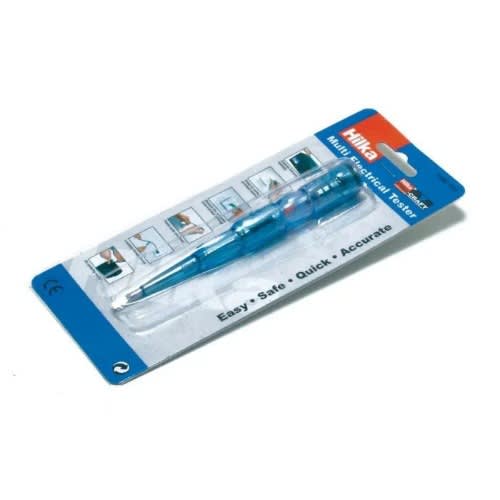

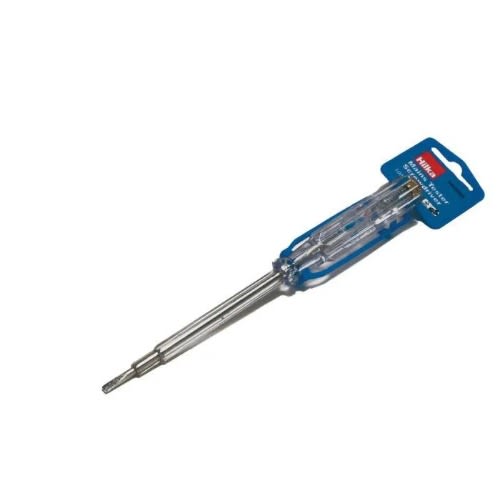

Mains tester slotted screwdrivers detects AC mains voltage via direct contact. Suitable for 220-240V. With transparent moulded handle to magnify the lamp.
Carbon Steel Blades
Fixed Plastic Handles
Tested to 2200V
Products DescriptionItem nameFactory High quality hot sale Test Pen 100-500V Voltage Tester with CRV BladeItem No.CW-135VT01Free sampleAvailableHandle materialASBlade materialcarbon steelSize3 x 135mmColorOrange + black, or customized colorLogoCustomized logoPackagingPlastic hanger /pc, or customized packaging
Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.Measure length of network cable, and locate the breakage point.Tone trace cable in bundle of unknown cables quickly. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.LCD light assists use in dark corners.Enables cables to be located even when totally concealed.
Description
DUOYI DY4100 Digital Ground Resistance Tester can test earth resistance of various earth system including power systems, electric equipments, light conductors as well as resistance value of low resistance conductor and AC voltage test.This one has more complete functions, higher accuracy, more convenient and reliable flor operation and more suitable for outdoor use with dust and proof structure.Accessories:
Auxiliary Earth barTesting WiresProduct Features:
Measuring range of earth resistance: 0.2000. 0/20/200/2000 ohm (2%+3) with 0.01 ohmMeasuring range of earth voltage 0.30V(3%+5)LED green light indicates normal operating mode31/2 digit LCD display for more direct and convenient reading.
Low battery warning: on LCD indicates deficiency of 12V battery. LED red lighting off indicates deficiency of 1.5V batteryFast Response: measure earth resistance, about 5 seconds, measure earth voltage about 2 seconds.Withstand voltage: AC 500V, 1 minute between circuit and outer casing.Overload protection: on the earth voltage, can withstand 300V AC 1 minute on the earth resistance, can withstand 200V AC 10 seconds.Power supply: six 1.5V AA batteries, one 12V battery 23AData holds: yesWorking LED indicator:yesSpecification:
Earth Ground Resistance: 0/20/200/2000(2% +3)Resolution: 0.01Earth voltage: 0-30V
Data holds: yesWorking LED indicator: yesLow battery warning: yesWorking temperature: 0 & deg;C- 40 & deg;C relative humidityStorage temperature: - 10 & deg;C - 50 & deg;C relative humidity
Electric Indicator Voltage Meter Tester PenVoltage Meter with Electric Indicator, 12V-250V Digital Voltmeter, Wall Plug, AC / DC Current Output, Detector, Sensor, PenElectric Indicator Voltage Meter Tester Pen Digital Voltmeter 12V-250V Socket Wall AC / DC Current Output Detector Sensor Tester PenFeatures:1. This meter is applicable to directly measure AC / DC voltage ranging from 12 to 240V and indirectly detect null line, phase line and AC / DC voltage continuity. In addition, it can also be used to test the continuity of the non-conductor.
Item Description:1. 100% Brand New and High Quality2. Type: Voltage Detector Pen3. Material: Plastic4. Size: 3x16x130cm5. Color: Black, Red
Package List:1pc * Digital AC Voltage Tester /DC
1 Pair 4mm Banana Plug Multimeters Meter Probe Test Lead 26" Long
2mm probe tip with 26" cable length, 4mm diameter banana plug.Ideal electronics component for testing electronics with multimeters and other instruments.Product Name : Multimeters Probe LeadConnector Type : Banana Plugs, Testing PinMaterial (External) : Plastic, MetalVoltage : 1000VPlug Diameter(Max.) : 4mm/0.15"Probe Length : 13mm/0.51"Probe Tip Dia. : 2mm/0.1"Cable Length : 0.66M / 26"Color : Black, RedPackage Content : 1 Pair x Multimeters Probe LeadNote:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.
Introducing the Cutting-Edge Earth Resistance Tester: Unlock the Power of Precise Electrical Testing!
Are you ready to revolutionize your electrical testing capabilities? Look no further than the Earth Resistance Tester, a versatile and powerful tool designed to measure earth resistance with unrivaled precision. Whether you're testing power supply wires, distribution wires, electrical equipment, or appliances, this advanced tester has covered you.
It features two measurement modes & mdash;Bi-poles and Tri-poles & mdash;the Earth Resistance Tester offers unparalleled flexibility. And that's not all! It can also measure the earth & rsquo;s voltage, giving comprehensive insights into your electrical system. With Constant Current Conversion technology and a current testing frequency of approximately 800HZ, accuracy and reliability are at your fingertips. The sizeable rotary switch allows for easy selection between 2, 3, or 4-pole testing, ensuring convenience and efficiency for every project.
Powered by six 1.5V AA batteries, this tester offers extended use without compromising performance. The multiple user-selectable test frequencies enable precise measurements tailored to your specific needs. Plus, with its IP54 rating and adherence to stringent safety standards, you can trust the Earth Resistance Tester to keep you safe and secure throughout your testing endeavors.
Simplicity meets sophistication with the one-button operation, guaranteeing hassle-free usage. The large, clear, and easy-to-read LCD enhances readability, making it perfect for various site conditions and outdoor use. Say goodbye to test failures with the built-in warning indicator, ensuring accurate results every time.
But the features don't stop there! The Earth Resistance Tester comes equipped with a current measuring function for Attached Rod Technique (ART) testing. Now you can test on-site earthlings separately without disconnecting the utility connection, saving you time and effort. And with the revolutionary stalkless testing capability, you can conduct measurements without additional earth stakes, providing even greater convenience.
Are you worried about the connection and conditions of spikes and ground noise levels? Fear not! The Earth Resistance Tester automatically checks these critical factors and displays their status on the user-friendly interface. It even includes a voltmeter for precise ground voltage measurements, comprehensively understanding your electrical system's health.
Engineered to German standards, the Earth Resistance Tester is the epitome of reliability and performance. Don't settle for anything less regarding electrical testing & mdash;unleash the true potential of your projects with the Earth Resistance Tester today!
Anti-static Wrist Strap Tester Quick-response Meter
For the static strap function, HAKKO498 Wrist Strap Tester can quickly and easily check the following:
1. Test static strap and ground wire connection.2. Test the impedance between skin and Static strap.3. Test the connection during anti-static access panels, cushion for connecting ground.
Features:
1. quickly and easily check ground systems at any place;2. avoid static electricity to damage the product;3. Ensure staff safety.
Indication: LOW (Red light) R & lt; 800K & Omega; , without soundIndication: GOOD (Green light) 800K & Omega; - 9M & Omega; , with soundIndication: HIGH (Red light) R & gt; 9M & Omega;, without sound
Method of operation:
(The cordless wrist strap to be clamped to the top of the screw), press the test instrumentwith the wrist strap on the middle of the test plate, if the grounding system is normal, green light turns on indicating "GOOD",if the Both sides of the "HIGH" light or "LOW" lights up, this indicates that the wrist strap can not be used normally.
Weight
0.10 kg
Warranty Period
3 Months
Directly hunt 5E, 6E, telephone wire, coaxial cable, usb cable and other cables Hub blink for locating network port by the flashing port light on hub/ switchCheck wiring error in 5E, 6E, coaxial cable, such as open, short, cross, ectMeasure cable length and determine the distance of broken pointTesting polarity and voltageBrand: Wire Map Manufacturer Number: NF-308 Networking Tools Type: Cable Testers Are batteries needed to power the product or is this product a battery: Yes Is this a Dangerous Good or a Hazardous Material, Substance or Waste that is regulated for transportation, storage, and/or disposal: No External Product ID Type: EAN-13 null: 6971278905011.
Features
Directly hunt CAT5e, CAT6, telephone wire, coaxial cable, USB cable and other cables.
Blink Function: for locating network port by flashing the port light on Hub / Switch.
Check wiring error in CAT5e, CAT6, or coaxial cable, such as open circuit, short circuit , jumper wire, reverse connection.
Locate the wiring or connection error.
Measure cable length up to 1000m and locate the breakage point.
Polarity test function measures DC voltage (0.5-60 V)
Memory and storage for calibration data.
Automatically time-delay shut off, and Low battery alarm function.
Cable map indication: LCD
Shielded indication: LCD
Voltage protection: AC 60V/DC 42V
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD): 185x80x32mm
Frequency: 225kHz
The Max. working current: Less than 70mA
Earjack: 1
LED illumination: 2
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V) x1pcs)
Dimension(LxWxD): 218x46x29mm
Remote unit specifications:
Compatible connectors: RJ11, RJ45, Coaxial, USB
Dimension(LxWxD): 107x30x24mm
Resiliometer Hammer is used for testing of concrete compressive strength within the scope of 10-60Mpa.
This concrete resiliometer hammer is consistent with technical regulations.
The concrete test hammer features lightweight and power-free. It is flexible and easy to master. Come with portable carry case.
Center guide rod is made of imported materials, high precision, wear-resistant. Use of quite-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life.
Concrete Test Hammer is generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
Specifications:
Length of pointer: 20.0 & plusmn;0.2 (mm)
Friction of pointer: 0.65 & plusmn;0.15 (N)
Rigidity of flip tensioned spring: 785.0 & plusmn;40.0 (N/m)
Sphere semi diameter at the end of the flip rod: 25 & plusmn;1.0 (mm)
Location of flip hammer's hook release: "100" at the scale mark
Work length of flip tensioned spring: 61.5.0 & plusmn; 0.3(mm)
Strike length of flip hammer: 75 & plusmn;0.3(mm)
Hop location of the flip hammer: "0" at the graduated scale
Fixed value of steel anvil: 80 & plusmn;2 (our hammer tester is controlled between 80-81.)
Hammer weight: 2.2 lbs (1kg)
Porduct weight: 3.96 lbs (1.8kg)
Package Included:
1x Grindstone
1x Screwdriver
1x Buffer Spring
1x Flip Tension Spring
1x Concrete Hammer Tester
1x English Instruction Manual
