Model |
B15345NHD=DIY0216 |
Production Country |
China |
Size (L x W x H cm) |
15 x 12 x 3cm |
Weight (kg) |
0.10 |
Color |
Multicolor |
Main Material |
Multi-Material |

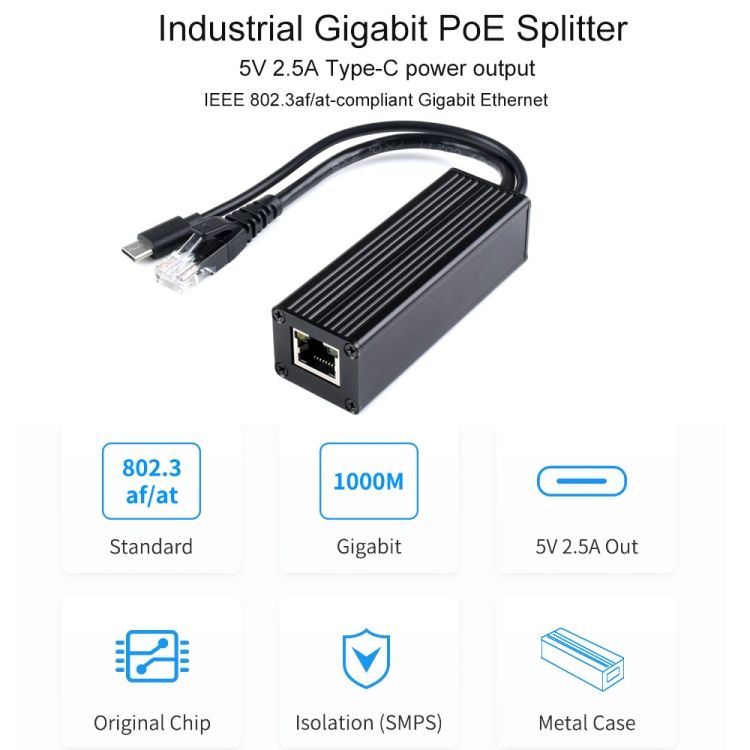

Waveshare Metal Case Gigabit PoE Splitter
Features
1. Incorporates chip Si3404, high-efficiency, high-safety, stable-performance
2. 10/100/1000Mbps auto-negotiation Ethernet port
3. 802.3af/at-compliant PoE (Power over Ethernet) standard

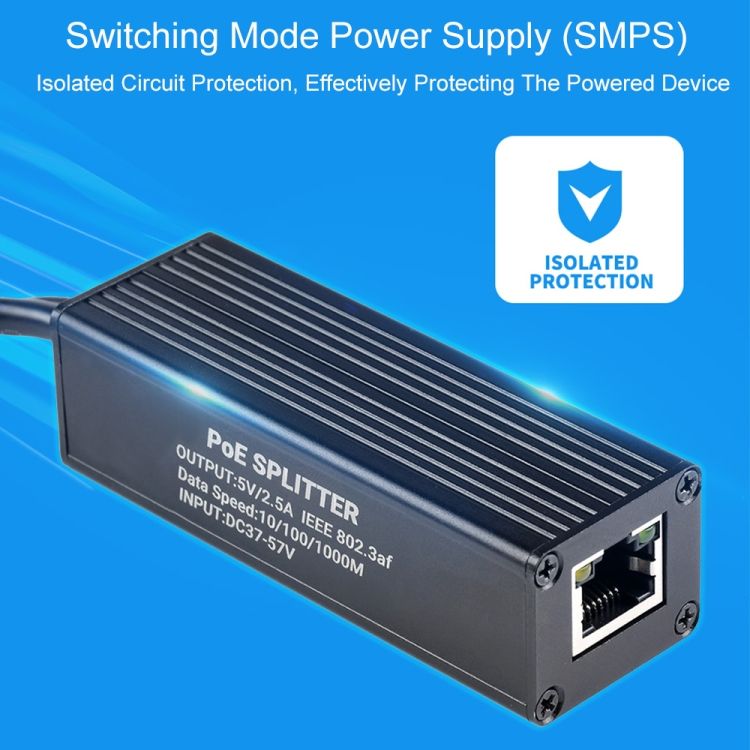

4. Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device

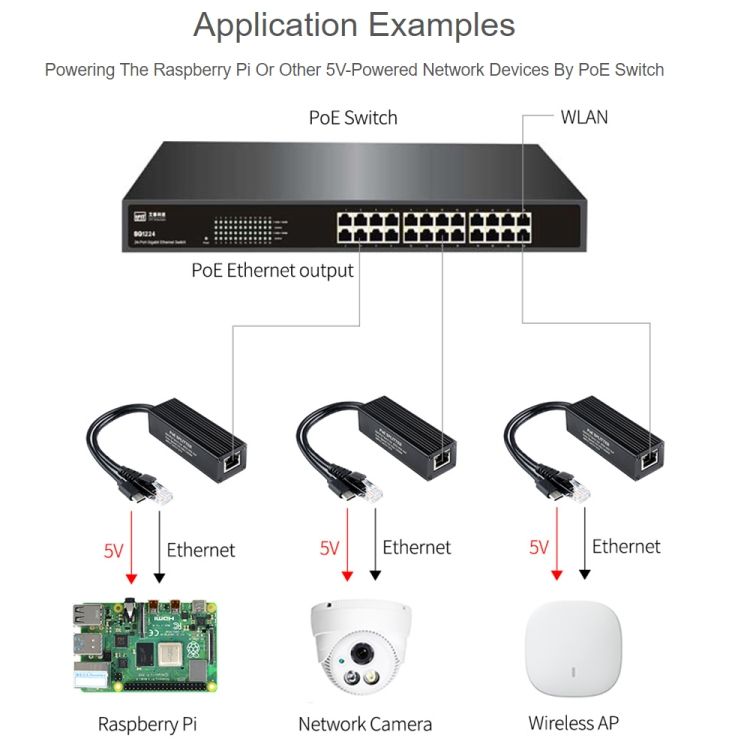

5. 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices

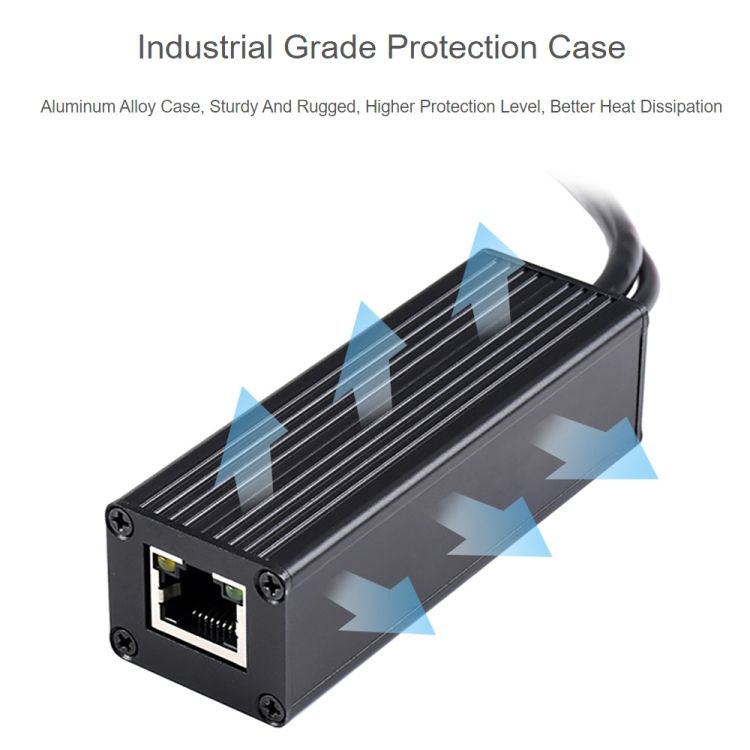

6. Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
1. Power Supply: Support 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
2. POE input voltage: 37V ~ 57V

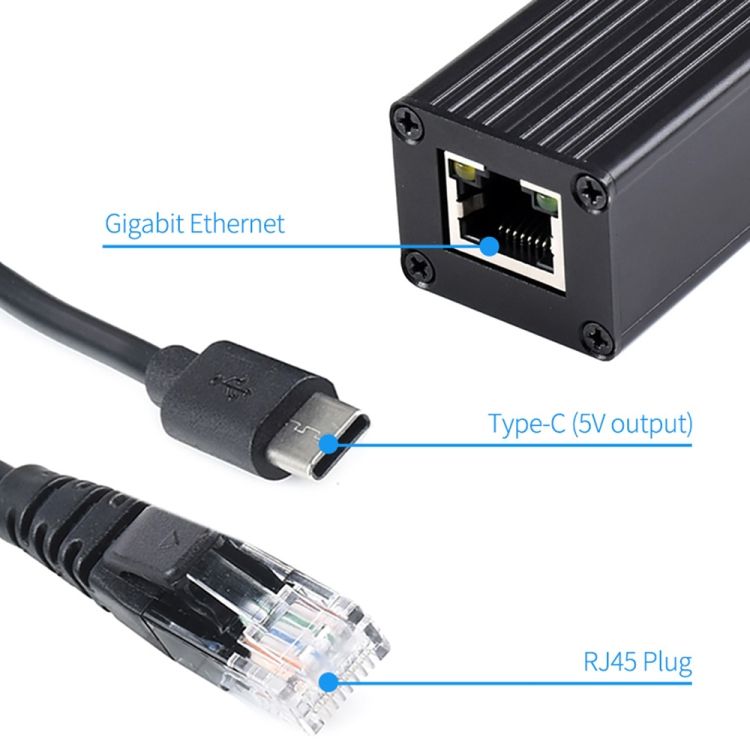

3. Type-C output: 5V 2.5A (MAX)
4. Cable: Cat-5 UTP
5. Standard: IEEE 802.3 af/at PoE Ethernet
6. Data rate: 10/100/1000Mbps
7. LED indicator: PoE power input indicator

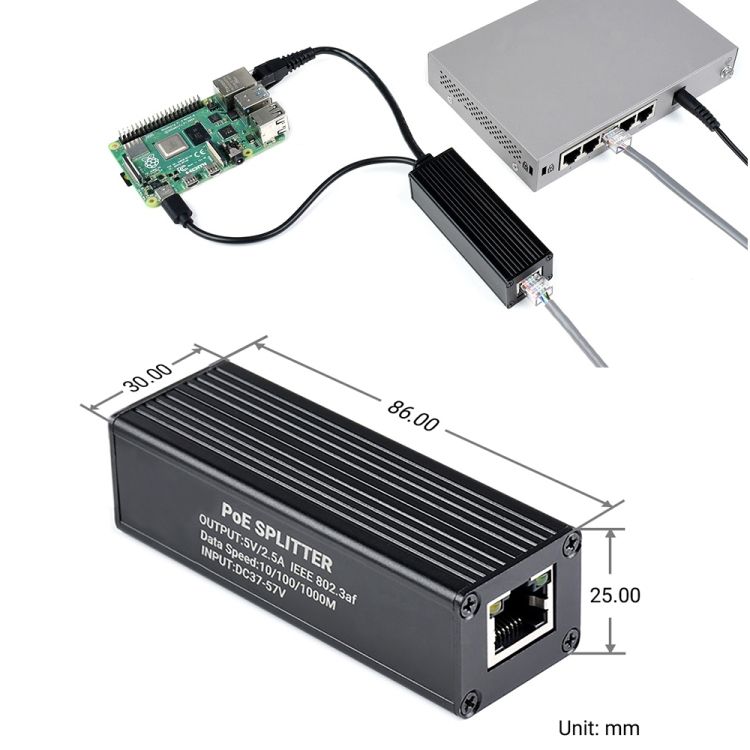

8. Size: 86 x 30 x 25mm (l x w x h)
9. Operation temperature: -40 degree C ~ 85 degree C
Key Features
Waveshare Metal Case Gigabit PoE Splitter
Waveshare Metal Case Gigabit PoE Splitter
Waveshare Metal Case Gigabit PoE Splitter
Waveshare Metal Case Gigabit PoE Splitter
Waveshare Metal Case Gigabit PoE Splitter
What's In the Box
1 x package
