Model |
B15345NHD=ZY15060040 |
Production Country |
China |

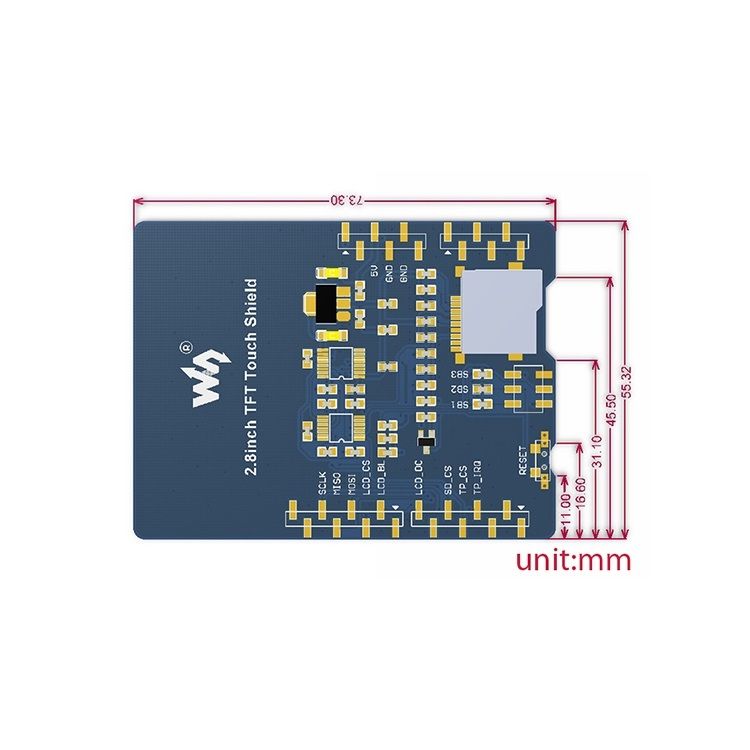

Size (L x W x H cm) |
8 x 6 x 2cm |
Weight (kg) |
0.08 |
Color |
Multicolor |
Main Material |
Multi-Material |

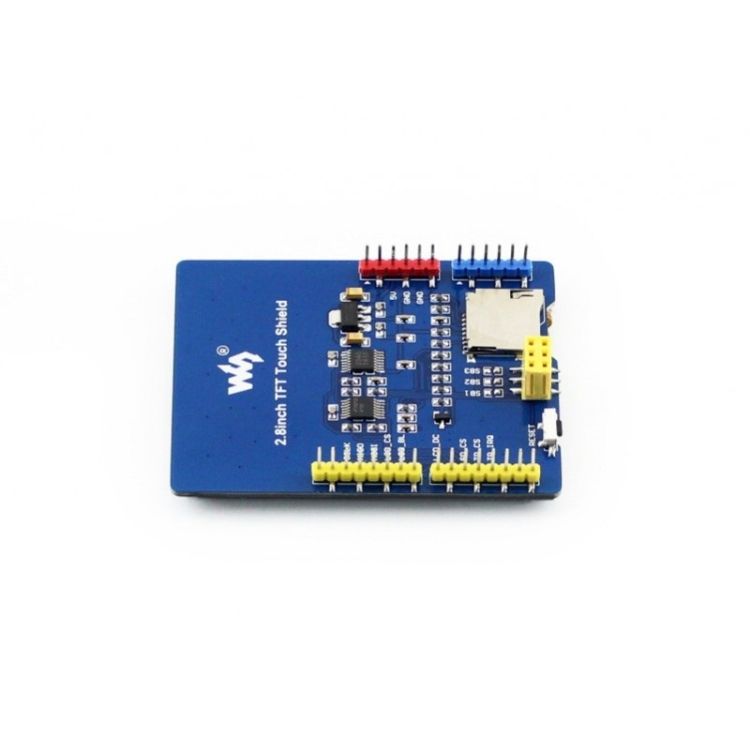

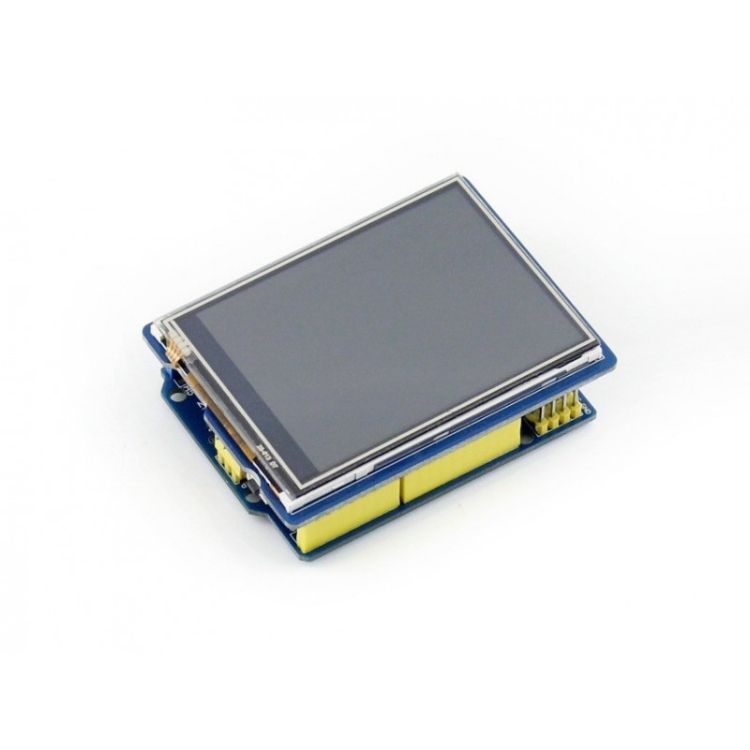

2.8 inch Touch LCD Shield for Arduino
Features
1. Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
4. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via , only a few Arduino pins are used
7. Backlight adjustable by program, lower power consumption
Key
1. LCD Type: TFT
2. LCD Interface:
4. LCD Controller: HX8347D
5. Touch Screen Type: Resistive
6. Touch Screen Controller: XPT2046
7. Colors: RGB, 65K colors
8. Resolution: 320x240 (Pixel)
9. I/O Voltage: 3.3V/5V
Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
Key Features
2.8 inch Touch LCD Shield for Arduino
2.8 inch Touch LCD Shield for Arduino
2.8 inch Touch LCD Shield for Arduino
2.8 inch Touch LCD Shield for Arduino
2.8 inch Touch LCD Shield for Arduino
What's In the Box
1 x package
