Buy Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader

Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader 24263

₦ 79,835.81 ₦ 84,037.69 -5%

0 No Reviews

Product SKU: RENG365479

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	B15345NHD=TBD0426281902
Production Country	China
Size (L x W x H cm)	8 x 5 x 4cm
Weight (kg)	0.03
Color	Multicolor
Main Material	Multi-Material

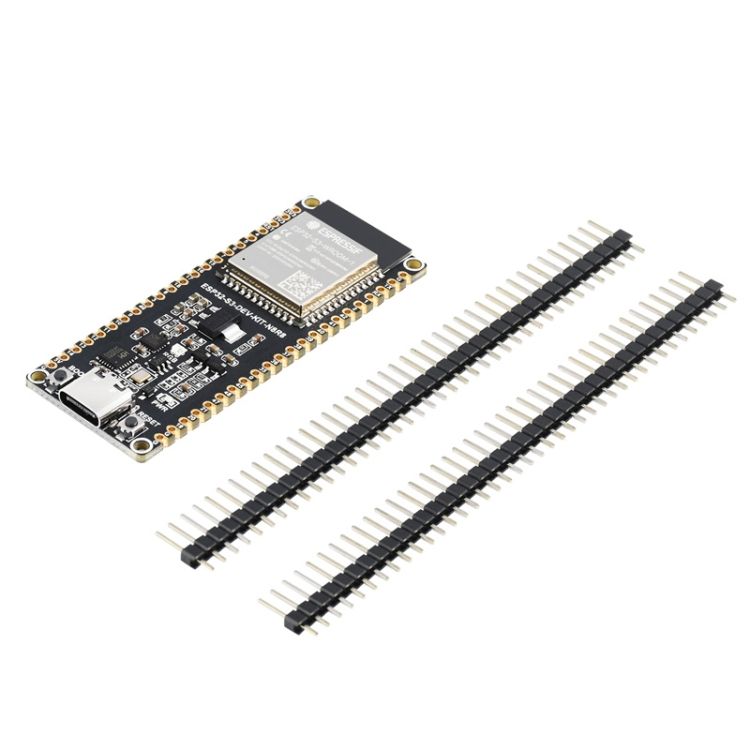

Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader

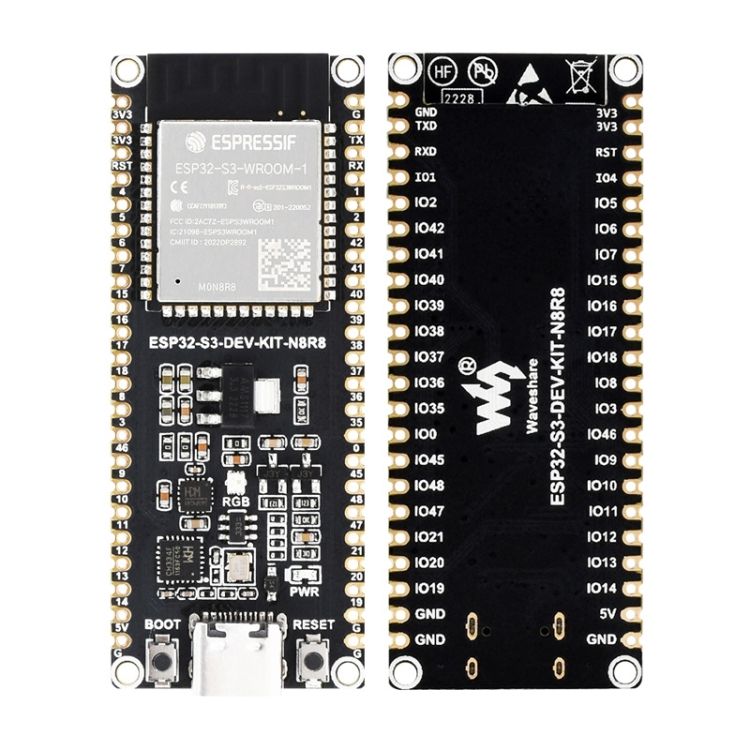

1. ESP32-S3-DEV-KIT-N8R8 is a microcontroller development board with a small size and a variety of digital interfaces.
2. In terms of , you can choose ESP-IDF, Arduino, MicroPython and other development envments for development, so that you can get started easily and quickly, and apply them to products.
3. Using ESP32-S3-WROOM-1-N8R8 module, equipped with Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
4. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
5. Integrated 2.4GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE) dual-mode wireless communication with rior RF performance
6. Using the USB Type-C interface, no need to tangle with the front and back plugs

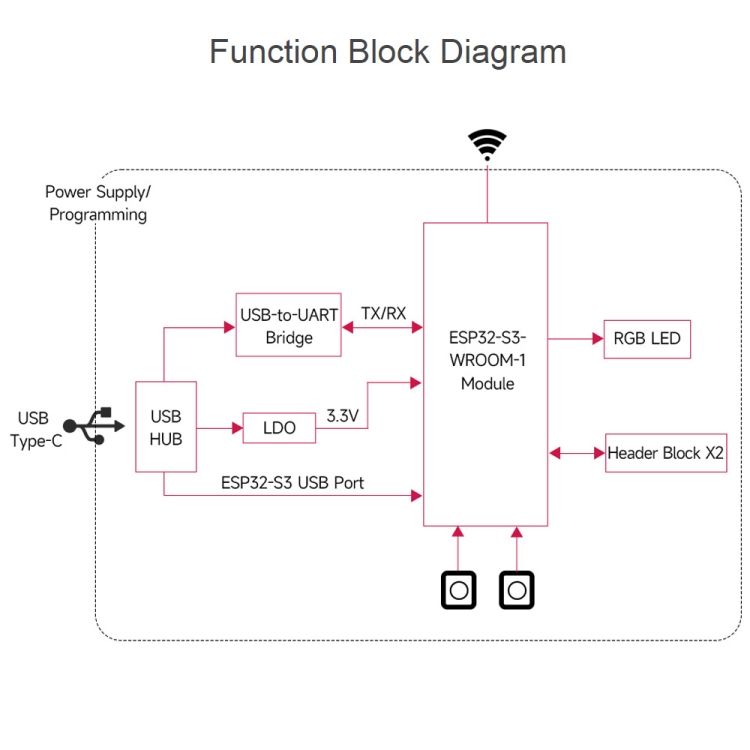

7. The onboard CH343 and CH334 chips can meet the development and use requirements of USB and UART through a Type-C interface
8. Lead out rich peripheral interfaces, pin compatible with ESP32-S3-DevKitC-1 development board, strong compatibility and expandability
9. Stamp hole design, can be directly welded and integrated into the bottom plate designed by the user
10. Support a variety of low-power working states, adjust the balance between communication distance, data rate and power consumption, and meet the power consumption requirements of various application scenarios

Key Features

Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader
Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader
Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader
Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader
Waveshare ESP32-S3 Microcontroller Standard Ver. With Pinheader

What's In the Box

1 x package
