Model |
B15345XHE=DIY0247 |
Production Country |
China |
Size (L x W x H cm) |
15 x 12 x 3cm |
Weight (kg) |
0.10 |
Color |
Multicolor |
Main Material |
Multi-Material |

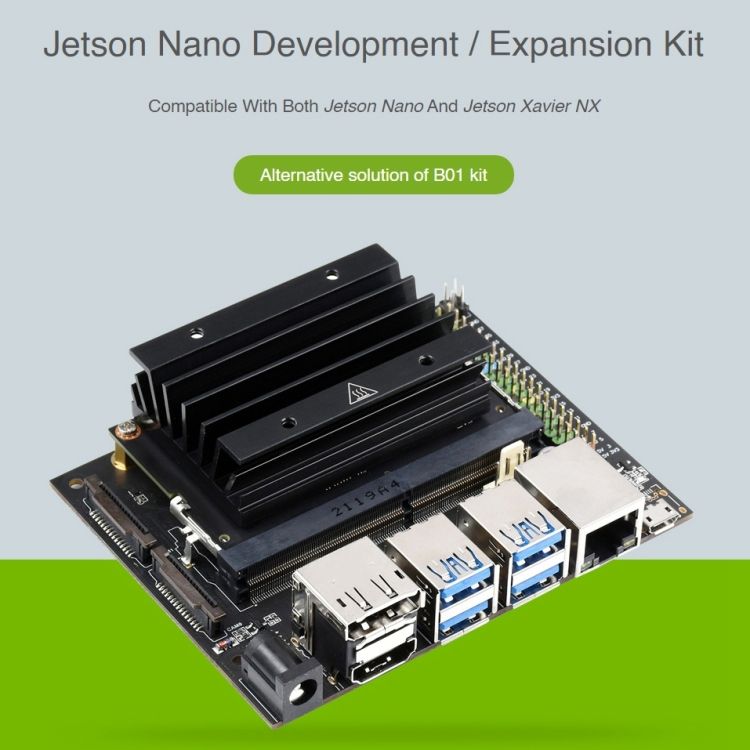

Waveshare Jetson Nano Development / Expansion Module Board
1. G P U: 128-core Maxwell
2. CPU: Quad-core ARM A57 1.43 GHz
3. Memory: 4GB 64-bit LPDDR4 25.6 GB/s
4. Storage: 16GB eMMC (no micro SD card slot)
5. Video encoder: 4K 30, 4x 1080p 30, 9x 720p 30 (H.264/H.265)
6. Video Decod er: 4K 60, 2x 4K 30, 8x 1080p 30, 18x 720p 30 (H.264/H.265)

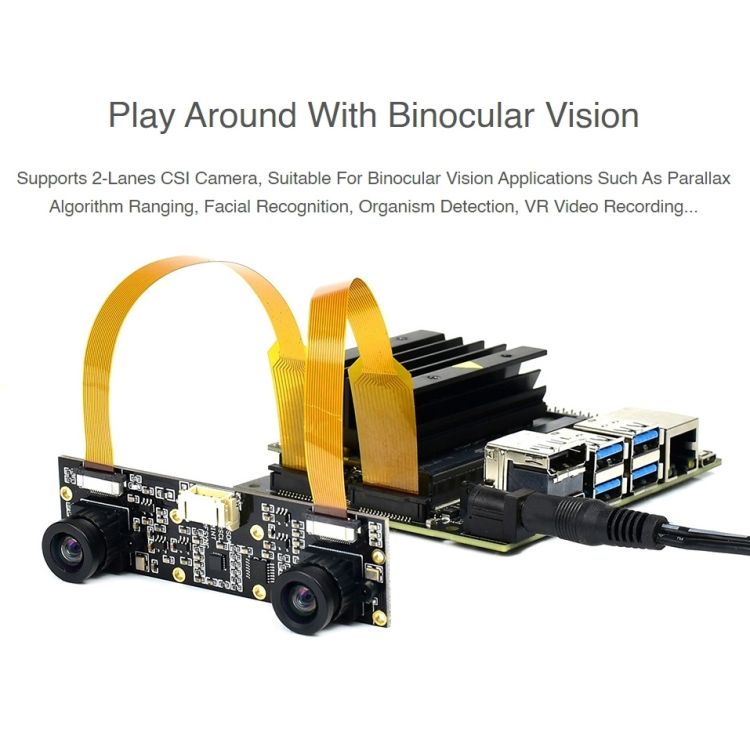

7. Camera: 2x MIPI CSI-2 DPHY lanes
8. Connectivity: Gigabit Ethernet, M.2 Key E expansion connector

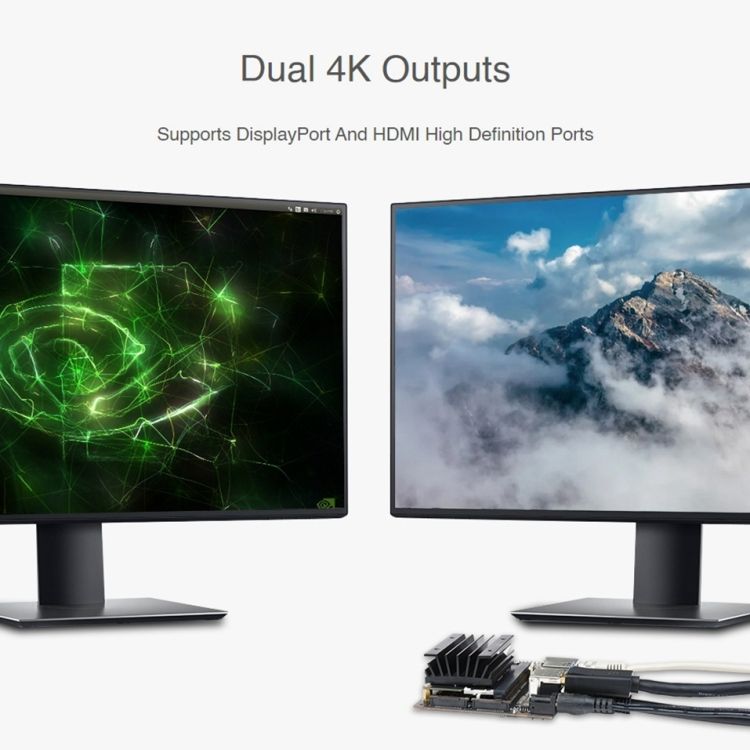

9. Display: HDMI and DP
10. USB: 4x USB 3.0, USB 2.0 Micro-B
11. Extension interfaces: GPIO, I2C, , , UART

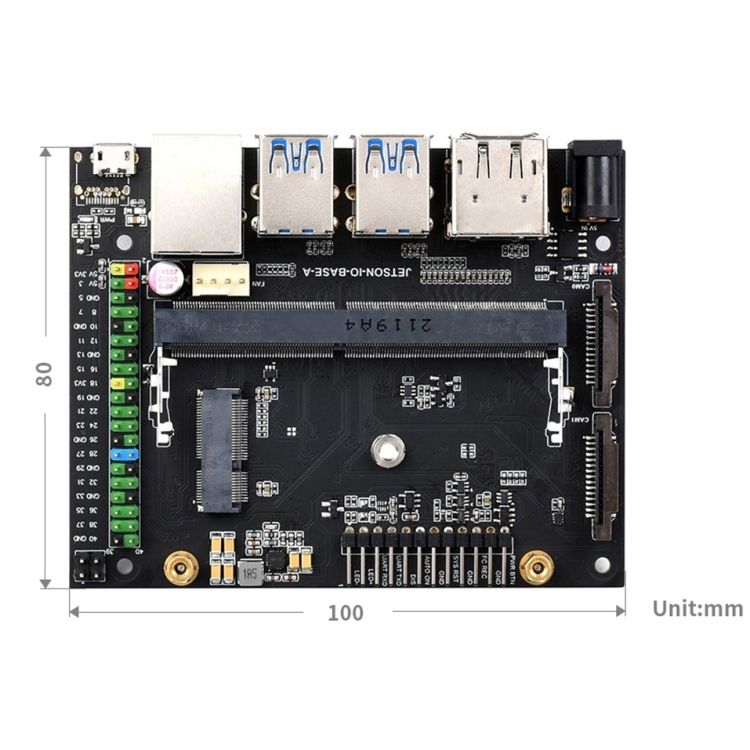

12. Dimensions: 100 x 80 x 29mm
13. Other: 260-pin connector
Key Features
Waveshare Jetson Nano Development / Expansion Module Board
Waveshare Jetson Nano Development / Expansion Module Board
Waveshare Jetson Nano Development / Expansion Module Board
Waveshare Jetson Nano Development / Expansion Module Board
Waveshare Jetson Nano Development / Expansion Module Board
What's In the Box
1 x package
