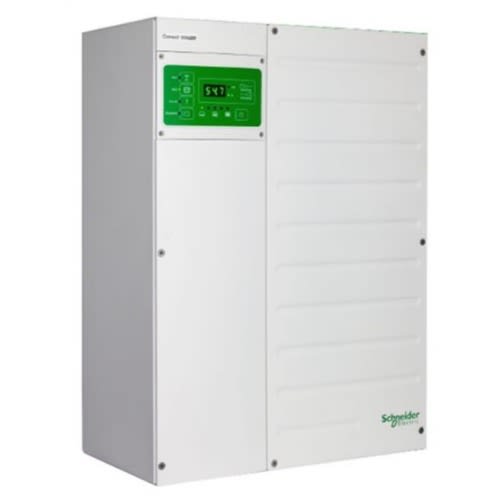

Conext XW+ is an adaptable single-phase and three-phase hybrid inverter with grid-tie functionality and dual AC power inputs. Available solar charge controllers, monitoring, and automated generator control modules enable further adaptability. From a single Conext XW+ unit to clusters up to 102 kW, the Conext XW+ is a scalable system that allows for the integration of solar capacity as required. Adaptable and scalable, the Schneider Electric Conext XW+ system is the one solution for grid-interactive and off-grid, residential and commercial, solar and backup power applications.
Electrical Specifications
Output power continuous at 25C: 6800W
Output power continuous at 40C: 6000W
Nominal battery Voltage: 48V
Input DC voltage range: 40 to 64VDC
Ouput voltage: 230VAC 50Hz/60Hz
Max output Charge current (DC): 140A
Max AC Input current: 29.6 A
Max Input DC current: 180 A
Transfer time: 8m
Supported battery types: Flooded, AGM, GEL, Lithium-ion, Custom
Dimensions (mm) (LxBxW): 711x572x394
Weight: 55.2 kg
Ingress protection: IP20 Indoor only
