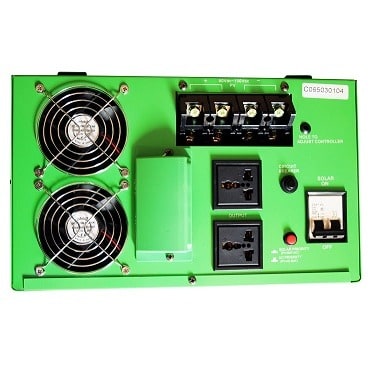

3.5Kva 48V Solar Hybrid Inverter
Pure Sine Wave Inverter/Charger
True C.R.G.O toroidal transformer, lower static loss, more energy saving
Double CPU control, higher reliability
PV priority mode or AC priority mode optional
Solar Charge Controller
Untra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPTcontroller will improve energy harvest by up to 30% compared to PWM charge controllers and by upto 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.Conventional MPPT's tend to lock toalocal MPP, which may not be the optimum MPP.The innovative fangpusun algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F)
THUNDERVOLT SOLAR HYBRID INVERTER
MODEL TSH1500-24/30 TSH2500-24/50 TSH3500-48/45
RATED POWER (W) 1050W 1800W 2400W
BATTERY VOLTAGE 24VDC 24VDC 48VDC
POWER (KVA) 1.5KVA 2.5KVA 3.5KVA
PV INPUT VOTAGE 100VDC MPPT 150VDC MPPT
RATED CHARGE CURRENT 30A/50A 50A 45A/70A
NORMINAL PV POWER 880W/1400W 1400W 2600W/4000W
CHARGE VOLTAGE 'ABSORPTION' DEFAULT SETTING: 28.8V (ADJUSTABLE)
CHARGE VOLTAGE 'FLOAT' DEFAULT SETTING: 27.6V (ADJUSTABLE)
CHARGE ALGORITHM MULTI-STAGE ADAPTIVE
MAXIMUM EFFICIENCY 98%
DISPLAY PANEL INDICATOR LIGHT LED GRAPHIC SCREEN + LCD
MAINS STATUS OPTION INPUT VOTAGE RANGE 140 - 275VAC
INPUT FREQUENCY RANGE 45HZ - 65HZ (AUTO TRANSFER TO INVERTER MODE WHEN OUT OF RANGE)
OUTPUT VOLTAGE RANGE 195VAC - 240VAC
INPUT PF (AC/DC) 98%
CHARGE CURRENT 15A
MAINS OVERLOAD WARNING UNTIL LOAD DECREASE
SHORT CIRCUIT YES
INVERTER OUTPUT INVERTER OUTPUT VOLTAGE 220VAC + -3%
WAVE FORM PURE SINE WAVE
OUTPUT FREQUENCY 50HZ/60HZ + -3%
OUTPUT POWER FACTOR 0.8
WAVEFORM DISTORTION LINEAR LOAD <=3%
AC TRANSFER TIME 4MS TYPICAL VALUE MAX. 6MS
EFFICIENCY INVERTER MODE 80%
INVERTER OVERLOAD 110-130% SHUTDOWN IN 30S: 130%-150% SHUTDOWN IN 3S
SHORT CIRCUIT SYSTEM AUTOMATICALLY SHUTDOWN
ALARM MAINS ABNORMAL YES
LOW BATTERY YES
OVERLOAD YES
OTHERS NOISE <=50DB
DIMENSION (CM) 47.5 X 45.5 X 27.5 47.5 X 45.5 X 27.5 58 X 48 X 32.5
WEIGHT (KG) 11 14.5 22.3/22.5
