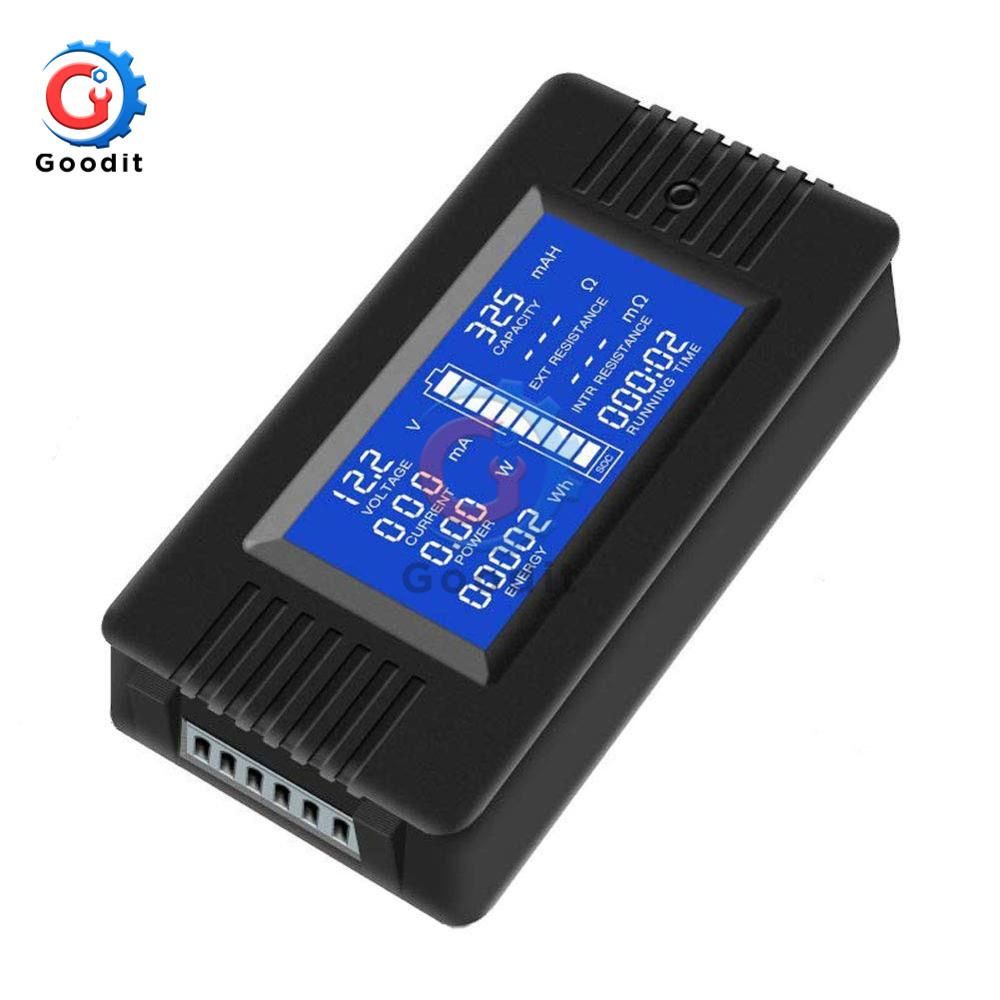

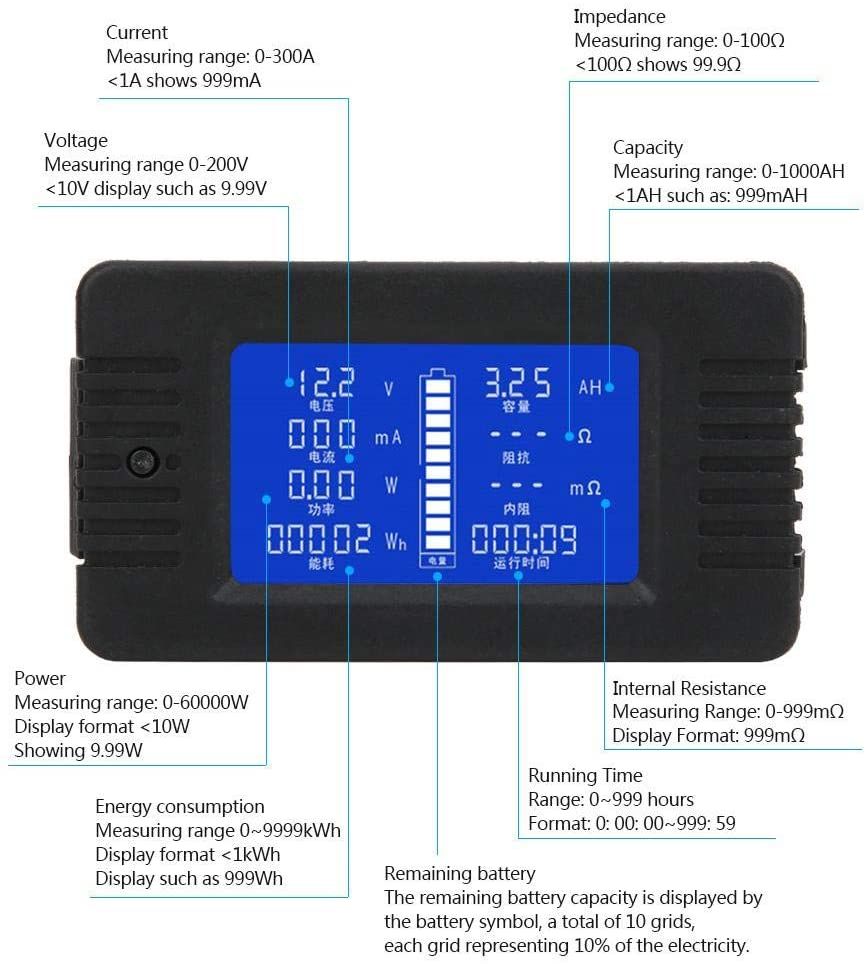

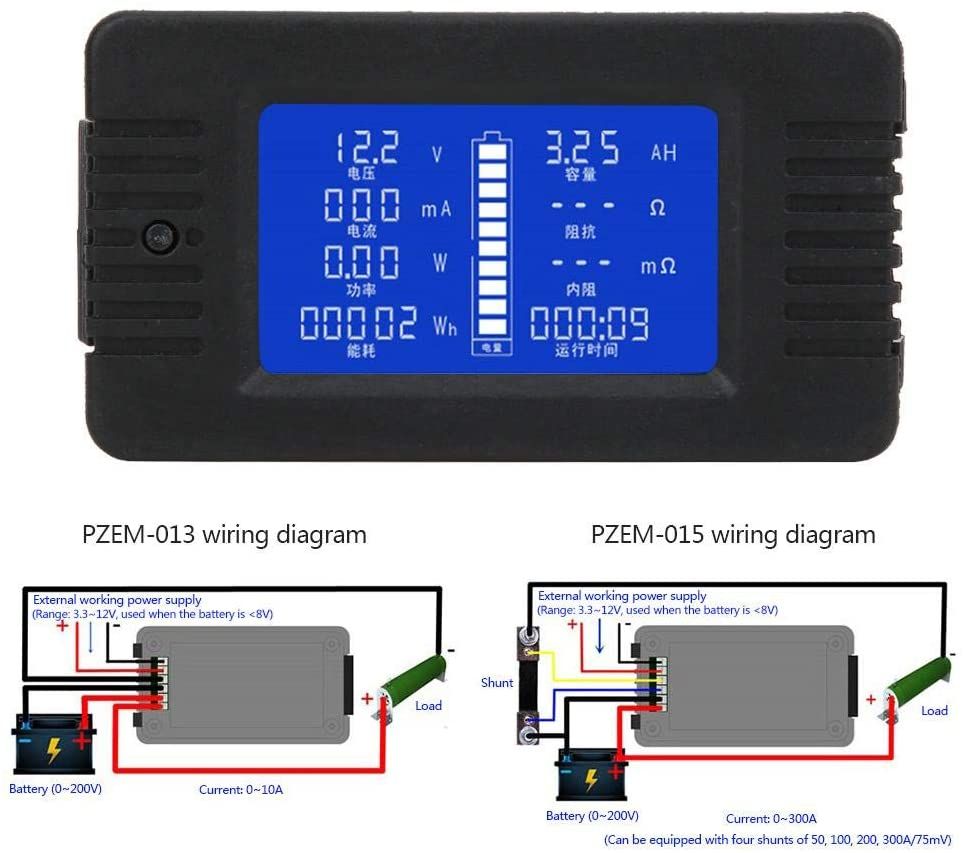

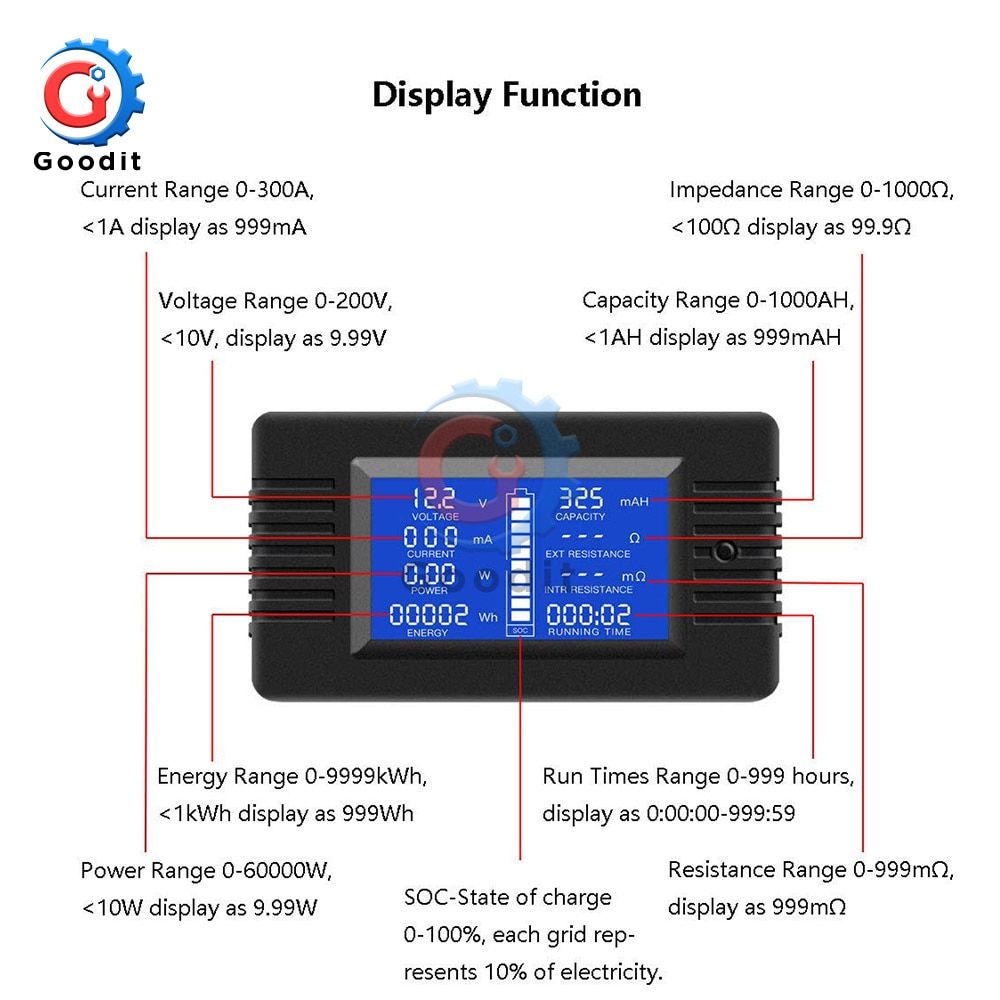

PZEM-015 DC multifunction battery tester, This meter is mainly used to test all kinds of battery's voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, dump energy,energy consumption and running time, And display the measurement data through LCD screen. PZEM-015: Measuring Range 300A (use external shunt, can matched with 50A, 100A, 200A, 300A four kinds of shunt). Function description: Voltage: Measuring range: 0-200V. (when the test voltage is le than 8V, please use the independent power supply mode) Display format: le than 10V display as: 9.99V le than 100V display as: 99.9V greater than 100V display as: 199V Minimum resolution:0.01V The starting test voltage: 0.05V Measurement accuracy:1% Current: Measuring range: 0-300A can set 50A, 100A, 200A,300A four range depend on the external shunt, the factory default is 100A. Display format: le than 1A display as: 999mA ＜10A display as: 9.99A ＜100A display as: 99.9A ≥ 100A display as: 199A Minimum resolution: 1mA The starting test current: 20mA Measurement accuracy:1% Power: Measuring range: 0-60000W Display format: ＜ 10W display as: 9.99W ＜ 100W display as: 99.9W ＜ 1000W display as: 999W ＜ 10000W display as: 9.99kW ≥ 10000W display as: 19.9kw Minimum resolution: 0.01W The starting test power: 0.2W Measurement accuracy:1% Impedance: Impedance=Voltage/ Current Measuring range: 0-1000Display format: ＜ 100display as: 99.9≥ 100display as: 999When over the test range or the current is zero, it display "---" Minimum resolution: 0.1Measurement accuracy:1% Internal Resistance: Internal resistance= (Full voltage - Bring load voltage) / Bring load current, when the bring load voltage is larger than the maximum voltage, the internal resistance is zero. Measuring range: 0-999 milliDisplay format: 999 milli, when over the test range or the current is zero, it display "---". Minimum resolution: 1 milliMeasurement accuracy:1% Note: Before you test the internal resistance, you should preset the full voltage depend on the battery type, ar it is fully charged you can use it to test; if you do not fully charge it, you can set the battery without load voltage is the full voltage, then test; the internal resistance is not a fixed value, the more the battery discharged, the bier the resistance. Capacity: Measuring range: 0-1000AH Display format: ＜ 1AH display as: 999mAH ＜ 10AH display as: 9.99AH ＜ 100AH display as: 99.9AH ＜ 1000AH display as: 999AH Minimum resolution: 1mAH Measurement accuracy:1% Note: Battery capacity testing is aulative proce of discharge current versus time, it need some time, the time is depend on the discharge current; Before you test the capacity, you should preset the full voltage and the cut-off voltage depend on the battery type, ar it is fully charged you can use it to the discharge test; When the dump energy display blank, it means the discharge is over, this capacity display value is the battery's capacity. Dump energy: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy. Dump energy is calculated via the current battery voltage value, before test you should preset the full voltage and the cut-off voltage depend on the battery type; every grid voltage = (the highest voltage - the lowest voltage) / 10. Accumulate energy consumption: Measuring range: 0-9999kWh Display format: ＜ 1kWh display as: 999Wh ＜ 10kWh display as: 9.99kWh ＜ 100kWh display as: 99.99kWh ＜ 1000kWh display as: 999.99kWh ≥ 1000kWh display as: 9999kWh Over the test range will become zero. Minimum resolution: 1Wh Measurement accuracy:1% Note: 1Wh=0.001kWh=0.001 Kilowatt Running time: Measuring range: 0 ~ 999 hour (without load the time will not accumulate) Display format: 0:00:00 ~ 999:59:59 Over the test range will become zero. Operating Instructions: Setting the full and cur-off voltage Package included: 1 * DC Multimeter Battery Tester Monitor
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
DIY Supplies:ELECTRICAL
Origin:Mainland China
Dimensions:89.6x49.6mm
Operating Temperature:-20~60C
Accuracy Class:2%
Display Type:Digital Only
Power Supply:DC
Certification:CE
Model Number:pzem-015
Feature 1:Multifunction Voltmeter Ammeter
Feature 2:Voltage Meter monitor
Feature 3:PZEM-015 100A
Feature 4:battery monitor
What's In the Box

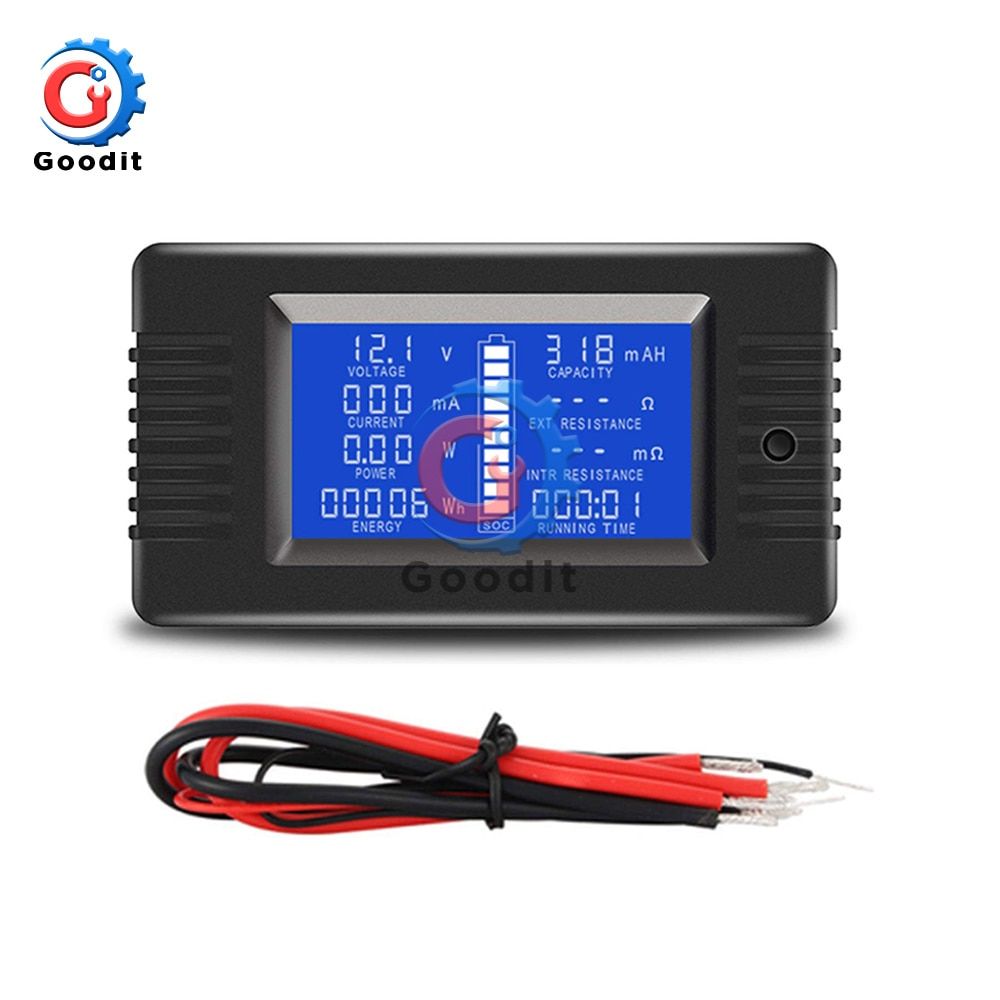

1X PZEM-015 100A Battery Tester Voltmeter Ammeter Power Voltage Current Impedance Capacity Energy Time Meter Monitor built-in shunt
