4 in 1 Digital Voltmeter Ammeter meter Voltage Current Power Energy meter Gauge AC 80-260V 20A 100A Watt Power Meter Blue
About 20A Section Description:
Feature:
and high quality!
Dual measurement of AC voltage, AC current (it cannot be used to measure AC power converted from a DC power supply to an inverter) Specifications:
Voltage measurement range: AC 80~260V
Current measurement range: AC 0~20A
Active power measurement range: 0~4.5KW
The meter can only measure active power (real power). It does not display apparent power, which includes reactive power and active power. For more information about the differences, please read this: LINK
Energy measurement range: 0~9999kWh
Working temperature: -10ºC~65ºC
Working humidity: 35~85%RH
Dimensions: 9cm*5cm*2.45cm/3.54"*1.97"*0.96"
Package Included:
1 * LCD panel AC meter
About 100A Description:
Feature:
Electrical parameter measurement function (voltage, current, active power, energy)
Overload alarm function (over power alarm threshold, backlight and power flashing alarm)

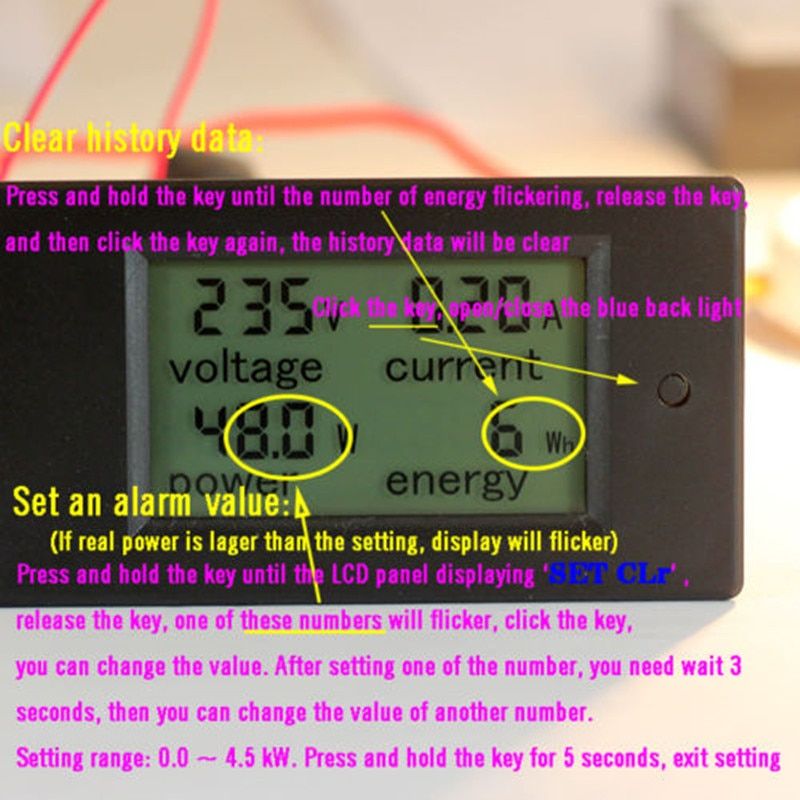

The reset function of the energy key
Store data when shutting down

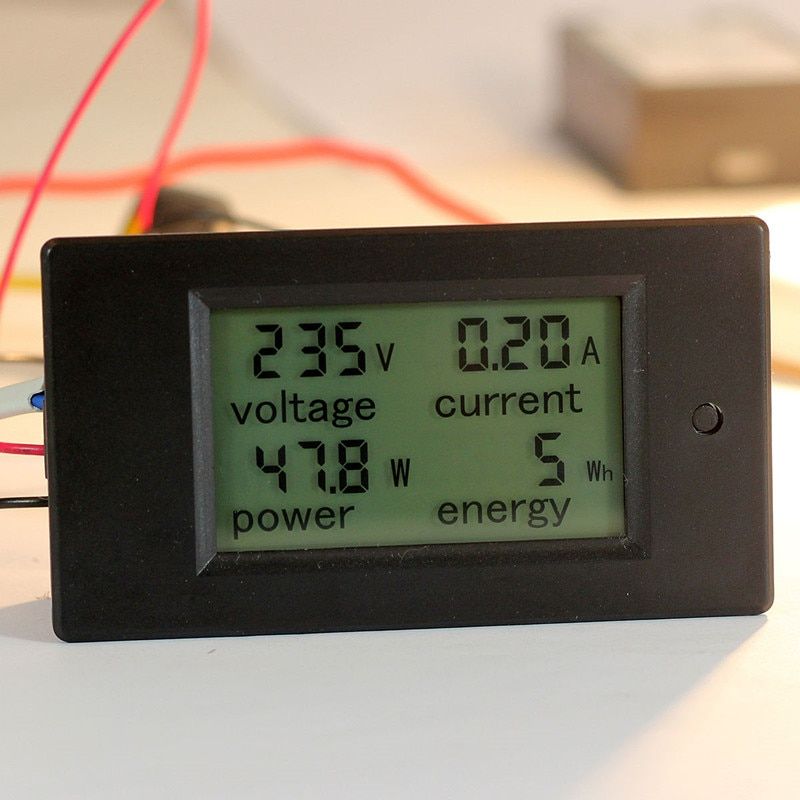

Large-screen LCD display (display voltage, current, active power, and energy at the same time)
Backlight function.
Specifications:
Display format:
1. Power: test range: 0-22kW
Within 1kW, the display format is 0.0-999.9W;
Within 1kW-10kW, the display format is 1000-9999W;
10kW and above, the display format is 0.1-22.0kW
2. Energy: test range: 0-9999kWh
Within 10kWh, the display format is 0-9999Wh
10kW and above, the display format is 10-9999kWh
3. Voltage: test range: 80-260V
Display format: 80-260V
4. Current: Test range: 0-100A
Display format: 0.00-99.99A
Colour: Black
Size: 90 * 50 * 25mm
Net weight: 94g
Package Included:
1 X Digital LCD AC Voltmeter/Ammeter
1 X current transformer
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
DIY Supplies:ELECTRICAL
Origin:Mainland China
Operating Temperature:Pls check description
Accuracy Class:High
Display Type:Digital Only
Power Supply:DC
Certification:CE
Model Number:Pls check description
Working Frequency:45-65Hz
Working voltage:80 ~ 260VAC
Test voltage:80 ~ 260VAC
What's In the Box
1X 4 in 1 Digital Voltmeter Ammeter meter Voltage Current Power Energy meter Gauge AC 80-260V 20A 100A Watt Power Meter Blue
