Model |
D52-2047A |
Production Country |
China |
Weight (kg) |
0.2 |
Certifications |
Eco Friendly |
Color |
Off white |
Main Material |
N/A |
From the Manufacturer |
Yueizing Supoele Electric Co ltd |
Care Label |
Ensure correct wiring |

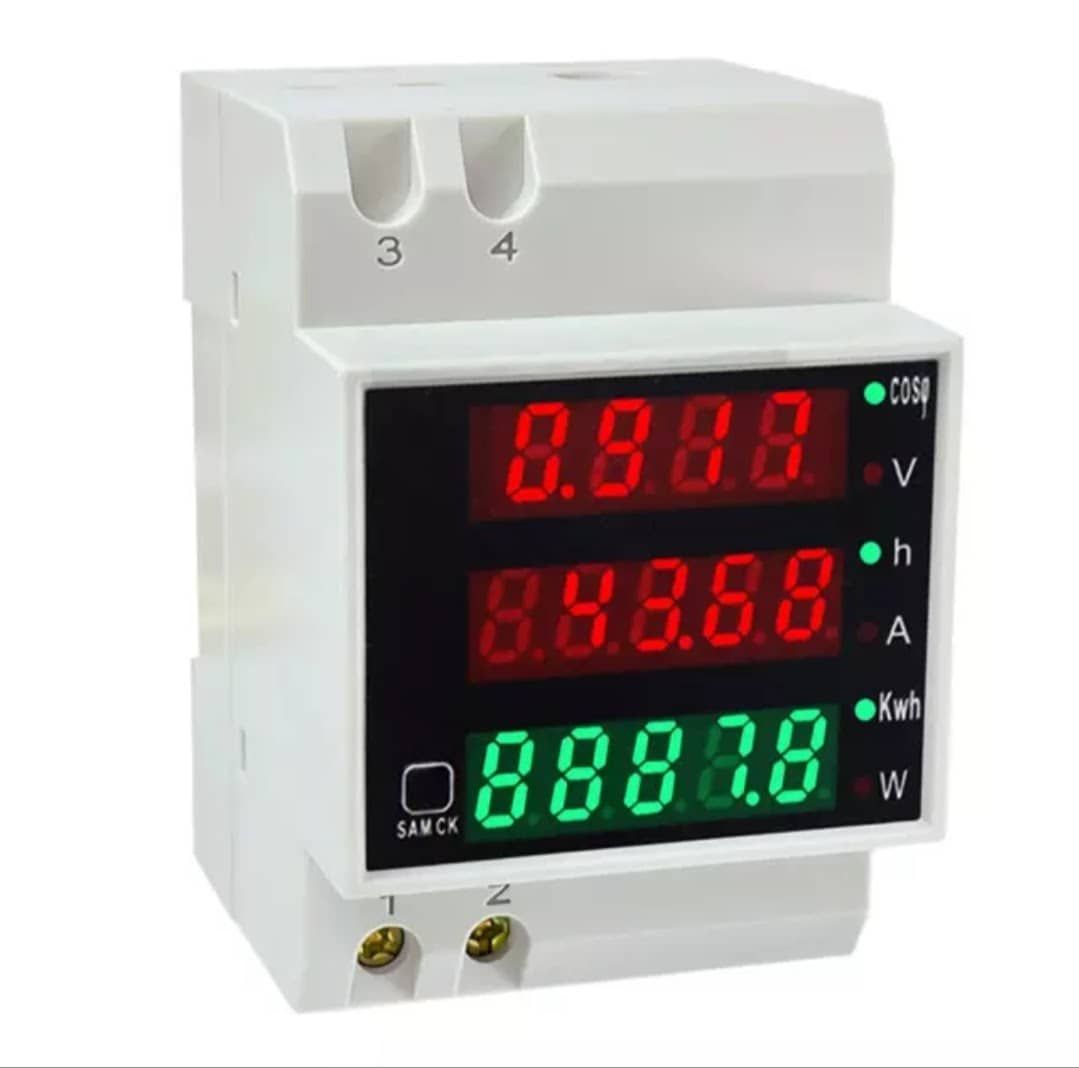

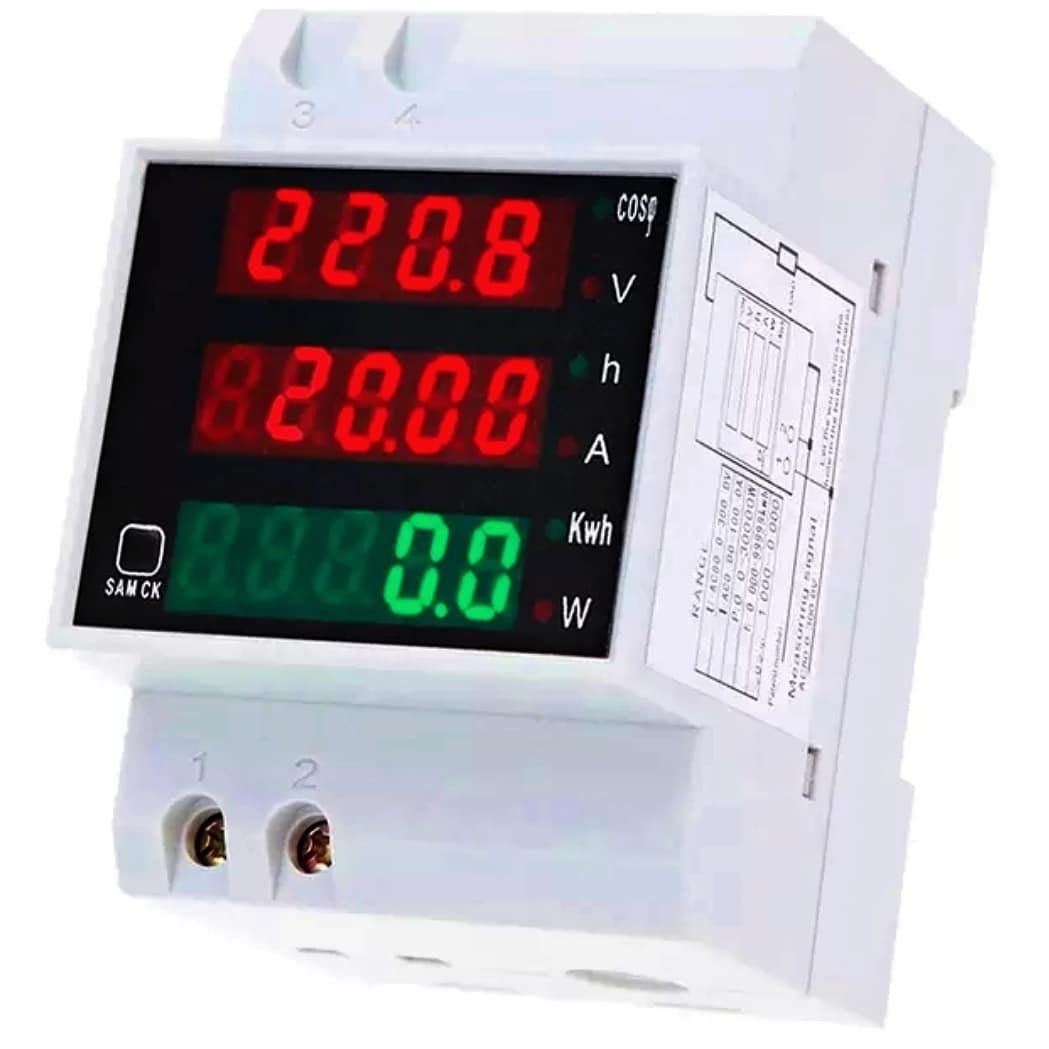

Energy Consumption Meter 100A 30Kw
It measures AC voltage, AC current, power factor, active power, electric energy and electric energy of cumulative time.
SpecificationAccuracy: 1%±2 wordsDisplay Mode: AC voltage and power factor use four red led of 0.31-inch 1. AC voltage: AC 80.0-300.0V AC 0.0-100.0A (when measure signal lower than 100A, the accuracy is 0.01A, when measure signal higher than 100A, the accuracy is 0.1A, the accuracy auto-change)2. Active Power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V ) 0.0-45000W ( measure voltage AC 200.0 - 450.0V )3. Electric Energy: 0.000-99999kw4. Electric Energy of Cumulative Time: 0.00 - 999.59h5. Power Factor: 1.000-0.000Speed: 2 times per secondSize: 54*80*64mmInstallation: Din RailCT: 0.00-100A
This device is an electricity consumption check meter that helps you track your power usage. Do you share one prepaid meter and you want to monitor the actual consumption of each tenant? This Meter is also for you
It is light weight and uses modern chip technology to measure all the programmed parameters in milliseconds
What's In the Box
1 X MeterManual
