Digital LCD Computer 20/24 Pin Power Supply Tester
Description:

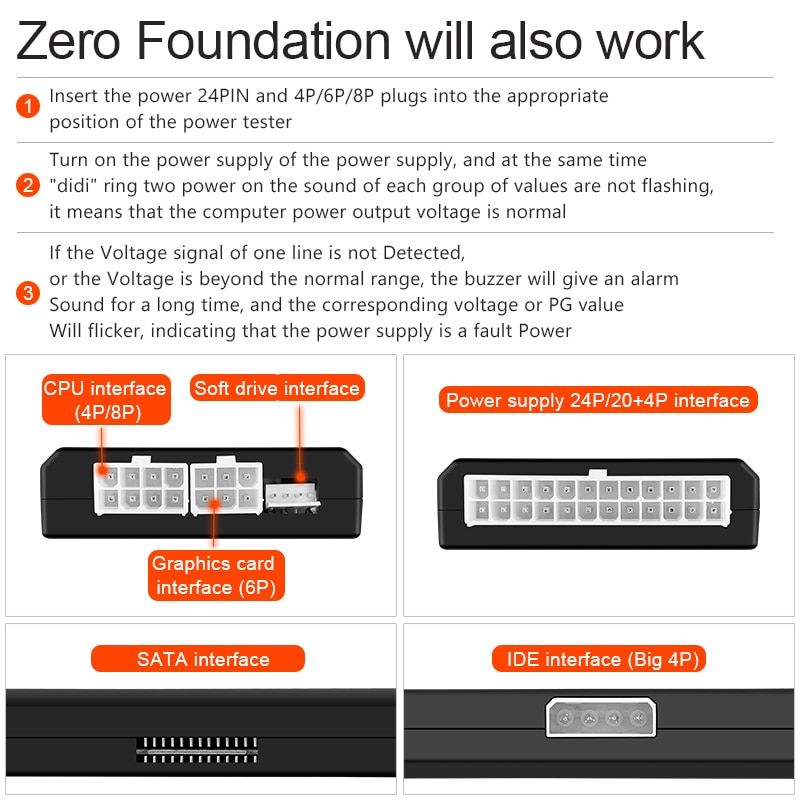

The item is a LCD power supply tester. It can test your power supply and avoid damage to your expensive computer equipment with this power supply tester. The device is suitable for the ambitious hobby user, as well as for a quick functional check in a specialized trade. Features: Housing material: Plastic LCD indicate the status of voltage The power supply tester is a robust voltage tester for PC-power supplies: ATX,X, and ITX compliant power supplies can be tested. Simple and easy to use, no batteries are needed. Connect to the power supply's 20-pin Molex connector. Equipped with +3.3V, +5V, +VSB, -5V, -12V and +12V leads for monitoring voltage output. Operation: 1.Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite. 2.Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal. 3.If a certain voltage signal was not detected, or the detected voltage value over the normal, will iue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed. Specification: Housing material: Plastic Support 24Pin, ATX 20Pin interface Support SATA interface Support 8Pin, 4Pin interface Support PCI-E graphics 6Pin interface Support the floppy disk interface Support ATE hard disk interface Test voltage: 3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time Size: approx. 126 x 64 x 18.5mm/4.96 x 2.51 x 0.72 inch
User Application case
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Certification:CE
Display Type:Analog and Digital
Dimensions:Power Supply Tester
Power Supply:DC
Operating Temperature:-10~+80
Accuracy Class:+/-1%
Model Number:DYDNB
Housing material:Plastic

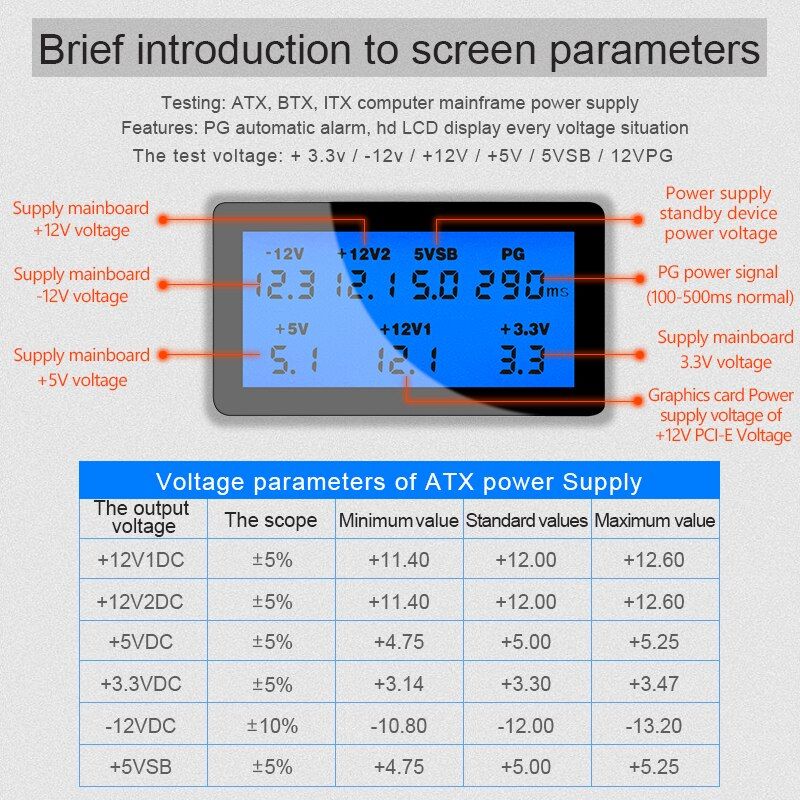

Test voltage:3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time
Size:approx. 126 x 64 x 18.5mm/4.96 x 2.51 x 0.72 inch
What's In the Box
1X PC Computer ATX Power Supply dc digital voltmeter electric voltimetro 12v volt meter usb voltage tester detector de voltaje tool
