Get your HW-03D Magnetic type PIR Motion Sensor
HW-03D wireless PIR Infrared detector is a special home and business PIR Infrared detector with a delicate and modern design (appearance has a patent), adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and avoid alarm failure.
Technical Parameters:
Items Parameters
Sensor Passive IR sensor with low noise

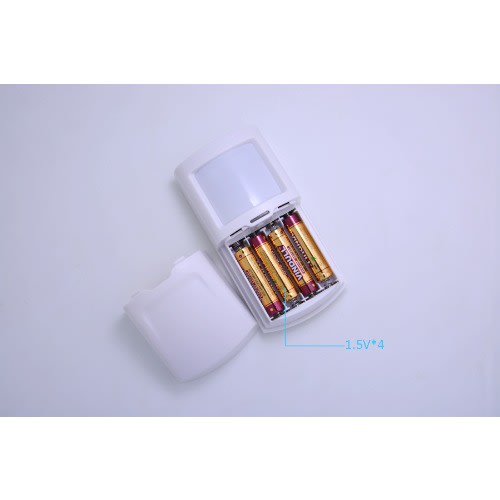

Working Voltage DC6V (4pcs AAA 1.5V dry batteries)
Static Current <60uA
Alarm Current <20mA
Working Temperature 5°C~45°C
Working Humidity ≤95% (no fog)
Transmitting Frequency 315/433 + 0.5MHz
Transmitting Distance No obstacle 80M
Detecting Distance 12M max

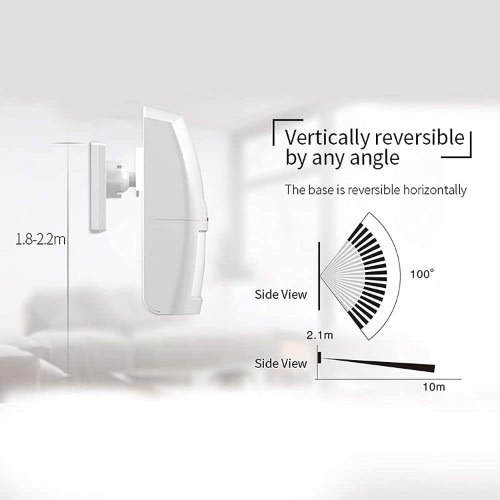

Detecting Angle Horizontal 110°, Vertical 60°
