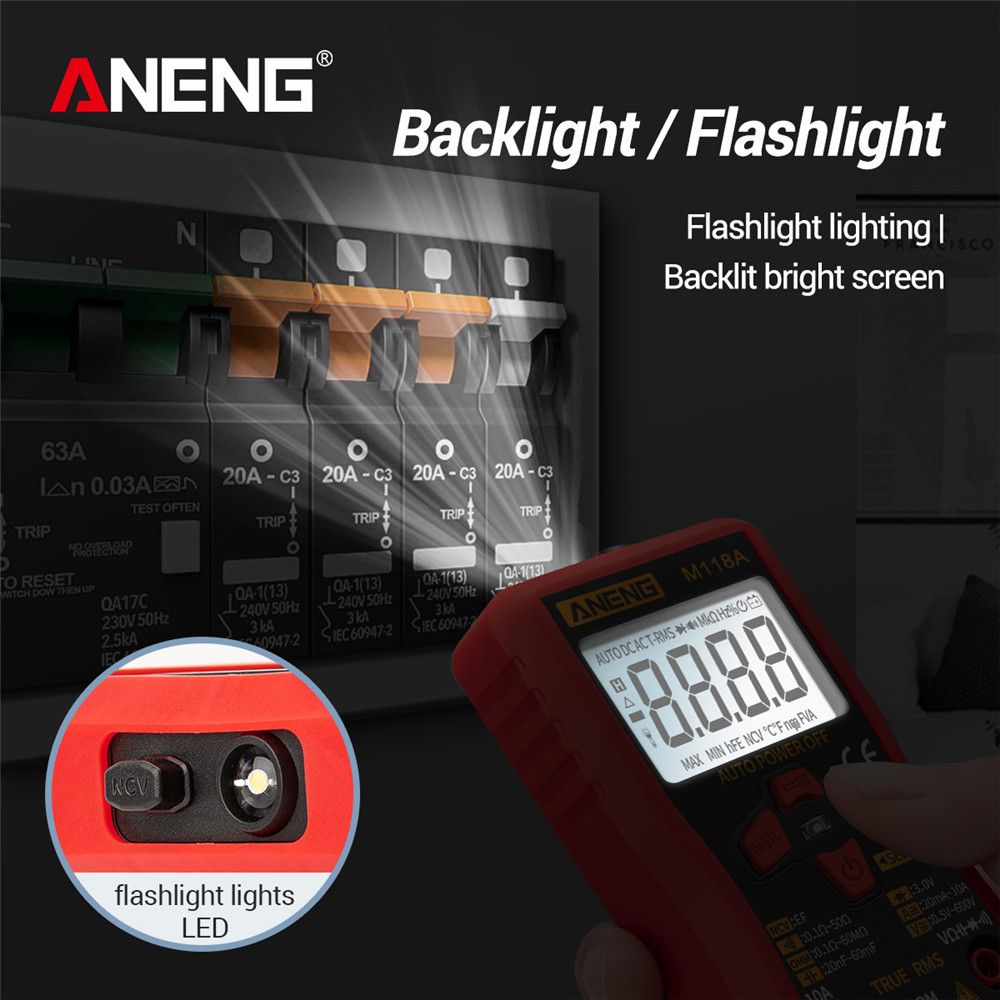

Features:Backlight bright screen and flashlight function.

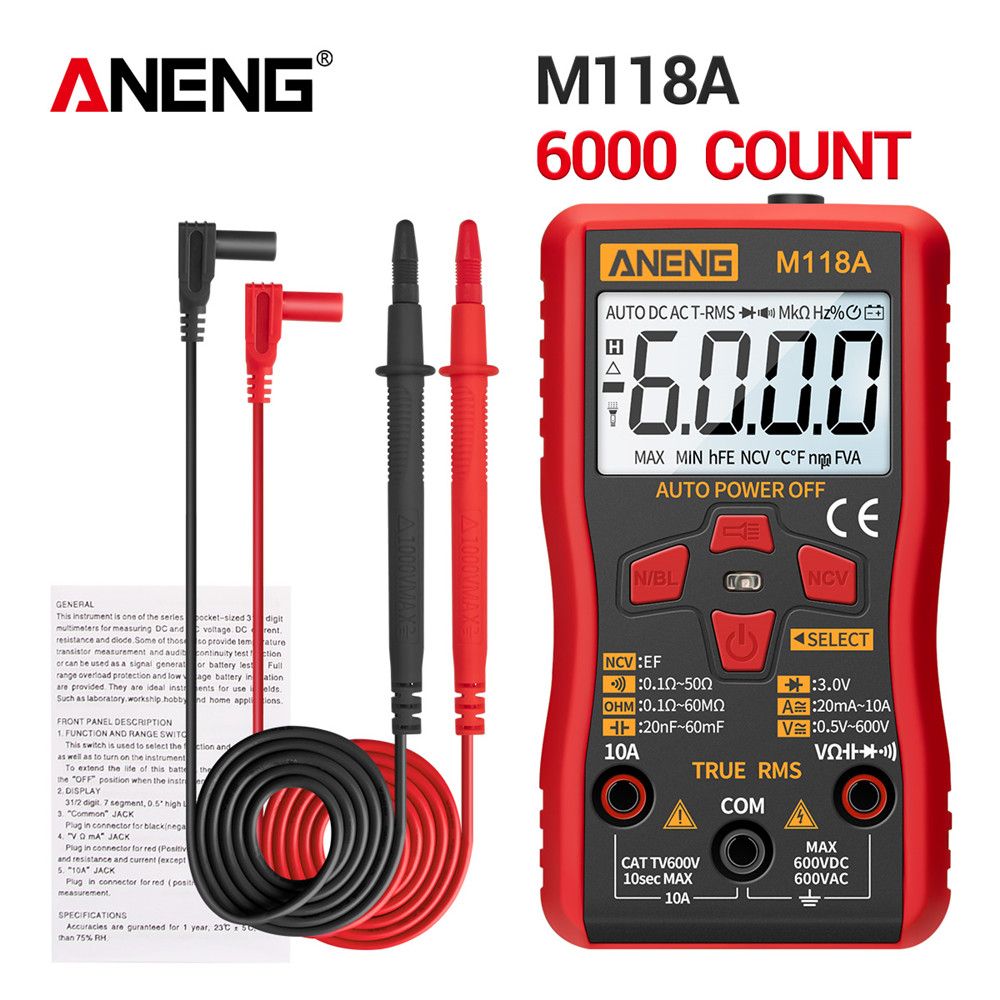

Max. display: 6000 Counts.
Measure voltage, current, resistance, capacitance, diode, continuity test, NCV test, Zero Fire Wire test, etc.

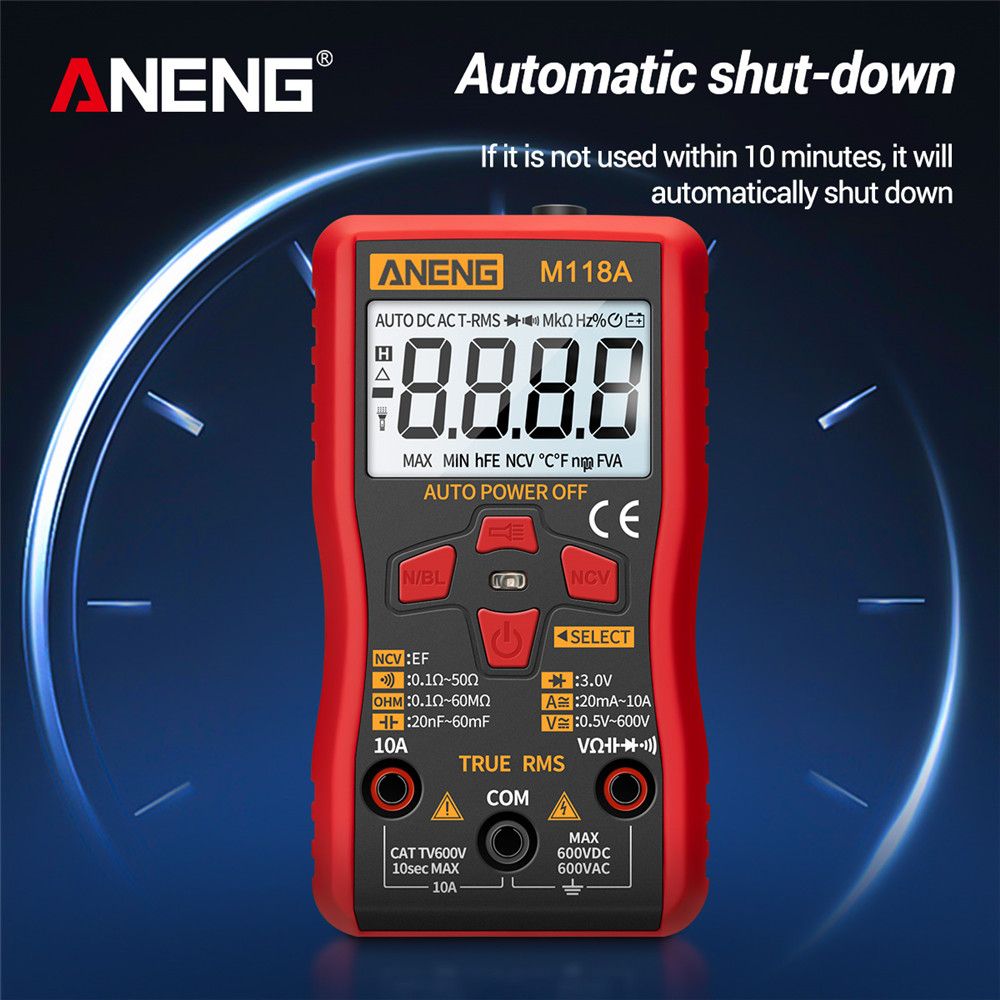

Automatic shut-down.
Short circuit protection, overload protection and over current protection.

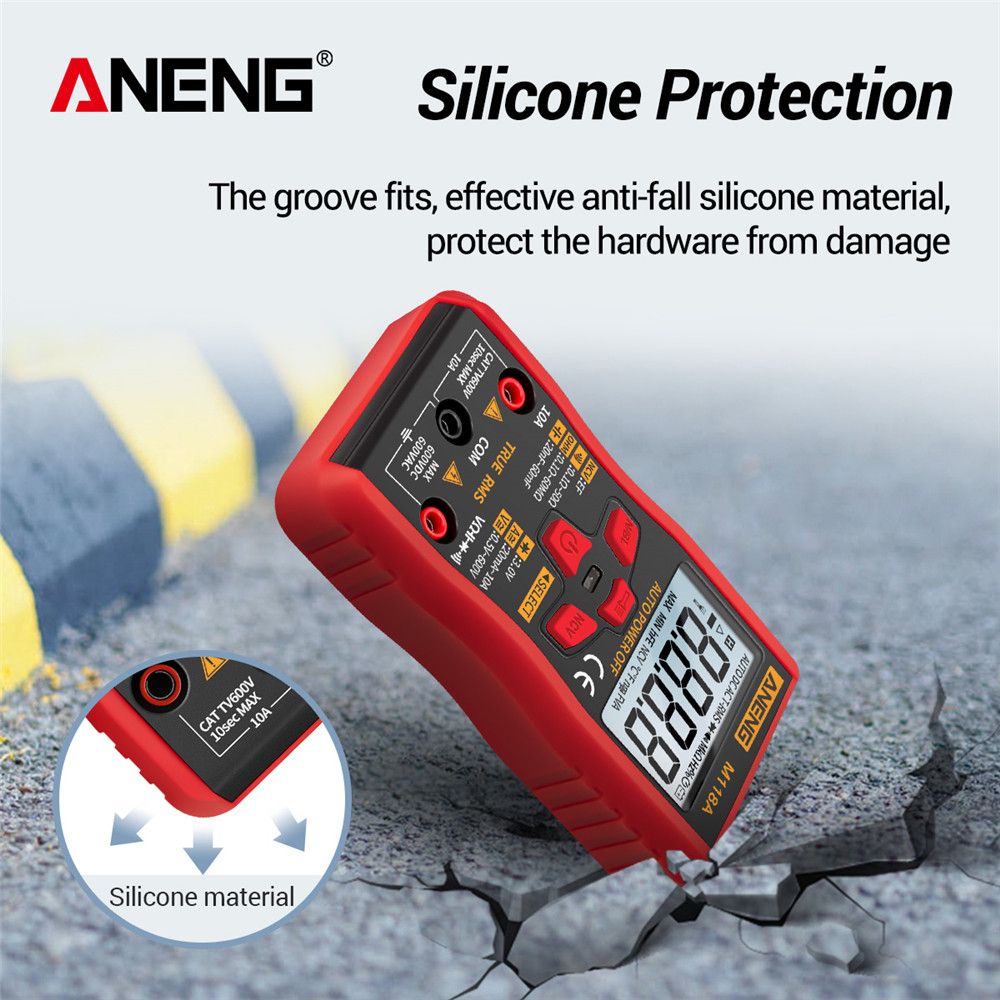

Effective anti-fall silicone material, protects the hardware from damage.
Small size, easy to carry, more convenient for travel maintenance.
Specifications:Model: M118A
Material: ABS
Color: Red
Voltage Range: 0.5v-600v
AC Voltage Range: 0.5v-600v
Current Range: 20mA-10A
AC Current Range: 20mA-10A
Resistance Range: 0.1Ω-60MΩ
Capacitance Range: 20nF-60mF
Display: 6000 Counts
Bracket: √
Flashlight: √
Hold Mode: √
Back Light: √
Auto off:√
NCV: √
Zero Fire Wire: √
Diode: 3.0v
Beep Continuity Test:√
Short-Circuit Protection: √
Over Load Protection: √
Over Current Protection: √
Supply: 2 * AAA-Batteries (Not Included)
Item Size: 118.5 * 62.7 * 28.4mm / 4.66 * 2.47 * 1.12in
Item Weight: 100g / 3.53ounces
Package Size: 136 * 99 * 38mm / 5.35 * 3.9 * 1.5in
Package Weight: 160g / 5.64ounces
Note:1.Due to the different display screen and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow a little measuring deviation due to manual measurement.

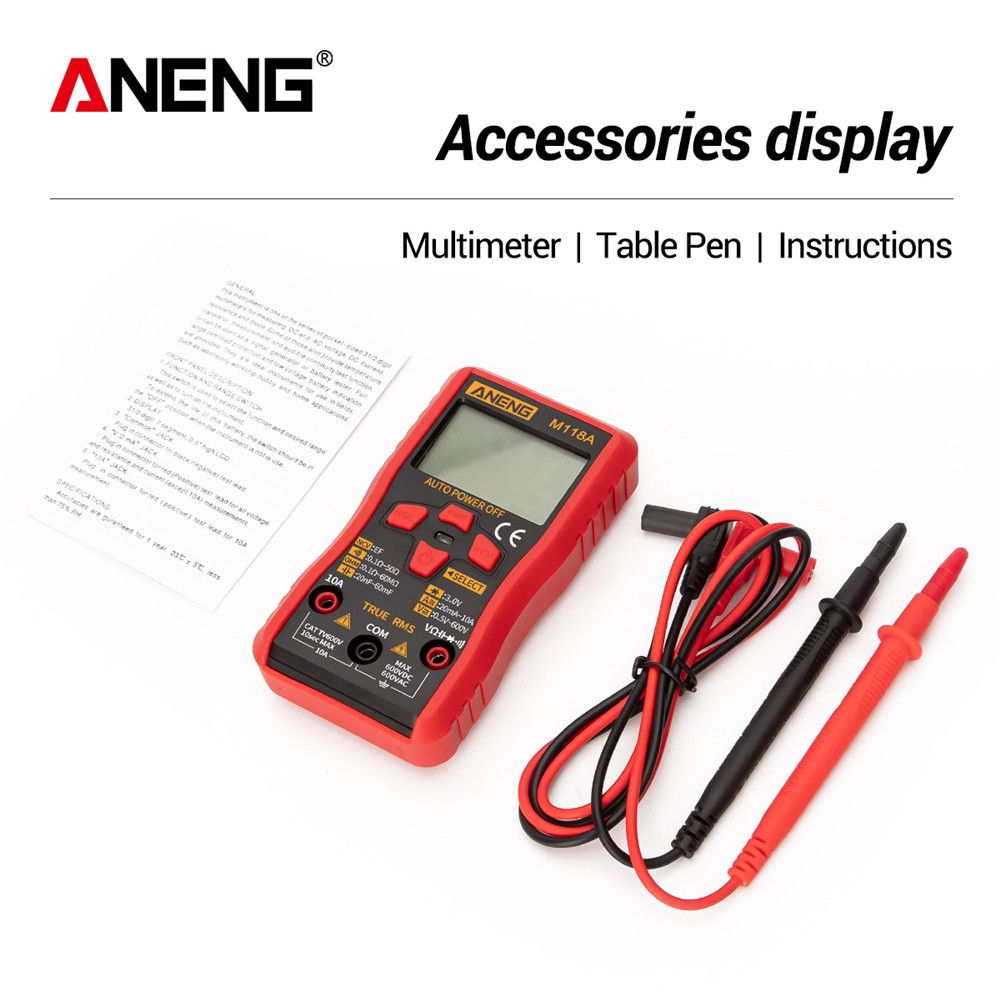

Package List:1 * Multimeter
1 * Table Pen
1 * User Manual
Key Features
Backlight bright screen and flashlight function.
Max. display: 6000 Counts.
Measure voltage, current, resistance, capacitance, diode, continuity test, NCV test, Zero Fire Wire test, etc.
Automatic shut-down.
Short circuit protection, overload protection and over current protection.
Effective anti-fall silicone material, protects the hardware from damage.
What's In the Box
1 x Multimeter,1 x Table Pen,1 x User Manual
