Model |
Zfem-15 |
Production Country |
China |
Weight (kg) |
0.35 |
Certifications |
Eco Friendly |
Color |
Black |
Main Material |
n/a |
From the Manufacturer |
Yeiging Tainen Electric Co ltd |
Care Label |
Please read manual before wiring. |

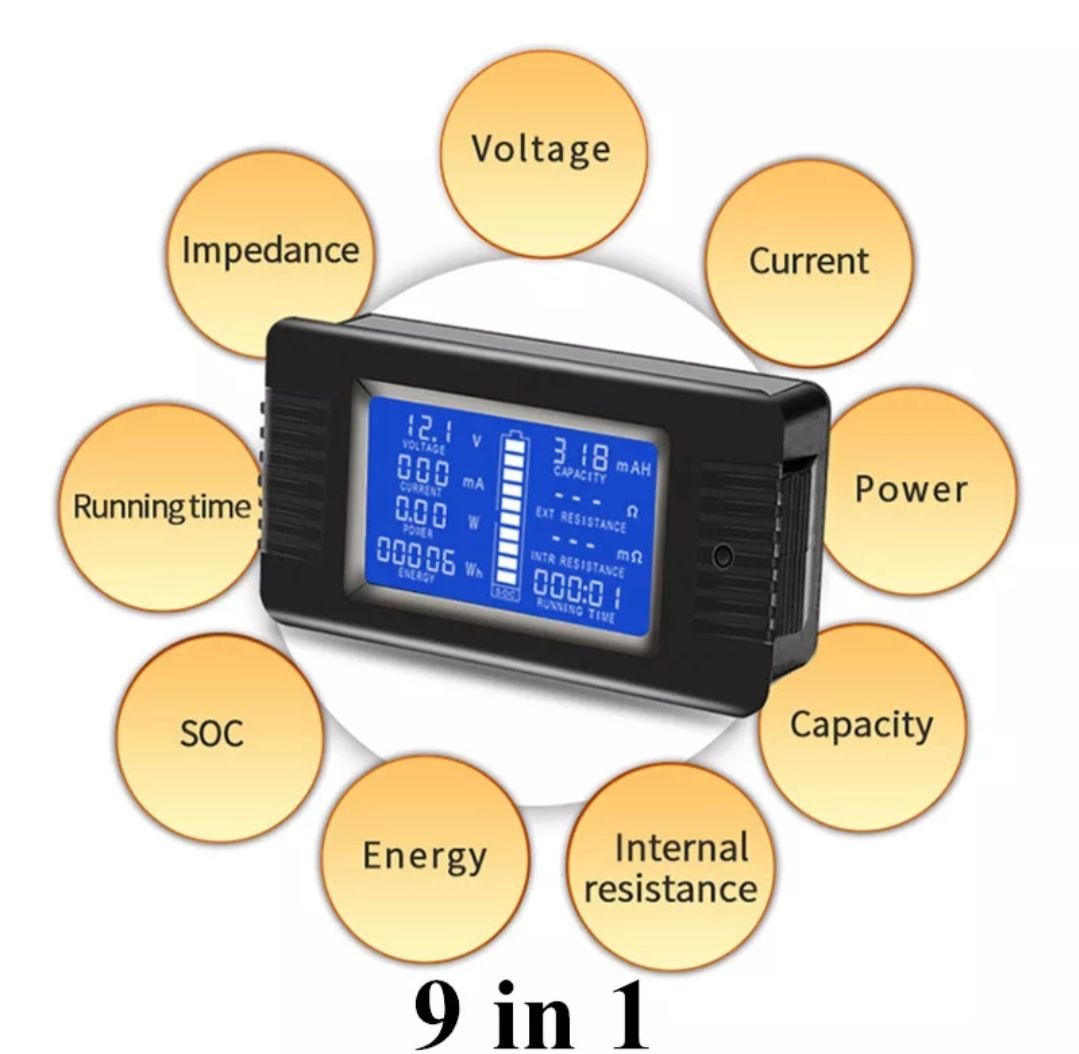

Features:9 major functions100A range (with 100A shunt)Size: 89.6x49.6x24.25mmThis meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD.
Specifications:VoltageMeasure range: 0-200VMin.Resolution: 0.01VStart test voltage: 0.05VAccuracy: 1%CurrentMeasure range: 0-100A with 100A shuntMin.Resolution: 1mAStart test current: 20mAAccuracy: 1%Power-Measure range: 0-20000WMin.Resolution: 0.01WStart test power: 0.2WAccuracy: 1%Impedance: Impedance=voltage/currentMeasure range: 0-1000ΩMin.Resolution: 0.1ΩAccuracy: 1%Internal resistanceMeasure range: 0-999mΩMin.Resolution: 1mΩAccuracy: 1%CapacityMeasure range-100AH

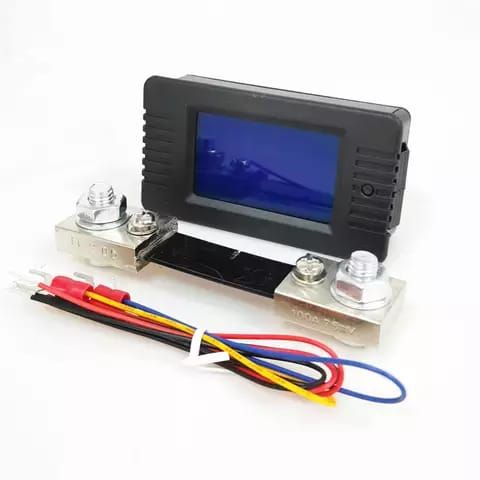

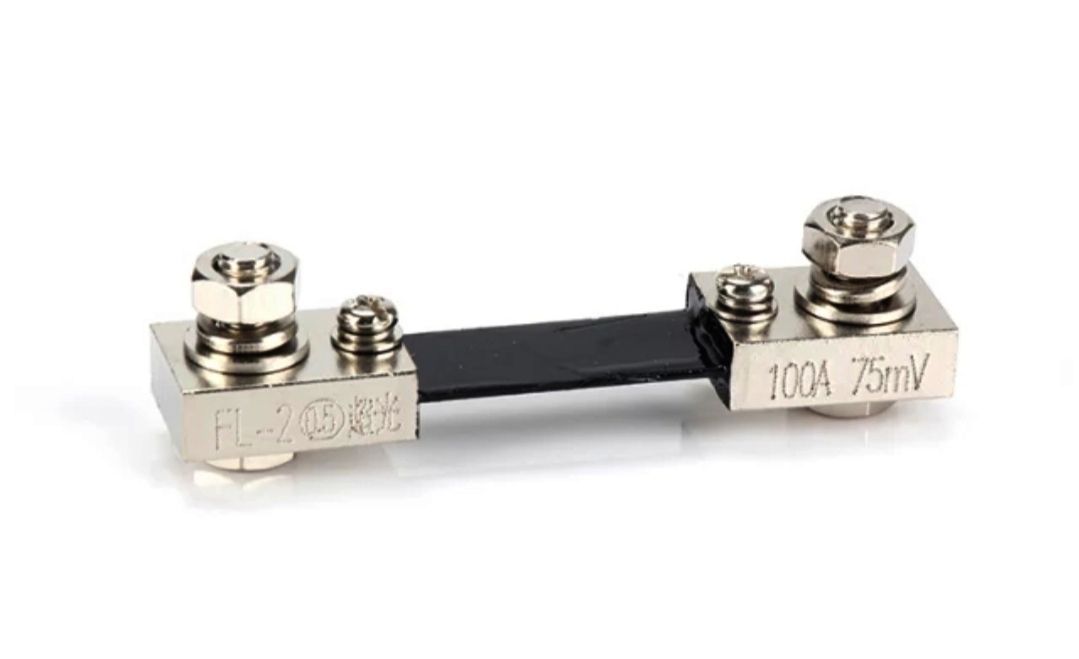

Package List:1*PZEM-015 Battery Tester1*100A current shunt1*English manual
What's In the Box
Package List:1*PZEM-015 Battery Tester1*100A current shunt1*English manual
