Model |
S10 |
Production Country |
China |
Size (L x W x H cm) |
12 x 3 x 9 |
Weight (kg) |
0.6 |
Certifications |
Eco Friendly |
Color |
Black |
Main Material |
ABS |
From the Manufacturer |
N/A |
Care Label |
N/A |
Product introduction:

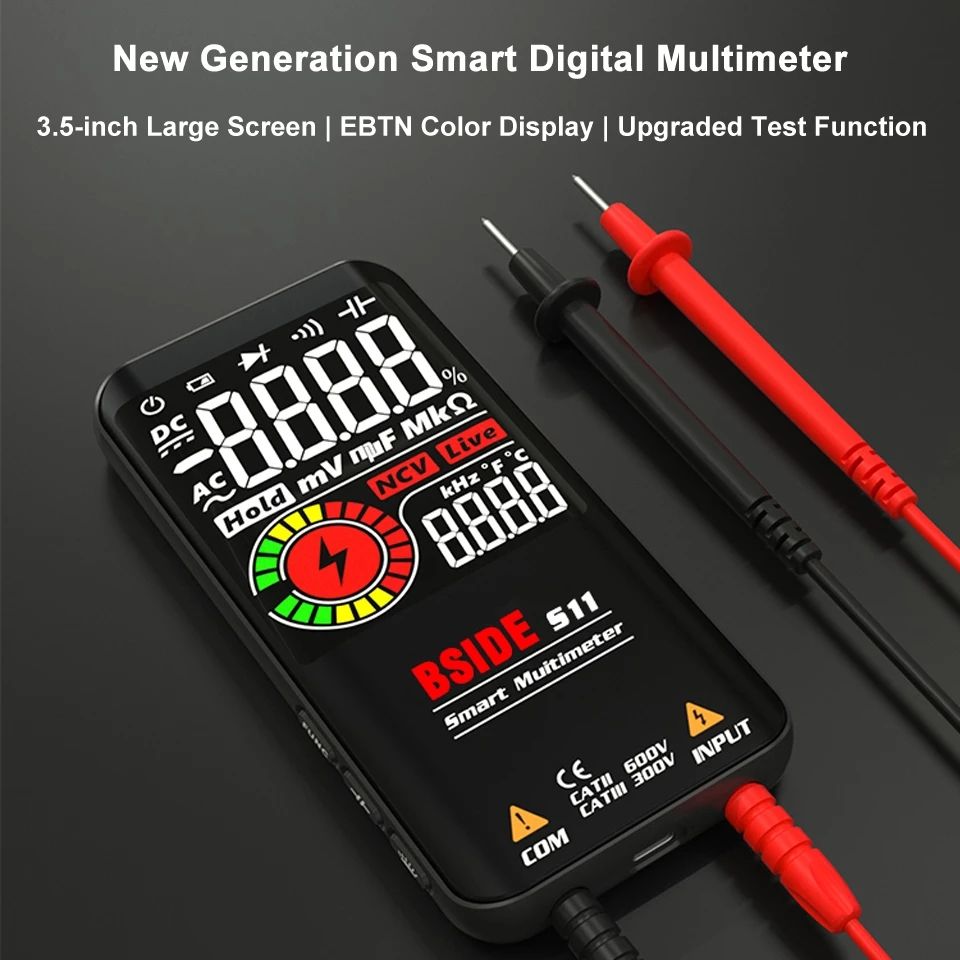

This series products belong to the latest generation of BSIDE brand smart multimeter!
The 3.5-inch large display design leaves an excellent user experience for buyers;The easy-to-use / Single Button to Switch design is well recognized by buyers;The ultra-thin body design is very portable.
Provide four products to choose from (S7 / S9CL / S10 / S11). Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as a gift.
S7:LCD display;
S9CL:EBTN display;
S10/11:EBTN color display.

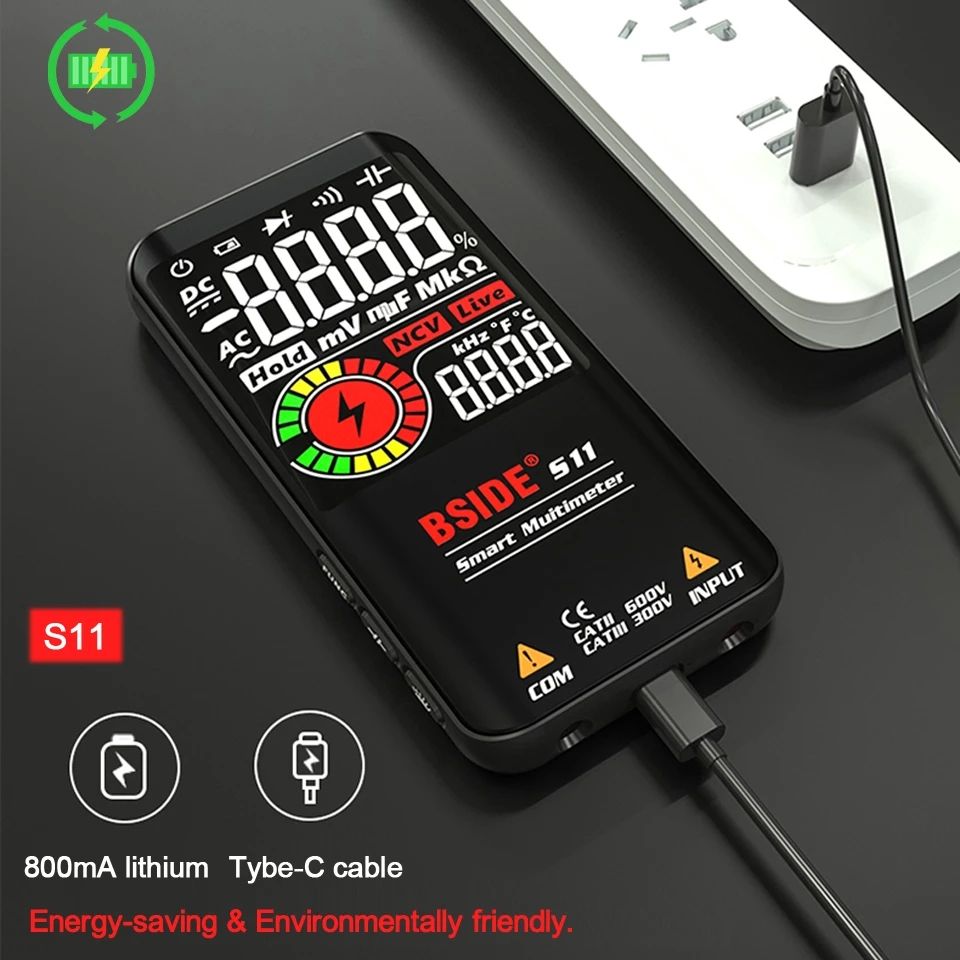

S11 built-in 800mA lithium battery (supports rechargeable use)
Specifications:

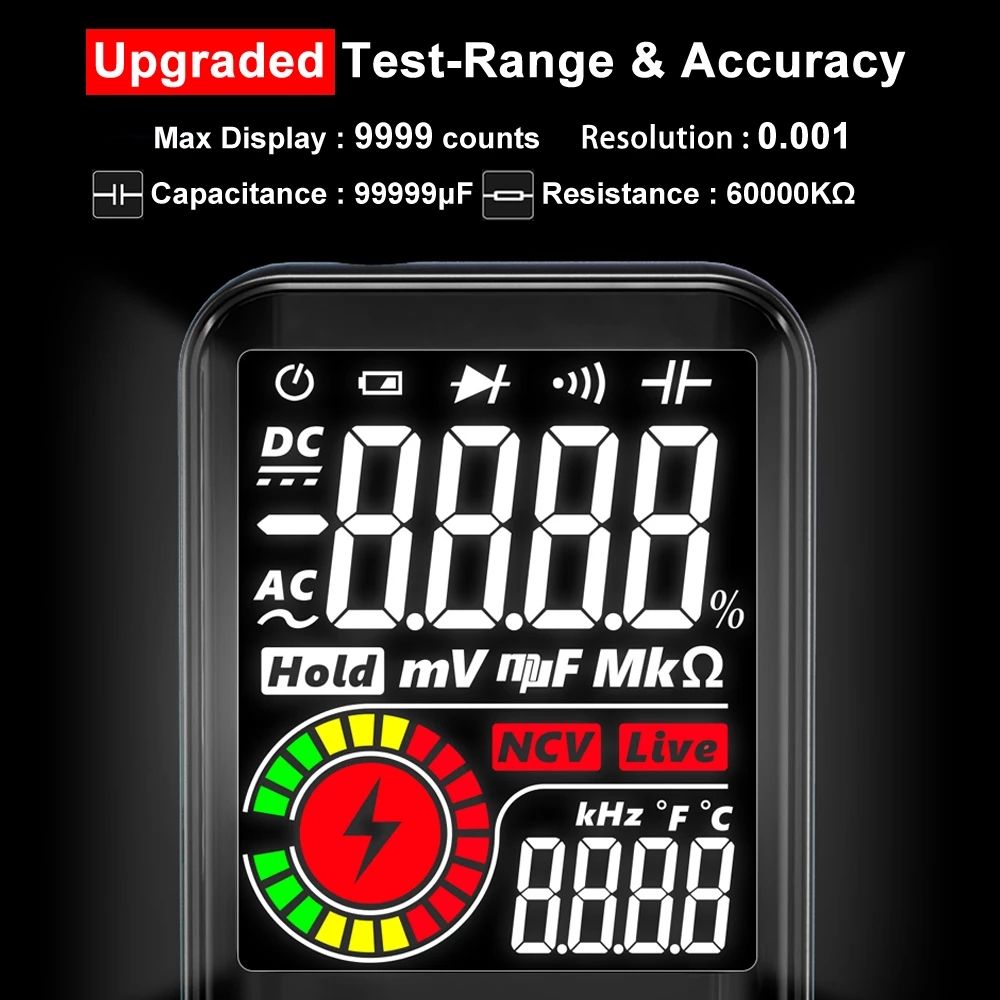

Display: 6000 (S7) / 9999 counts.

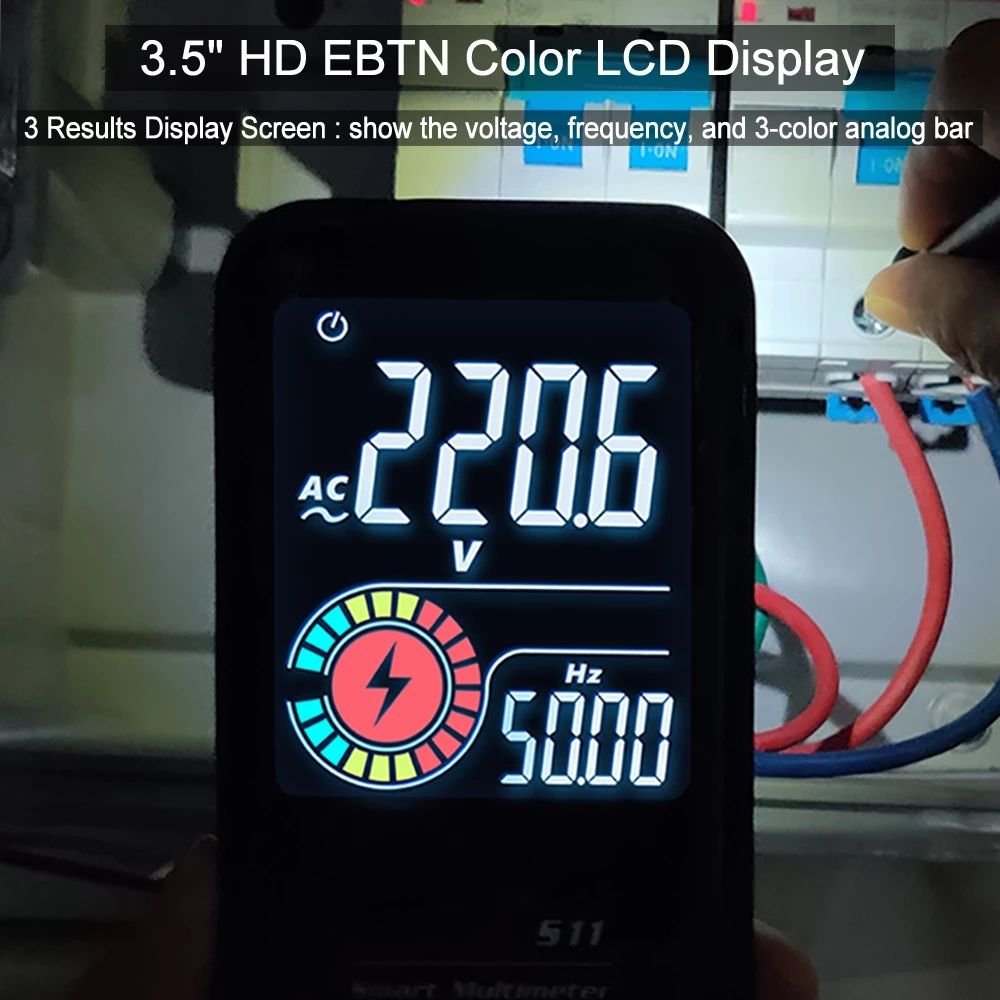

Screen: 3.5 inch.
DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.
Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V);
Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.
V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.
S7/S9CL Power: C2302 x 2 (Built-in).
Size: 136*67*12mm.
Weight: 110g.
S10 Power: 1.5V (AAA) x 2.
S11 Power: Built-in rechargeable lithium battery.
Size: 147*85*42mm.
Weight: 180g.
Key Features
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V);
Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.
V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.
What's In the Box
1 * Multimeter. 1 * Test Lead.
1 * English user Manual. 1 * Packing Box.
1 * USB charging cable.(S11)
1 * EVA portable cloth bag.(S11)

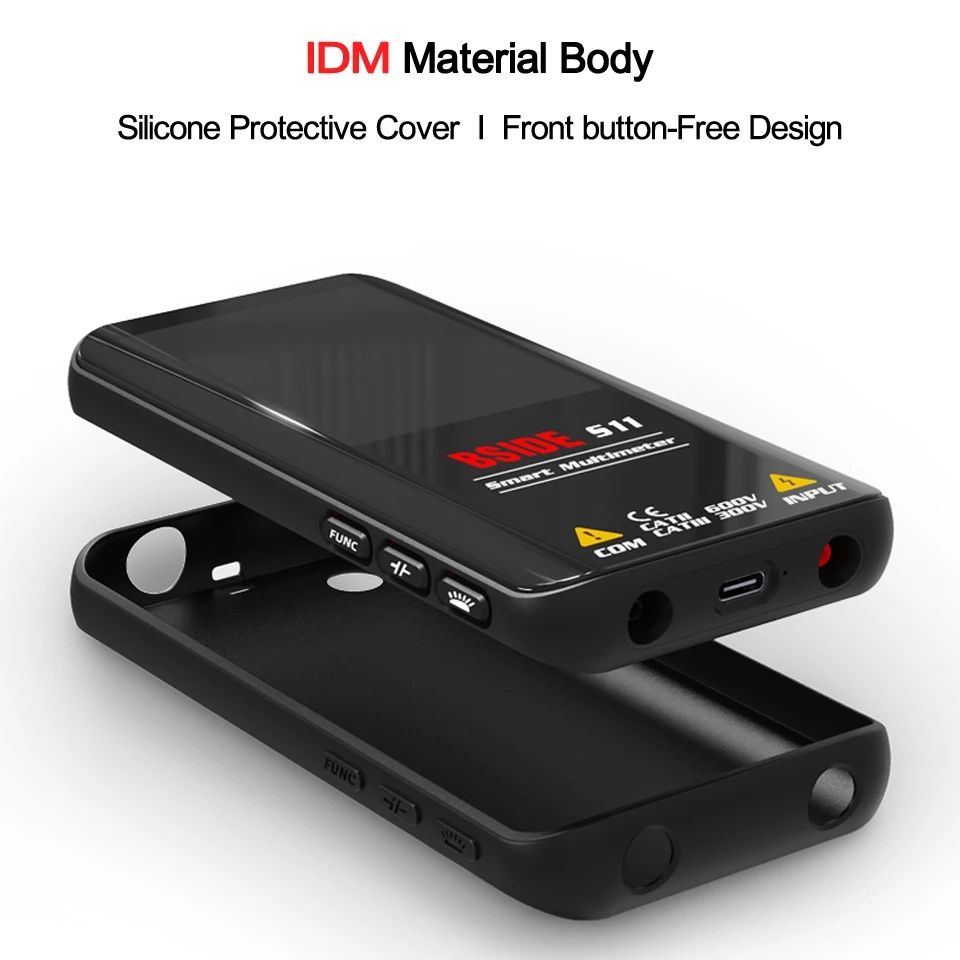

1 * Protective shell.(S11)
