Buy A1 Mini Multimeter LCD Digital Tester Voltage Detector 2000

A1 Mini Multimeter LCD Digital Tester Voltage Detector 2000 Counts

₦ 40,679.51 ₦ 42,820.54 -5%

0 No Reviews

Product SKU: RENG160217

Brand: Bside

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	A1
Production Country	China
Size (L x W x H cm)	17.00×8×4
Weight (kg)	0.2
Color	black
Main Material	N/A

This is a mini multimeter, which has automatic identification design. Connect the test leads in parallel to the circuit, power supply, tested resistor. The meter automatically identify whether it is AC voltage, DC voltage or resistance, and shows the frequency on the screen.

Features:
1. Dual Mode: Multimeter supports auto mode and manual mode. Auto mode can automatically measure AC / DC voltage, resistance and continuity.

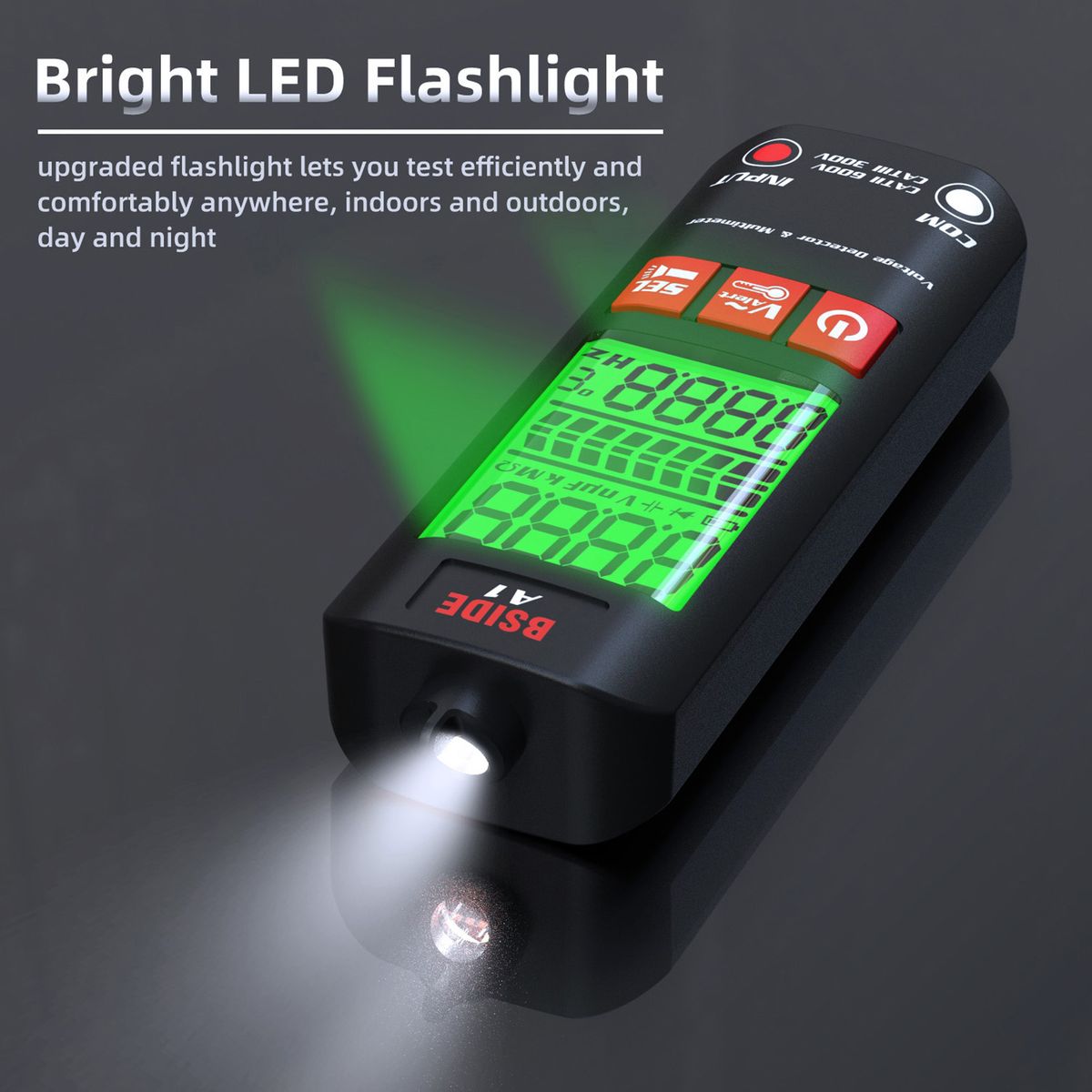

2. Bright LED Flashlight: LED flashlight lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night.

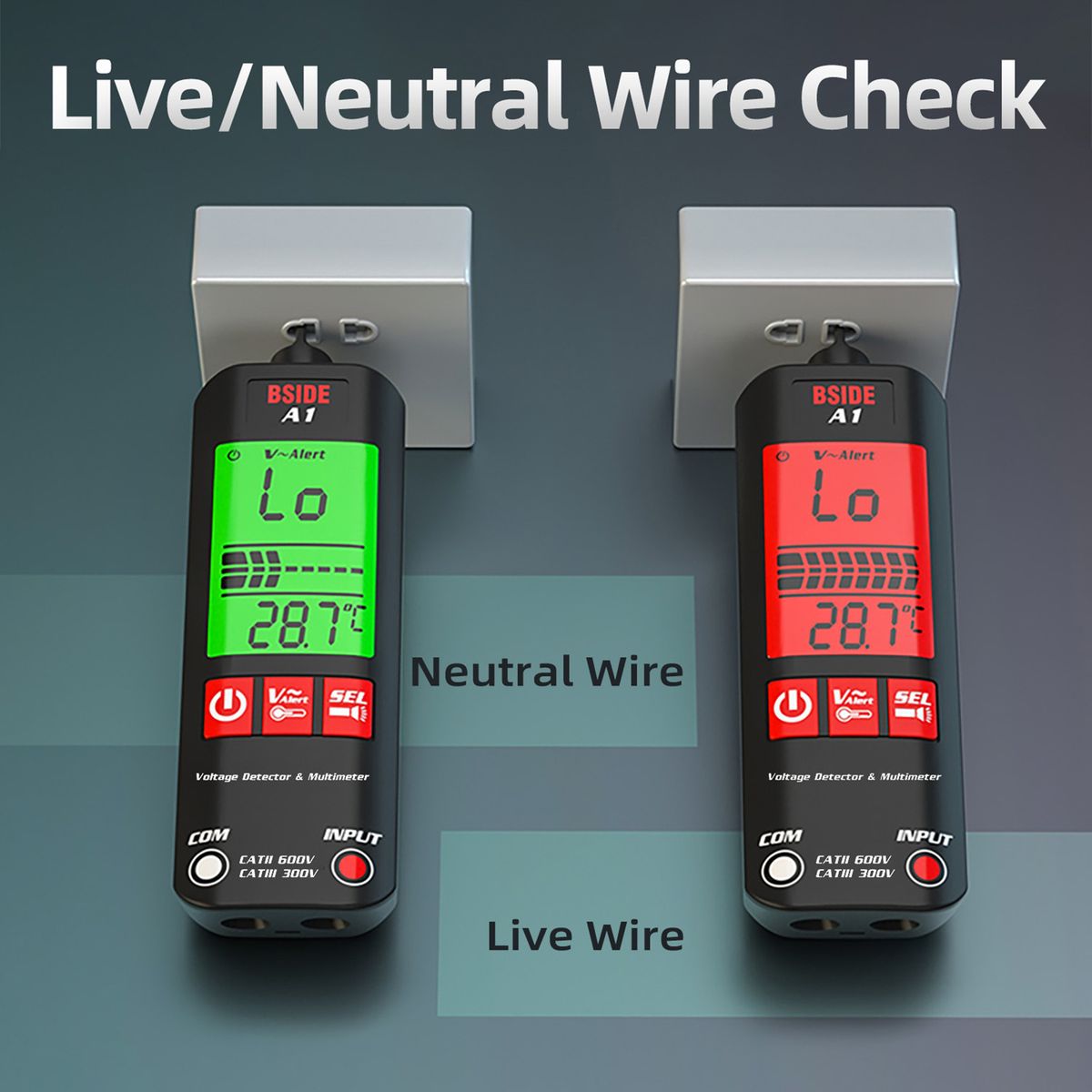

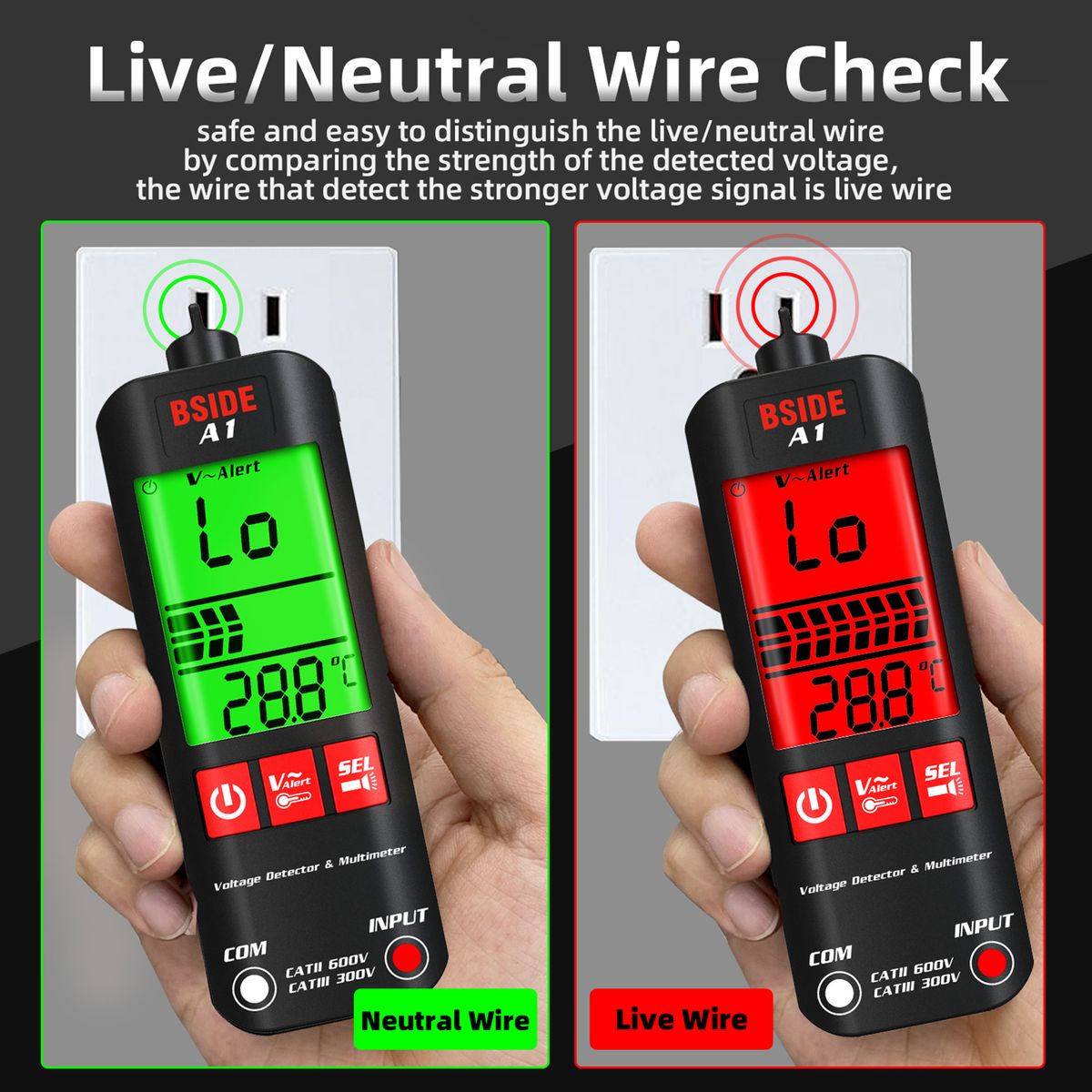

3. Live / Neutral Wire Check: Safe and easy to distinguish the live / neutral wire by comparing the strength of the detected voltage, the wire that detect the stronger voltage signal is live wire.

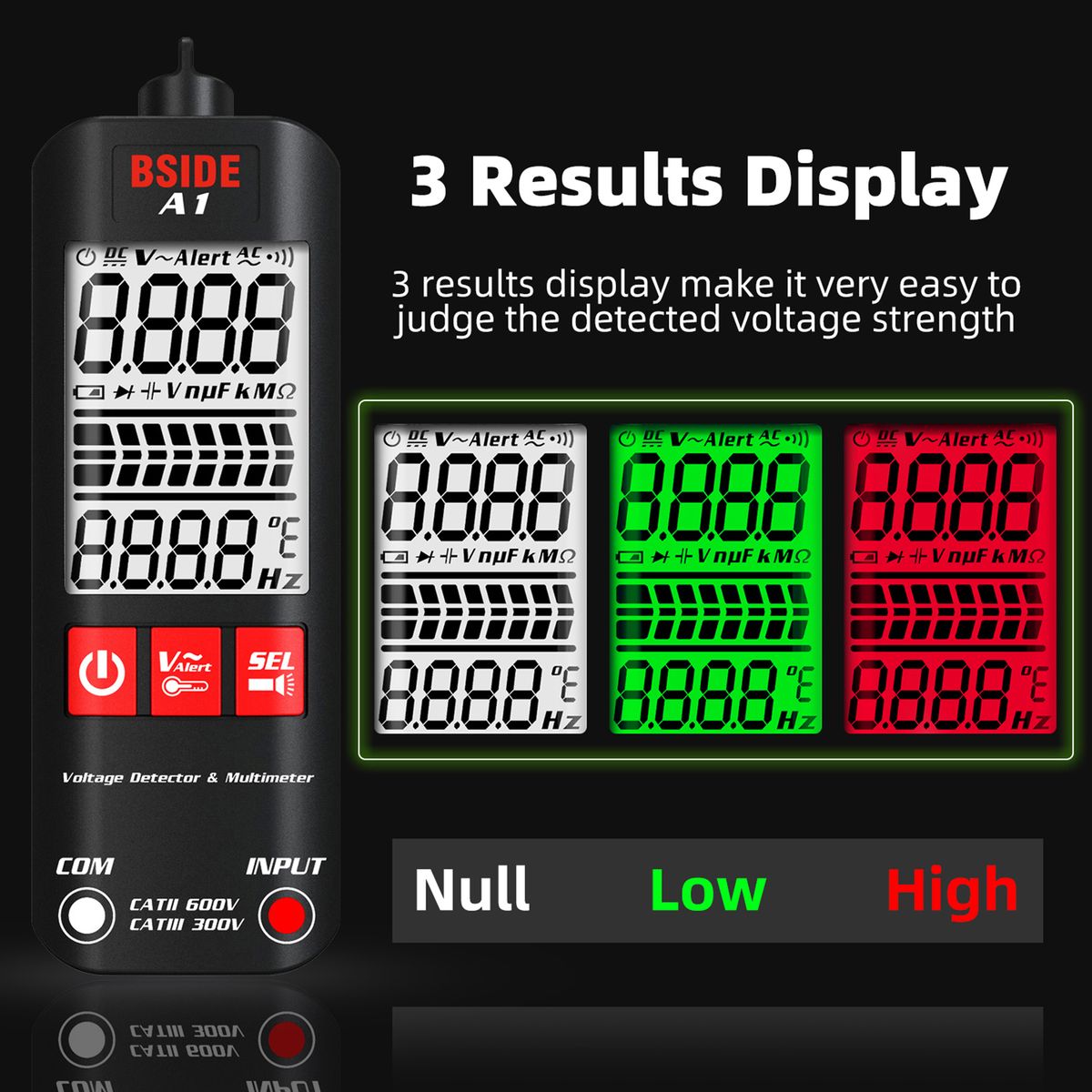

4. LCD Display: Greatly enhance the reading experience, the lighted up numbers and letters make it very easy to read, even in bright sunlight or poor light.
5. Easy to use: Insert the red test lead into the "INPUT" terminal, black test lead into the "COM" terminal. The AC and DC voltage, resistance and continuity can be measured directly after startup.

Note:
1. Do not input voltages higher than 500V, showing higher voltage are possible, but it may damage the meter.
2. When measuring high voltage, be careful to avoid electric shock.
3. Disconnect the test leads from the circuit when completed measurement.
4. Due to manual measurement, the size may be slightly different. Thank you for your understanding.
5. Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.

Specifications:
Brand: BSIDE
Model: A1
Color: Black
Shell Material: ABS
Display: LCD
Maximum Display Value: 2000 Digits
Polarity Indication: Self-indicating, '-' means negative polarity
Over-range Display: 'OL' or '-OL'
Sampling Time: The meter figures show about 0.4 seconds
Automatic Power Off Time: 5 minutes
Battery Low Voltage Indication: LCD display symbol
Operational Temperature: 0~40℃ / 32~104℉
Storage Temperature: -10~60℃ / -4~140 ℉
Operating Altitude: ≤ 2000m

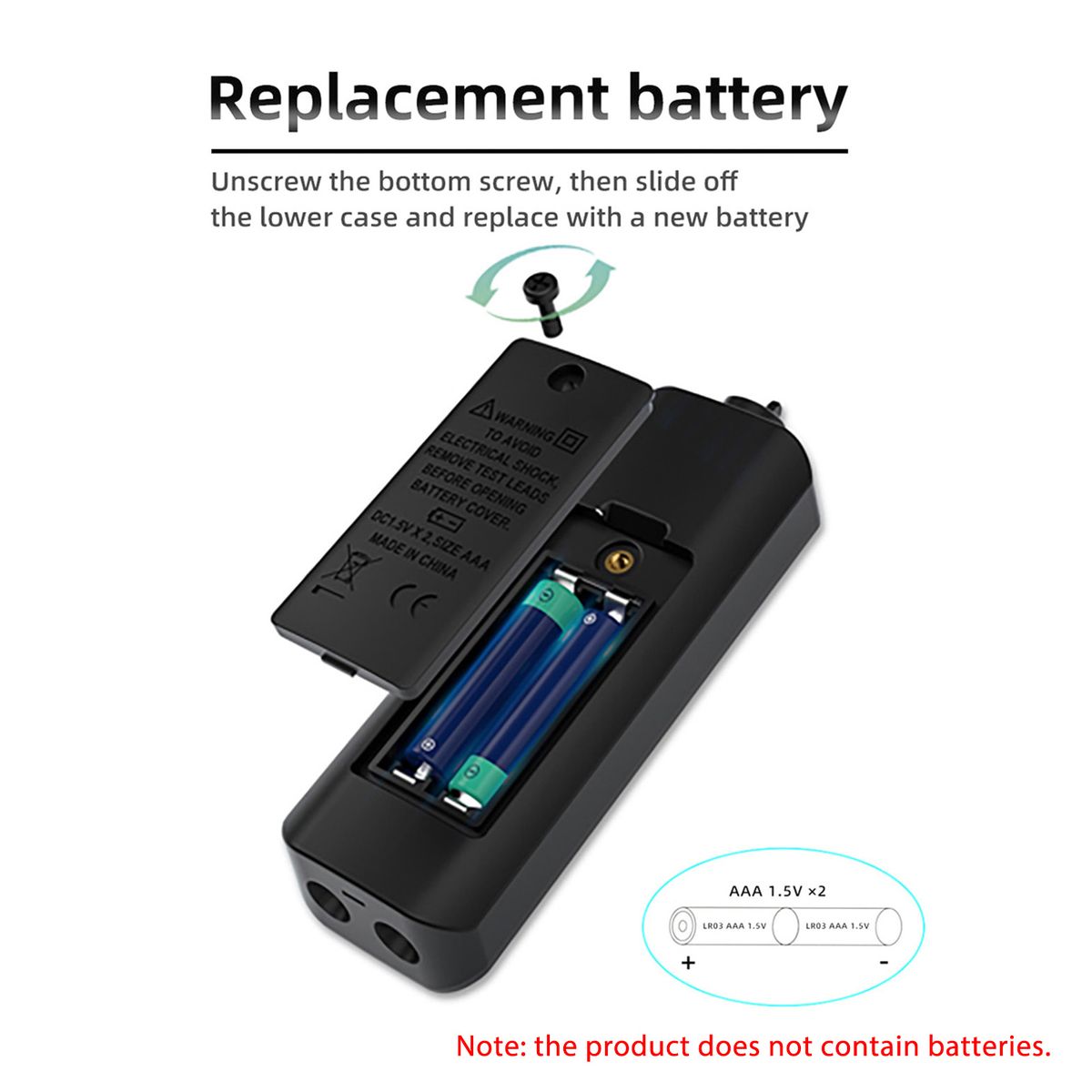

Battery: 1.5V AAA x 2 ( Not Included )
Automatic Measuring Range: YES
Full Measuring Range Overload Protection: YES
Flashlight: YES
V-Alert (NCV): YES
Live / Neutral Wire Check: YES
Breakpoint Locate: YES
Automatic Identification: YES
Item Size: 12.7*4.2*2.5cm / 5.00*1.65*0.98in (L*W*H)
Packing Size: 16.5*7.3*3.8cm / 6.50*2.87*1.50in (L*W*H)
Net Weight: 67g / 2.36oz ( without battery）
Gross Weight: 159g / 5.54oz
P.S.More pictures and video need to be viewed through PC,or pls click the Youtube link:https://www.youtube.com/watch?v=LUnk1_DVvLs

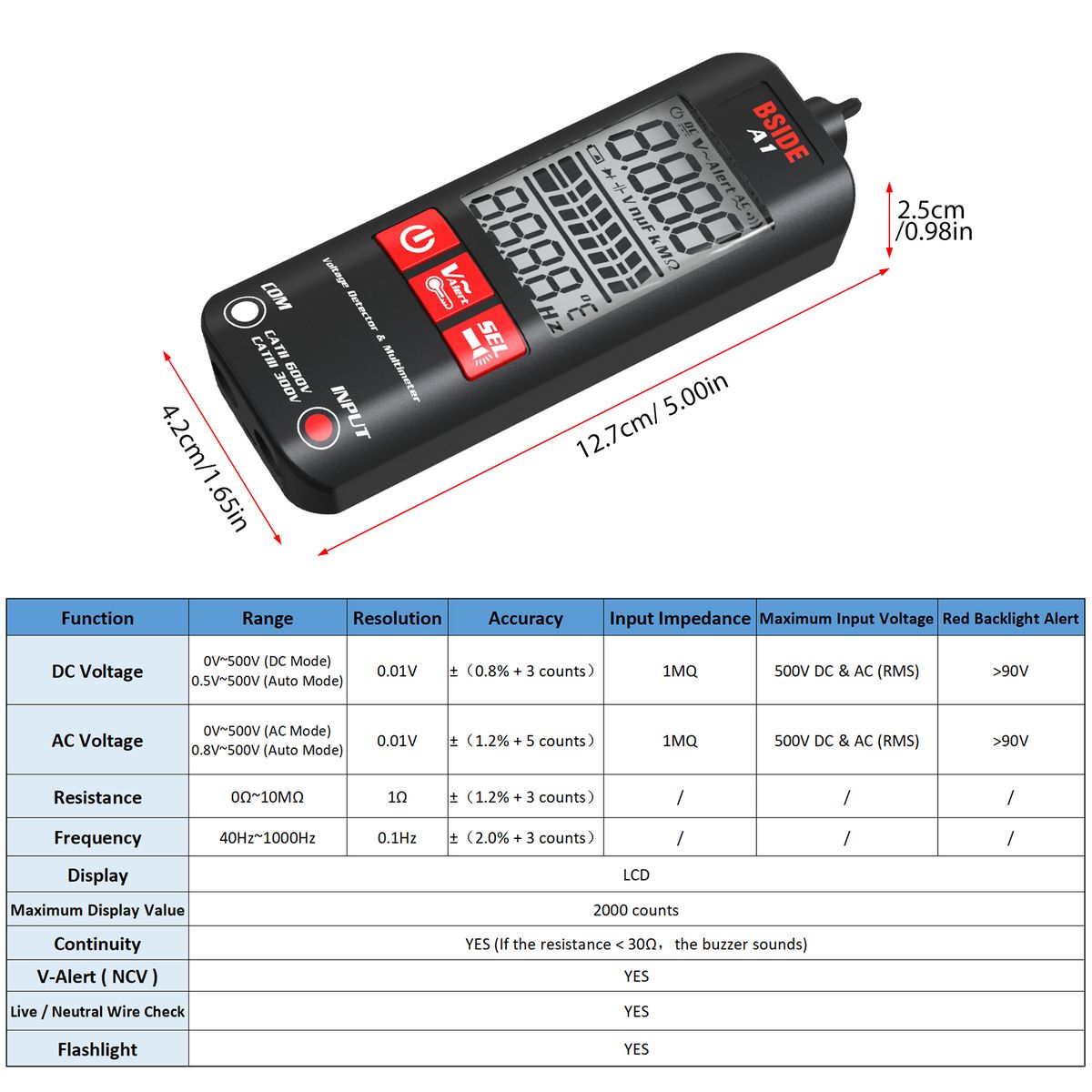

Function	Range	Resolution	Accuracy	Input Impedance	Maximum Input Voltage	Red Backlight Alert
DC Voltage	0V~500V (DC Mode) 0.5V~500V (Auto Mode)	0.01V	±（0.8% + 3 counts）	1MQ	500V DC & AC (RMS)	>90V
AC Voltage	0V~500V (AC Mode) 0.8V~500V (Auto Mode)	0.01V	±（1.2% + 5 counts）	1MQ	500V DC & AC (RMS)	>90V
Resistance	0Ω~10MΩ	1Ω	±（1.2% + 3 counts）	/	/	/
Frequency	40Hz~1000Hz	0.1Hz	±（2.0% + 3 counts）	/	/	/

Package List:
1 * Multimeter ( Without Battery )
2 * Test Lead ( Red & Black )
1 * Screwdriver
1 * Instruction Manual ( Chinese & English )

Key Features

1. Dual Mode: Multimeter supports auto mode and manual mode. Auto mode can automatically measure AC / DC voltage, resistance and continuity.
2. Bright LED Flashlight: LED flashlight lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night.
3. Live / Neutral Wire Check: Safe and easy to distinguish the live / neutral wire by comparing the strength of the detected voltage, the wire that detect the stronger voltage signal is live wire.
4. LCD Display: Greatly enhance the reading experience, the lighted up numbers and letters make it very easy to read, even in bright sunlight or poor light.
5. Easy to use: Insert the red test lead into the "INPUT" terminal, black test lead into the "COM" terminal. The AC and DC voltage, resistance and continuity can be measured directly after startup.

What's In the Box

1 * Multimeter ( Without Battery )
2 * Test Lead ( Red & Black )
1 * Screwdriver
1 * Instruction Manual ( Chinese & English )
