Specification:

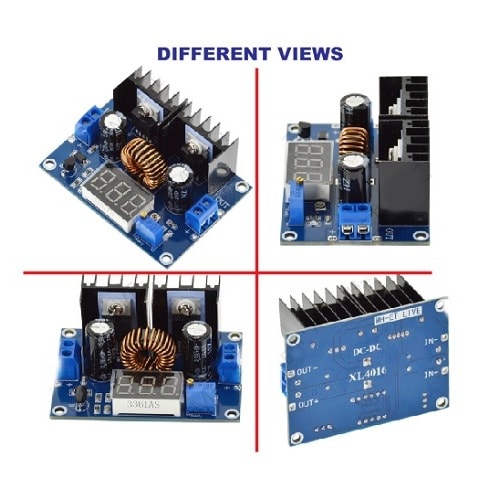

Product name: DC-DC Step Down Buck Converter Power Supply Module PWM Adjustable 4-40V To 1.25-36V Voltage Regulator 8A 200W
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (For current draw of more than 5A for long time, kindly use fan)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ

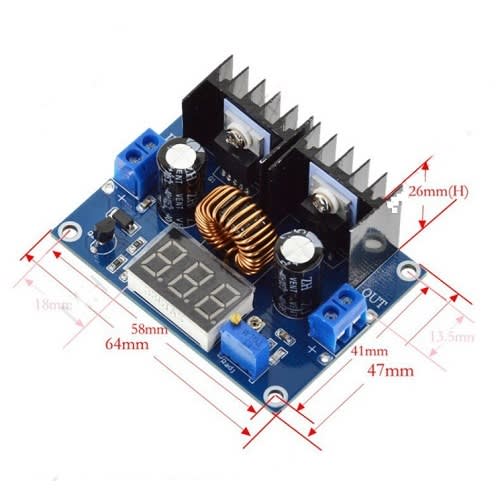

Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection
Panel Mounting:
1. Panel holes 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob
Package Included:
1 x Digital Voltage Display DC step down voltage power module
