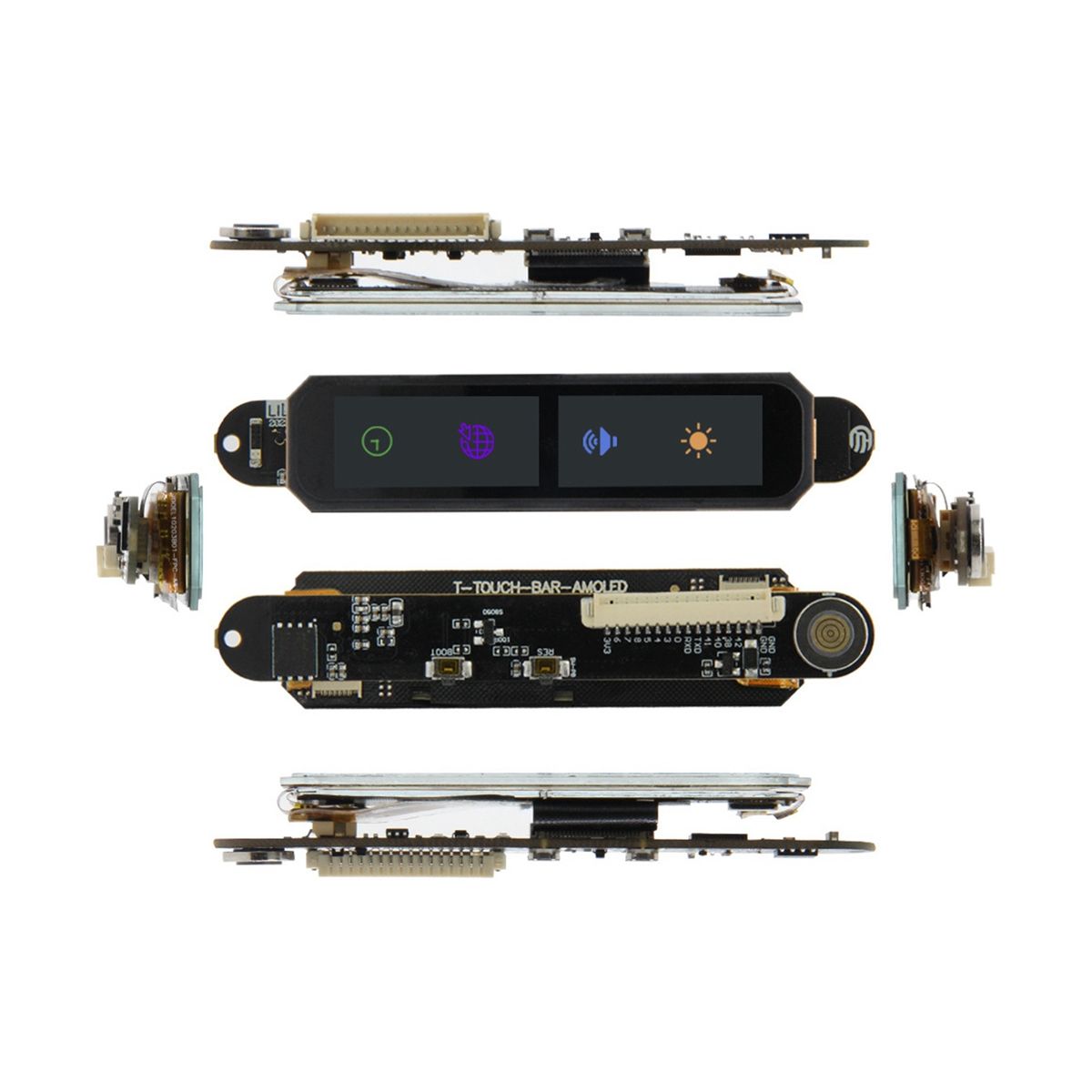

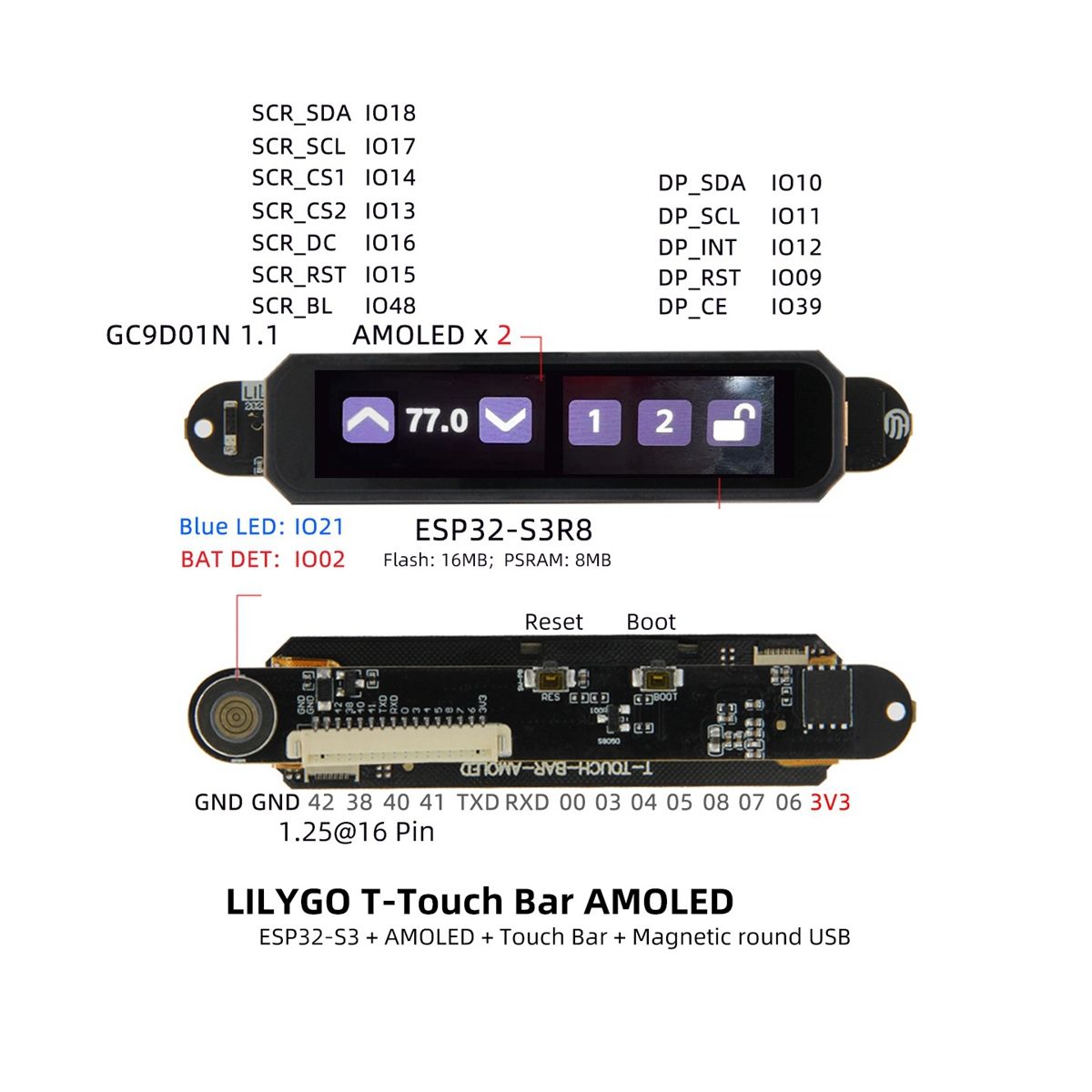

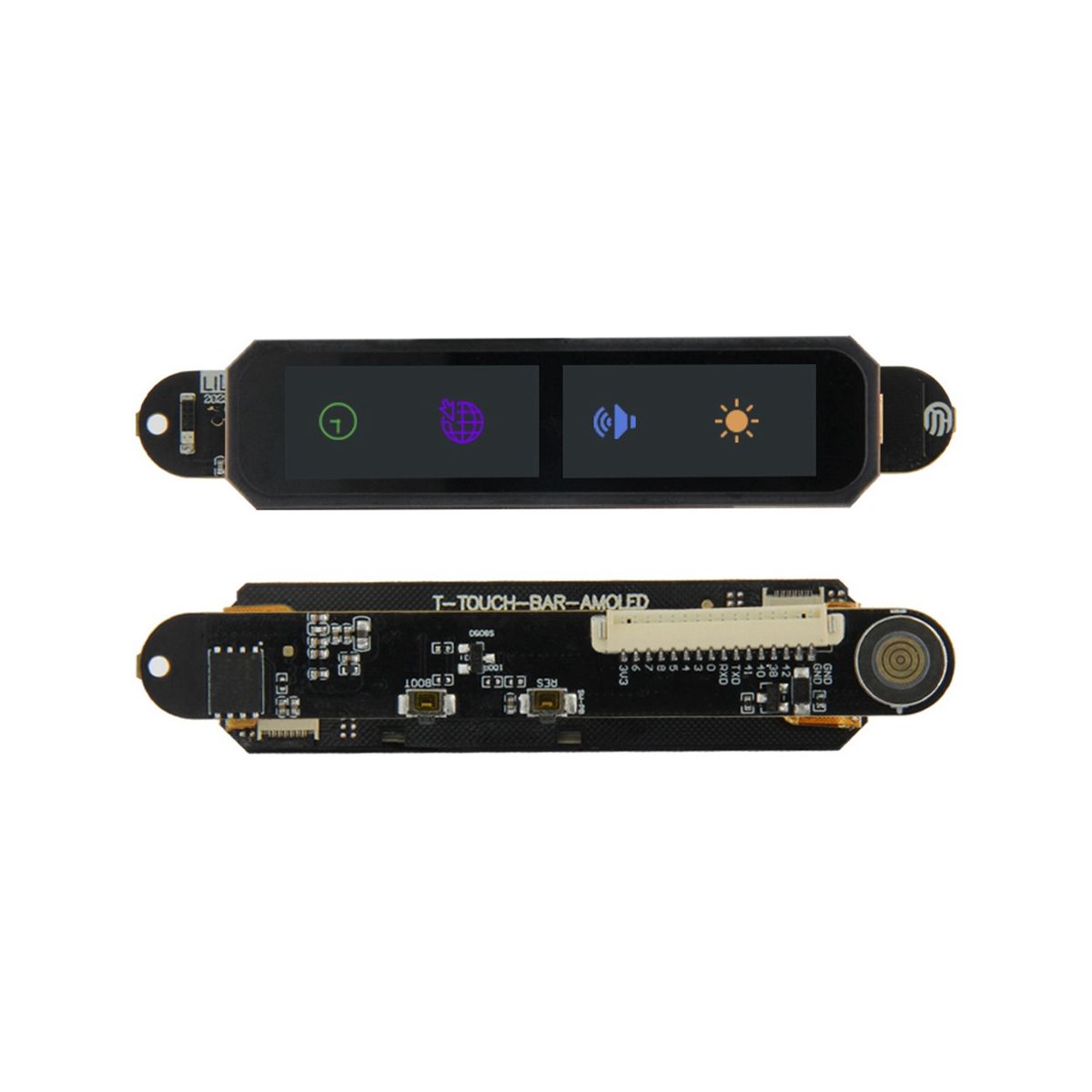

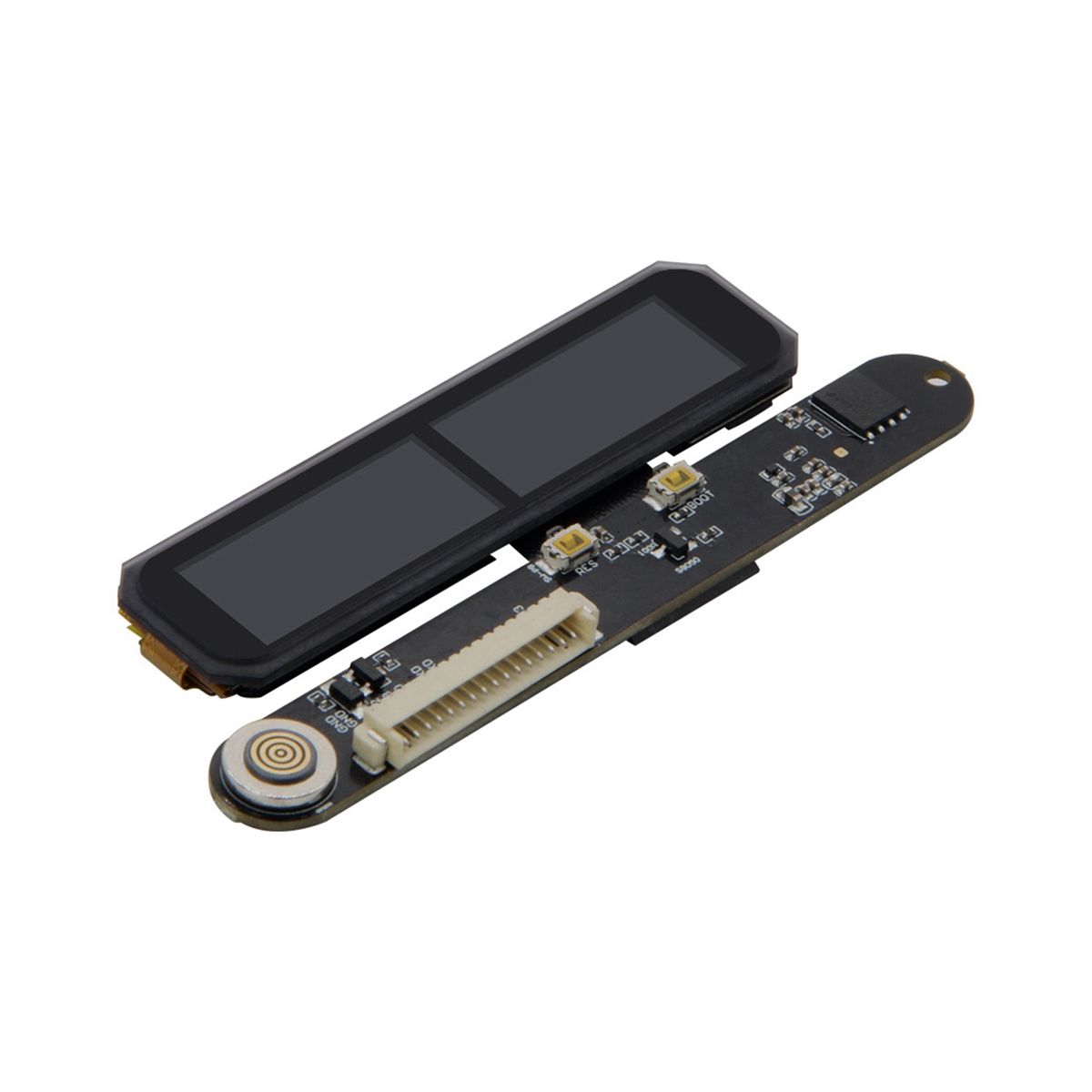

1. High performance T-Touch Bar ESP32-S3R8 development board Flash: 16MB PSRAM: 8MB
2. Support MCU-: ESP32-S3R8 Xtensa32-bit LX7 dual-core MCU
3. Support: WIFI Bluetooth compatible with 5+BluetoothMesh
4. Support battery detection PIN-IO02 and control bar Touch bar: 2 inch touch chip FT6336
5. Display battery charging and discharging circuit with MX1.25 2P lithium battery interface
Magnetic circular USB connector and blue LED IO21
Name MCU-: ESP32-S3R8 Xtensa32-bit LX7 dual-core MCU
Support: WIFI Bluetooth Compatible 5+BluetoothMesh
Programming platform: for Arduinno-IDE VS-Code
Control bar Touch bar: 2 inch touch chip FT6336
Onboard function: battery detection PIN-IO02
Display resolution: 160Hx160V RGB-
Colour:black
Material:ABS

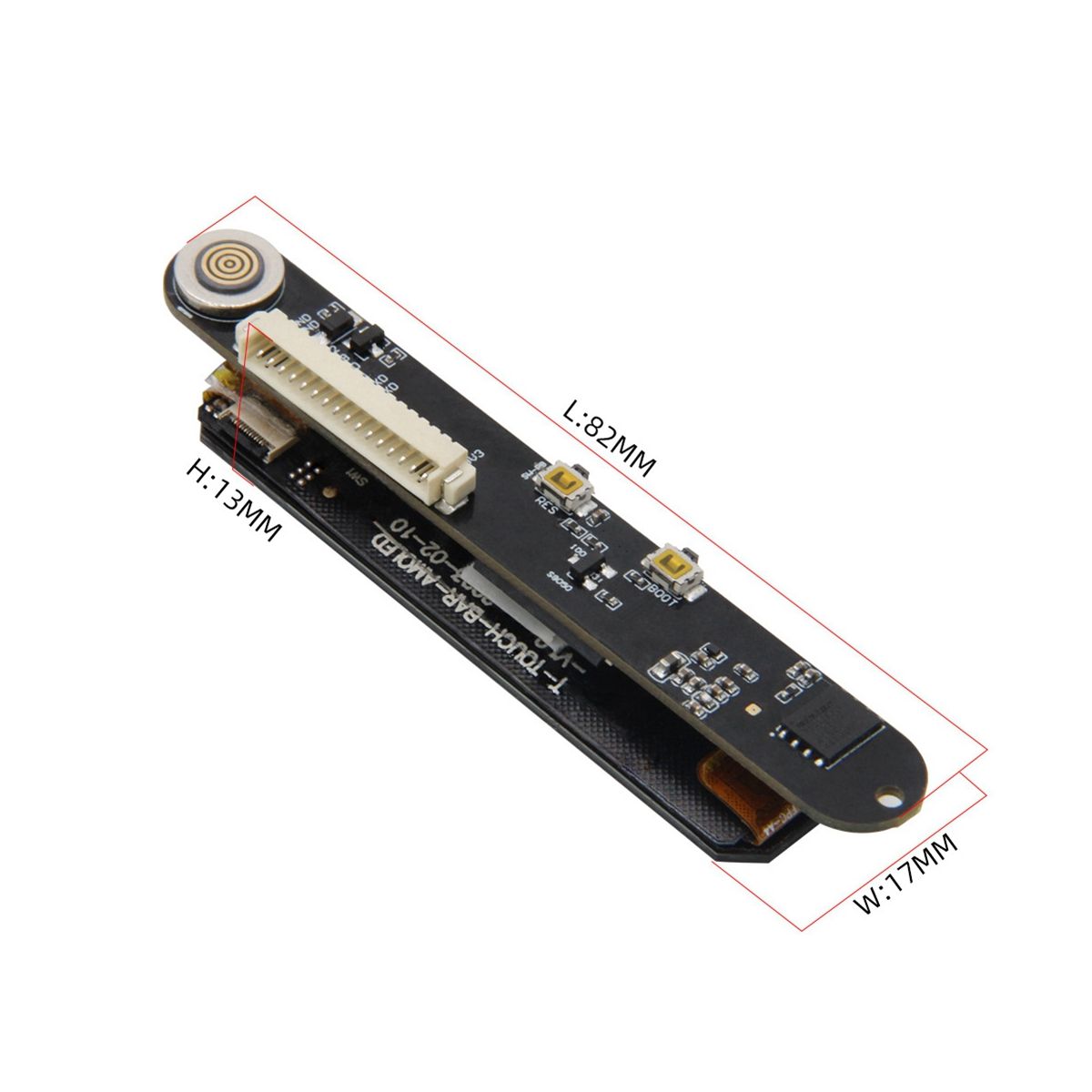

Size:8.2 x 1.4 x 1.1cm

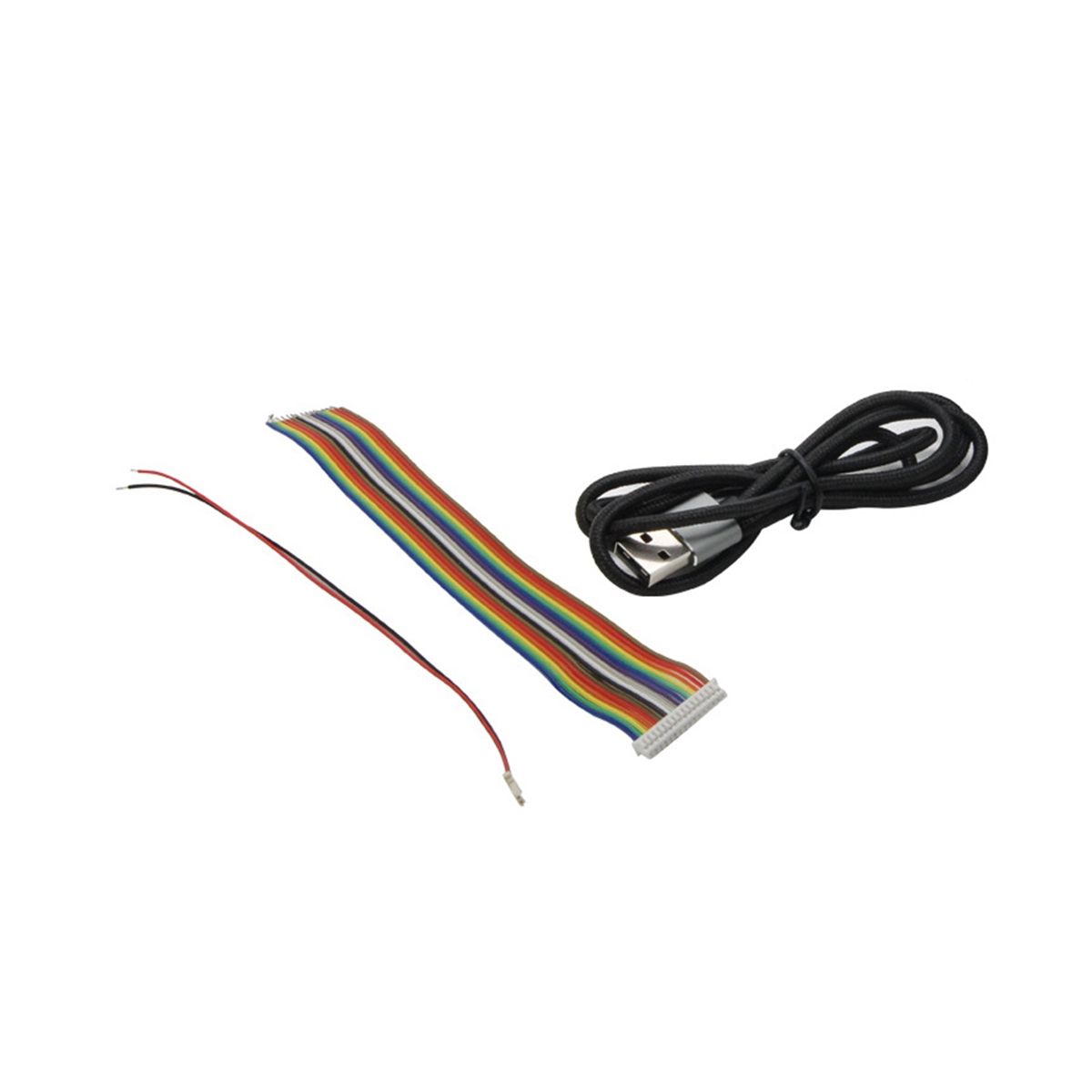

Package Contents:
1 x T-touch Bar
1 x 1.25 interface battery cable
1 x 1m 540-degree rotating magnetic suction data cable
1 x 1.25@16P single-head cable (length 15CM)
1 x multifunctional strong double-sided tape (18 x 50 x 0.4mm)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
development board
ESP32-S3 module
WiFi Bluetooth module
usb connector
ESP32-S3R8 module
The details are as described above
What's In the Box
1 x T-touch Bar
1 x 1.25 interface battery cable
1 x 1m 540-degree rotating magnetic suction data cable
1 x 1.25@16P single-head cable (length 15CM)
1 x multifunctional strong double-sided tape (18 x 50 x 0.4mm)
