Model |
touchscreen |
Production Country |
China |
Size (L x W x H cm) |
22x18x8 |
Weight (kg) |
0.334 |
Color |
multicolor |
Main Material |
ABS |
Product name :ZX7D00CE01
Series: iot type
MCU: ESP32-S3
Size :7 inches
Resolution :800 x 480
Touch type: capacitive touch
Screen driver IC:EK9716BD4
Touch drive IC:GT911
Screen interface :RGB
Flash: Built-in 16MBSPI Flash:8MBPSRAM
Communication interface :GPI0/UART/IIC/USB/WIFI/ Bluetooth

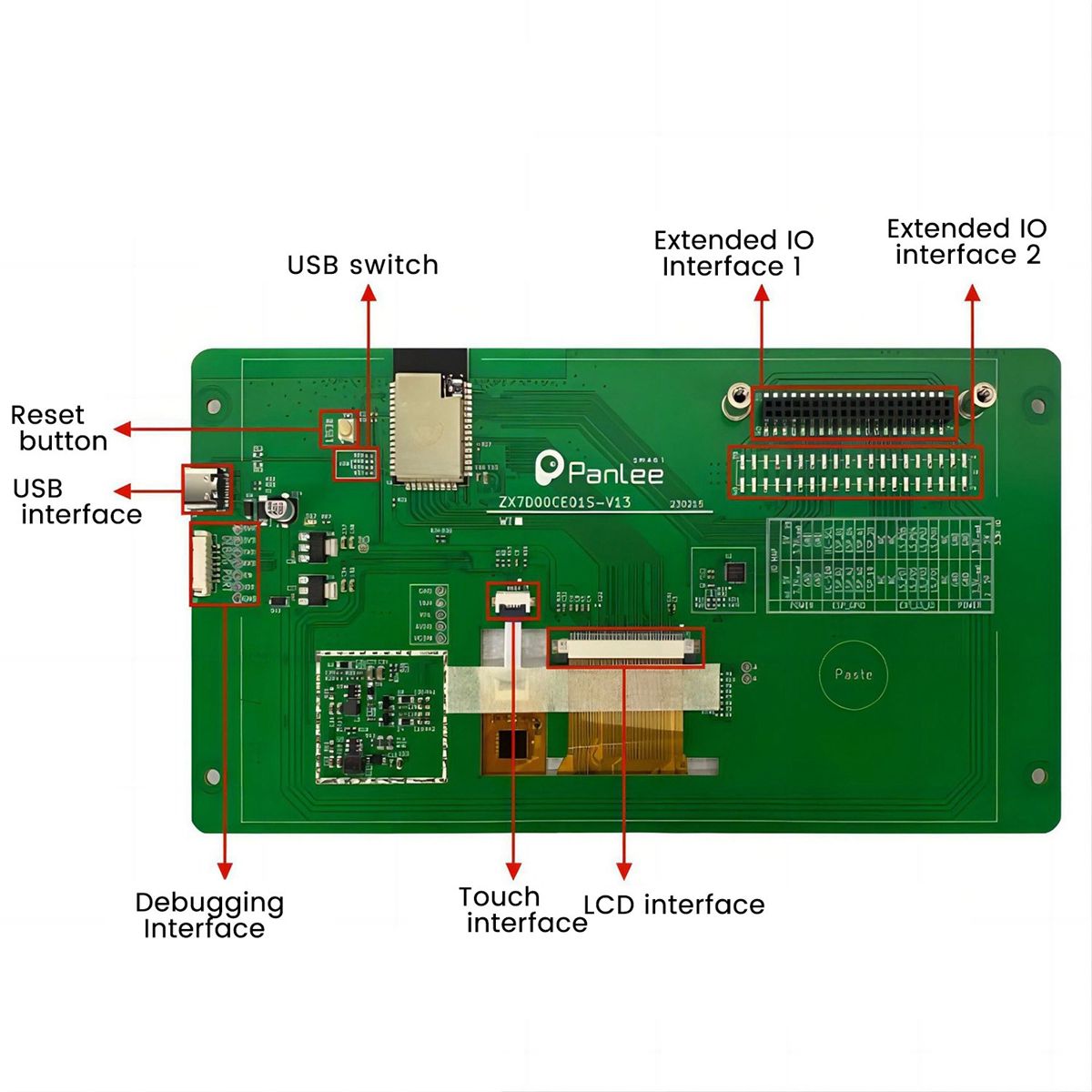

Mainboard port: debugging port, expansion board port, or USB port

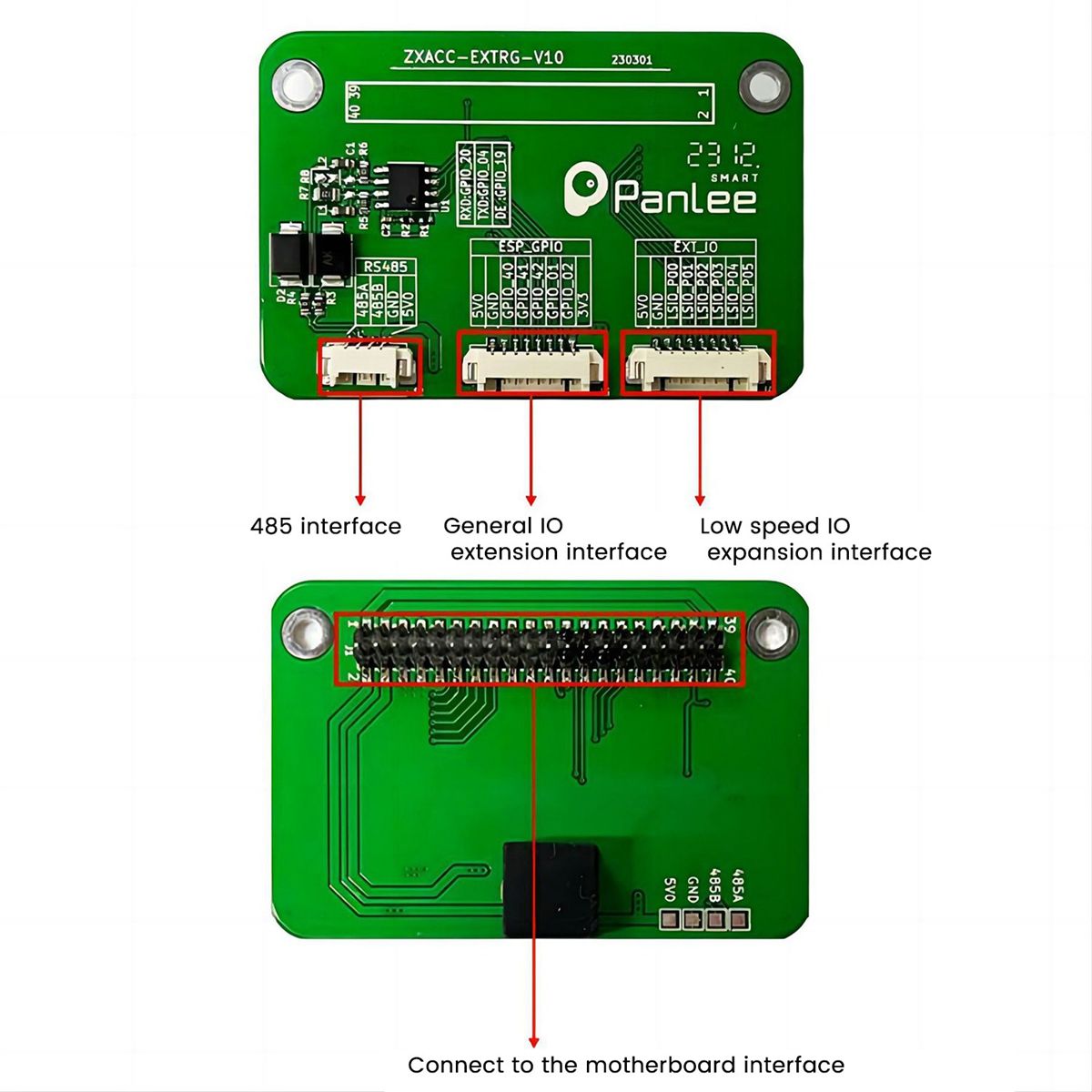

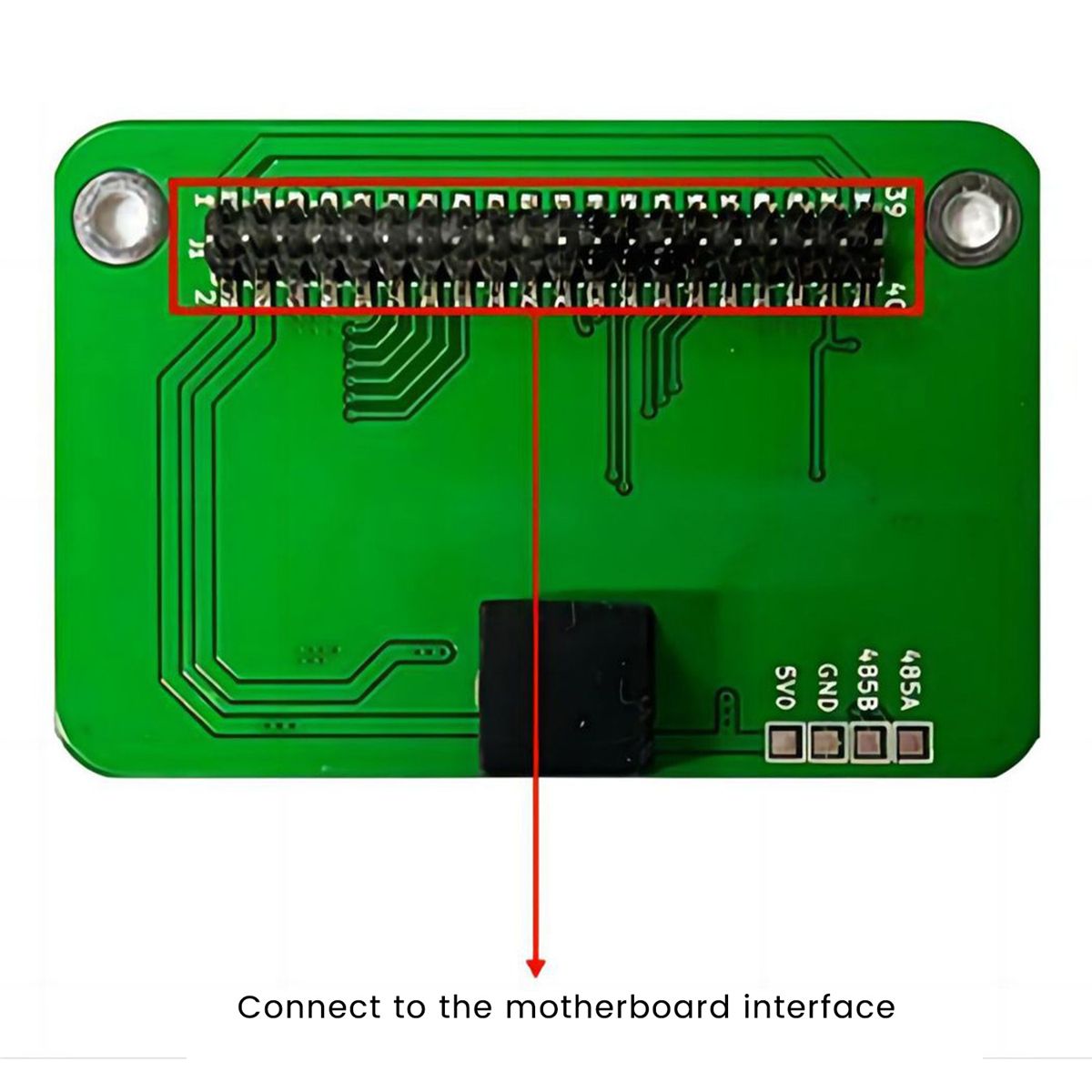

485 Sub-board port :485 port/universal I/O expansion port/low-speed I/O expansion port
Audio sub-board port: speaker port, general I/O expansion port, or low-speed I/O expansion port
Color: Green
Material: ABS
Package Contents:
1 x Touchscreen
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
touchscreen
7 inch serial touchscreen
ESP32-S3 touchscreen
Capacitive touch screen
Development board
The details are as described above
What's In the Box
1 x Touchscreen
