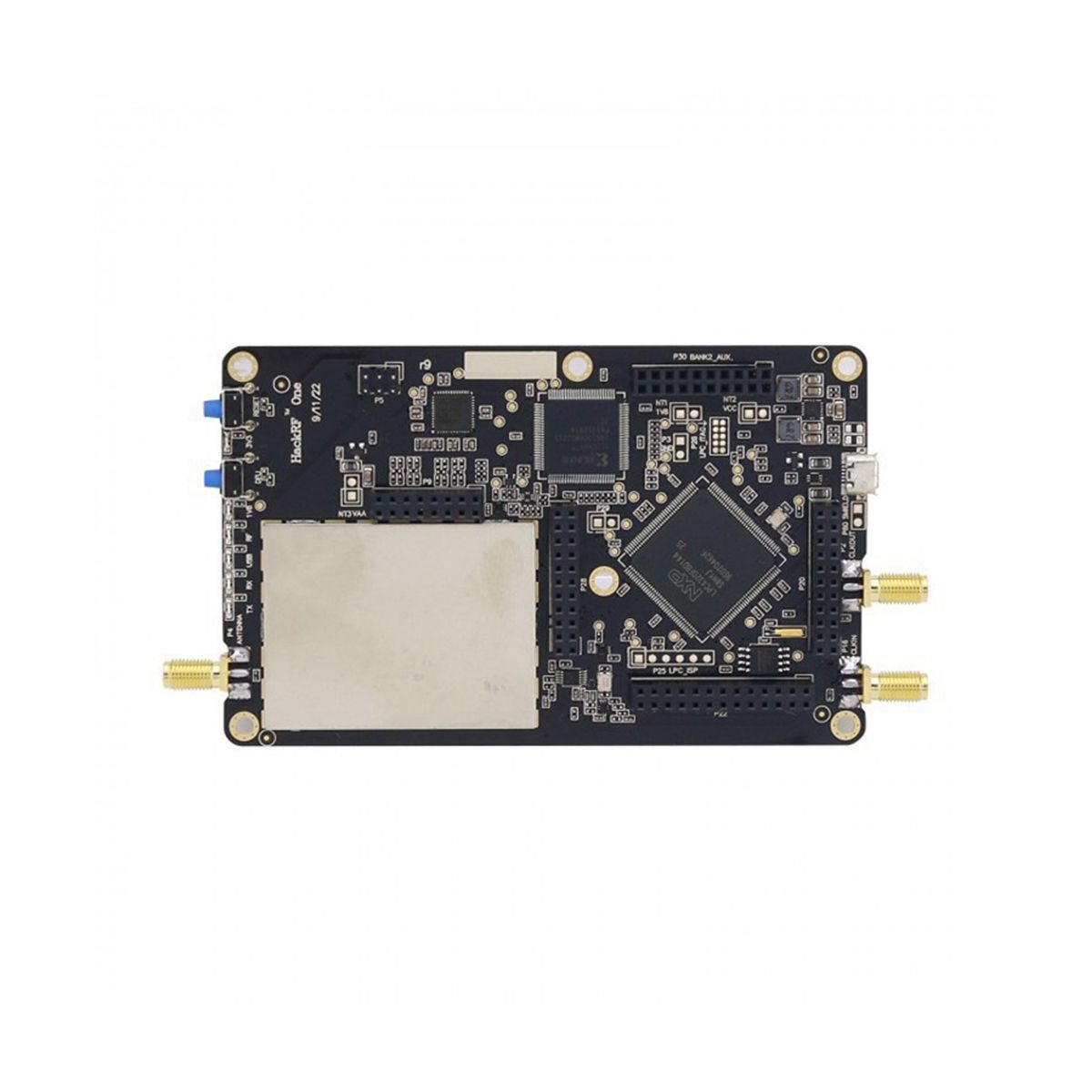

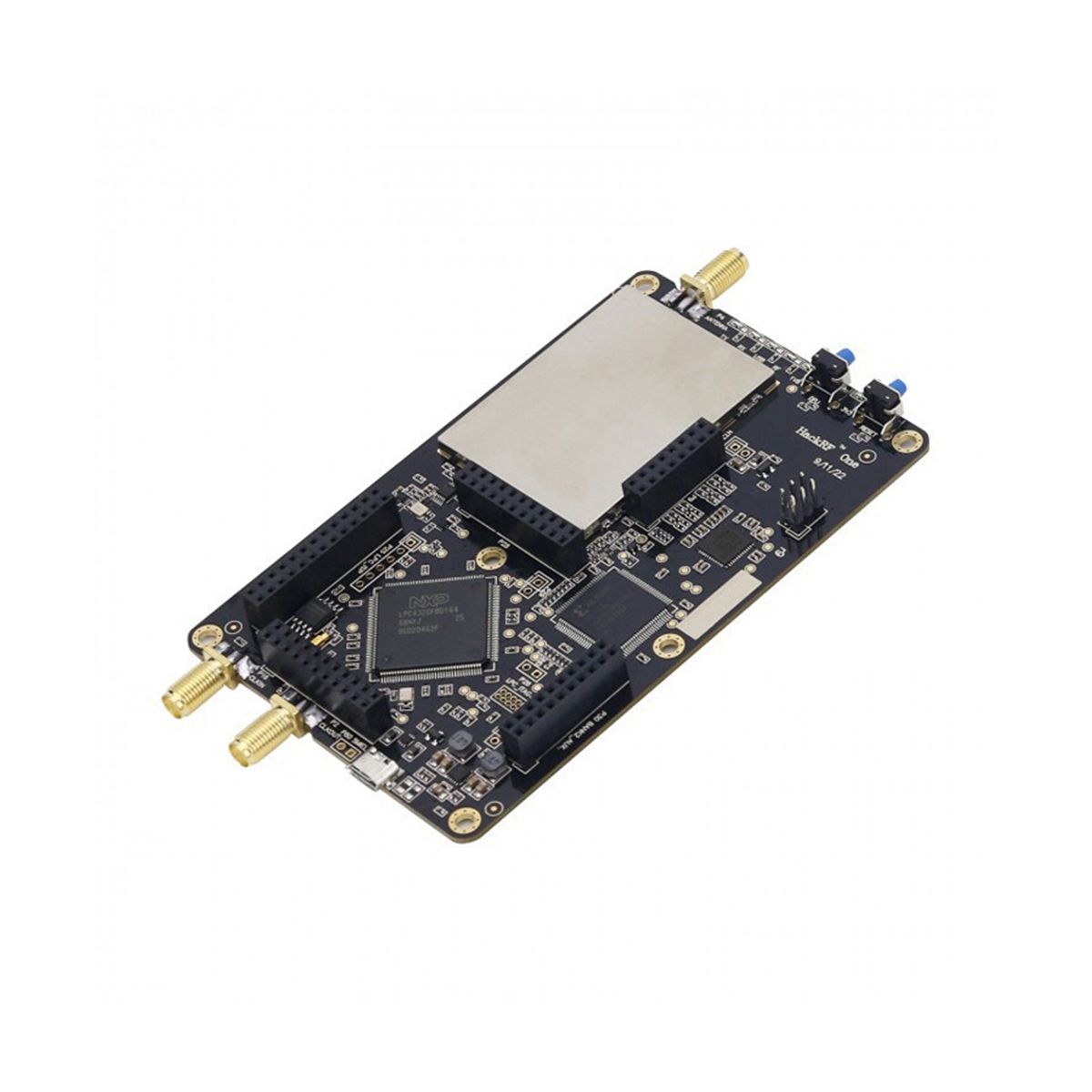

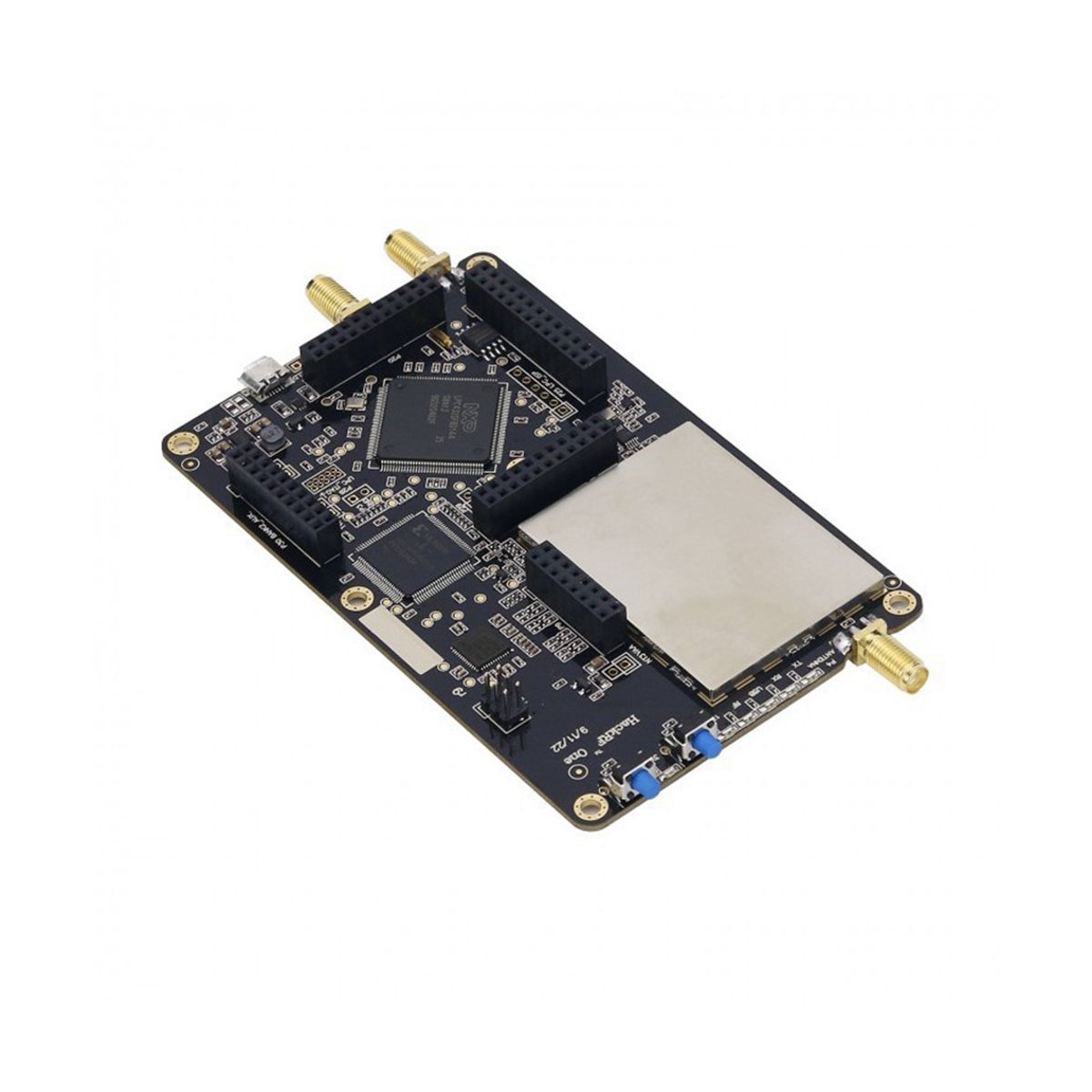

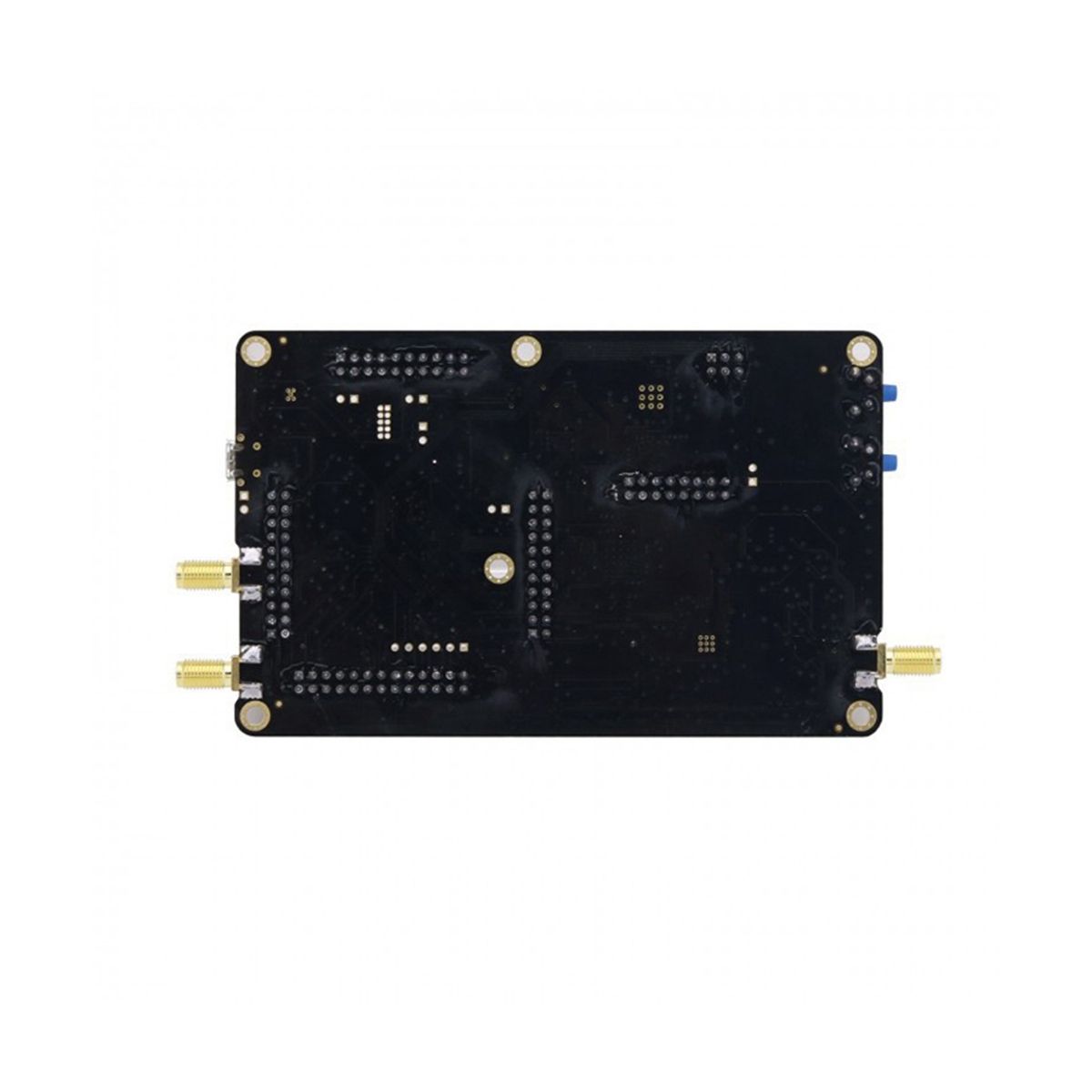

For HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
Designed to enable test and development of modern and next generation radio technologies, For HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
Upgrades For HackRF One R9: MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply.
For HackRF One Specifications:
1 MHz to 6 GHz operating frequency
Half-duplex transceiver
Up to 20 million samples per second
8-bit quadrature samples (8-bit I and 8-bit Q)
For GNU Radio, SDR#, and the like
Software-configurable RX and TX gain and baseband filter
Software-controlled antenna port power (50 mA at 3.3 V)
SMA female antenna connector
SMA female clock input and output for synchronization
Convenient buttons for programming
Internal pin headers for expansion
Hi-Speed USB 2.0
USB-powered
Open source hardware
Material: Metal
colour: black
Package Contents:
1 x motherboard

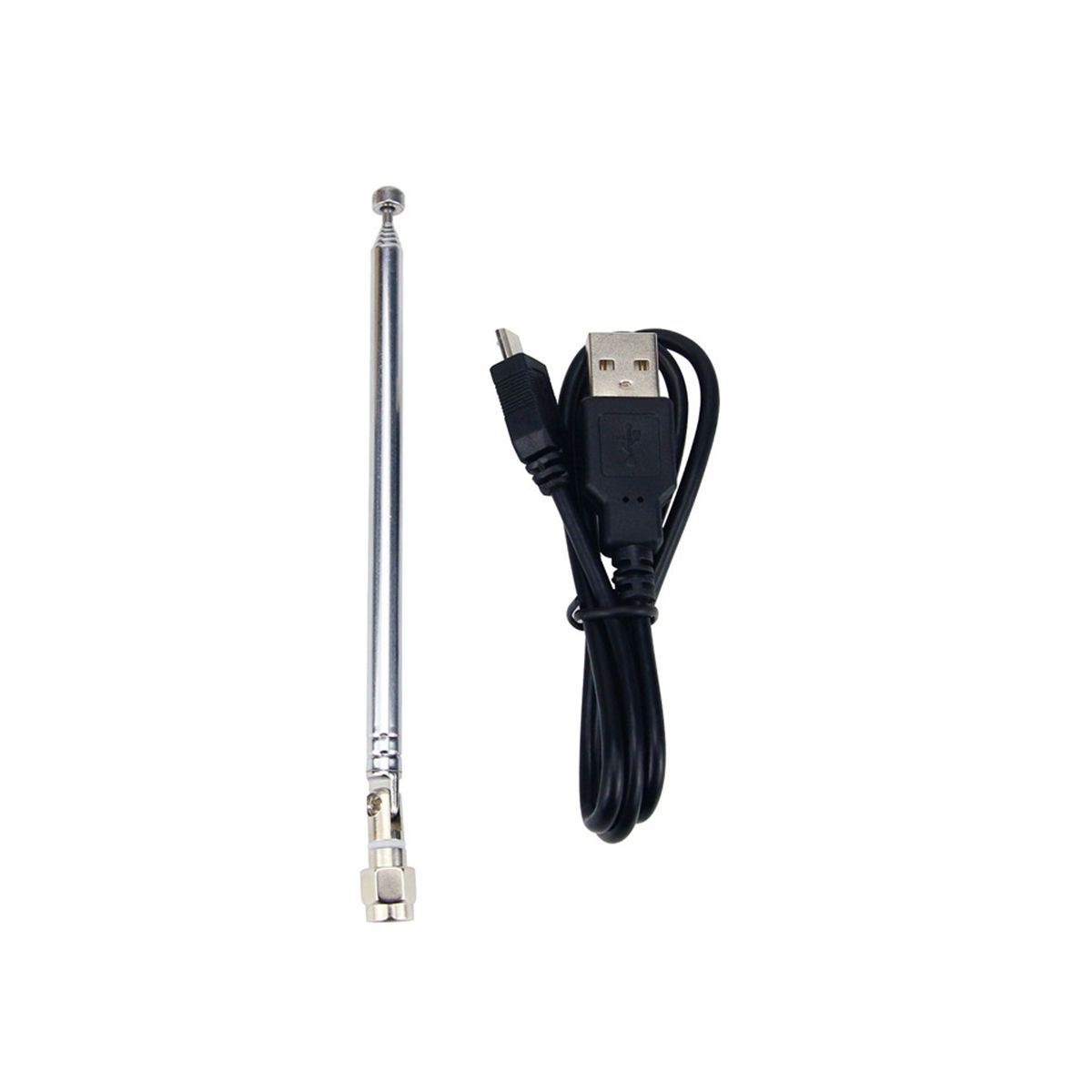

1 x Antenna
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
For HackRF One R9
1MHz-6GHz
SDR Development Board
For HackRF One R9 Board
1MHz to 6GHz Board
The details are as described above
What's In the Box
1 x motherboard
1 x Antenna
