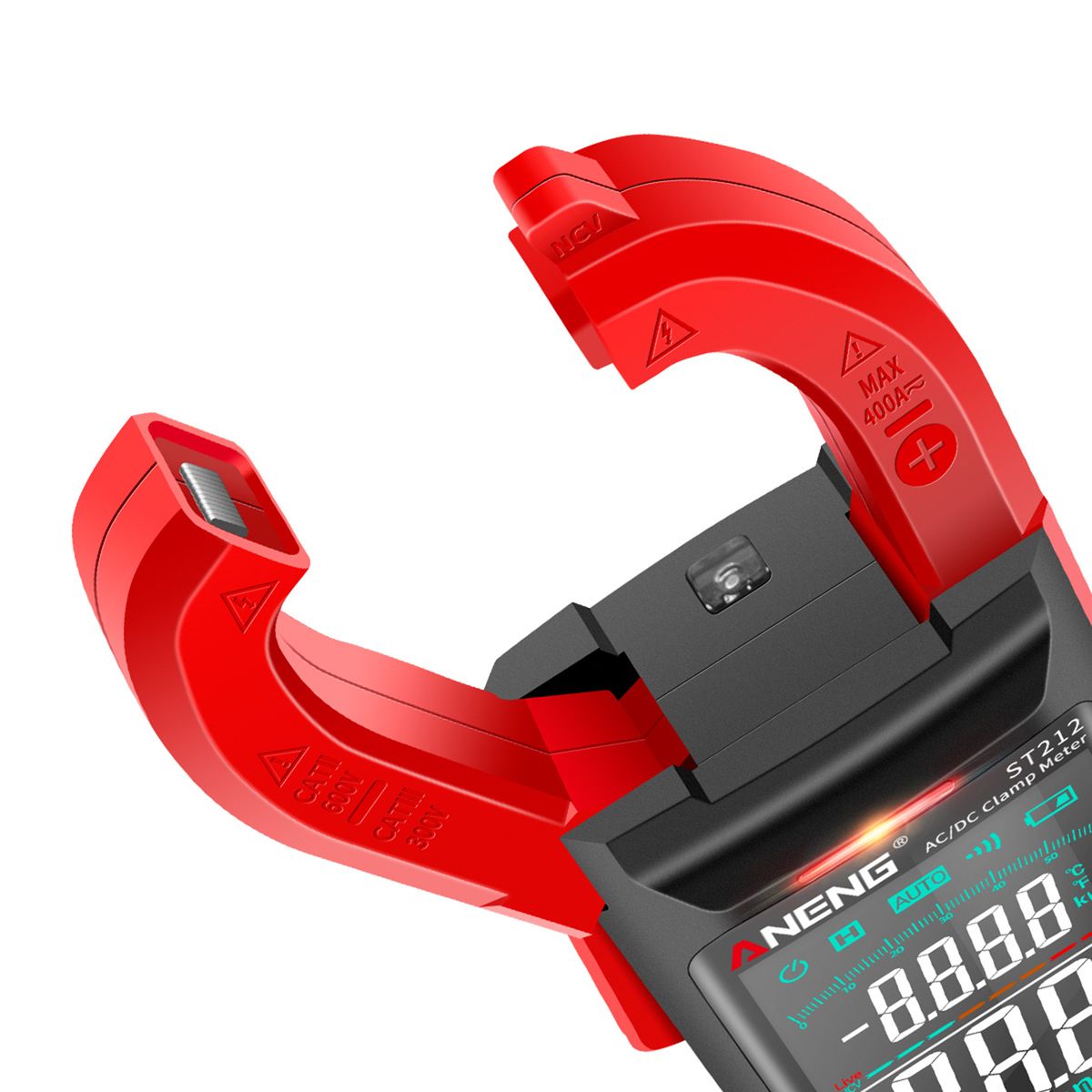

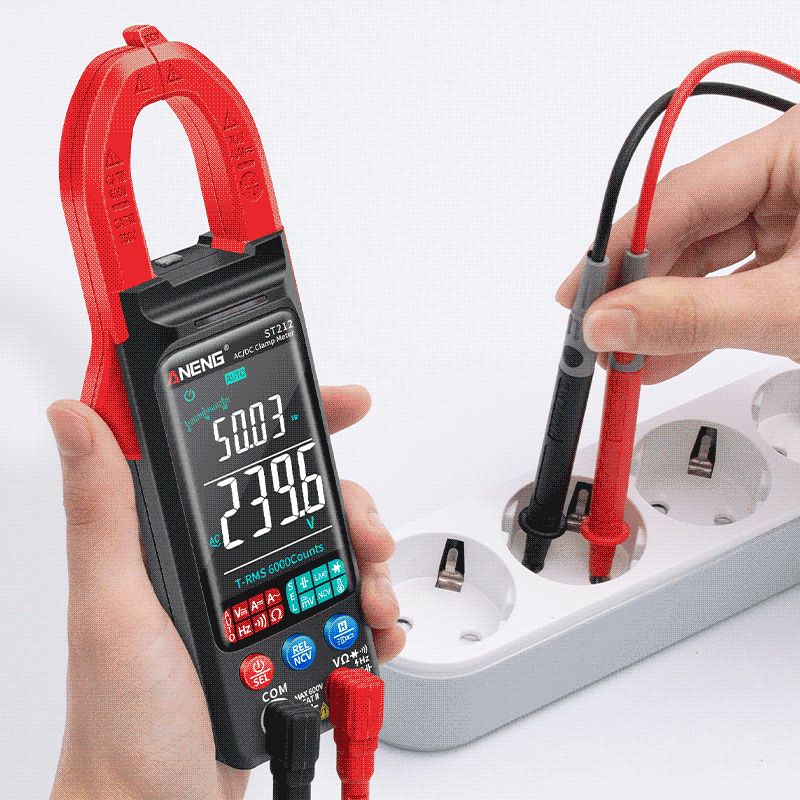

Features:Multifunctional Clamp Meter: it has functions of testing voltage, current, resistance, capacitance, frequency, diode, line on-off, live line voltage identify,
Safety Level: it complies with the over-voltage standard of CAT II 600V, level II pollution, dual-insulation protection and over load protection throughout the range.
Smart AC/ Current Measurement: automatic and manual modes for the electric current measurement.
Data Hold Function: convenient for observing or recording data.

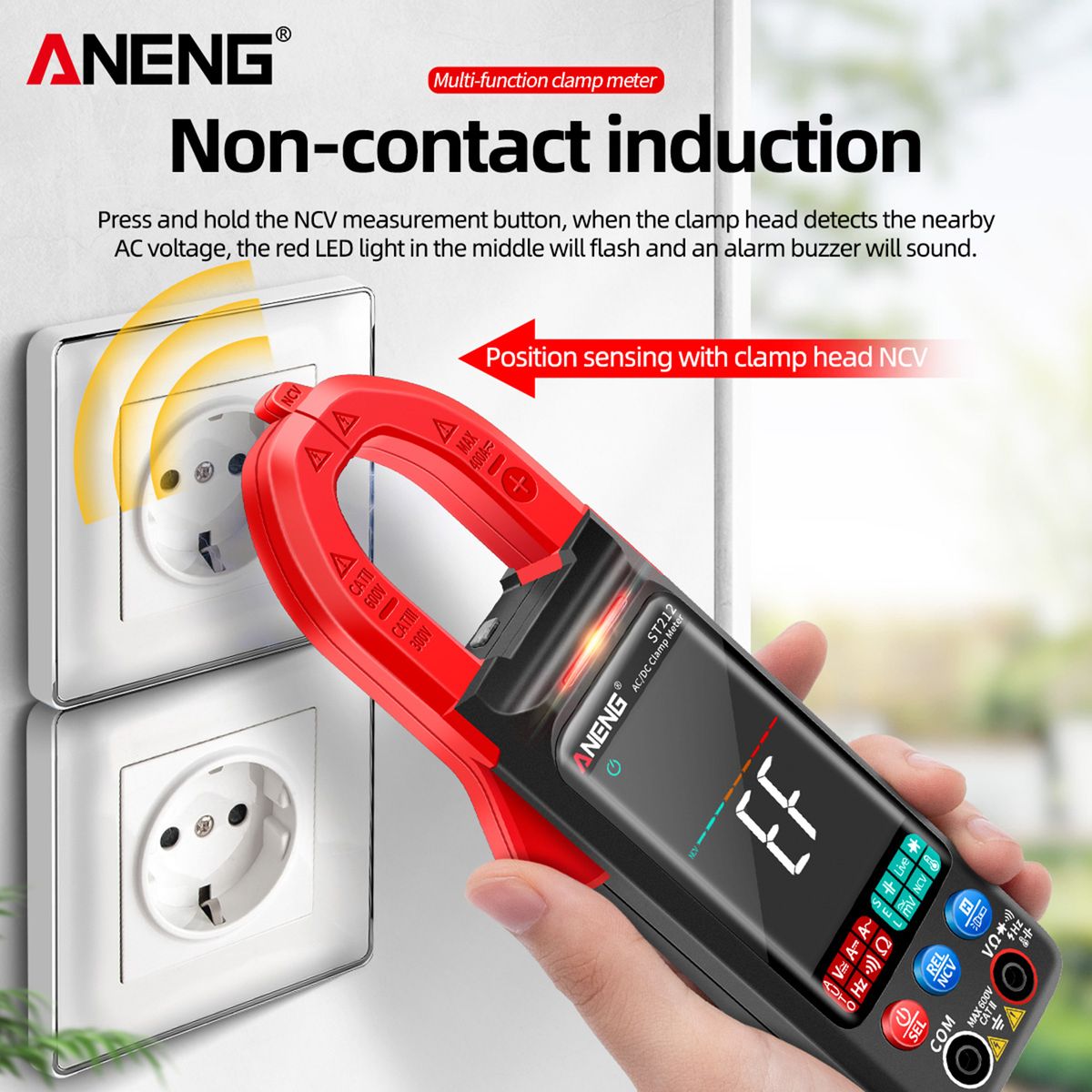

NCV Non-contact Voltage Detection: get the sensor near to the cable being detected, then the will alarm and NCV alarm light will flash when it detects AC voltage.
Auto -off: if there is no operation in 15 minutes, the instrument will shut down automatically to save battery energy.

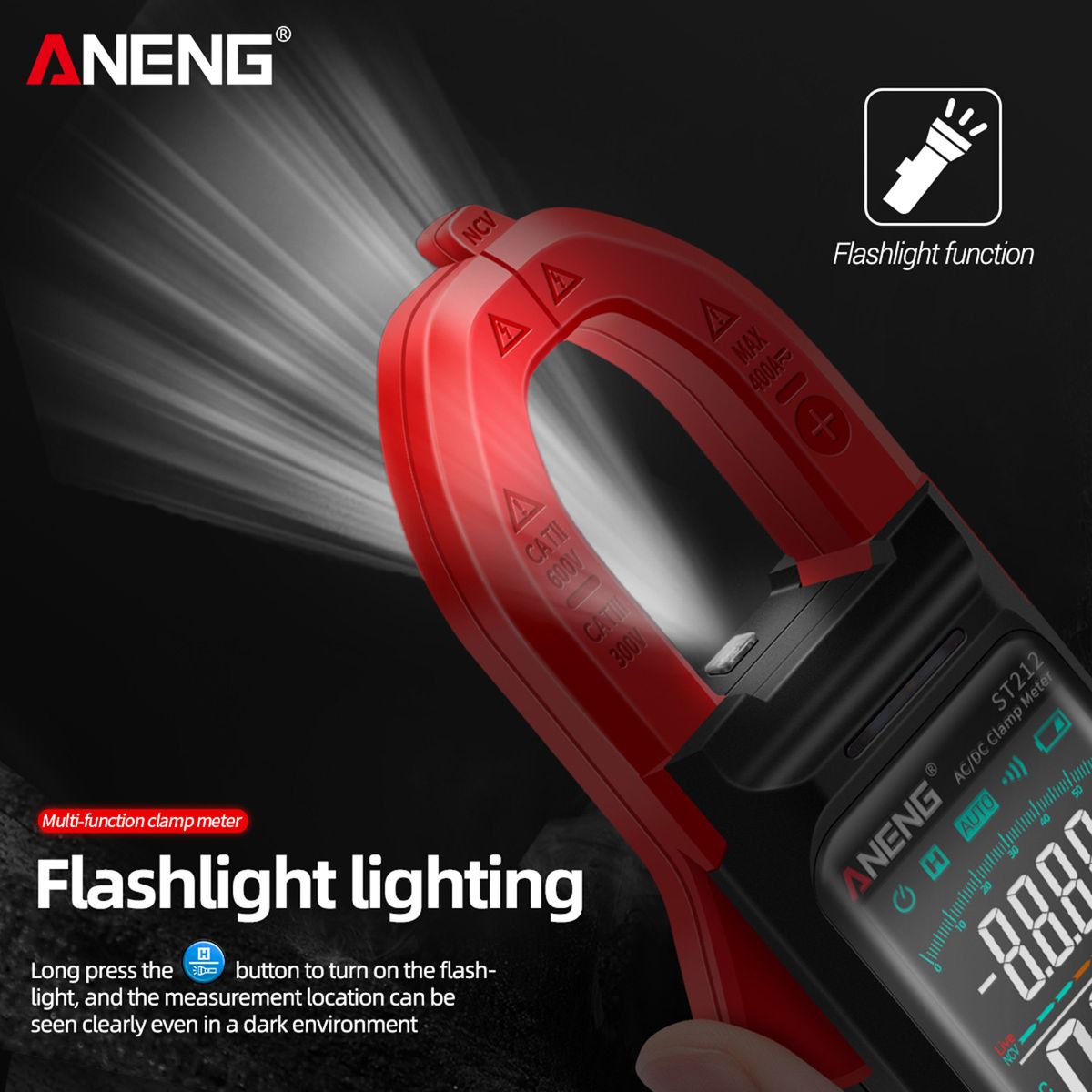

More Features: 6000 counts LCD display, flashlight, low battery indication, etc.
Compact & Portable: convenient for one-handed operation when measuring, quicker and easier to use.
Wide Range of Applications: perfect for home and professional use, automotive, home and industrial electrical troubleshooting.

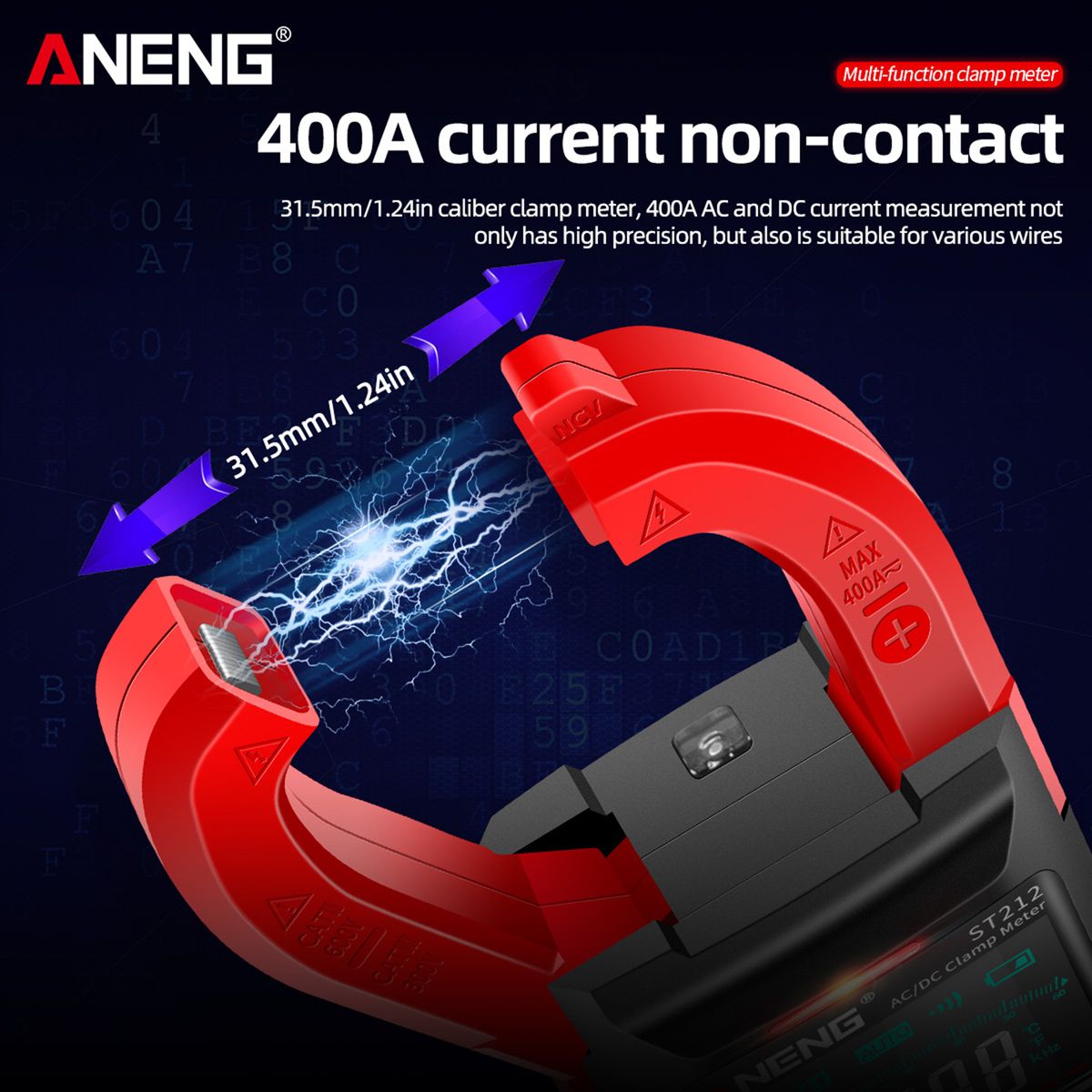

Specifications:AC Current Range: 60A/400A
Current Range: 60A/400A
Voltage Range: 600V/600mV
AC Voltage Range: 600V/600mV
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF/60mF
Temperature: -40~1000℃, -40~1832℉
Frequency: 60Hz/1000Hz
Color: Black / Red (Optional)
Material: ABS
Display: LCD
Max. Display Value: 6000 digit
Sampling Time: About 3 times/second, bargraph 10 times/second
Auto-off: 15 minutes
Operating Temperature: 18~28℃
Storage Temperature: -10~50℃
Operating Height: Max. 2000m
Supply: 2 * 1.5V AAA battery (NOT included)

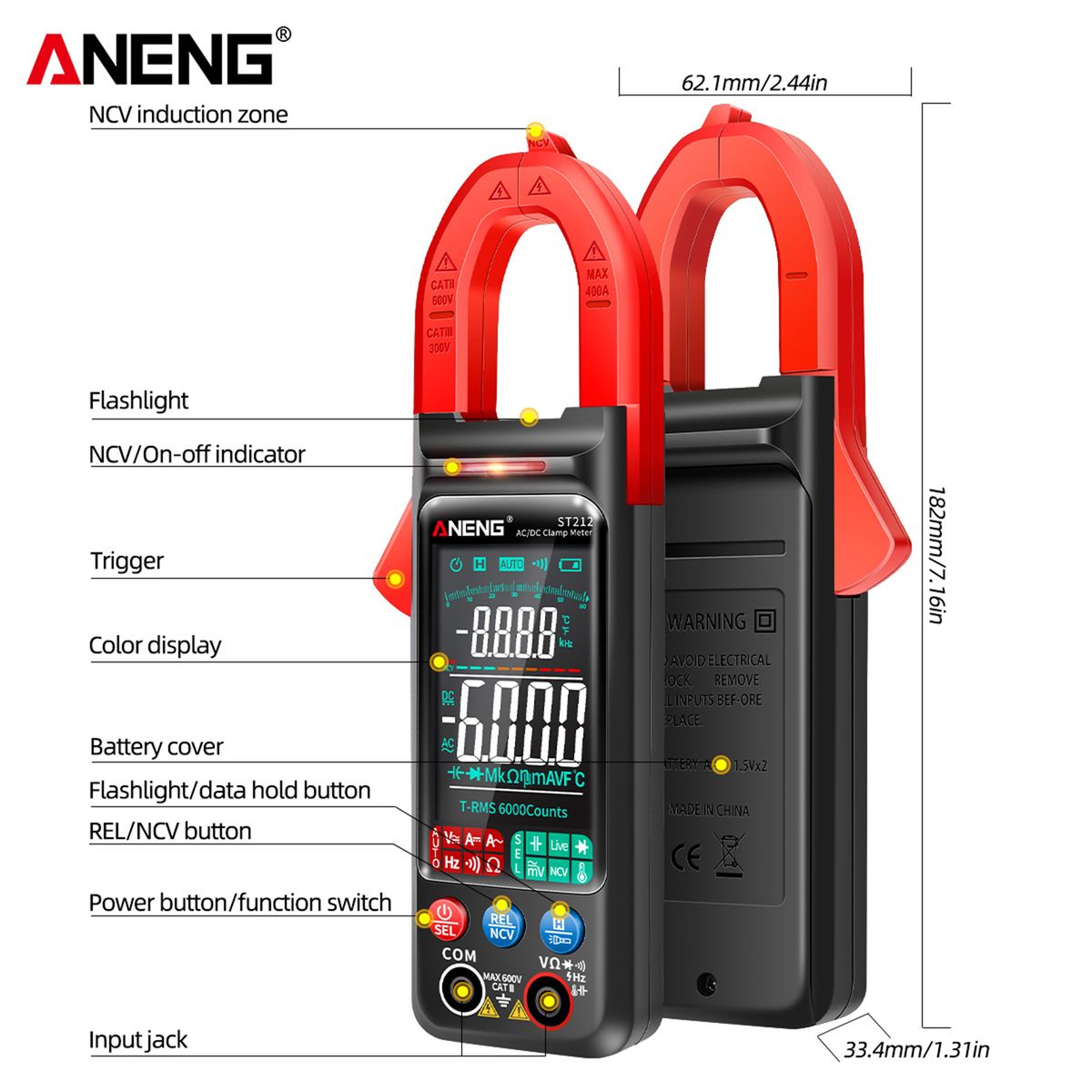

Item Size: 182 * 62.1 * 33.4mm / 7.17 * 2.44 * 1.31in
Item Weight: 150g / 5.29oz
Package Weight: 272g / 9.59oz
Package Size: 21.7 * 8.5 * 4.5cm / 8.54 * 3.35 * 1.77in
Packing List:1 * Clamp Meter
1 * Test Lead
1 * K-type Thermocouple
1 * Manual (English)
Key Features
Multifunctional Clamp Meter: it has functions of testing voltage, current, resistance, capacitance, frequency, diode, line on-off, live line voltage identify,
Safety Level: it complies with the over-voltage standard of CAT II 600V, level II pollution, dual-insulation protection and over load protection throughout the range.
Smart AC/ Current Measurement: automatic and manual modes for the electric current measurement.
Data Hold Function: convenient for observing or recording data.
NCV Non-contact Voltage Detection: get the sensor near to the cable being detected, then the will alarm and NCV alarm light will flash when it detects AC voltage.
Auto -off: if there is no operation in 15 minutes, the instrument will shut down automatically to save battery energy.
What's In the Box
1 x Clamp Meter,1 x Test Lead,1 x K-type Thermocouple,1 x Manual (English)
