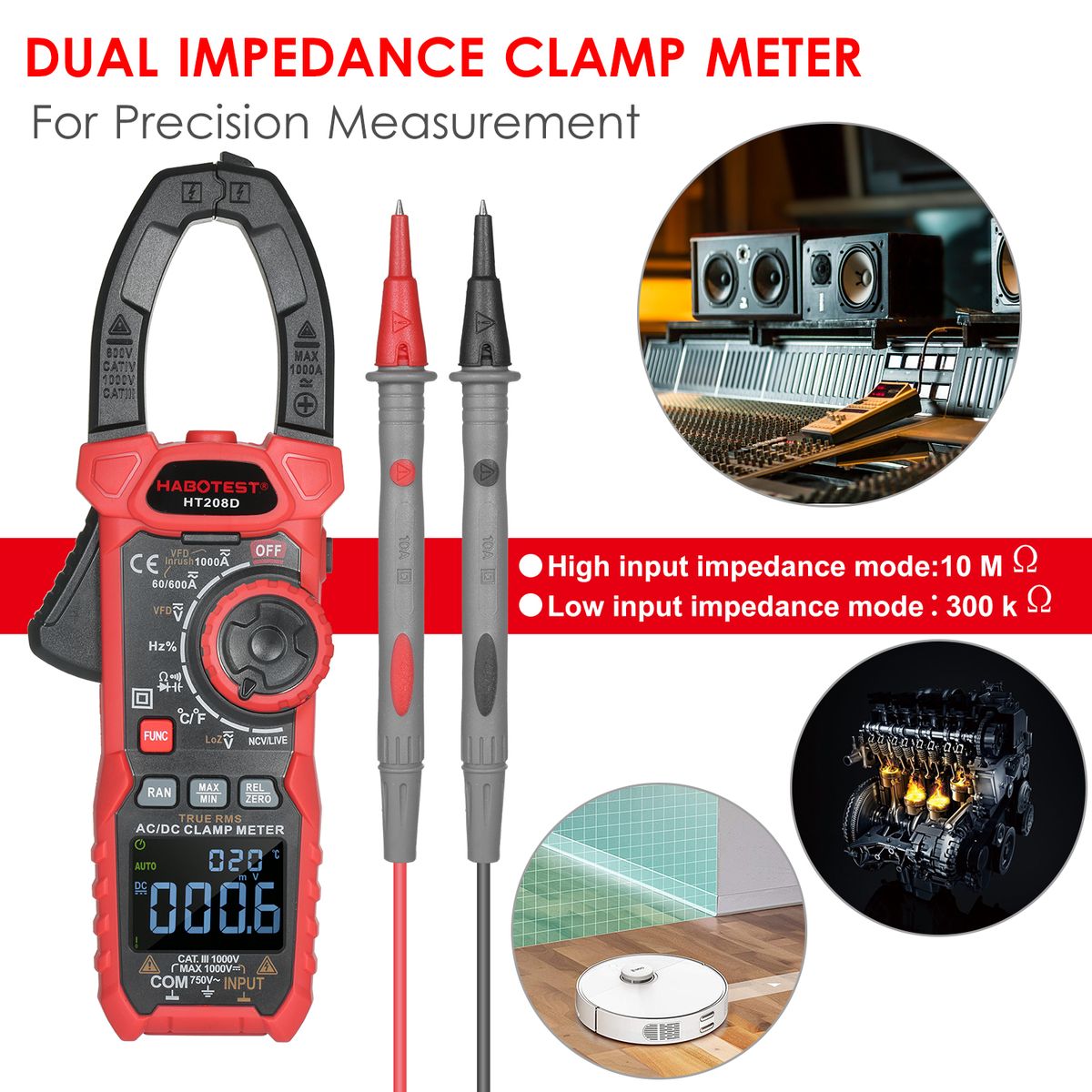

This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/ voltage, AC/ current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.
Features:CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC/ current, AC/ voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto off within 15 minutes if there is no operation, helps conserve the battery.
MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
Note:*MUST read the user manual carefully before use for safety.
*Battery not included.

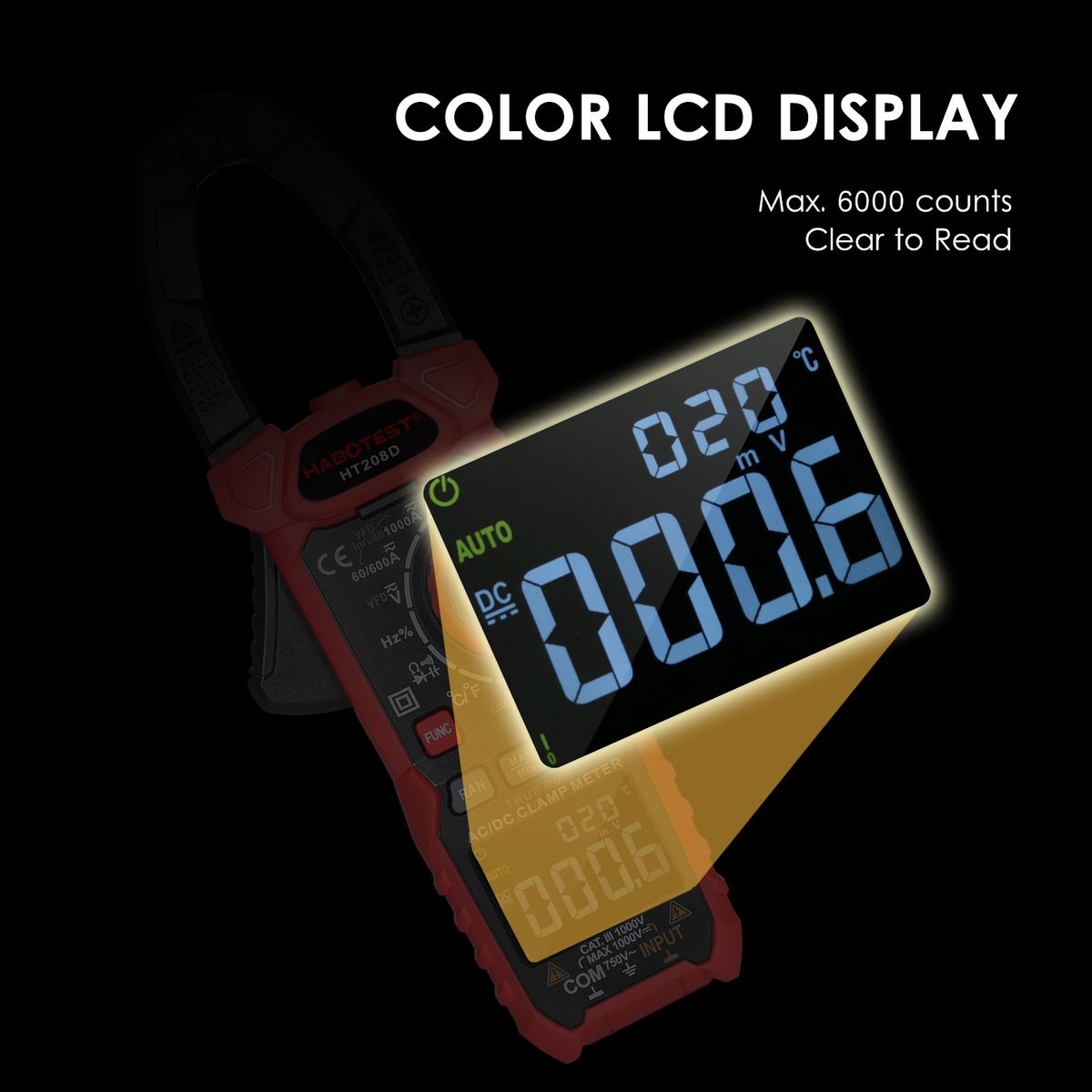

Parameters:Display: 6000 count
Clamp Opening Size: 40mm
Auto-off: approx. 15 minutes
Max. Voltage Between Terminals and Earth Ground: AC750V or 1000V
Key Features
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC/ current, AC/ voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto off within 15 minutes if there is no operation, helps conserve the battery.

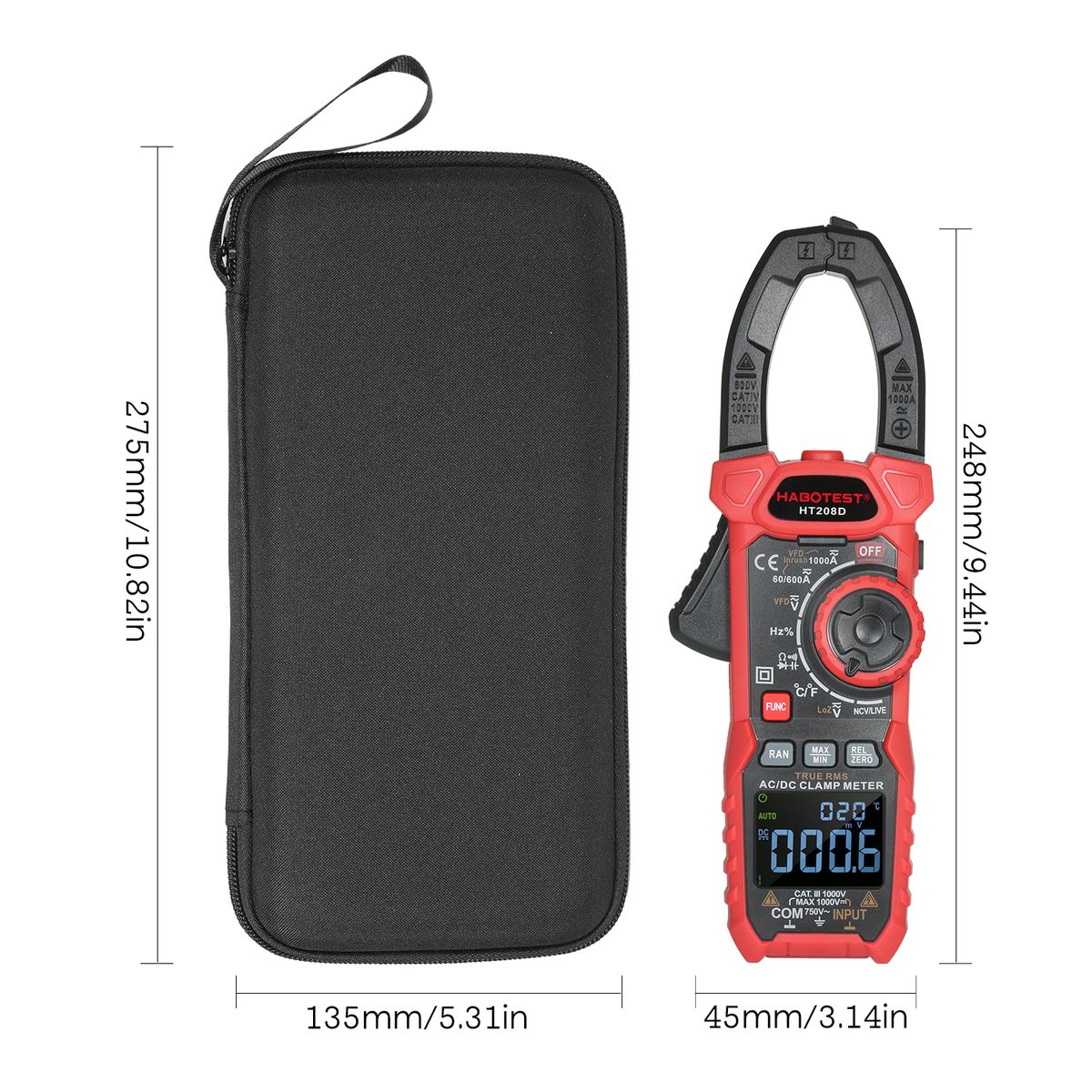

What's In the Box
1 x Digital Clamp Meter,1 x Thermocouple,2 x Test Lead,1 x User Manual(English),
