This is a multi-function meter that can display voltage, real-time current, real-time , remaining capacity, and usage time in real-time. The meter uses a 2.4 inch color LCD display that shows comprehensive, clear, and easy-to-read data. This meter is perfect for applications that require output voltage and current monitoring, as well as battery and discharging.
Features:
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.

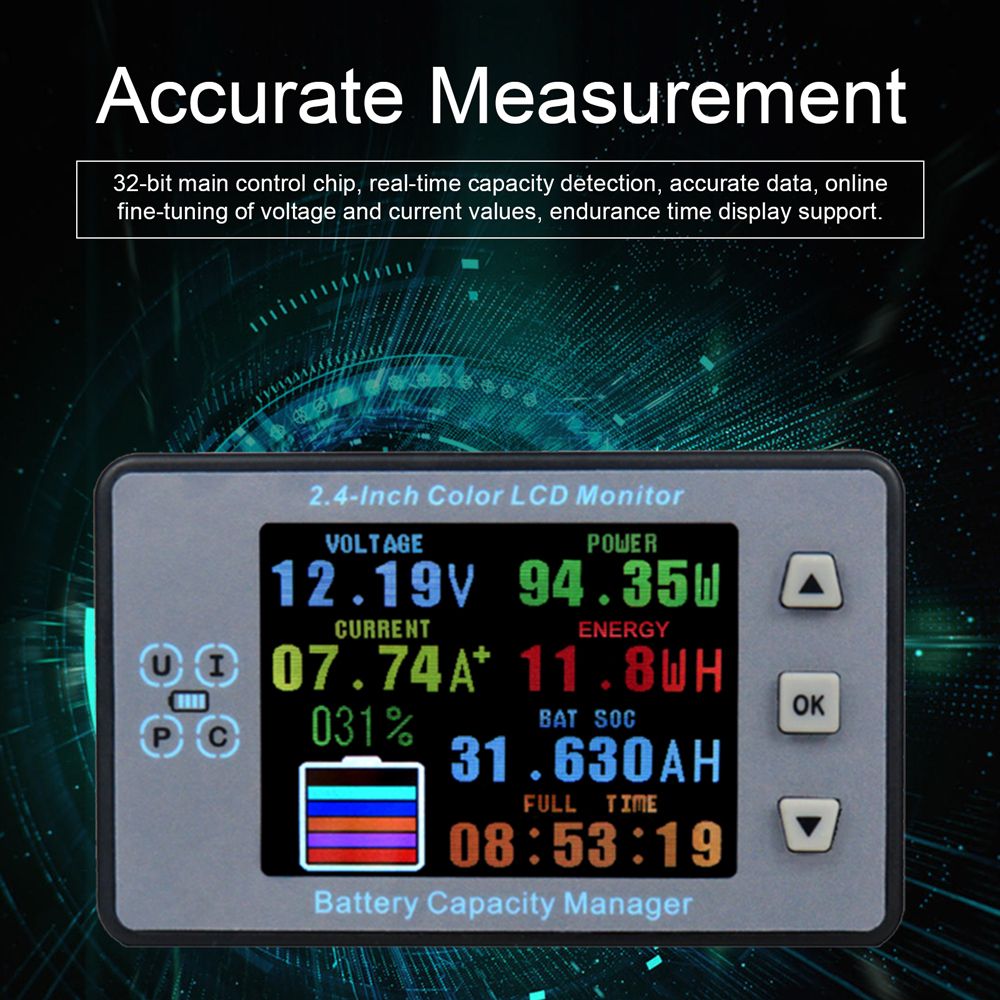

【Accurate Measurement】: 32-bit main control chip, real-time capacity detection, accurate data, online fine-tuning of voltage and current values, endurance time display support.
【Bidirectional Current Detection】: The detection of and discharging users can easily detect bidirectional current, without changing the wiring direction.
【Memory Function】: It can memorize the ampere-hour (AH) before the failure. The ampere-hour (AH) can be filled or cleared with one key, which does not affect the direct and discharging measurement.
【Version with Base】: The diverters and screws are made of pure copper materials with high conductivity and low heat generation. Its own low consumption, standby state will not consume too much battery . The small sealing springs are all made of pure copper to ensure more accurate sampling accuracy. It is a base version with mounting fixing holes on both sides, easy to install and fix.
【Wide Applications】: Perfect for applications that require monitoring of output voltage and current, as well as battery and discharging. Suitable for RV monitoring, electric bicycle monitoring, car battery monitoring, battery testing, photovoltaic system testing, powersupply testing, etc.
【Waterproof Slide Cover (Optional)】: Waterproof transparent slide cover for the display (optional parts), easy to disassemble and install, can achieve the front of the instrument display waterproof, dustproof effect.
Specifications:Name: Coulometer Set
Material: PVC
Type: 100A diverter, 300A diverter, 500A diverter, 100A diverter+lid+shielded wire, 300A diverter+lid+shielded wire, 500A diverter+lid+shielded wire
(optional)Display: LCD display
Voltage measurement ranges: 8-100V
Current measurement ranges: 0.02-100A (100A diverter); 0.06-300A (300A diverter); 0 .2-500A
(500A diverter)
Capacity measurement ranges: 0.1AH-99999AH
value: 50KW
Accuracy of voltage: ±1%+2words
Accuracy of current: ±0.5%+2words
Communication baud rate: 9600bps
Measurement rate: 20 times/sec
Item size:
Display: 86 * 53 * 17mm / 3.39 * 2.09 * 0.67in
100A diverter with base: 65 * 34 * 34mm / 2.56 * 1.34 * 1.34in
300A diverter with base: 84 * 38 * 45mm / 3.31 * 1.50 * 1.77in
500A diverter with base: 84 * 38 * 45mm / 3.31 * 1.50 * 1.77in
Package size: 160 * 160 * 50mm / 6.30 * 6.30 * 1.97in
Package weight:
100A diverter: 285g / 10.05ounce
300A diverter: 395g / 13.93ounce
500A diverter: 435g / 15.34ounce
100A diverter+lid+shielded wire: 365g / 12.87ounce
300A diverter+lid+shielded wire: 475g / 16.76ounce
500A diverter+lid+shielded wire: 520g / 18.34ounce

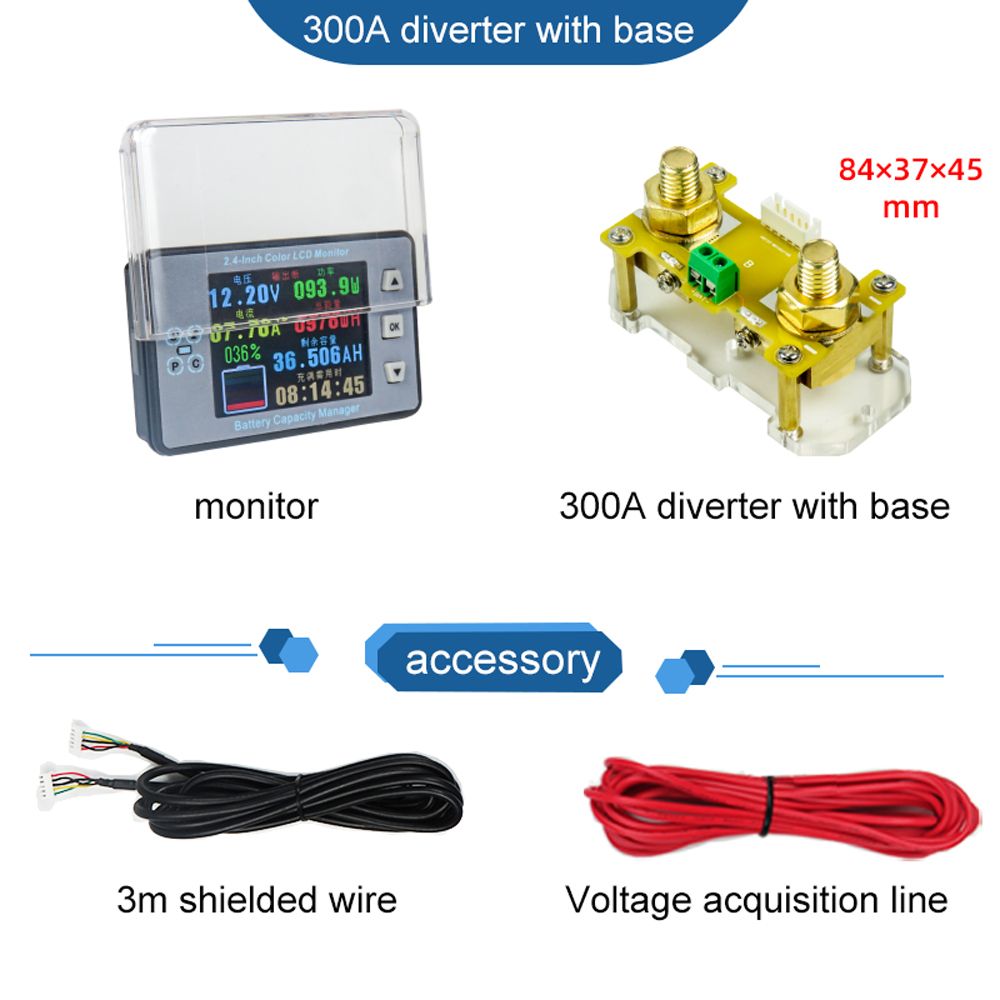

Packing List (100A/300A/500A diverter):1 * Display
1 * Diverter with Base
1 * 5Pin Cable
1 * 1m Cable
2 * Copper Lug
1 * Wrench
OR
Packing List (100A/300A/500A diverter+lid+shielded wire):1 * Display
1 * Diverter with Base
1 * Shielded Wire
1 * Display Lid
1 * 5Pin Cable
1 * 1m Cable
2 * Copper Lug
1 * Wrench
Key Features
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.
【PVC Housing】: Adopting industrial-grade ABS with impact resistance, high-temperature resistance, and other characteristics, is safer and more reliable. Silicone buttons design, comfortable to use.
What's In the Box
(100A/300A/500A diverter):,1 x Display,1 x Diverter with Base,1 x 5Pin Cable,1 x 1m Cable,2 x Copper Lug,1 x Wrench,
