| Production Country |
China |
| Size (L x W x H cm) |
28*16*16 |
| Weight (kg) |
1 |
| Certifications |
Fair Trade |

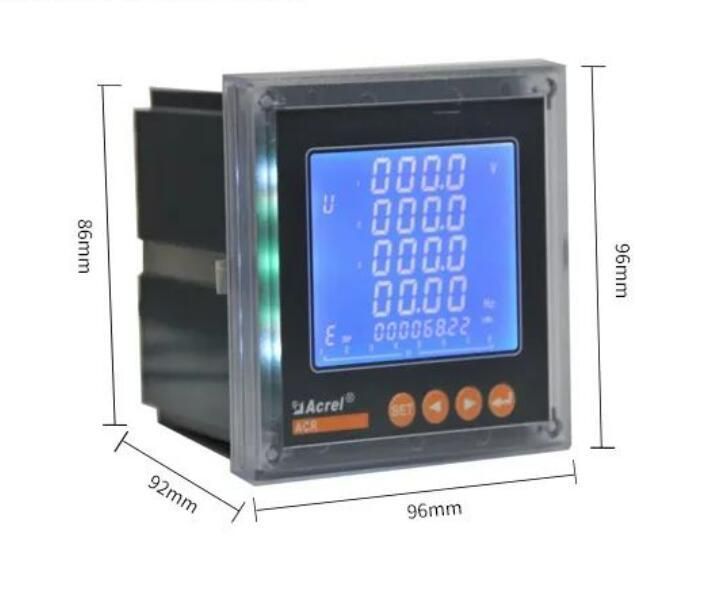

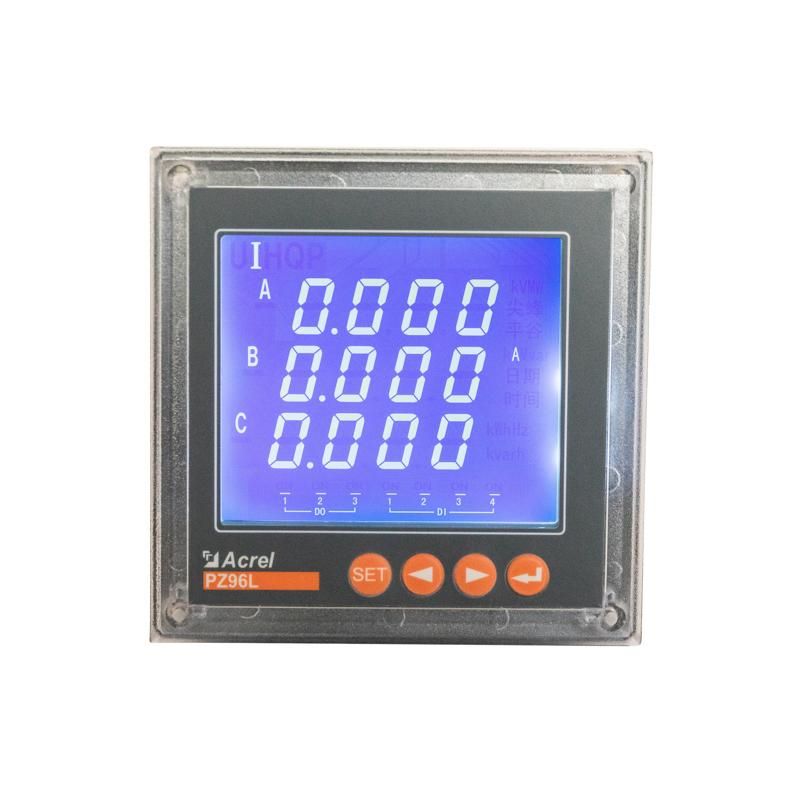

PZ96L-E4/C Digital Smart Power Meter 400V 5A Wiring 3P4L RS485 Communication
Measure active electric energy, reactive electric energy, active power, reactive power, power factor, three-phase voltage, three-phase current, frequency;
| Specification | Value |

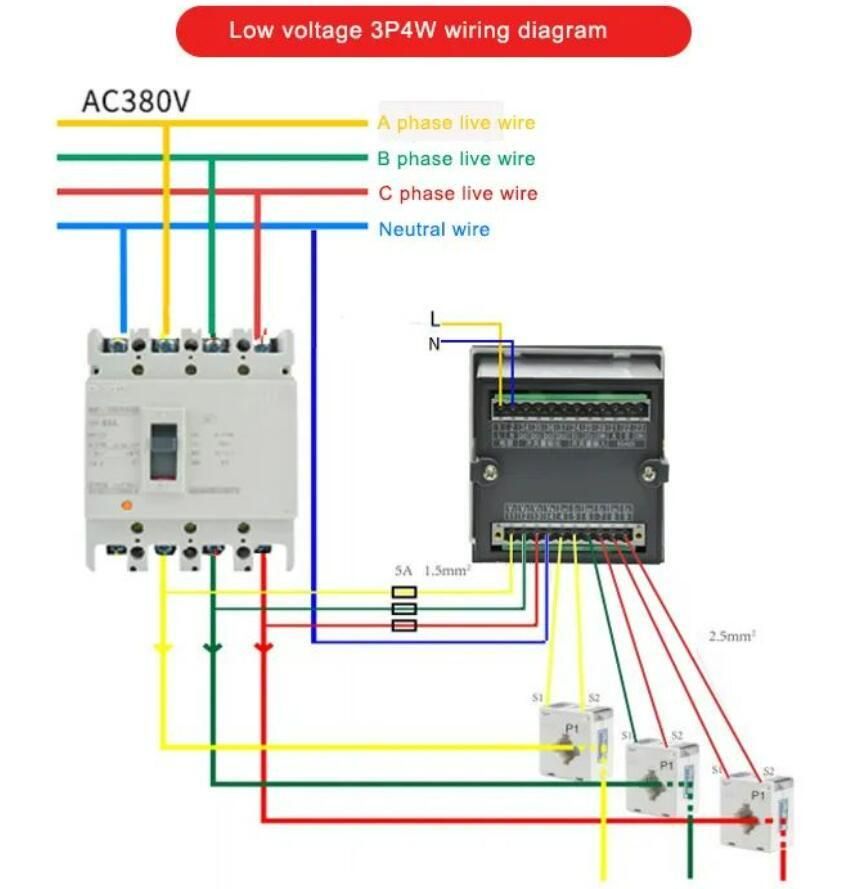

| Input | Wiring | 3P4L |
| Frequency | 45~65Hz |
| Voltage | Rated Voltage:400V |
| Overload: 1.2 times rated value (continuous); 2 times rated value for 1 second |
| Comsumption: less than 0.2VA |
| 电流 | Rated:AC 5A |
| Overload: 1.2 times rated value (continuous); 2 times rated value for 1 second |
| Comsumption: less than 0.2VA |
| Output | Pluse | Output mode: open collector optocoupler pulse |
| Pulse constant: configurable, default 10000 imp/kWh |
| communication | RS485 interface, Modbus-RTU protocol |
| Display | LED or LCD |
| measurement accuracy | Current and voltage: level 0.2, power and active energy: level 0.5, frequency 0.01Hz, reactive energy: level 1 |
| Power Supply | AC85~265V or DC100~350V; |
| environment | Working temperature: -10℃~+55℃; Storage temperature: -25℃~+70℃ Relative humidity: 5% ~ 95% non-condensing; altitude: ≤2500m |
