Model |

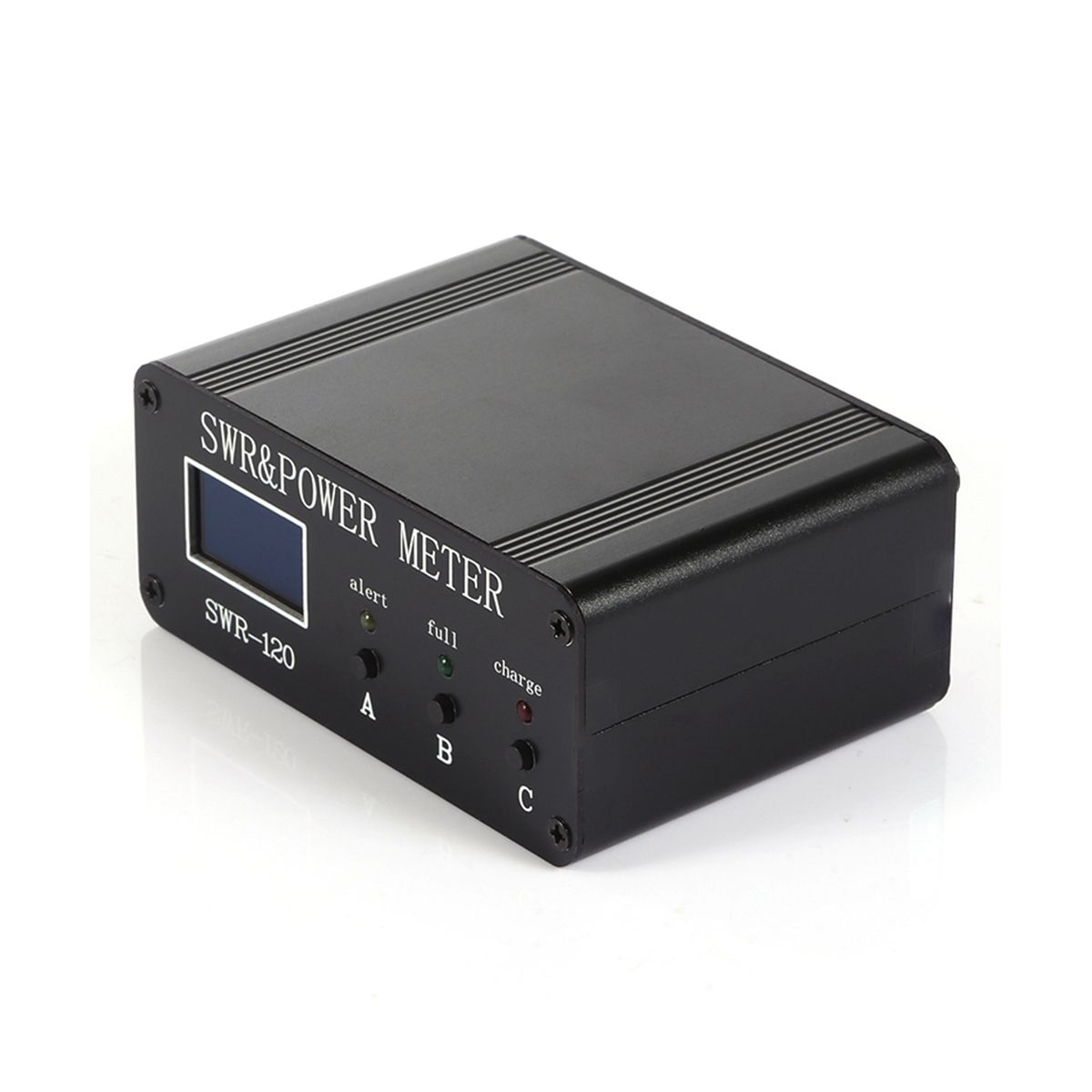

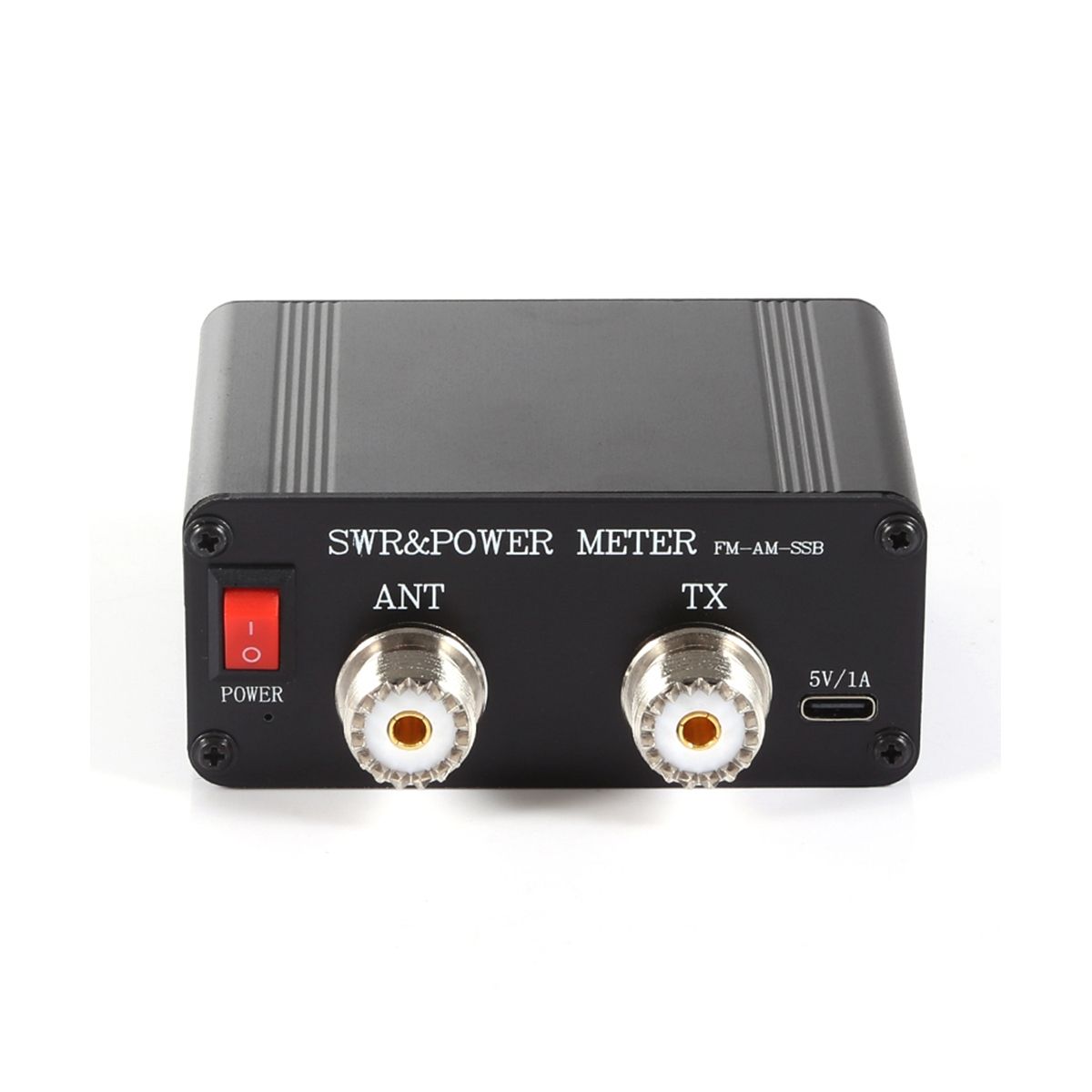

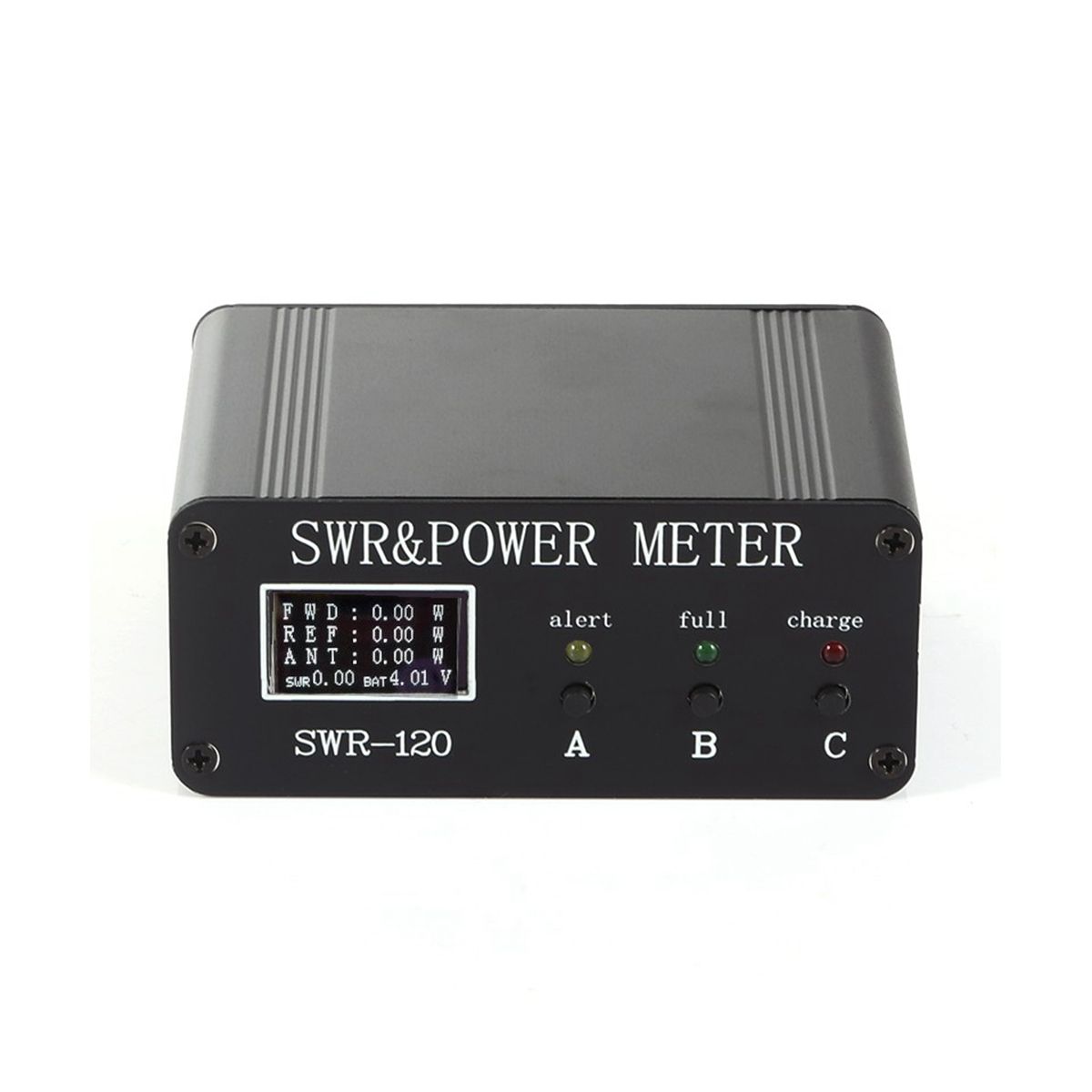

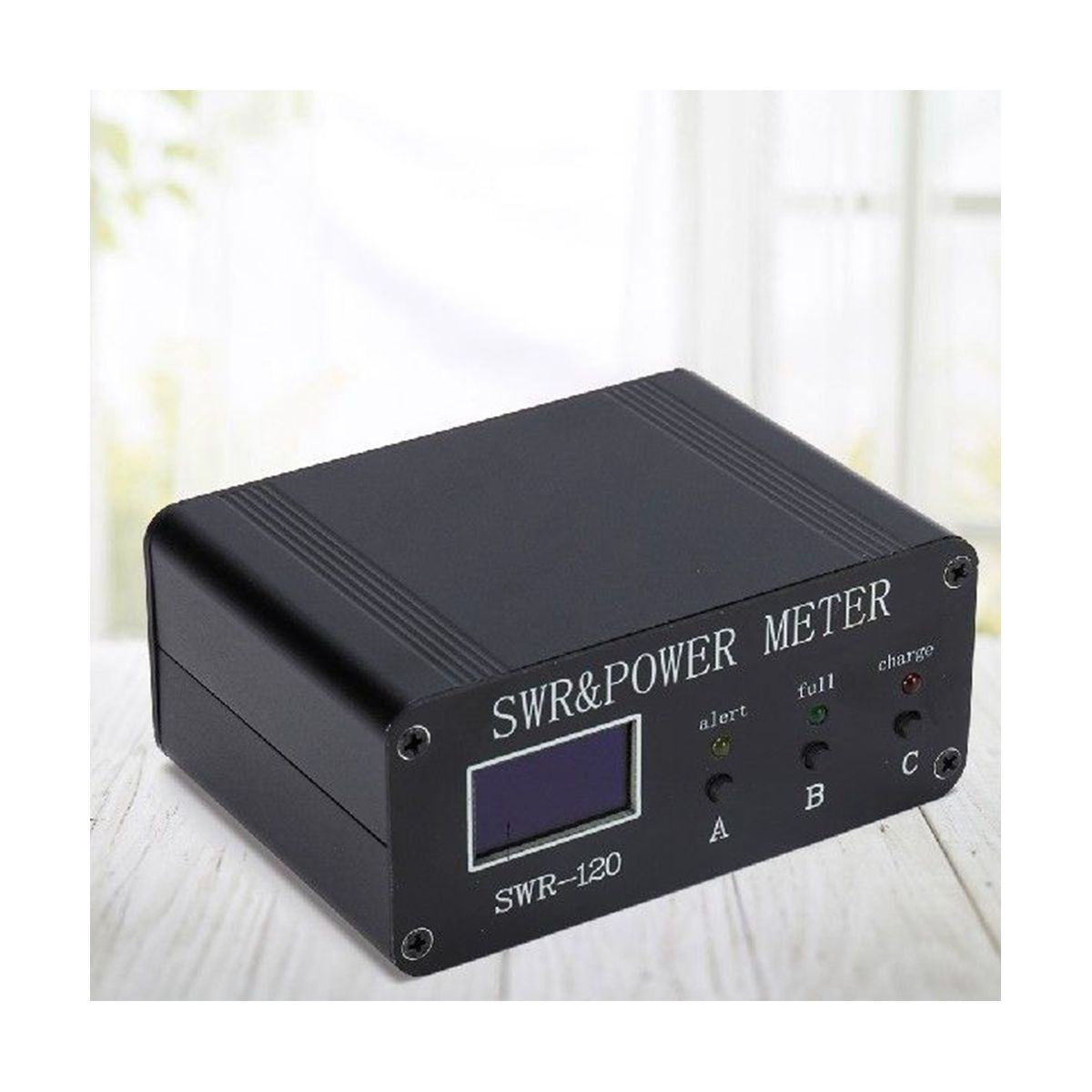

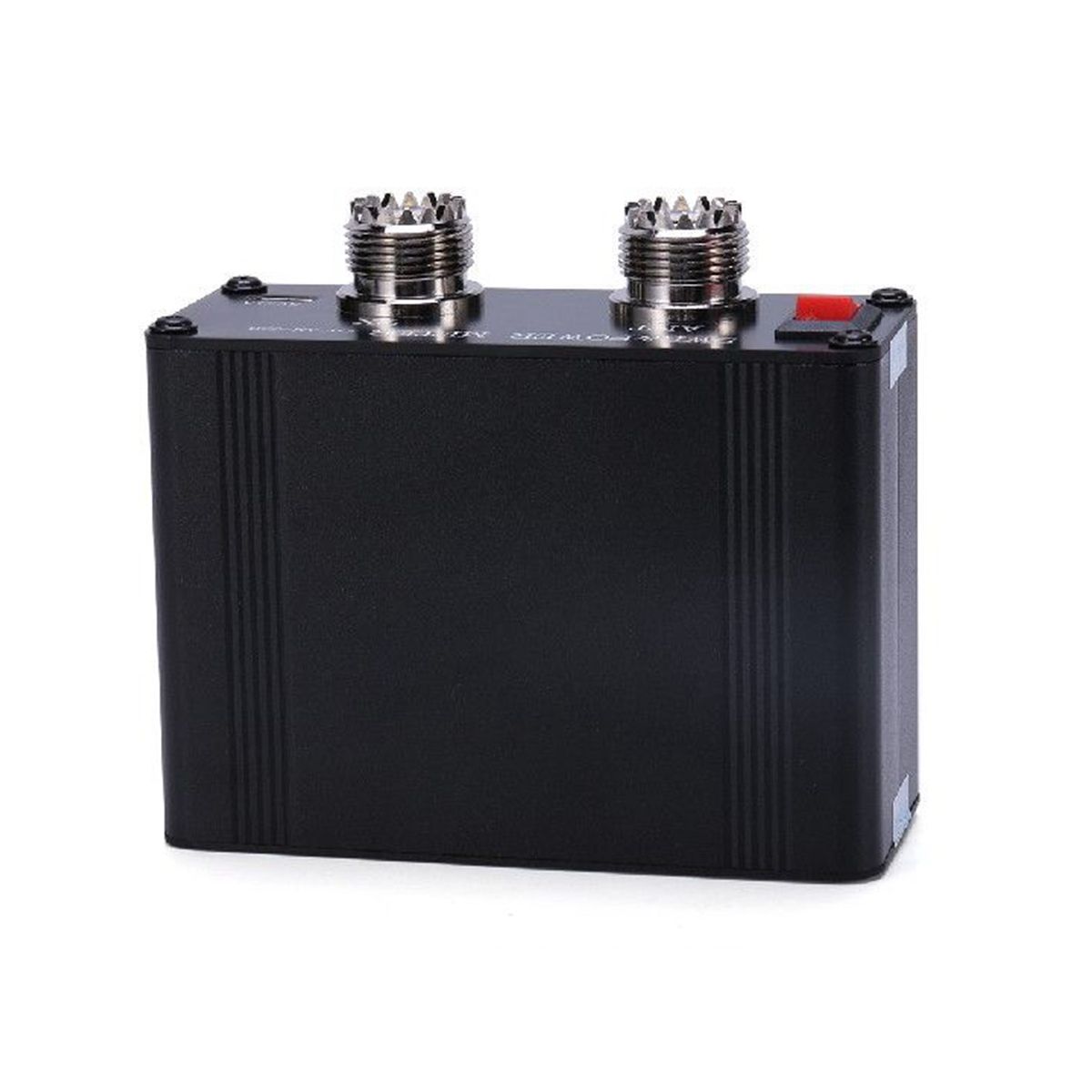

Standing Wave Meter |
Production Country |
China |
Size (L x W x H cm) |
10x7x4 |
Weight (kg) |
0.205 |
Color |
multicolor |
Charging shows red light full green light and working yellow light
When the standing wave is 25 the buzzer prompts intermittently
If the standing wave is 30 the buzzer will prompt continuously
Battery undervoltage buzzer continuous prompt
The version information is displayed after power on and the power standing wave measurement interface and battery power are displayed after 3 seconds English interface
Frequency range 18mhz-50mhz
Measurement range 05w-120w up to 210W long-time FM am CW mode is recommended to be less than 120W SSB mode is optional
Measurement accuracy less than - 5%
Standing wave range 10-9999
Access interface sl16 block m
Charging interface type-C
Aluminum alloy shell size 63mm x 88mm x 38mm excluding protruding parts
Battery capacity 1000mah
Insertion loss less than 01dB
Colourblack
Materialaluminum alloy
Package Contents
1 x Standing Wave Meter
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Standing Wave Meter
