Model |
Scientific instrument |
Production Country |
China |
Size (L x W x H cm) |
13x8x6 |
Weight (kg) |
0.2215 |
Color |
multicolor |
2can measure 8 standdard wavelengths 850980130013101490 15501625 test range -70dBm~6dBm 10mw red
3Support lightingSupport automatic shutdownSupport backlight Support wavelenghth memory functionSupport calibration

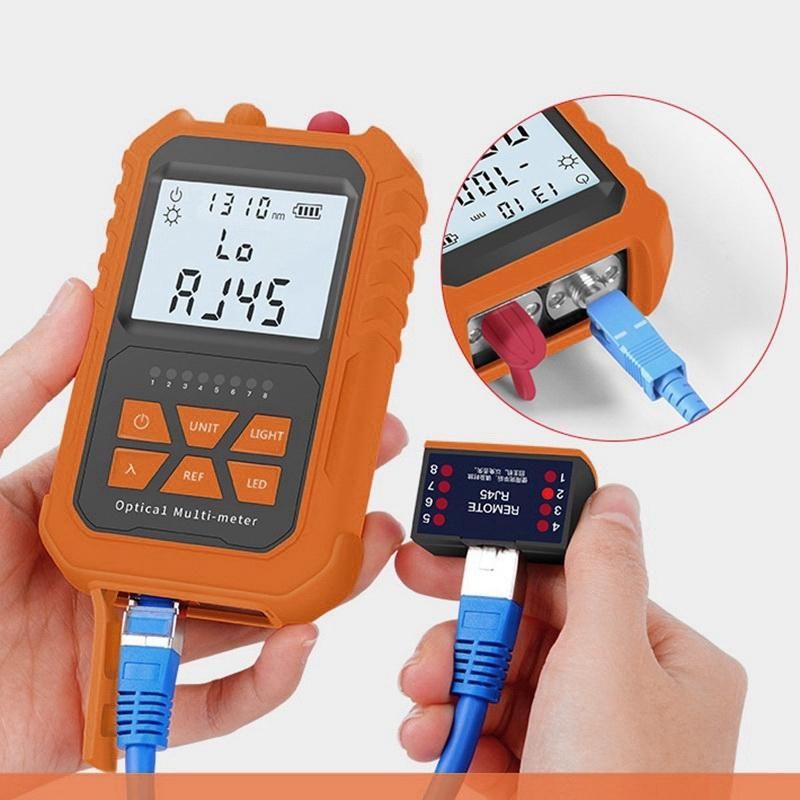

4Support ST 25mm universal interfaceSupport RJ45 testingSupport simultaneous disply of linear mW and non-linear dBm

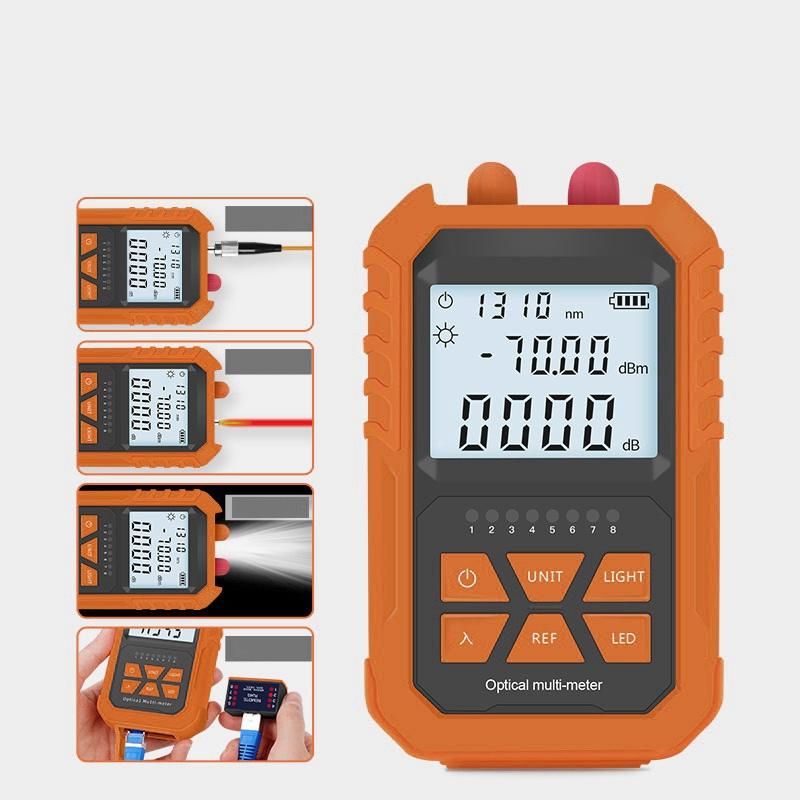

5The light power meter & VFL Test precision fine workmanship easy to carrycompletely rep the optical power meter and red pen 2 products
Specifications
Material plastic
Size 118 x 65cm
Color Yellow
Calibration Wavelength 800~1700nm

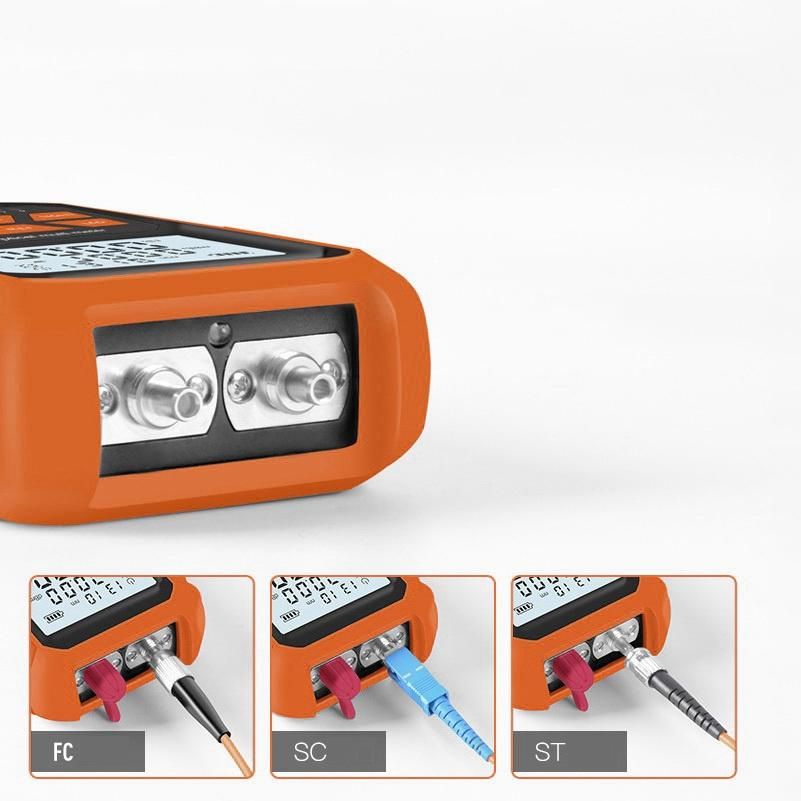

Optical Connector ST universal interface
Detector Type InGaAs
Measurement Range -70 ~ 3dBm
Accuracy ±02dB
Standard wavelength 850 980 1300 1310 1490 1550 1625nm
Display resolution mW 01% dBm 001dBm
VFL 1mW 650nm
Working temperature -10~60
Storage temperature -25~70
Auto off time 10Min
Red light power 5mW
Power 2 x 7 Batterywithout battery
Battery continuous operating time 48h
Package Contents
1 x Fiber Optical Power Meter
1 x Rope
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Fiber Optical Power Meter
1 x Rope
