Buy 24Inch TFT Touch Screen Standing Wave Meter 04MHz-60MHz

24Inch TFT Touch Screen Standing Wave Meter 04MHz-60MHz 01MW-1KW Instantaneous Power SWR PWR Short Wave Power Meter

₦ 378,626.22 ₦ 398,553.92 -5%

0 No Reviews

Product SKU: RENG392419

Brand: 915 Generation

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Standing Wave Meter
Production Country	China
Size (L x W x H cm)	18x15x8
Weight (kg)	0.5
Color	multicolor

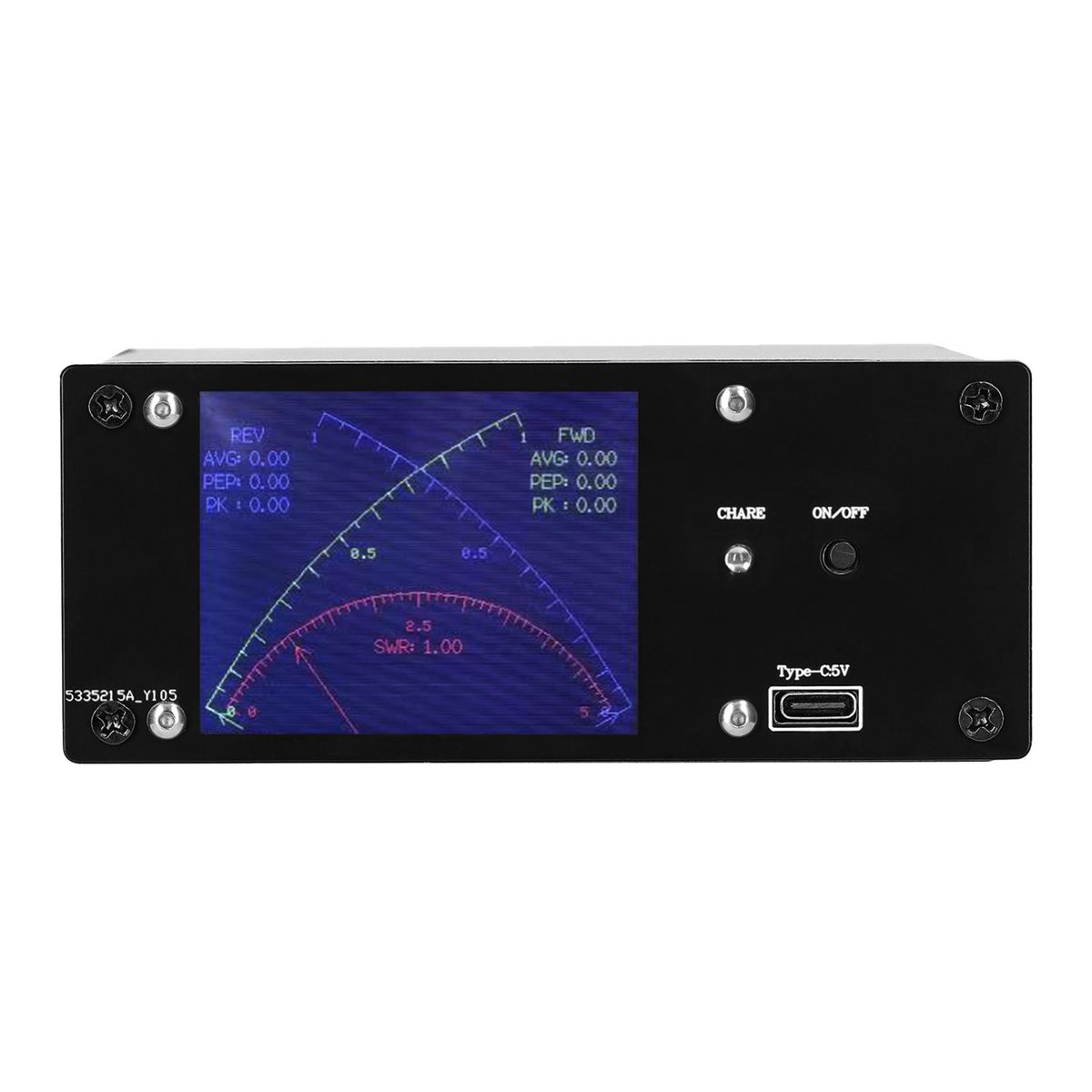

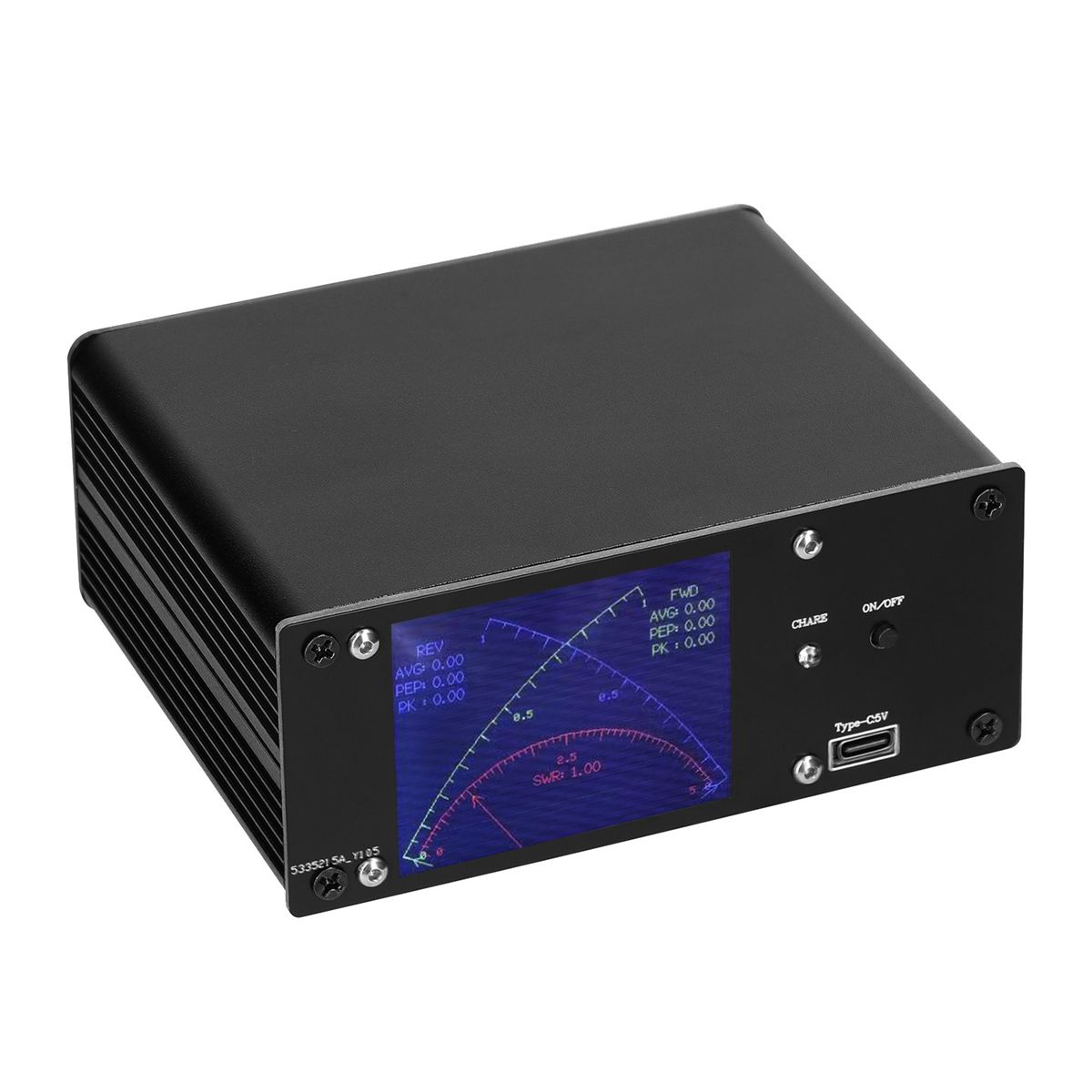

The standing wavemeter adopts aluminum alloy housing with high hardness high conductivity wear resistance and nice durability 24 inch TFT display full touchscreen plus on starts easy to use It can measure instantaneous power average power peakpower with power measuring ranges from 1mW to 1kW 04 MHz to 60 MHz 630m to 6m band frequency ranges support type-C charging and also can use it to connect to computers to uograde software online
Features The standing wavemeter adopts aluminum alloy housing with high hardness high conductivity wear resistance and nice durability 24 inch TFT display full touchscreen plus on starts easy to use

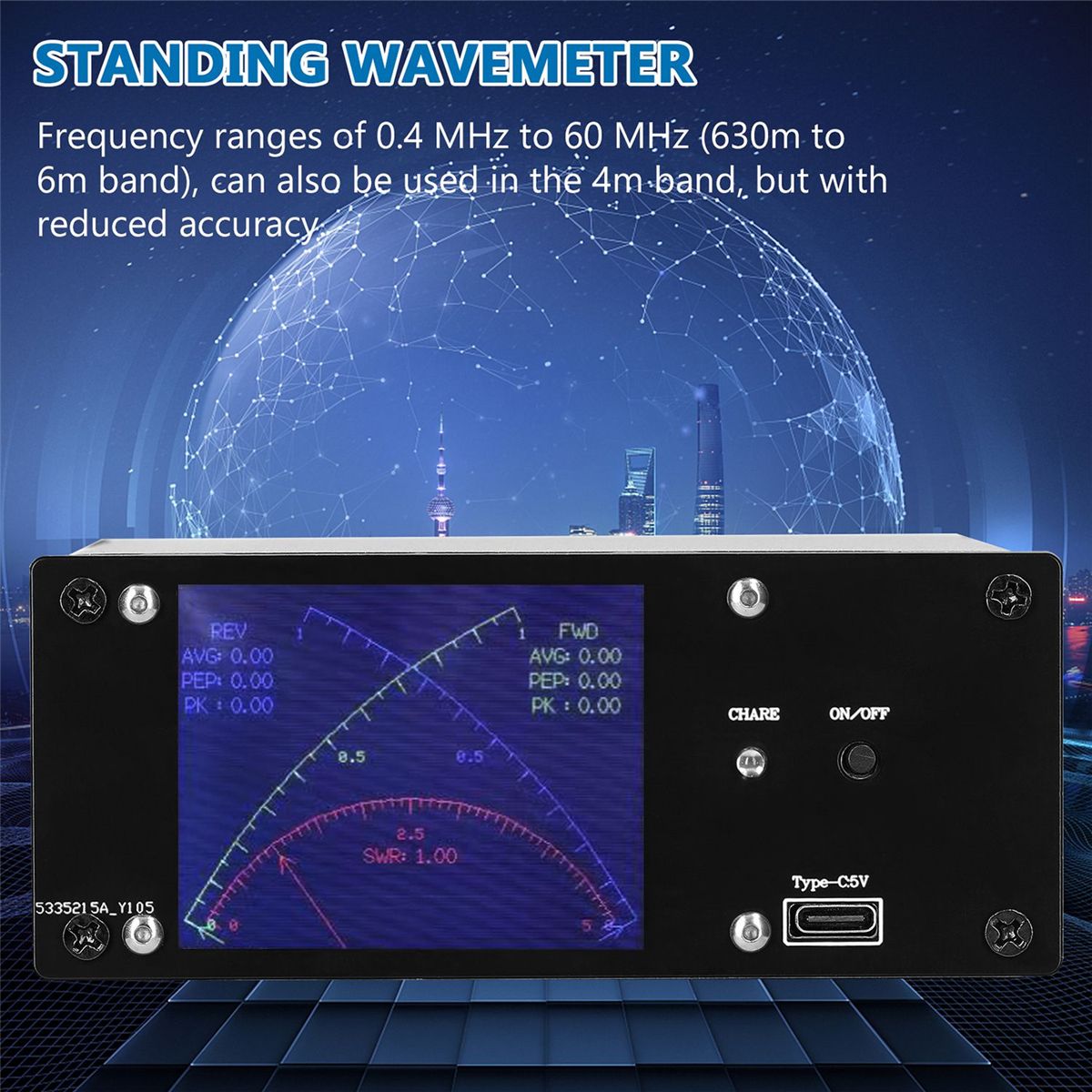

It can measure instantaneous power average power peakpower with power measuring ranges from 1mW to 1kW Frequency ranges of 04 MHz to 60 MHz 630m to 6m band can also be used in the 4m band but with reduced accuracy
It is small and portable built-in 37V 1000mAH rechargeable polymer battery supports USB Type-C charging

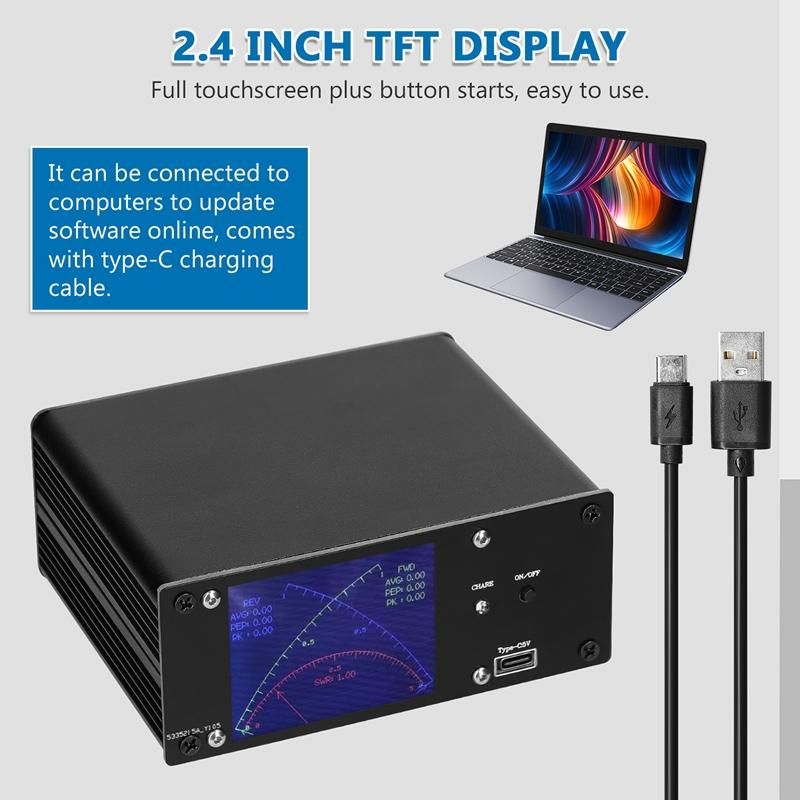

It can be connected to computers to update software online comes with type-C charging cable The accuracy meets amateur needs high standing waves with SWR exceeding self-alarm function

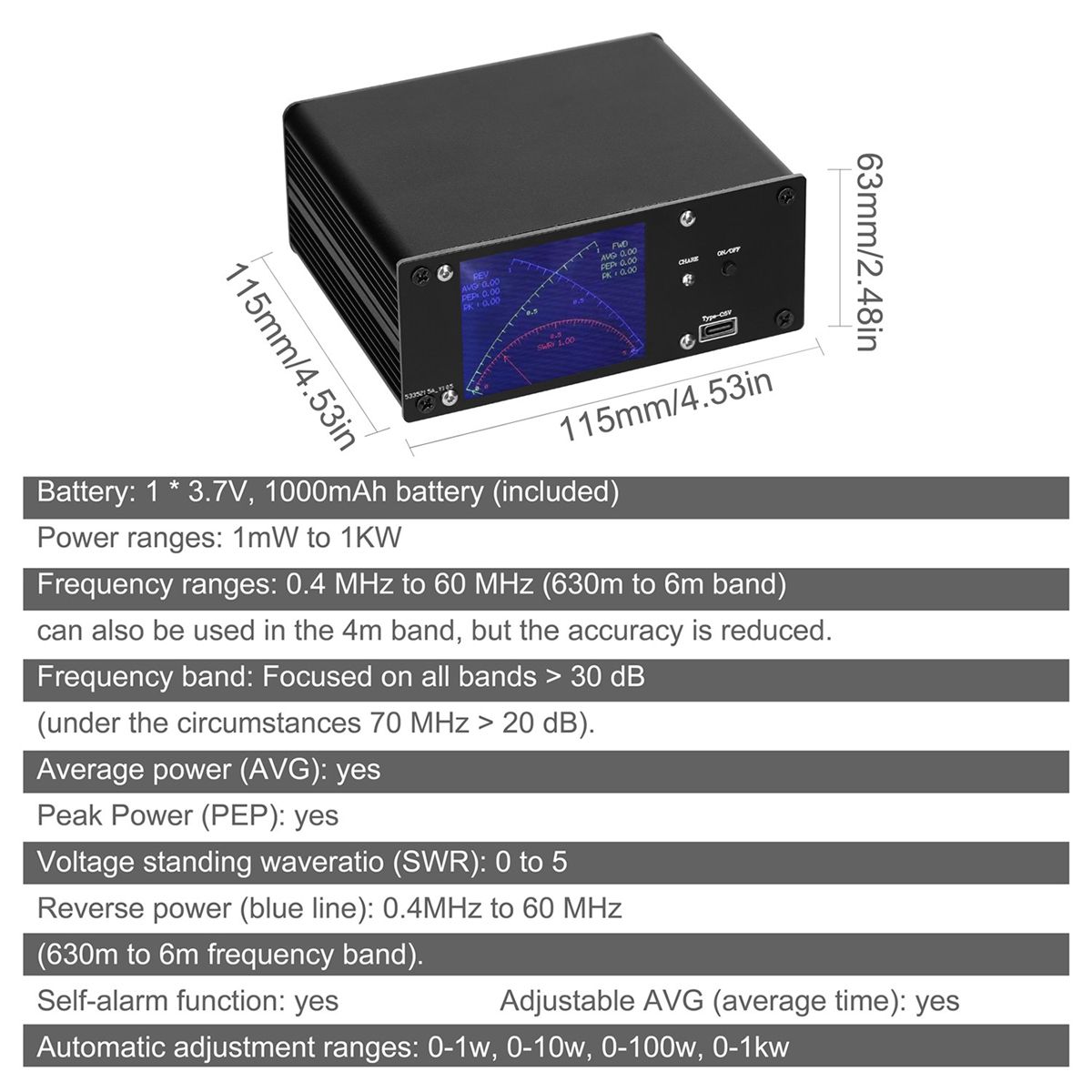

Specifications
Name Standing Wavemeter
Battery 1 x 37V 1000mAh battery included
Power ranges 1mW to 1KW
Frequency ranges 04 MHz to 60 MHz 630m to 6m band can also be used in the 4m band but the accuracy is reduced
Frequency band Focused on all bands Greater than 30 dB under the circumstances 70 MHz Greater than 20 dB
Average power AVG yes
PeakPower PEP yes
Voltage standing waveratio SWR 0 to 5
Reverse power blue line 04MHz to 60 MHz 630m to 6m frequency band
Self-alarm function yes
Adjustable AVG average time yes
Automatic adjustment ranges 0-1w 0-10w 0-100w 0-1kw
Item size 115 x 115 x 50mm 453 x 453 x 197in
Color Black
Material plastic

Package Contents
1 x Short Wave Power Meter
1 x USB Cable

Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x Short Wave Power Meter
1 x USB Cable
