Production Country |
China |
Size (L x W x H cm) |
195 * 130 * 40 |
Weight (kg) |
1.3 |

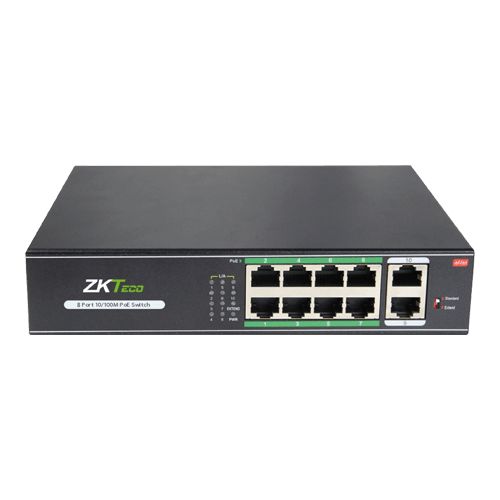

PE082-120-C• Commercial standard switch with 2 layers of network attributes • 250 meters of PoE transmission distance of power and data • Max. PoE power output 30W for each port • Conforms to IEEE 802.3i, IEEE 802.3u, and IEEE 802.3X • Conforms to IEEE 802.3af and IEEE 803.3at • MDI/MDIX self-adaptation • Lightning protection System Overview PE08-120 provides a simple network for IP cameras installation, which could run data and power transmission through CAT 5E / 6 cables at the same time. It also supports long transmission distances of 250 meters to save costs for projects to replace extenders, fibers, coaxial cables, etc.PARAMETER
- Model : PE08-120
- Ethernet Port: 8 PoE Ports (10 / 100 Mbps) 2 Uplink Ports (10 / 100 Mbps) All ports support MDI / MDIX self-adaptation
- POE Standard: IEEE 802.3af, IEEE802.3at
- PoE Consumption: Max 30W per Port, total PoE budget 120W
- Network Protocol: IEEE 802.3i 10BASET,IEEE 802.3u 100BASETX ,IEEE 802.3x Flow Control
- Switching Bandwidth: 2Gbps
- Packet Forwarding Rate: 1.488Mpps
- Buffer Memory: 768KB
- Mac Table Size : 2KB
- MTBF : 100,000 hours
- Power Input: AC220V, 50 / 60Hz
- Lightning Protection: 2KV
- Dimensions (L*W*H): 195 * 130 * 40mm
- Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Working Humidity :10% ~ 90%, non-condensing
- Net Weight: 1.3kg
Key Features
Commercial standard switch with 2 layers of network attribute
250 meters of PoE transmission distance of power and data
Max. PoE power output 30W for each port
It also supports long transmission distance of 250 meters to save cost for projects to replace extenders, fibers, coaxial cables, etc
MDI/MDIX self-adaptation.
