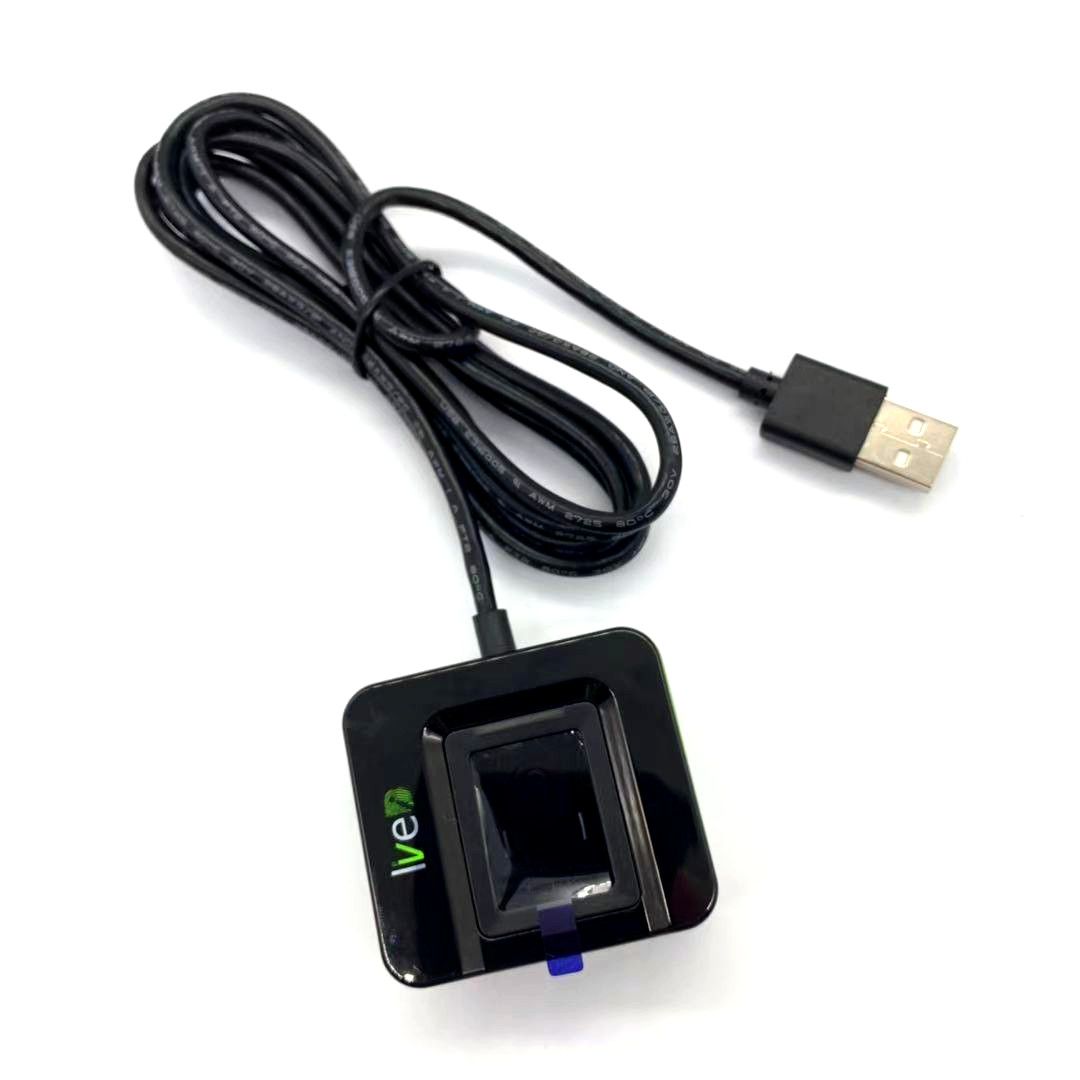

SLK20R is a leading fingerprint scanner designed by USA laboratory which adopts the advanced optical design. It has a superior
ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most
comfortable and affordable desktop enrollment and identification device.
Features:• Stable operation under strong light
• Support live fingerprinter detection function
• Large fingerprint capture area and high image performance
• Quick recognition of dry, wet and rough fingers
• High Speed USB 2.0
• Low Power Idle Mode
• Available SDK for development
Specifications:
Model Name:Live 2OR
Material:Optical
CPU :280MHz DSP
Flash:32 MB
SoC:RTOS[image out only]
Image Quality:2 million pixels CMOS
Encrypted Fingerprint Data:YES
Sunlight Operation:Yes, Dark field and Automatic Gain/ Exposure
Water Splash:YES
Dry, Wet, or Rough Fingerprints:Work well
Power Consumption:5V:200mA Scanning;5V:60mA idle (waiting for finger)
Live Fingerprint Detection:YES
LED:White
Product Certifications:FCC, CE, RoHS, PIV
Power Voltage:5V (USB)
Power Current:200mA
Communication:USB 2.0/USB1.1
Interface Socket:USB Type A
lmage Resolution:500~1000 dpi
Effective Collecting Area:15.24 * 20.32 mm (FAP20)
Collecting Area:16.5 * 23 mm
lmage Size:300 * 400 pixel (FAP20 )
Dimension:49 * 44 * 20.1mm (L*W*H)
lmage Format: RAW, BMP, JPG
Template:ZKFinger V10.0; ISO19794-2 ; ANSI-378
Template Size:1- 4KB (ZKFingerV10.0);1568 B (ISO 19794-2)
Gray Leve:256
Key Features
Stable operation under strong light
Support live fingerprinter detection function
Large fingerprint capture area and high image performance
Quick recognition of dry, wet and rough fingers
High Speed USB 2.0
Low Power Idle Mode
Available SDK for development
