Model |
Biometric Device |
Production Country |
Taiwan |
Size (L x W x H cm) |
98.9*61.5*35.7mm |
Weight (kg) |
0.2 |
Color |
sliver and black |

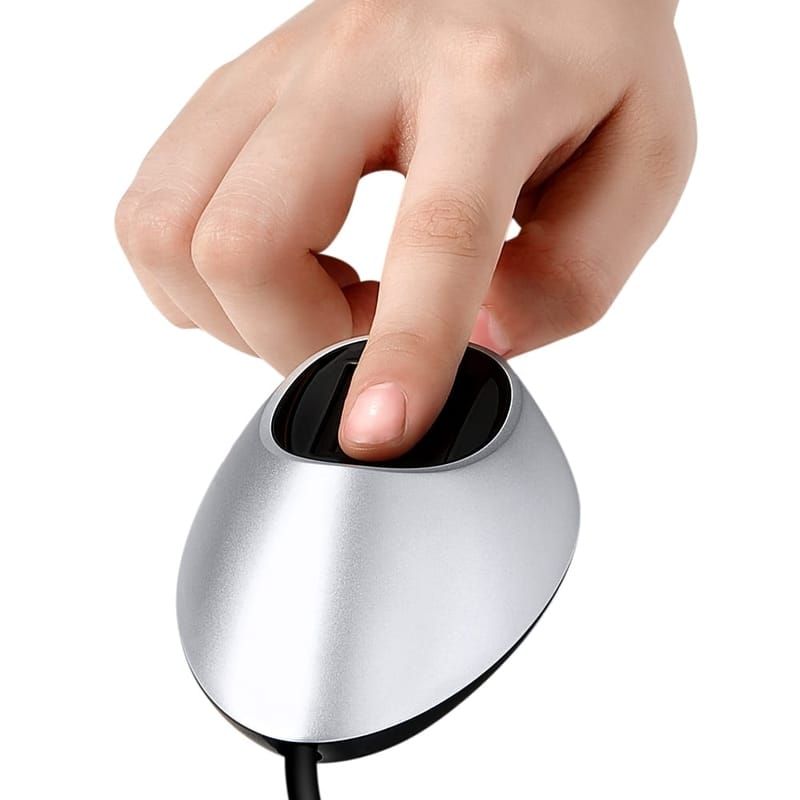

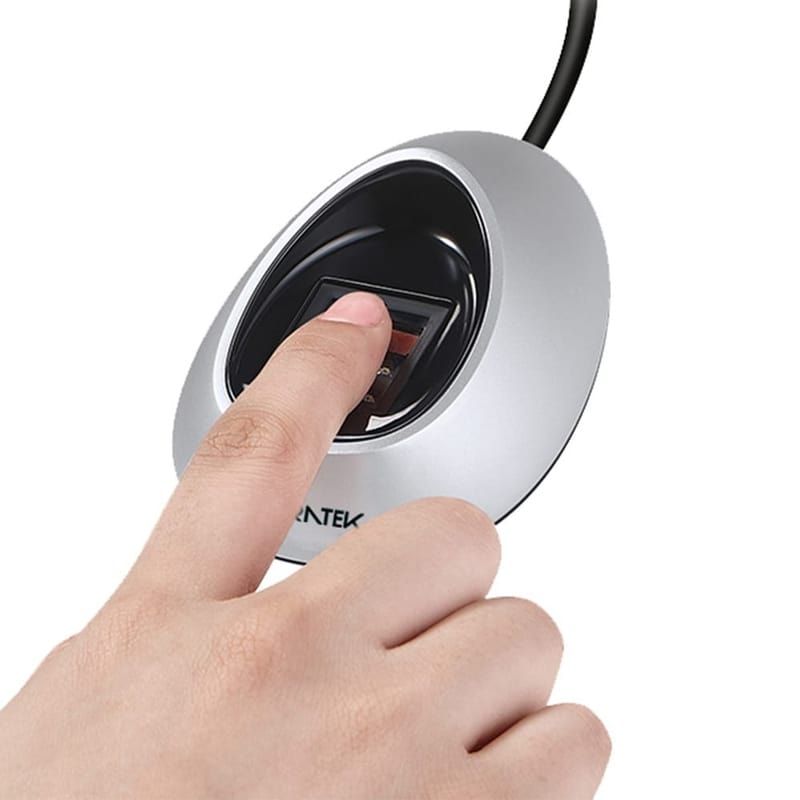

Aratek A600 fingerprint scanner is equipped with a FBI PIV, FAP 20 and STQC UIDAI certified optical sensor that guarantee the highest image quality, usability and interoperability. The A600 scanner supports WSQ image format and is fully compliant with ISO 19794-2 and ANSI 378 standards. Its Live Finger Detection (LFD) and AES-256 Encryption features also allow accurate and secure fingerprint recognition, making it ideal for a wide number of applications such as finance, law enforcement, jeevan pramaan, and Aadhaar Enabled Payment System, etc.
PARAMETER- Dimension 98.9*61.5*35.7mm (L*W*H)
- Platen Size 16.0*21.0 mm
- Sensing Area 15.24*20.32 mm
- Fingerprint Image Size 300*400 pixels
- Image Resolution 500 dpi
- Gray level 256 level
- Performance Parameter
- Capture Mode Optical Touch
- Fingerprint Image Distortion ≤1%
- Communication Interface USB 1.1 / 2.0
- Communication Mode
- Work Voltage 5.0 V
- Work Current ≤200 mA
- Temperature 0℃~55℃
- Humidity 10~93%R.H
- ESD Contact: ±8KV,
- FBI Certified: PIV Specification, Mobile ID FAP
- STQC Certified: UIDAI Level-0 certification
- Live Finger Detection (LFD) AES-256 Encryption
- Correction and Authentication Support auto correction and 360 degree rotation authentication
- Cloud Platform Seamlessly join in Aratek TrustLinkTM biometrics authentication platform
- Different OS Support Windows2000, XP, Vista, Windows 7 / 8 / 10, Android and other embedded systems
- Comprehensive SDK Comprehensive software development kit is available for development and integration
- High Image Quality Optical fingerprint technology with superior image quality
- FBI Certified PIV Specification, Mobile ID FAP 20
- STQC Certified (Non-encrypted version) UIDAI Level-0 certification
- International Standard ISO19794-2, ISO19794-4, ANSI 378, ANSI 381 and WSQ supported
Key Features
Outstanding performance even with difficult fingerprints
Easy integration with any authentication systems
Rugged design for heavy-use
The A600 scanner supports WSQ image format and is fully compliant with ISO 19794-2 and ANSI 378 standards
