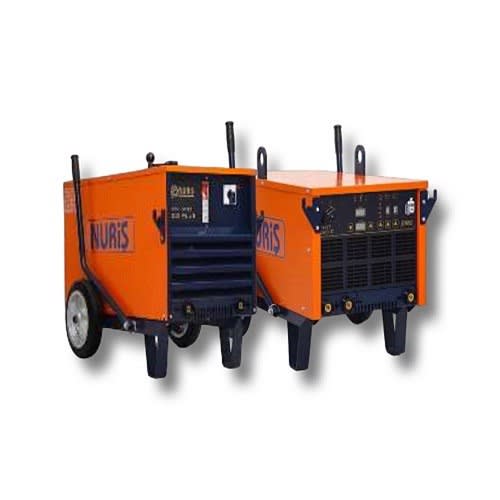

THE UNRIVALED RV SERIES, BEST IN ARC WELDING RECTIFIER CLASS, OFFERS UNINTERRUPTED HIGH MOBILITY IN THE HEAVY IRON AND STEEL INDUSTRY, SHIP INDUSTRY AND SHIPYARDS, PIPELINES AND ALL KINDS OF CONSTRUCTION SITE ENVIRONMENTS. EASE OF MOBILITY THANKS TO ITS FOLDABLE ARMS AND TAKES UP LITTLE SPACE.
DESIGNED ESPECIALLY FOR HEAVY WORKING CONDITIONS
CURRENT GAUGE AND CURRENT ADJUSTMENT LEVER
EXCELS IN WORKING WITH MULTIPLE GROUPS AND GENERATORS SPECIFIC TO SHIPYARDS
VOLTAGE FLUCTUATIONS TOLERANCE UP TO 10%
EXCELLENT WELDING CHARACTERISTICS FOR RUTILE, BASIC, CELLULOSIC AND ALUMINUM ELECTRODES
UNINTERRUPTED OPERATION IN LONG WELDING CABLES
EASE OF MOVEMENT IN DIFFICULT FIELD CONDITIONS THANKS TO ITS ROBUST MECHANICAL STRUCTURE
CURRENT CAN BE ADJUSTED WITH A MECHANICAL ARM AND CURRENT CAN BE MONITORED WITH MECHANICAL SCALES.
THE COOLING FAN PROTECTS AGAINST OVERHEATING.

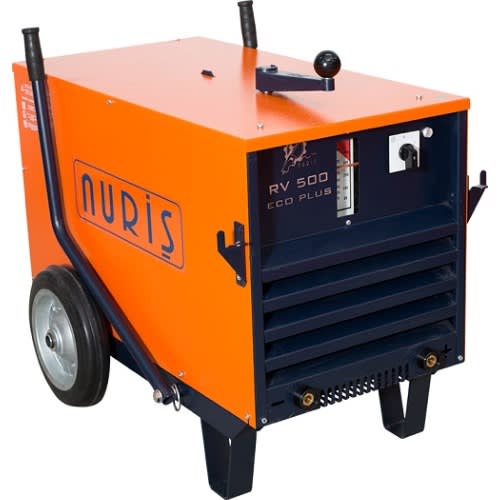

PARAMETER UNIT RV500
System Voltage V AC 380 V, 3 Phases, 50/60 Hz
Input Power KVA 34
Input Current A 52
Current Adjustment Range A 25-500
Open Circuit Voltage V 75
Operating Regimes (40 °C) % 20 500 A
Operating Regimes (40 °C) % 35 450 A
Operating Regimes (40 °C) % 60 350 A
Protection Class IP23S
Type Of Current A DC
Current Setting A Manuel
Welding Wire Diameter mm 2,5-3,25-4,00-5,00
Machines Dimensions mm W: 616 x H:895 x D:760
Weight kg Eco Plus: 187
Weight kg Clasic : 199
PARAMETER UNIT RV500
Welding Cable And Electrode Holder m 3
Welding Cable With Electrode Holder m 2
