IDEAL FOR IRON JOINERS, MAINTENANCE SHOPS, PLUMBERS, INSTALLERS AND OUTDOOR WELDERS.
FEATURES
- IDEAL FOR WELDING CARBON AND LOW ALLOY STEELS, EVEN STAINLESS STEELS.
- IT IS SUITABLE FOR WORKING IN THE FIELD OR WORKSHOP ENVIRONMENT, PROVIDING MAXIMUM FLEXIBILITY.
- IT WEIGHS ONLY 6.7 KG.
- THERMOSTATIC OVERLOAD PROTECTION AND INDICATOR LIGHT.
- EASY TO USE AND USER FRIENDLY CONTROL PANEL.
- RECESSED CONTROLS AND CONNECTIONS DESIGNED TO HELP PROTECT CONTROLS FROM DAMAGE.
- TWO QUARTER TURN (POSITIVE AND NEGATIVE) OUTPUT TERMINALS FOR EASY WIRING.
- IP21S PROTECTION CLASS.
MACHINE INPUTS AND OUTPUTS
| PHASE 1: INPUT VOLTAGE #1 (VOLTAGE/PHASE/FREQUENCY) |
220/1/50/60 |
| PHASE 1: RATED OUTPUT #1A (CURRENT/VOLTAGE/DUTY CYCLE) |
180A/27.2V/17% |
| PHASE 1: RATED OUTPUT #1B (CURRENT/VOLTAGE/DUTY CYCLE) |
100A/24V/60% |
| PHASE 1: RATED OUTPUT #1C (CURRENT/VOLTAGE/DUTY CYCLE) |
80A/23.2V/100% |
| PHASE 1: INPUT CURRENT (CURRENT) AT MAX RATED OUTPUT #1 |
38.5 |

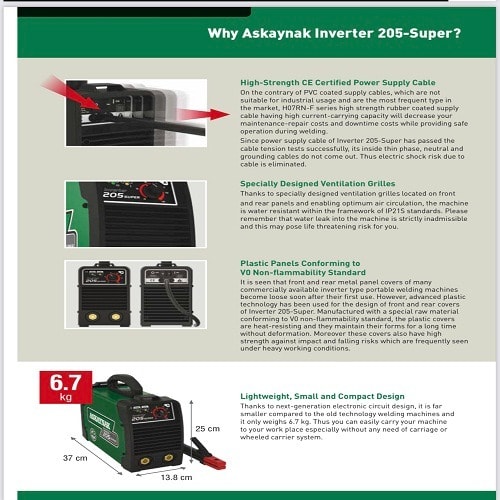

PRODUCT WEIGHTS AND DIMENSIONS
| ITEM HEIGHT (INCHES) |
9.84 |
| PRODUCT HEIGHT (MM) |
250 |
| ITEM WIDTH (INCH) |
5.31 |
| PRODUCT WIDTH (MM) |
135 |
| ITEM LENGTH (INCH) |
14.57 |
| PRODUCT LENGTH (MM) |
370 |
| ITEM WEIGHT (LBS) |
14.77 |
| PRODUCT WEIGHT (KG) |
6.7 |
MACHINES
| NUMBER OF OPERATORS PER MACHINE |
ONE |
| MACHINE COMMUNICATION TECHNOLOGY |
ANALOGUE |
KEY FEATURES
| INPUT VOLTAGE |
220V |
| INPUT CURRENT |
38.5 A (17%) |
| INPUT FREQUENCY |
50/60HZ |
| INPUT POWER |
6.0 KW (15%) |
| INPUT PHASE |
ONE |
| OUTPUT RANGE |
35 - 180 A |
