since inverter 155-super does not emit noise, it does not pollute the network and does not electromagnetically damage other machines and measuring devices in the same environment.
features

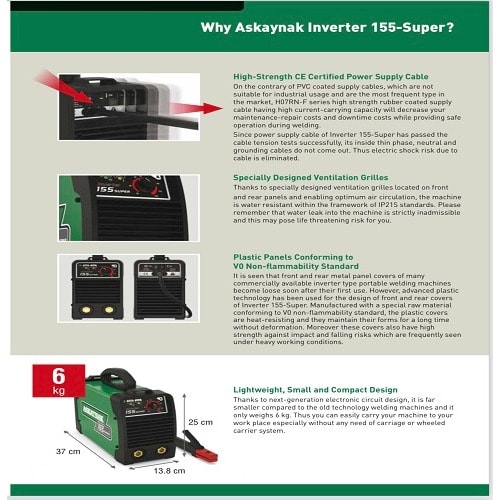

long-lasting and high-strength 16x25 mm ce certified welding sockets are used in askaynak inverter 155-super.
you will have all the advantages and assurances offered by the ce certificate and the regulations regarding lvd and emc specified in en 60974-1 and en 60974-10 standards.
the metal body of the inverter 155-super portable welding machine is painted with the oven drying technique preferred in the automotive industry.
in case of sudden current spikes due to overloads in the network, the protection unit is automatically activated and the thermal warning lamp lights up and informs the operator.
inverter 155-super has high dielectric and insulation resistance. in particular, the safety capacitors in the grounding circuits provide extra security and protect the operator from electric shocks.
since the inverter 155-super power supply cable has passed the cable tension tests successfully, the thin phase, neutral and grounding cables are not broken or faulty.
the machine is waterproof within the framework of ip21s standards, thanks to the specially designed grilles on the front and rear panels that provide ideal air circulation.
ip21s protection class.
machine inputs and outputs
phase 1: input voltage #1 (voltage/phase/frequency) 220/1/50/60
phase 1: rated output #1a (current/voltage/duty cycle) 140a/25.6v/15%
phase 1: rated output #1b (current/voltage/duty cycle) 90a/23.6v/60%
phase 1: rated output #1c (current/voltage/duty cycle) 70a/22.8v/100%
phase 1: input current (current) at max rated output #1 29
product weights and dimensions
item height (inches) 9.84
product height (mm) 250
item width (inch) 5.43
product width (mm) 138
item length (inch) 14.57
product length (mm) 370
item weight (lbs) 13.23
product weight (kg) 6
machines
machine processes stick electrode (smaw)
number of operators per machine one
machine communication technology analogue
key features
input voltage 220v
input current 29 a (15%)
input frequency 50/60hz
input power 4.5 kw (15%)
input phase one
output range 30 - 140 a
