"Description:
- Advanced maximum power point tracking (MPPT/PWM) technology, the efficiency is not less than 99.5%. High-quality components improve the system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.

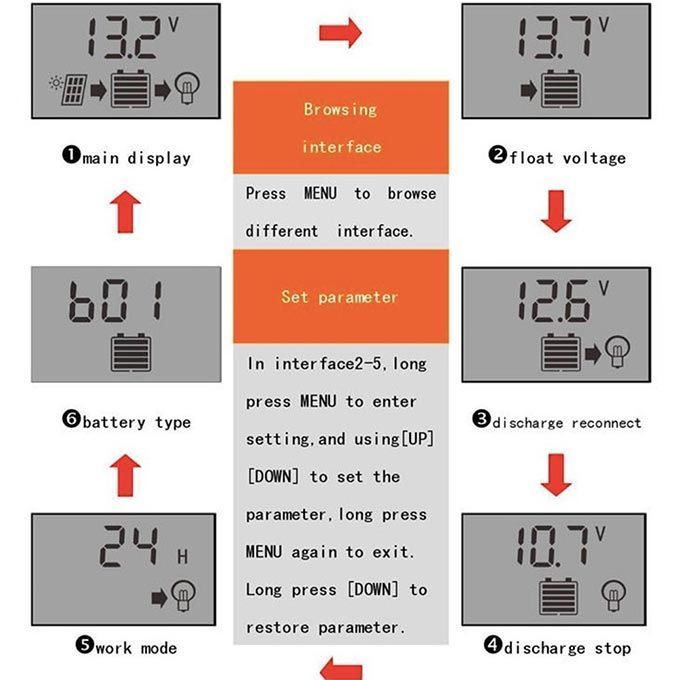

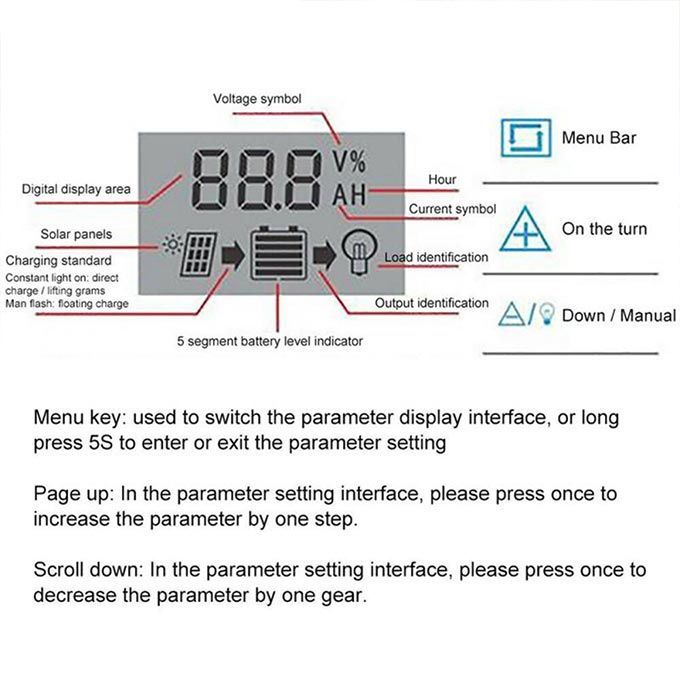

- Large screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions.
- Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.
- Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with self-recovery function, will not damage the controller.
- Real-time display of temperature, charging current and discharge current. Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.
PV system power Description:
10A/20A/30A / 40A / 50A/ 60A battery 12V photovoltaic system: power is respectively 100-1000W
10A/20A/30A / 40A / 50A/ 60A battery 24V photovoltaic system: power is respectively 200-2000W
a a a a a
Key Features

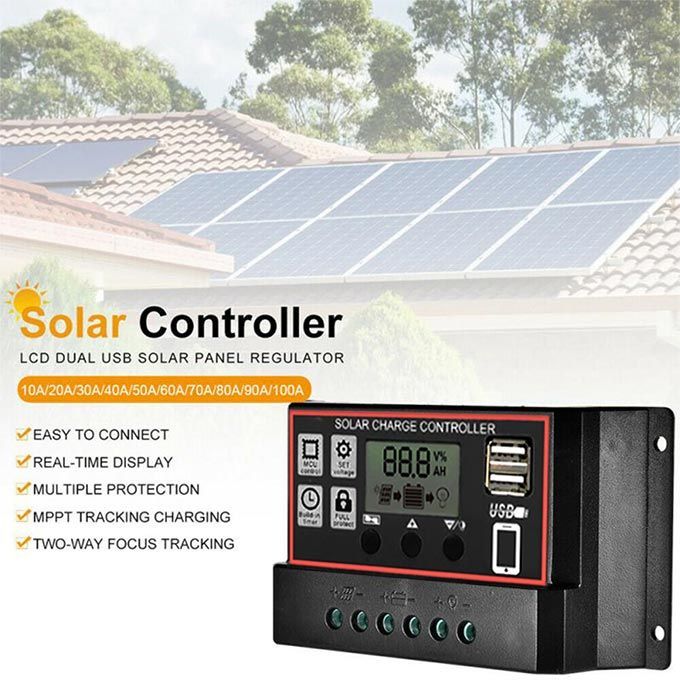

Name: LCD screen solar controller
Voltage: DC 12V / 24V
Display: LCD screen
Self-consumption: 《10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Working temperature: -35 ℃ -60 ℃
12V fits 18V solar panel, 24V fits 36V solar panel
12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1X Solar Panels Battery Charge Controller
1X User Manual"
