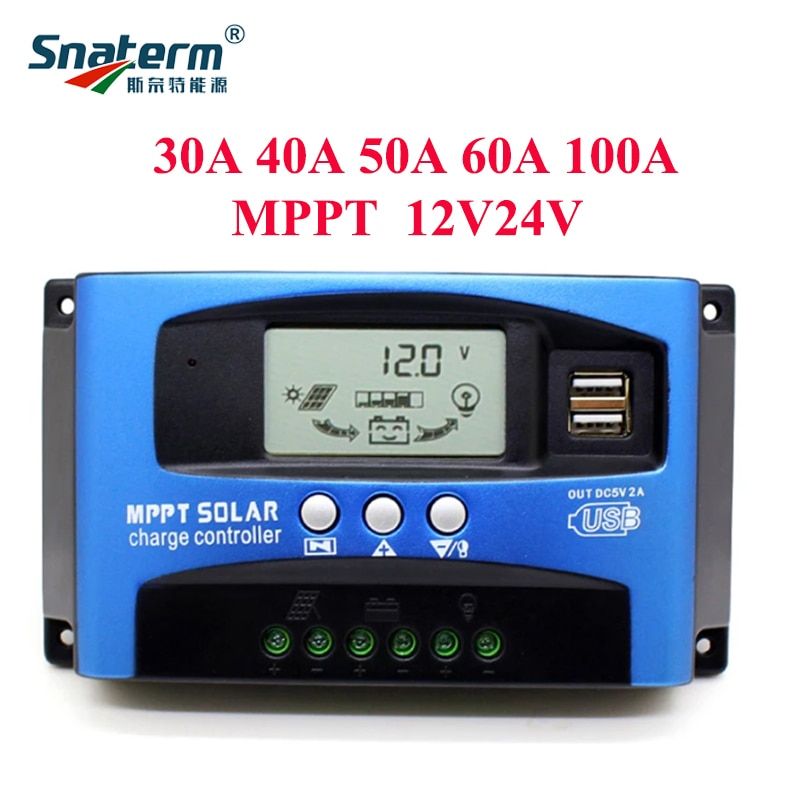

MPPT Solar Charge Controller PWM 100A 60A 50A 40A 30A Solar Power Regulator 12V 24V Auto Dual USB LCD Display Load Discharger
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Function:
1. Always keep the battery on fill voltage condition.2. Prevent the battery from over-charging.3. Prevent the battery from over-discharging.4. Prevent the battery from reverse charging to solar panels duringnights.5. Reverse Polarity Protection for Battery6. Reverse Polarity Protection for Solar Panels7. When the battery voltage is low, the controller willautomatically cut off the load from the system. If the voltage ofbattery is back to normal and the load will restart working.8. Thunder protection9. According to the battery voltage grade, the controller canautomatically set charge-off voltage, the load-off voltage, theload- restore voltage. (The parameter is default under 25℃condition, locked by the CPU procedure, cannot adjust.)10. The controller will automatically compensate the temperature ofthe charging voltage according to the changes of ambient temperature
Features:
1. Industrial-grade master , 16 AD sampling accuracy, temperature, charging current,discharge current accurate real-time display, power generation at a glance.2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detectionduring charging, bidirectional focusing tracking.3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide chargeand discharge adjustable, as long as you understand the characteristics of the battery set itscorresponding charging parameters, you can charge a battery. When the output is off, the timecan be adjusted, which is more convenient. (on the market, there is no point adjustment)4. Acomplete three-phase charge management, effectively protect the battery, the battery is moredurable.5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connectionprotection,when the fault is eliminated, the controller automatically recovers, does not damagethe device.6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.
Specifications:
1. Rated voltage: 12/24V2. Rated current: 30/40/50/60/100A3. Max. PV input power: 750W(12V) / 1200W(24V)4.System voltage: 12 / 24V adaptive5.Rated charging current: 30A - 40A - 50A- 60A - 100A6.Rated discharge current: 10A - 20A - 20A - 30A - 30A7.Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel8.Full Voltage Value : Lithium Battery (12.2V) - B02 Colloidal Battery (14.2V) - B03 Open Cell (14.6V)9.Floating Charge Voltage : 13.7 V ( Default, Adjustable )10.Discharge cut-off voltage::10.7 V ( default, adjustable )11.Discharge recovery voltage: 12.6 V ( default, adjustable )12.Standby current :10mA13.USB Output : 5V / 2A MAX14.Operating temperature:- 35 - 60
Package Includes：
1 x Solar Panels Battery Charge Controller1 x User Manual(English)

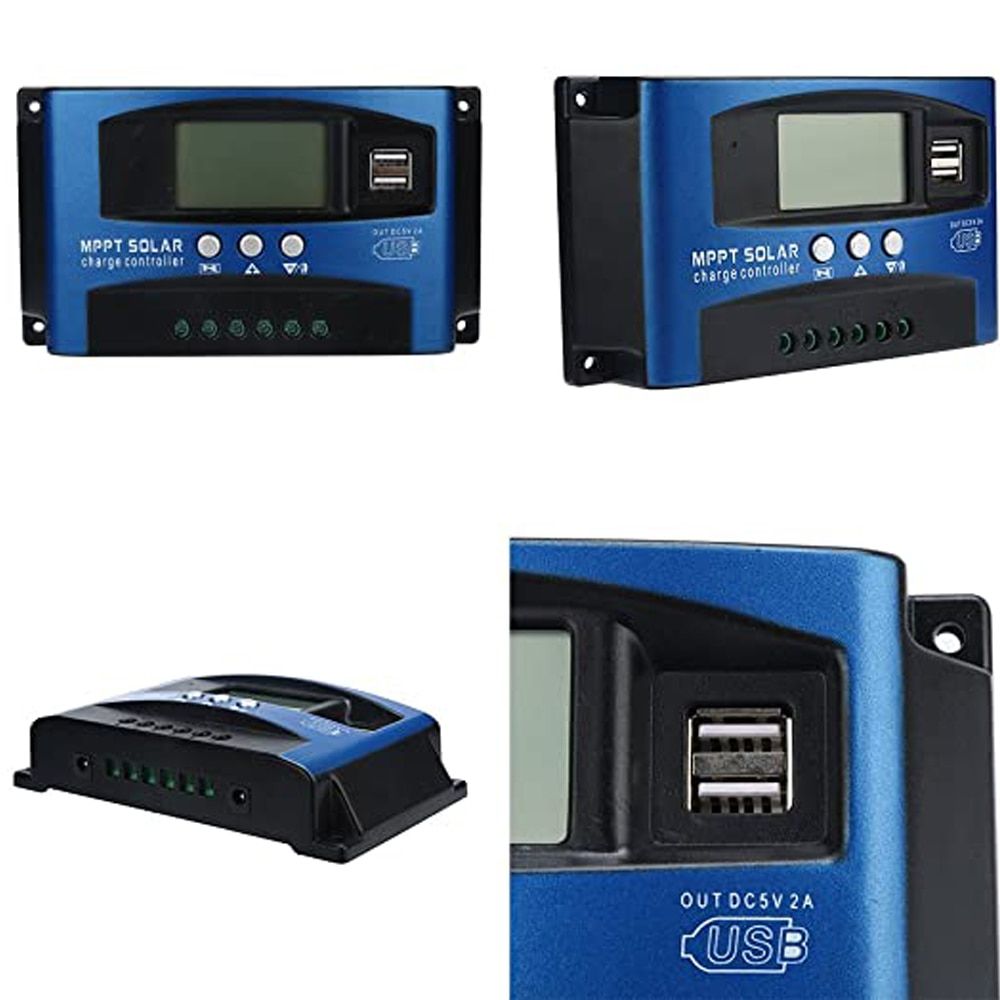

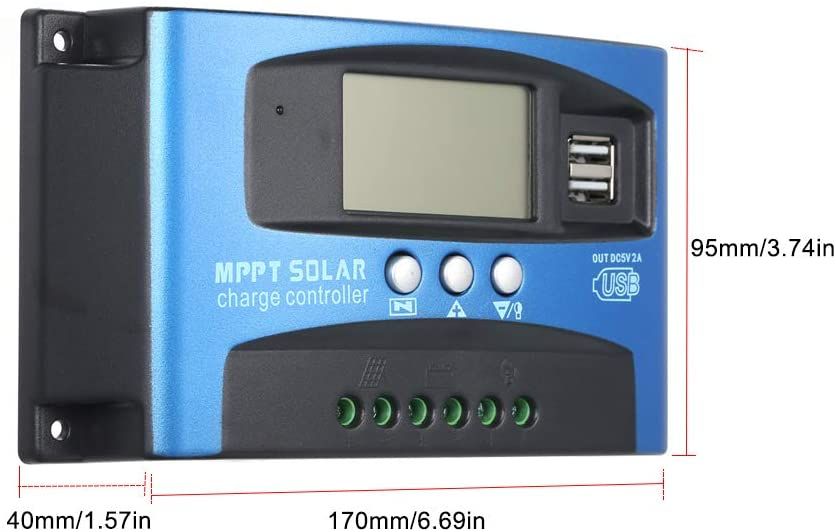

Photo:
About shippingShipping and Packaging All itwill be double checked and well packed before sending.Itwill be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Brand Name:Snaterm
Certification:CE
Origin:CN(Origin)
Model Number:30A/40A/50A/60A/100A
Is Smart Device:Yes
is_customized:Yes
Application:Charger Controller
Application:Voltage Controller
Application:Lighting Controller
Application:Solar System Controller
Maximum Current:100A
Max PV input volt:50V
Rated Voltage:12V24V
MPPT efficiency:97.5%
Charing Model:MPPT+PWM
Max Power:780W (12V), 1500W (24V)
Application:Home Solar System
What's In the Box
1X MPPT 100A 60A 50A 40A 30A Solar Solar Controller Dual USB LCD Display 12V 24V Solar Cell Panel Charger Regulator with Load
