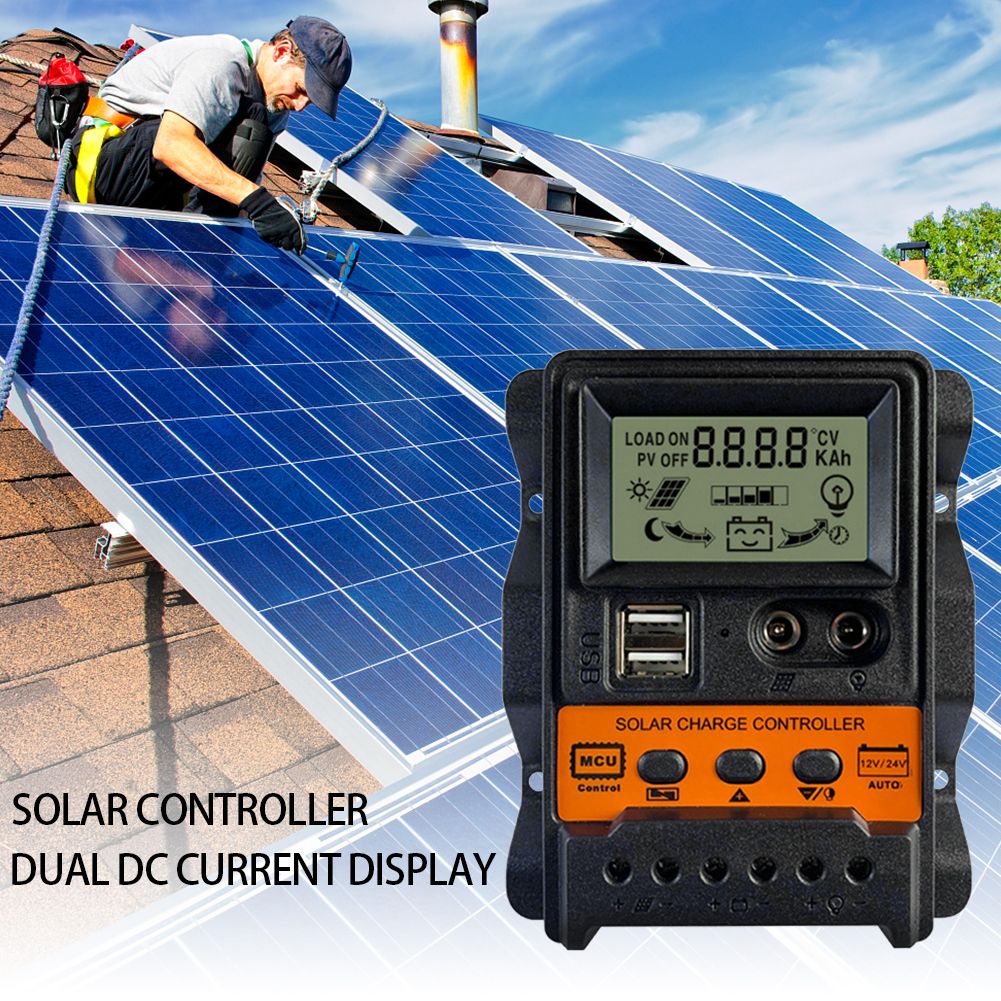

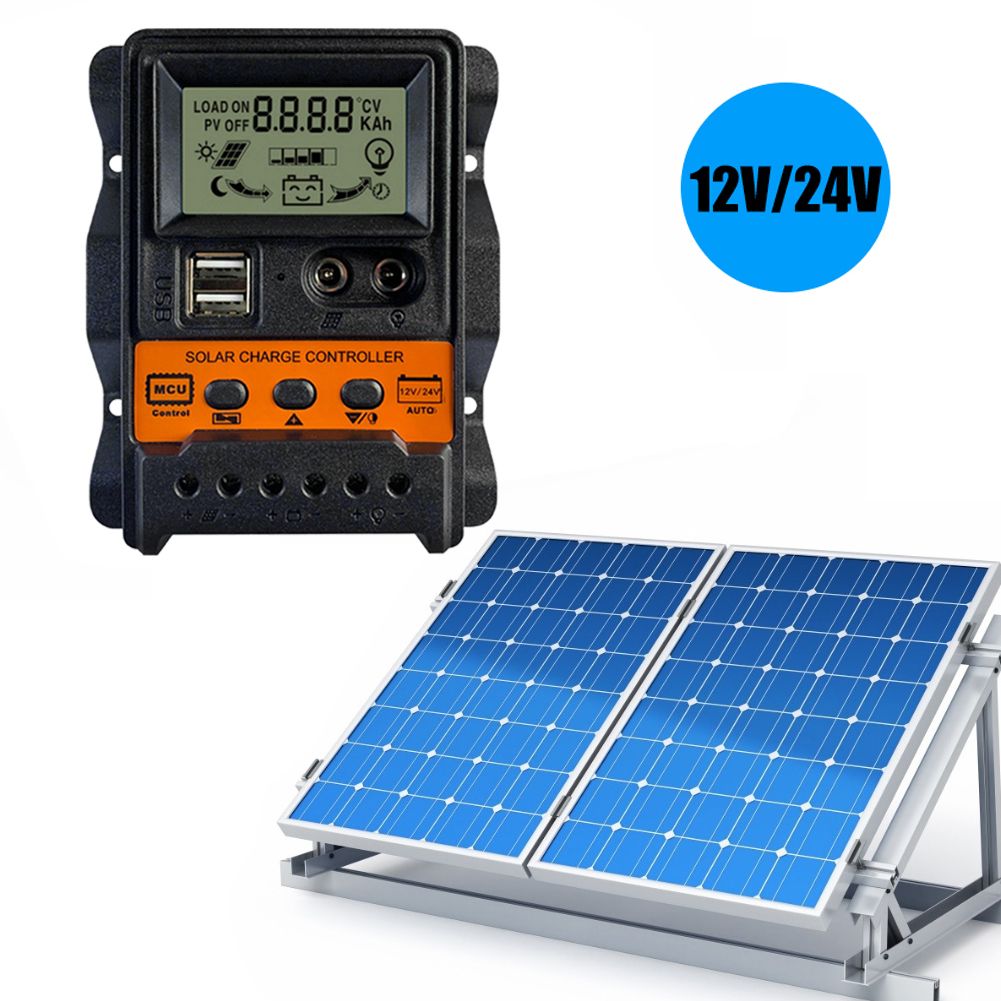

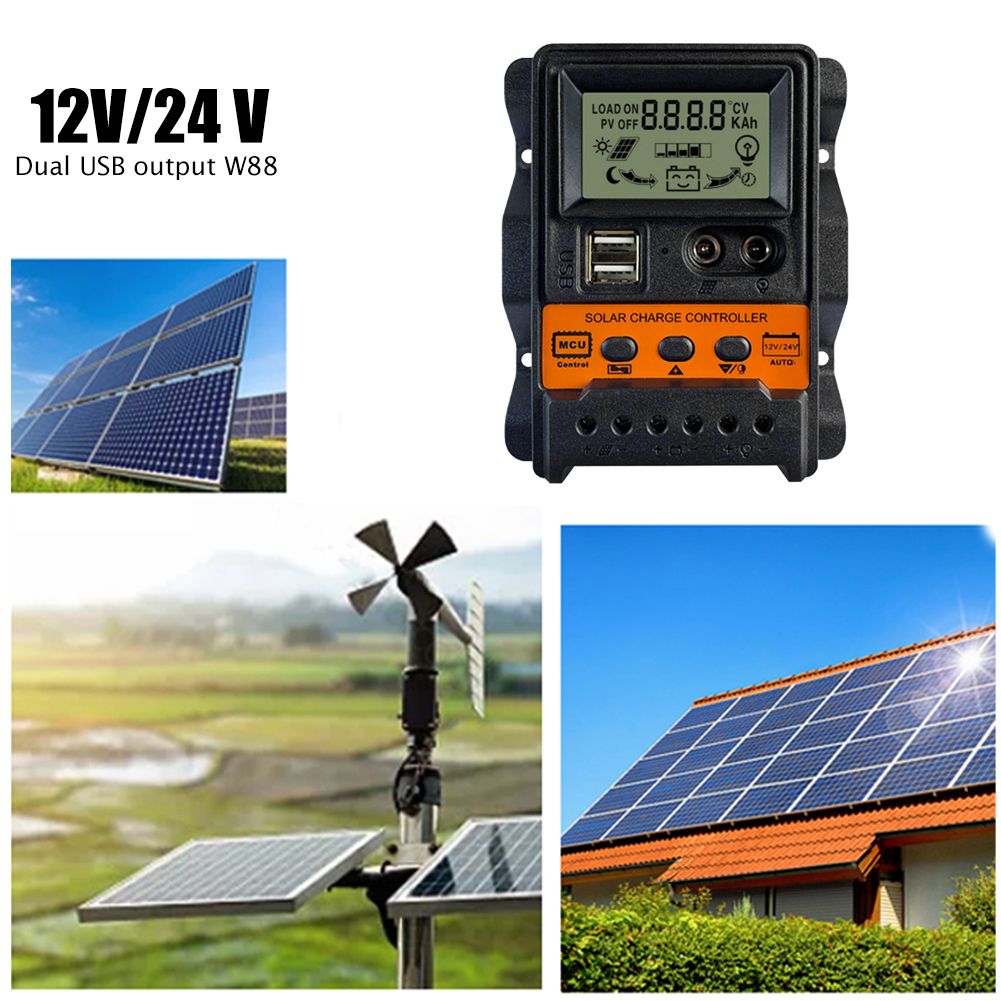

Dual USB LCD Display Solar Charge Controller 12V 24V Solar Panel Battery Controller Charger Regulator with Power-off Memory Function
Feature:
1. Adopt industrial-grade main control .
2. Large-screen LCD display; display of charging and discharging current; query of accumulated power generation and discharge; temperature display; light control + delay control; adjustable charging and discharging parameters; with functions such as power-off memory.
3. Dual USB output, maximum current up to 2.5A, support for iPhone charging.
4. Complete 3-stage charging management
5. Built-in over-current, short-circuit protection, open-circuit protection, reverse connection protection, all of which are self-healing and do not damage the controller.
6. Anti-backflow circuit, ultra-low heat generation
Specification:
Material: ABS + PC
System voltage: 12V24V automatic adaptation
Rated charging current (optional): 10A/20A/30A
Maximum photovoltaic voltage: 23V for 12V battery; 46V for 24V battery
Boost charging voltage: 14.4V
Floating voltage: 13.7V (default value, adjustable)
Discharge cut-off voltage: 10.7V (default value, adjustable)
Discharge recovery voltage: 126V (default value, adjustable)
Charging recovery voltage: 13V
Light-controlled turn-on threshold Photovoltaic panel: 8V (light-controlled turn-on has a delay)
USB output: 2 USB outputs, 5V/2.5A (maximum)
Standby current:
Key Features
Origin:CN(Origin)
Certification:NONE
Model Number:Solar
Application:Charger Controller
Application:Solar System Controller
Maximum Current:Solar
What's In the Box
1X 12V/24V Solar Controller MPPT 30A 20A 10A Solar Panel Battery Controller Dual USB LCD Display Solar Cell Panel Charger Regulator
