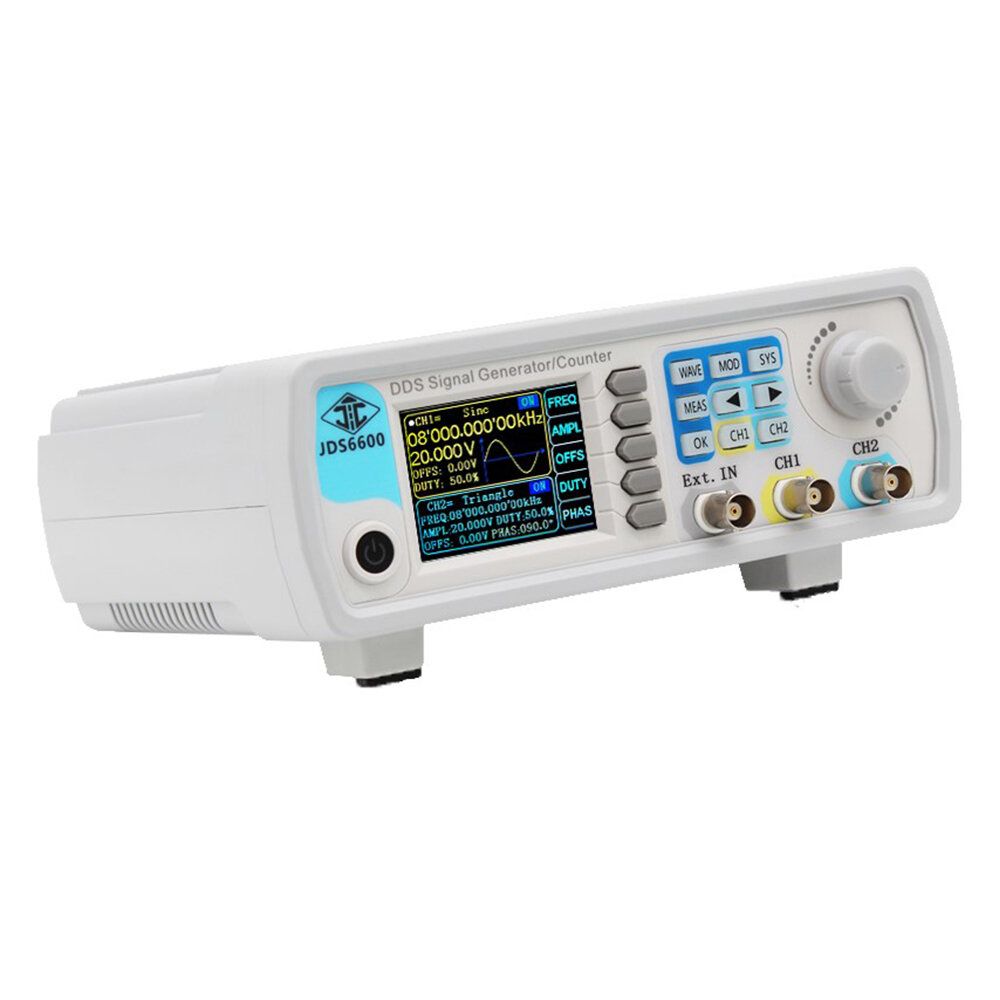

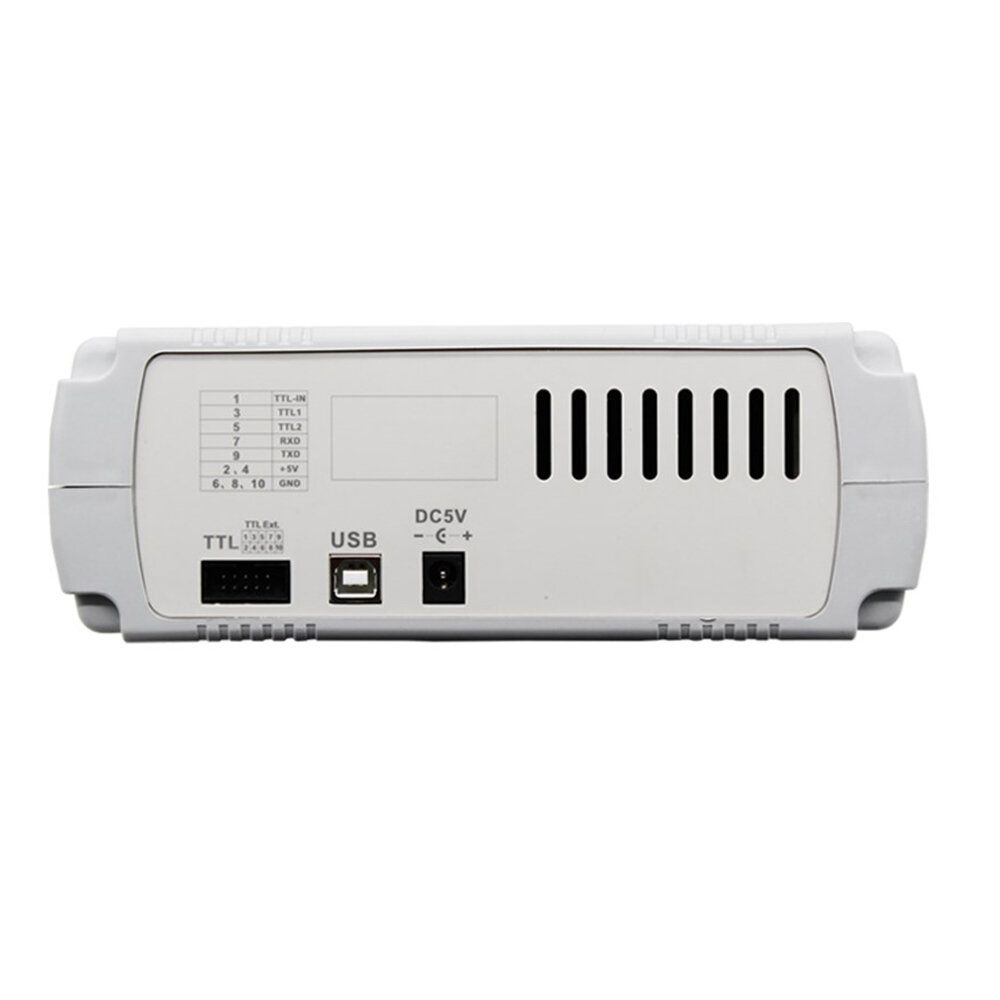

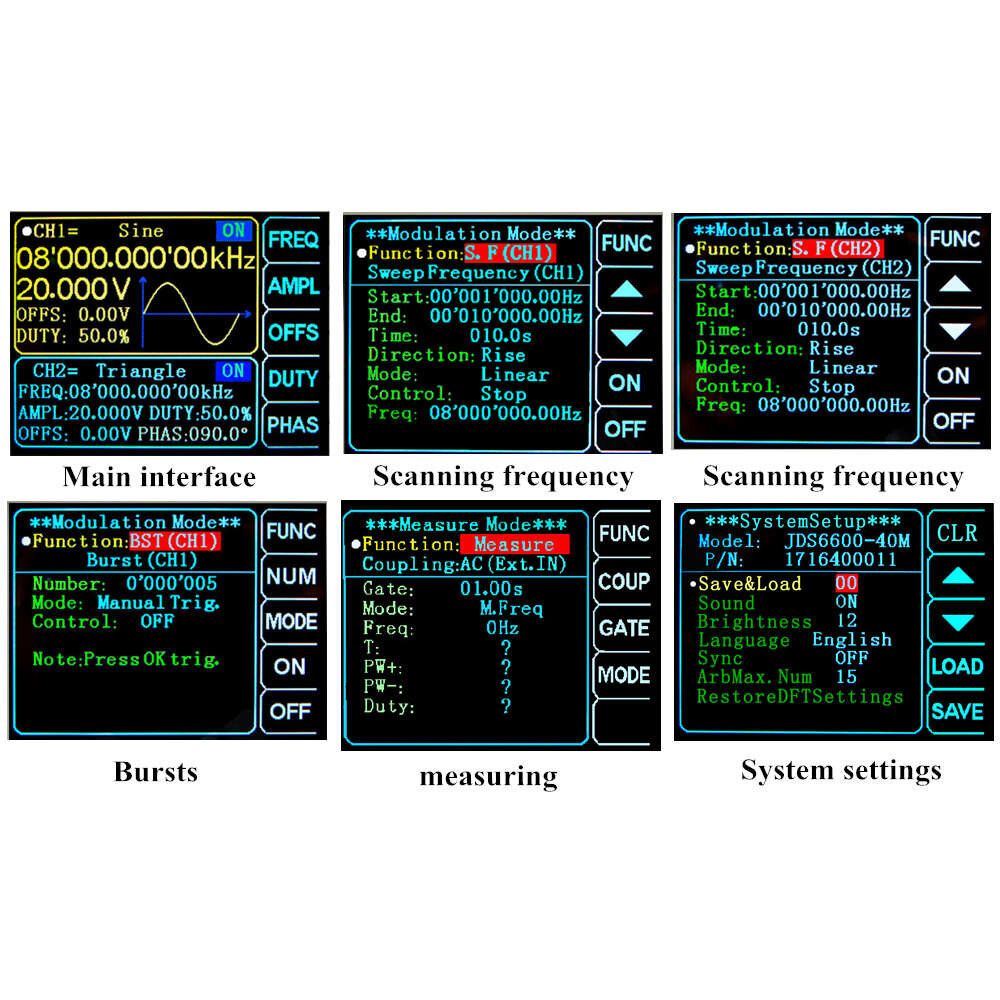

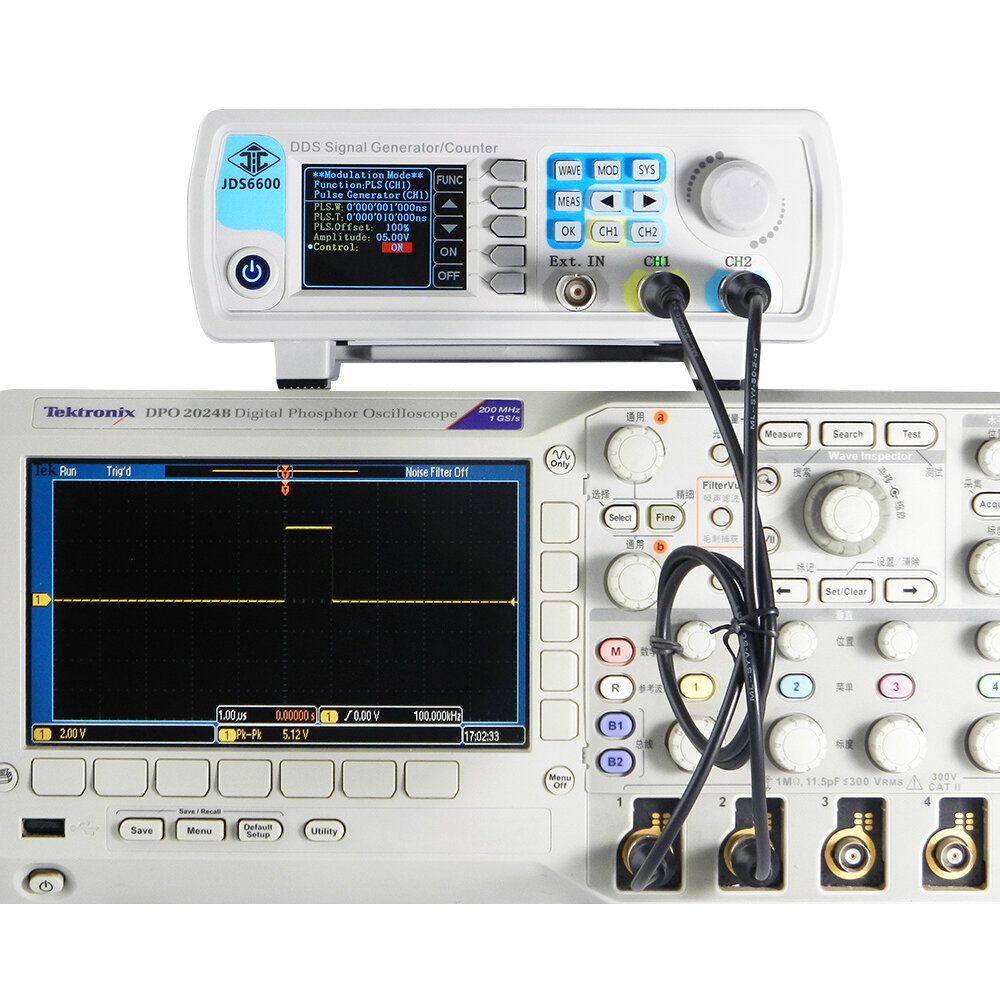

JDS6600 series DDS signal generator can generate sine wave, square waves, triangle wave, pulse wave, and arbitrary wave etc. The frequency will be up to 40MHz. And it has duty-cycle correction, amplitude modulation function and frequency sweep function, etc. It can show output signal, amplitude and frequency in the same time. This series has amplitude frequency characteristics, and the appearance is very delicate and beautiful. It can be applied in factories, schools, research institutes and laboratories. There are 5 models, JDS6600-60M, JDS6600-50M, JDS6600-40M, JDS6600-30M and JDS6600-15M. The main difference is the max output frequency of sin wave.

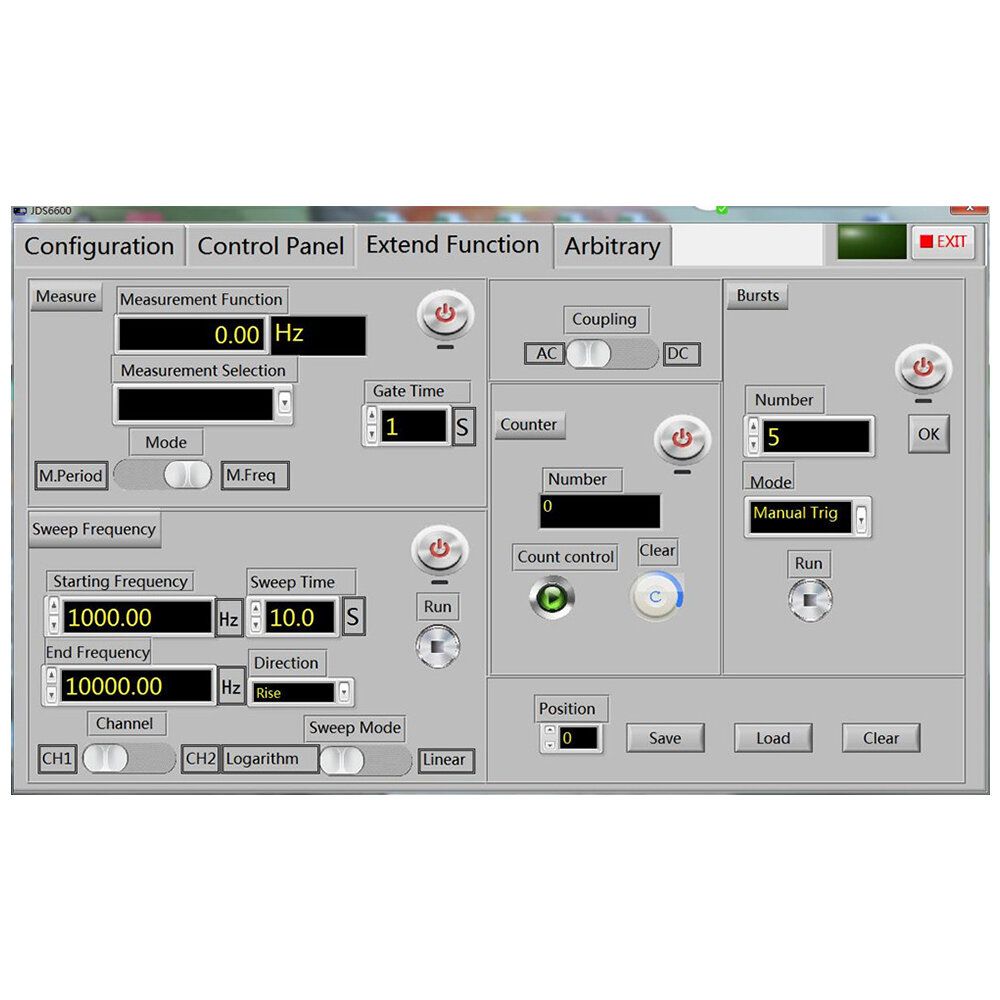

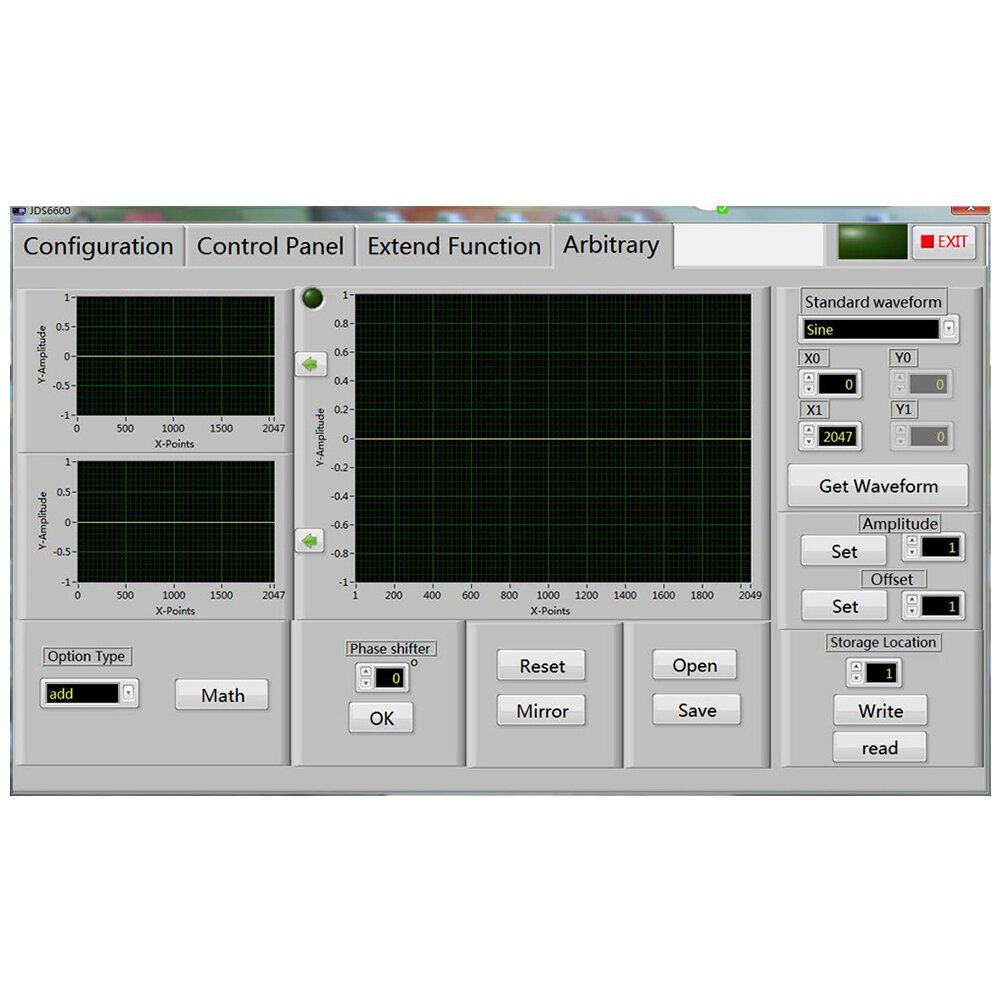

Manual is here!Protocol: Click here!
Frequency Characteristics
JDS6600-15M
JDS6600-30M
JDS6600-40M
JDS6600-50M
JDS6600-60M
Sine frequency range
0~15MHz
0~30MHz
0~40MHz
0~50MHz
0~60MHz
Square frequency range
0~15MHz
0~15MHz
0~15MHz
0~15MHz
0~15MHz
Triangle frequency range
Pulse frequency range
0~6MHz
0~6MHz
0~6MHz
0~6MHz
0~6MHz
CMOS/TTL digital frequency range
Arbitrary wave frequency range
Square rise time
le;30nS
le;25nS
le;20nS
le;20nS
le;20nS
Mininum Frequency resolution
0.01 mu;Hz(0.00000001Hz)
Frequency accuracy
plusmn;20ppm
Frequency stability
plusmn;1ppm/3h
Waveform Characteristics
Waveform
Sine, Square, Triangle, Pulse (duty-cycle correction),Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.
Waveform length
2048 points
Waveform sampling rate
JDS6600-15M
JDS6600-30M
JDS6600-40M
JDS6600-50M
JDS6600-60M
200MSa/s
266MSa/s
Waveform vertical resolution
12 bits
Sine
Harmonic suppression
ge;45dBc( lt;1MHz); ge;40dBc(1MHz~20MHz)
Total harmonic distortion
lt;0.8%(20Hz~20kHz,0dBm)
Square and Pulse
Overshoot (Square)
le;5%
Duty-cycle range(Pulse)
0.1%~99.9%
Ramp wave
Linearity
ge;98%(0.01Hz~10kHz)
Output Characteristics
Amplitude range
JDS6600-15M
JDS6600-30M
JDS6600-40M
JDS6600-50M
JDS6600-60M
le;10MHz:2mVpp~20Vpp
le;15MHZ:2mVpp~10Vpp
le;10MHz:2mVpp~20Vpp
le;30MHZ:2mVpp~10Vpp
le;10MHz:2mVpp~20Vpp
le;30MHZ:2mVpp~10Vpp le;60MHZ:2mVpp~5Vpp
Amplitude resolution
1mV
Amplitude stability
plusmn;0.5%/5 h
Amplitude flatness
plusmn;5%( lt;10MHz); plusmn;10%( gt;10MHz)
Waveform Output
Output impedance
50 Omega; plusmn;10%(typical)
Protection
All the signal output termianl can be shorted within 60s
DC counteract
counteract adjusting range
Output Amplitude gt;2V
0.2V
0
-9.99V~9.99V
-2.5V~2.5V
-0.25V~0.25V
counteract resolution
0.01 V
Phase characteristics
Phase adjusting range
0~359.9 deg;
Phase resolution
0.1 deg;
TTL/COMS Output
Low level
lt;0.3V
High level
1V~10V
Level rise/fall time
le;20ns
External Measurement Function
Frequency meter function
Frequency measurement range
