Features:

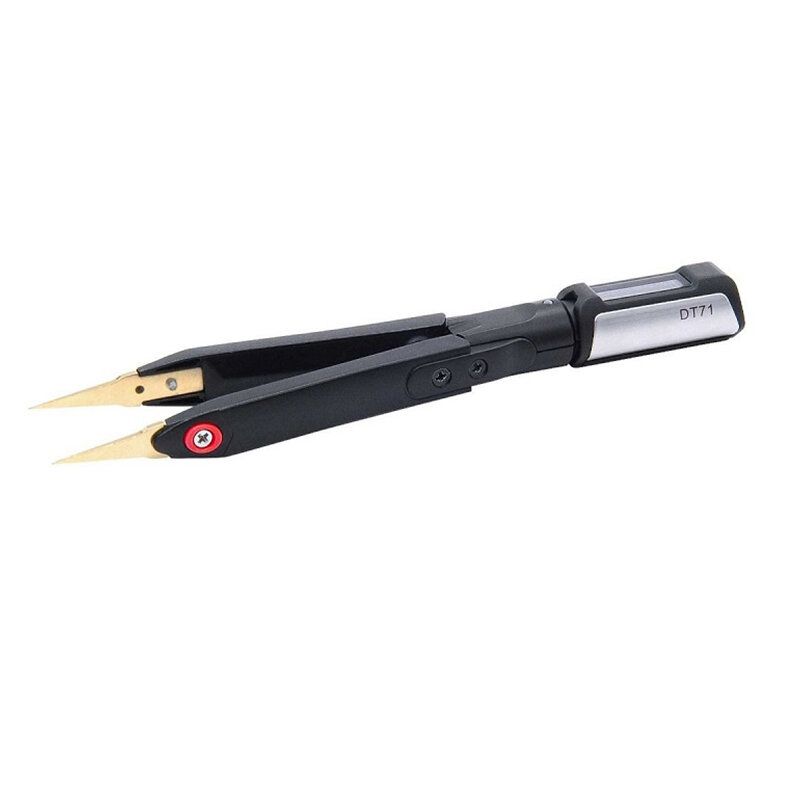

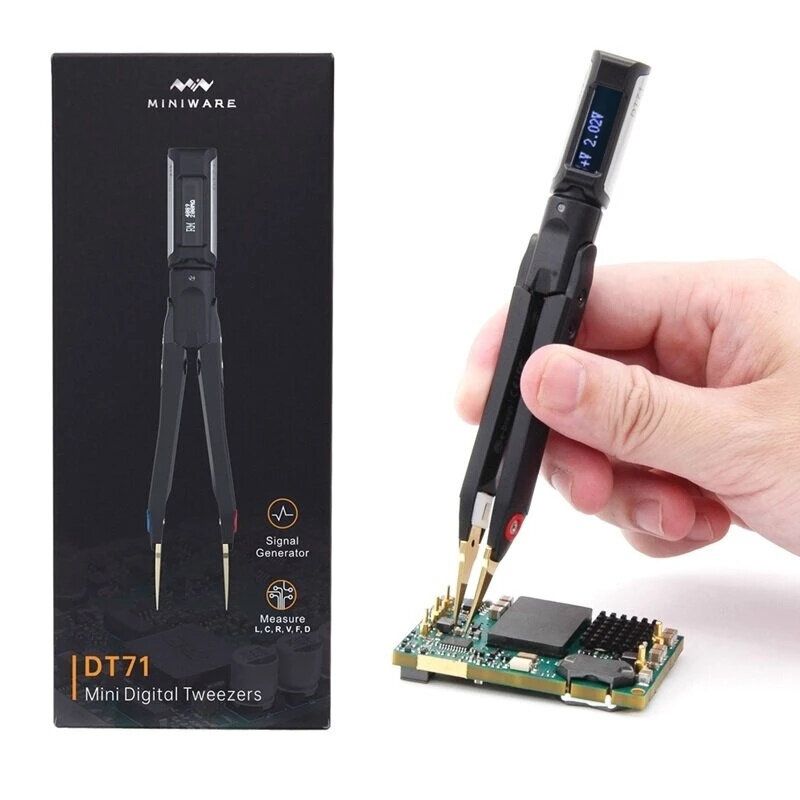

DT71 Mini Digital Tweezers is a tool for multi-function measurements with full differential input measurement. DT71 has a unique trinary structure, which can be separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined.

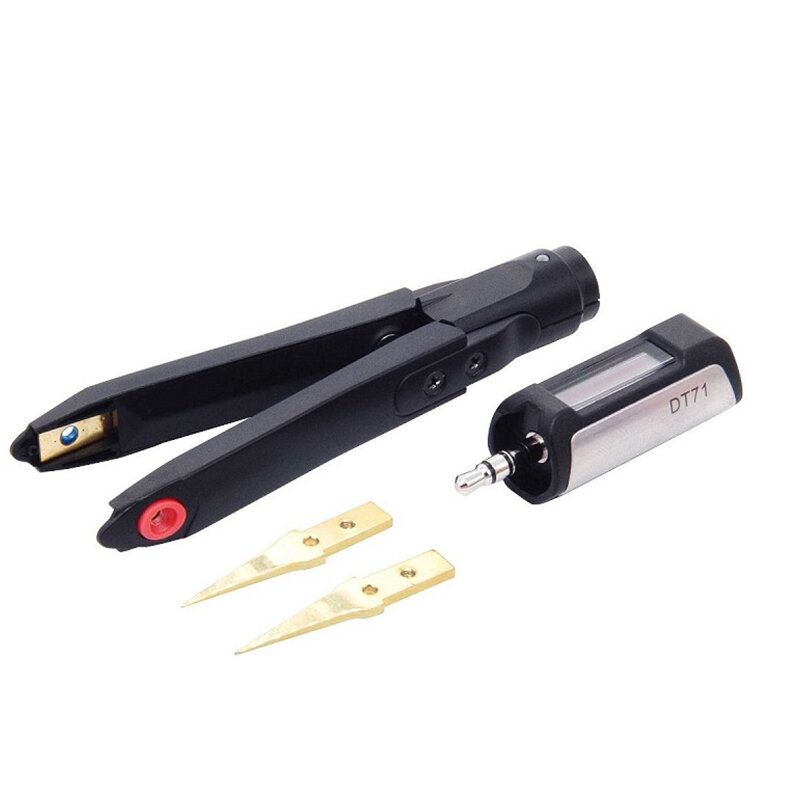

Innovative trinary structure: separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined.
360 deg; rotatable controller with OLED screen, with good viewing angles.
Smart gesture recognition with automatic identification of left/right-hand operation and adjusting the screen orientation accordingly.
Hidden touch button on top of the controller, which makes it easy to operate with only a light touch.
Test arms use magnetic elasticity to provide an easy clipping, ergonomic, and long-lasting structure.
Built-in dual lithium batteries in test arms, balancing both arms and providing a longer standby time.
Several kinds of gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages.
Automatically identify SMDs including resistor, capacitor, inductor, and diode, showing both main and secondary parameters.
A built-in signal generator can output a variety of waveform signals.
Specification:
Product Specifications
Operation time
10 hrs (in continuous operation)
Charging time
2 hrs
Display
96*16 OLED
Size
Controller
47mm
Test Arms
106mm
Weight
22g
Operation
Hidden touch button
Measurement Specifications
Range
Resolution
Accuracy
Resistance
0.1 Omega;~1K Omega;
0.1 Omega;
0.5%+2
1K Omega;~2000K Omega;
1K Omega;
0.5%+2
Capacitance
0.1pF~1000pF
0.1pF
2%+3
0.001uF~400uF
0.001uF
2%+3
Inductance
1uH~1000uH
1uH
5%+3
1mH~50mH
1mH
5%+3
Voltage
1mV~100mV
1mV
2%+5
0.1V~40V
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
